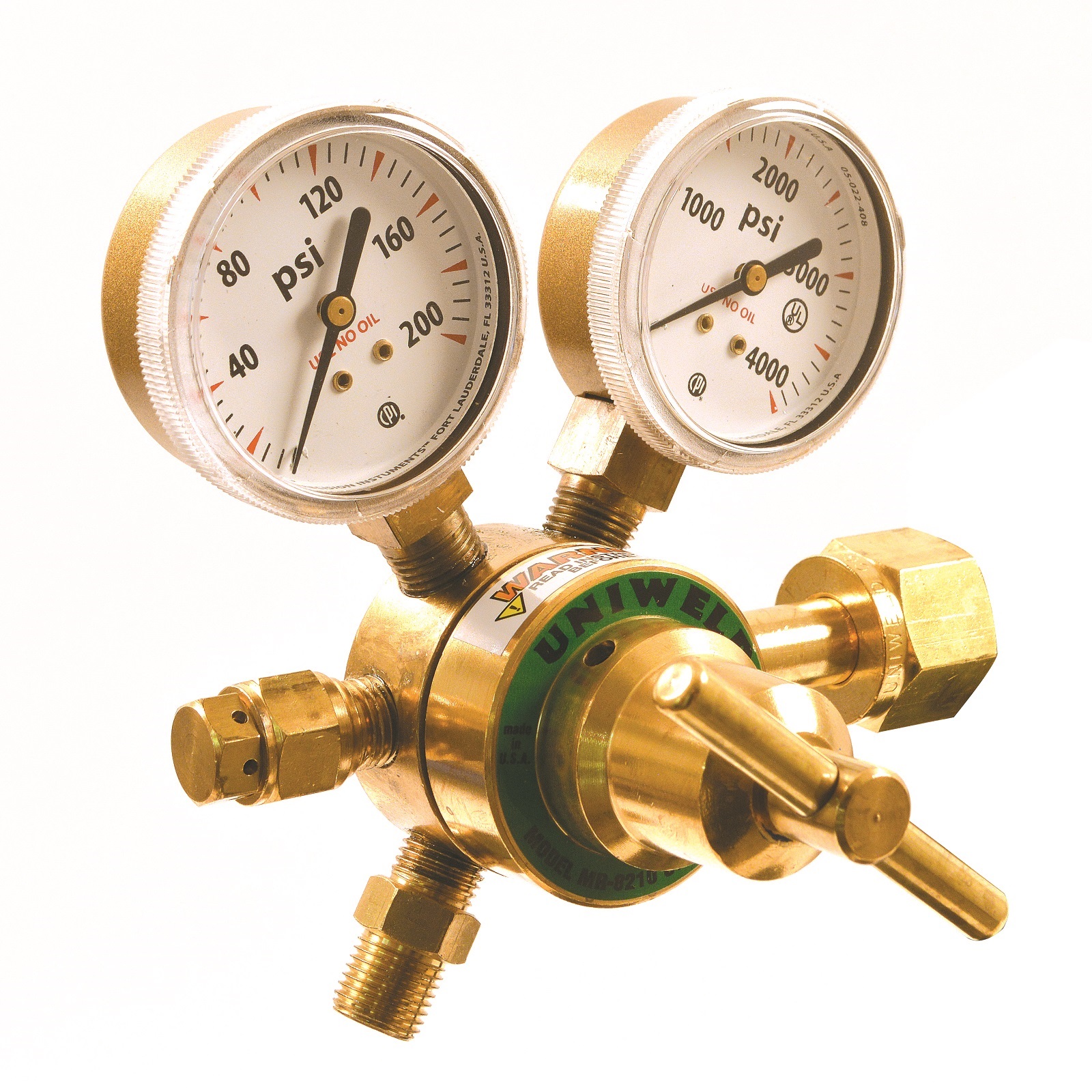

MR82 Series

Uniweld’s MR82 Regulators feature:

• Machined brass body & bonnet
• Easy-to-read single scale 2″ gauges
• 1⅝” tri-layered reinforced neoprene diaphragm
• Mechanical stem type seat
• T-handle for smooth flow adjustment
• Porous bronze inlet filter
• Fine mesh filter screen between inlet and seat
• Pressure relief device for low pressure gauge protection only.

**Different Pressure Scales & Inlet Connections Available Upon Request**

Category: Tags: , , , ,

Product Information

Part # CGA Inlet Outlet Connection Delivery PSIG 2″ Replacement Gauges
MR8210 Oxygen 540 “B” (RH) 9/16″-18 (M) 5-80 G4S; 200 PSI

G7S; 4000 PSI

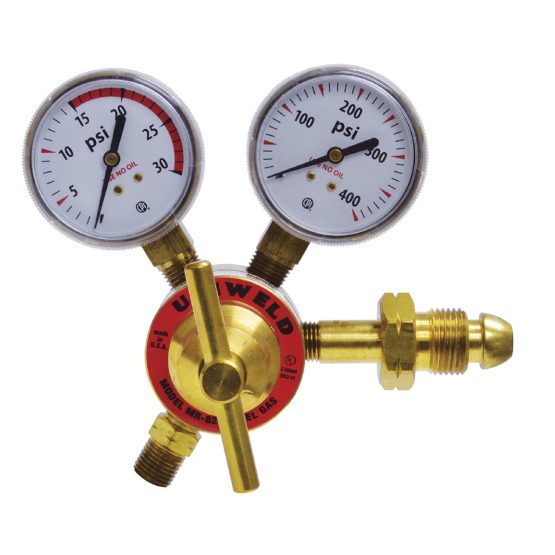

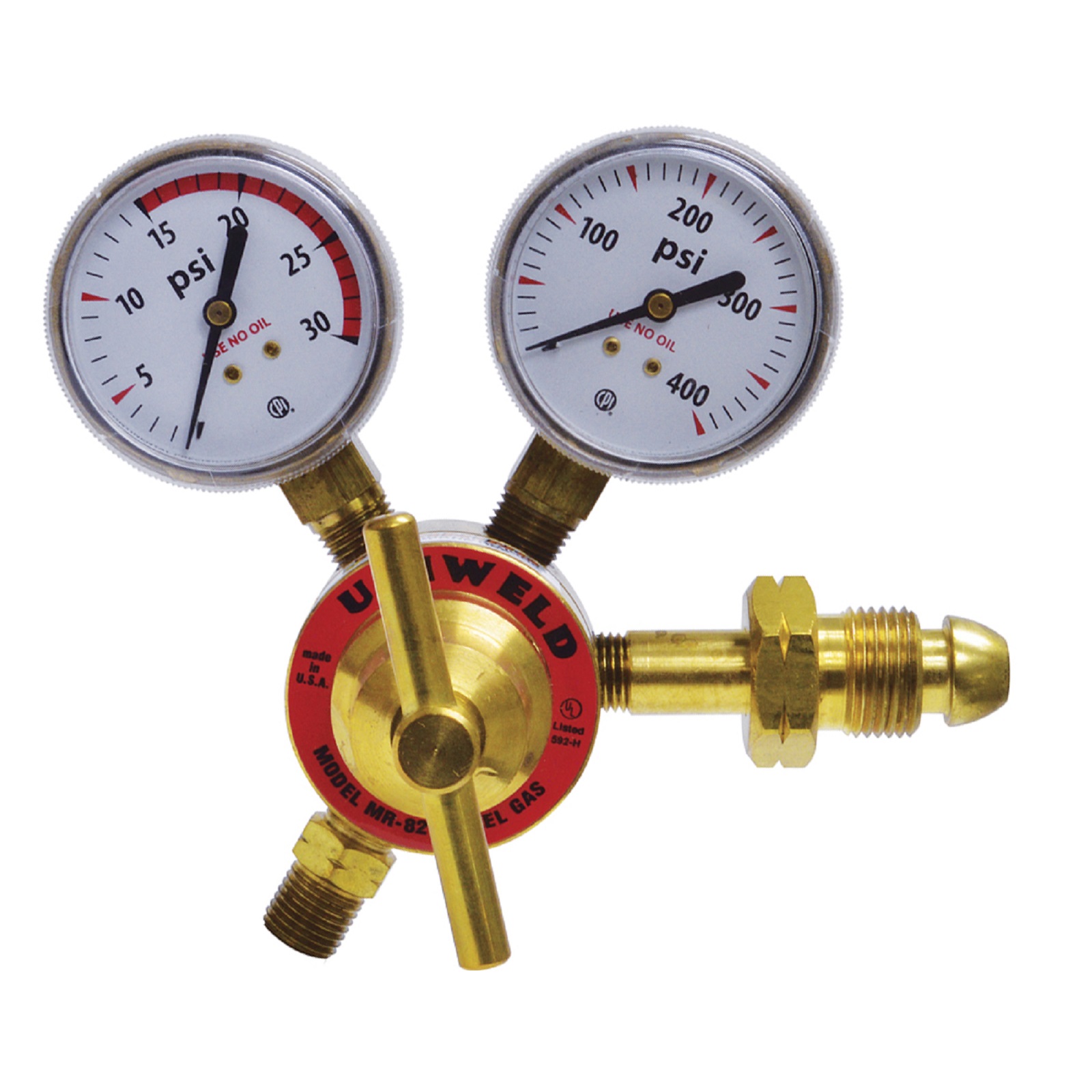

MR8211 Acetylene 510 “B” (LH) 9/16″-18 (M) 2-15 G2S; 30 PSI

G1S; 400 PSI
MR8211-1 Acetylene 300 “B” (LH) 9/16″-18 (M) 2-15 G2S; 30 PSI

G1S; 400 PSI
MR8211-2 Acetylene 250 “B” (LH) 9/16″-18 (M) 2-15 G2S; 30 PSI

G1S; 400 PSI
MR8212 LPG & All Fuel Gases 510 “B” (LH) 9/16″-18 (M) 2-40 G5S; 60 PSI

G1S; 400 PSI



Regulator Set

Part # Oxygen Regulator Acetylene Regulator
KMR82 MR8210 MR8211
