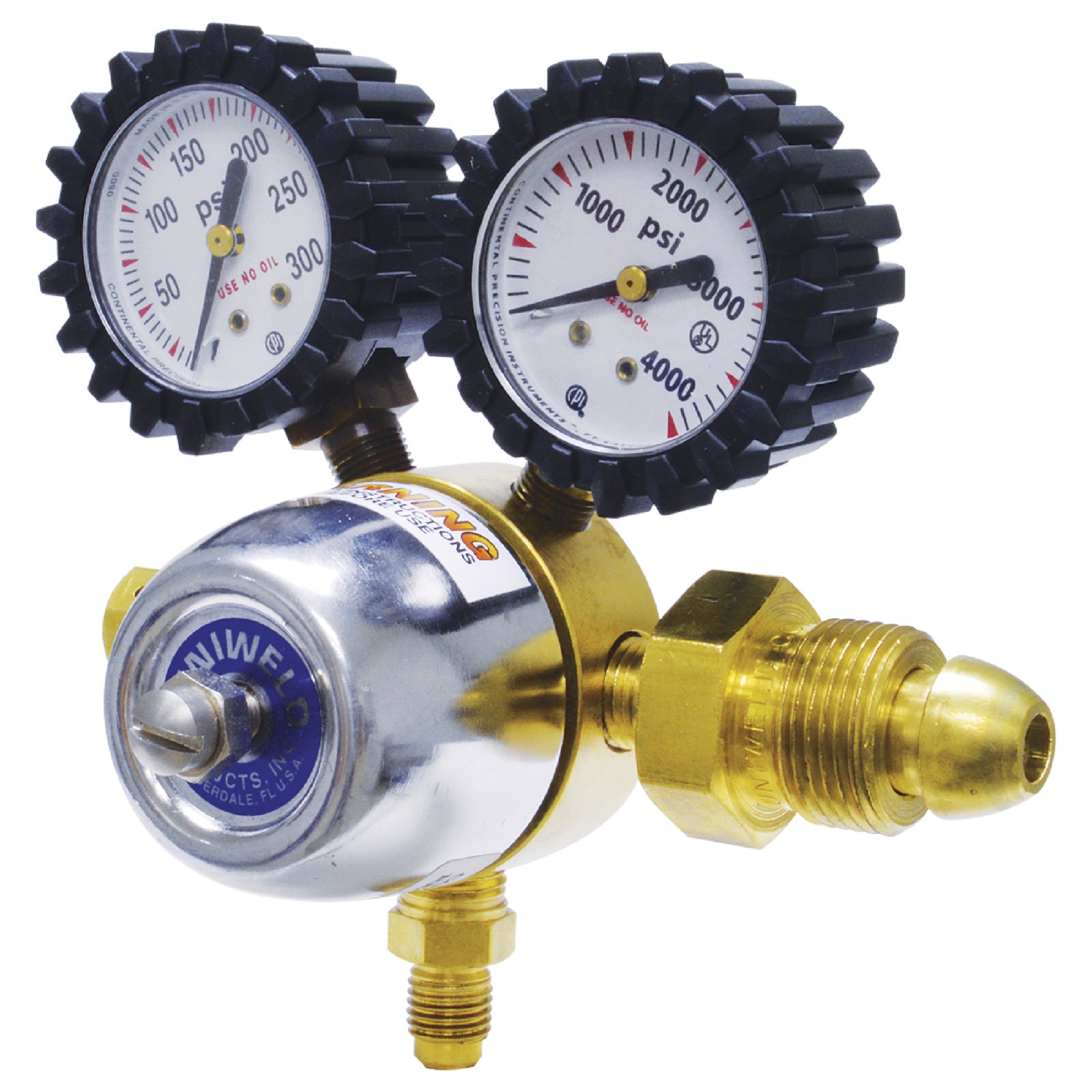

R1500 Series

R1500 Series
A compact proven design for soft drink dispencing systems (Not Beer) and for many types of pressurizing applications. Features include an adjustable pressure screw with locking nut and a self-reseating relief valve (not designed to protect downstream systems).



Note: Nitrogen Regulators can also be used for CO2 when using the F36 Adaptor (not included, sold separately).

Category: Tags: , , , , , , ,

Product Information

Part # CGA Inlet Outlet Connection Gauge Gauge(s) Delivery Delivery PSIG Gas Type
R1546 CGA580 1/4” SAE Flare (M) Single (1-1/2″) G83: 60 2-50 Nitrogen, (CO2; with F36 Adaptor**)
R1549 CGA580 1/4” SAE Flare (M) Single (1-1/2″) G84: 300 2-175 Nitrogen, (CO2; with F36 Adaptor**)
R1558 CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G20: 15 / G82: 4000 2-12 Nitrogen, (CO2; with F36 Adaptor**)
R1560* CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G83: 60 / G82: 4000 2-50 Nitrogen, (CO2; with F36 Adaptor**)
R1562* CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G78: 200 / G82: 4000 5-120 Nitrogen, (CO2; with F36 Adaptor**)
R1563* CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G84: 300 / G82: 4000 5-175 Nitrogen, (CO2; with F36 Adaptor**)

*Gauges shipped with protective boots.
**F36 Adaptor not included, sold separately.

Additional information

Nitrogen to CO2 Adaptor:

F36 Adaptor (CGA320 to CGA580)
