Uniweld’s MegaReg is a High Flow Oxygen Regulators feature:
• CGA540 Inlet Connection
• Machined Brass Body
• Polished Chrome Bonnet
• Easy-to-read single scale 2.5″ gauges
• 2½” tri-layered reinforced neoprene diaphragm
• Heavy Duty mechanical stem type seat and nozzle assembly
• Delrin bushing for smooth flow adjustment
• Porous metal inlet filter
• Fine mesh fliter screen between inlet and seat
• Pressure relief device for low pressure gauge protection only.
**Different Pressure Scales & Inlet Connections Available Upon Request**
| Part # | CGA Inlet | Outlet Connection | Delivery PSIG | Replacement 2-1/2″ Gauges |
|---|---|---|---|---|

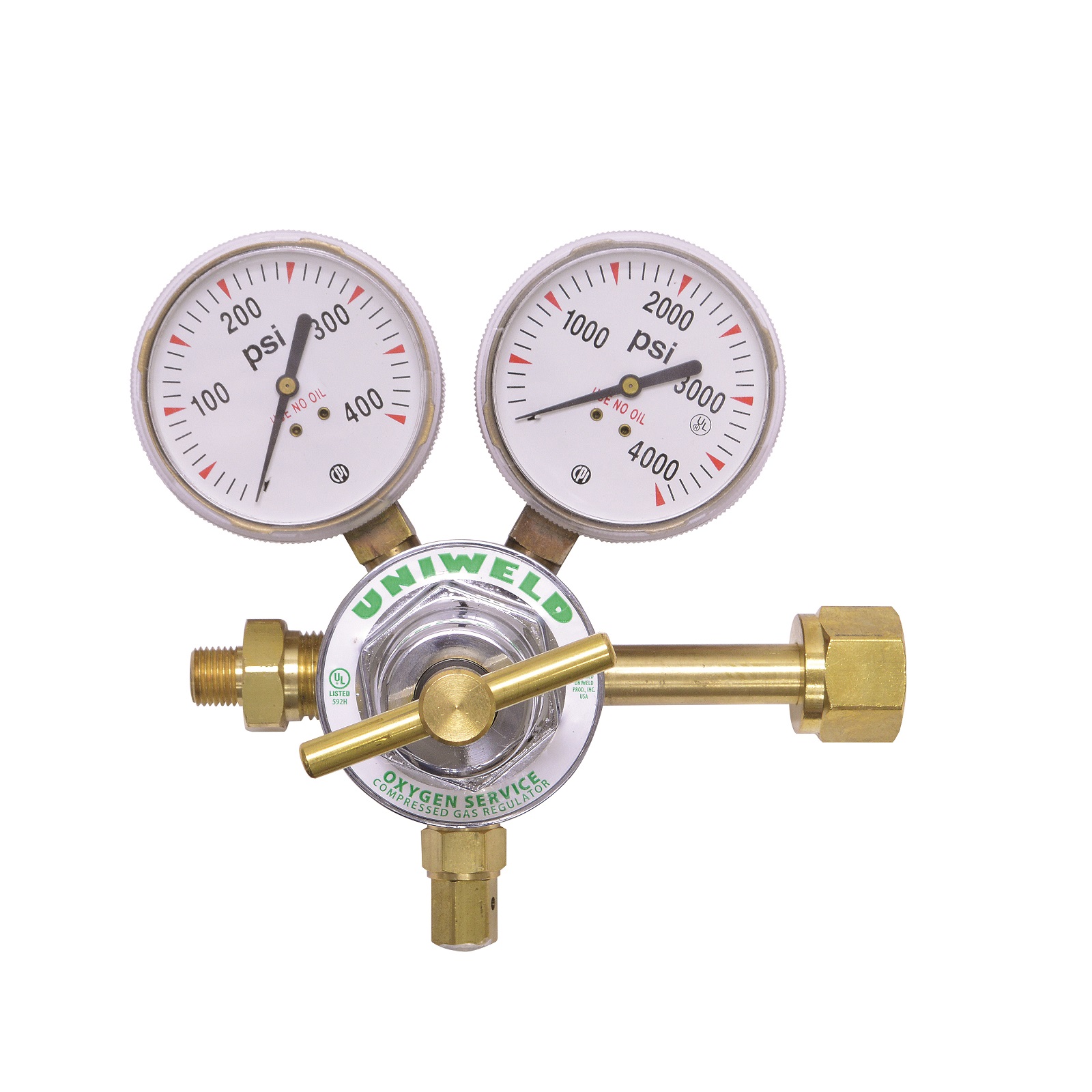

| MGR250B | CGA540 | “B” (RH) 9/16″-18 (M) | 10-250 | G21S; 400 PSI | G27S; 4000 PSI |
| MGR250C | CGA540 | “C” (RH) 7/8″-14 (M) | 10-250 | G21S; 400 PSI | G27S; 4000 PSI |
| MGR500B | CGA540 | ‘B” (RH) 9/16″-18 (M) | 20-500 | G28S; 600 PSI | G27S; 4000 PSI |

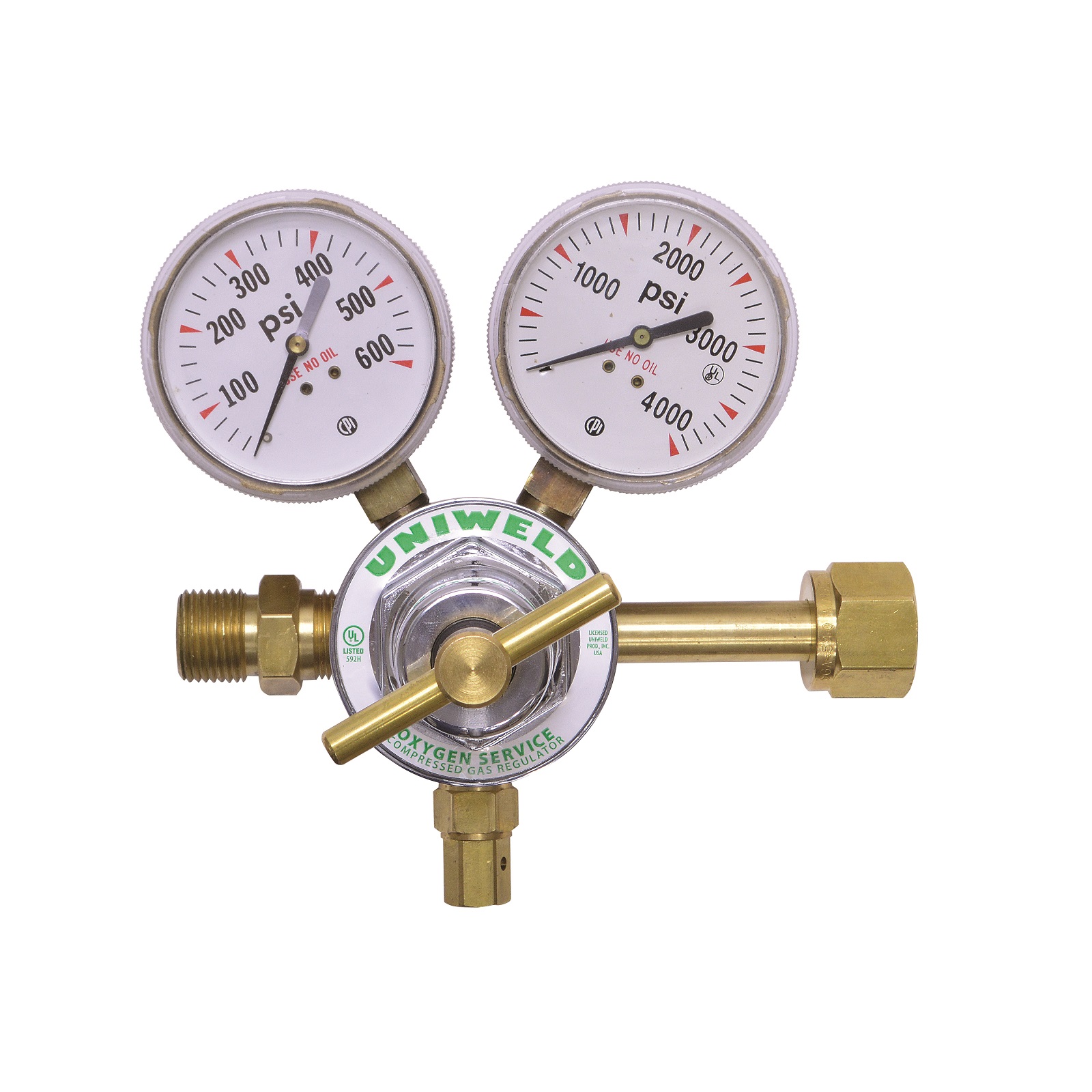

| MGR500C | CGA540 | “C” (RH) 7/8″-14 (M) | 20-500 | G28S; 600 PSI | G27S; 4000 PSI |
