Vacuum Pumps

HUMM-VAC®
Uniweld’s exclusive HUMM-VAC® Pumps remove moisture and dehydrate a system quickly and efficiently. The all-metal, heavy duty chassis; powerful, quiet running dual voltage motor; lighter weight and ergonomically designed features make these pumps the #1 choice to go to work with you.

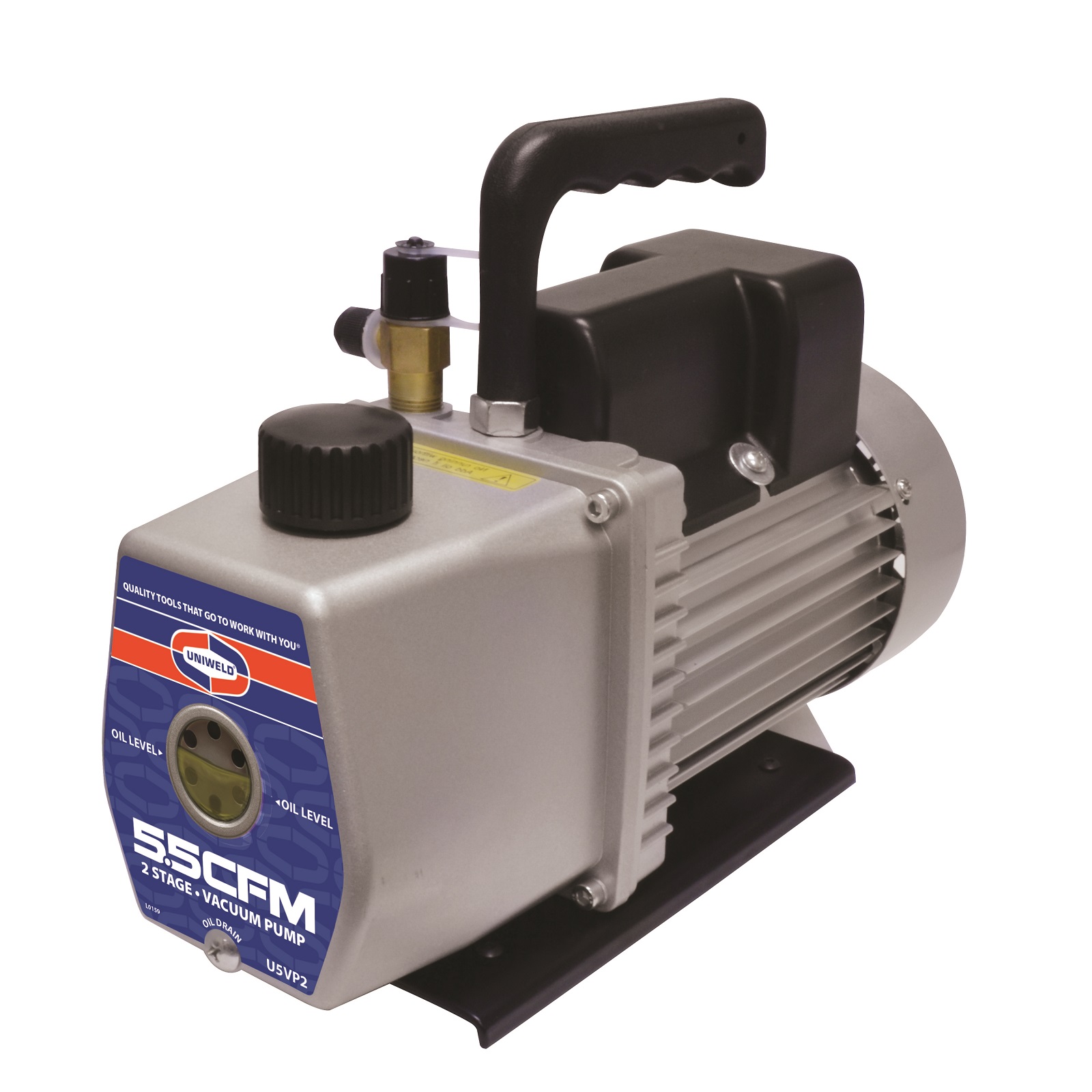

U5VP2 Vacuum Pump
The high-performance U5VP2 Vacuum Pump brings the latest in vacuum pump technology and has been designed to provide long term reliable service. The 5.5 CFM two stage vacuum pump is built for deep vacuum service on appliances, residential A/C and commercial refrigeration systems.

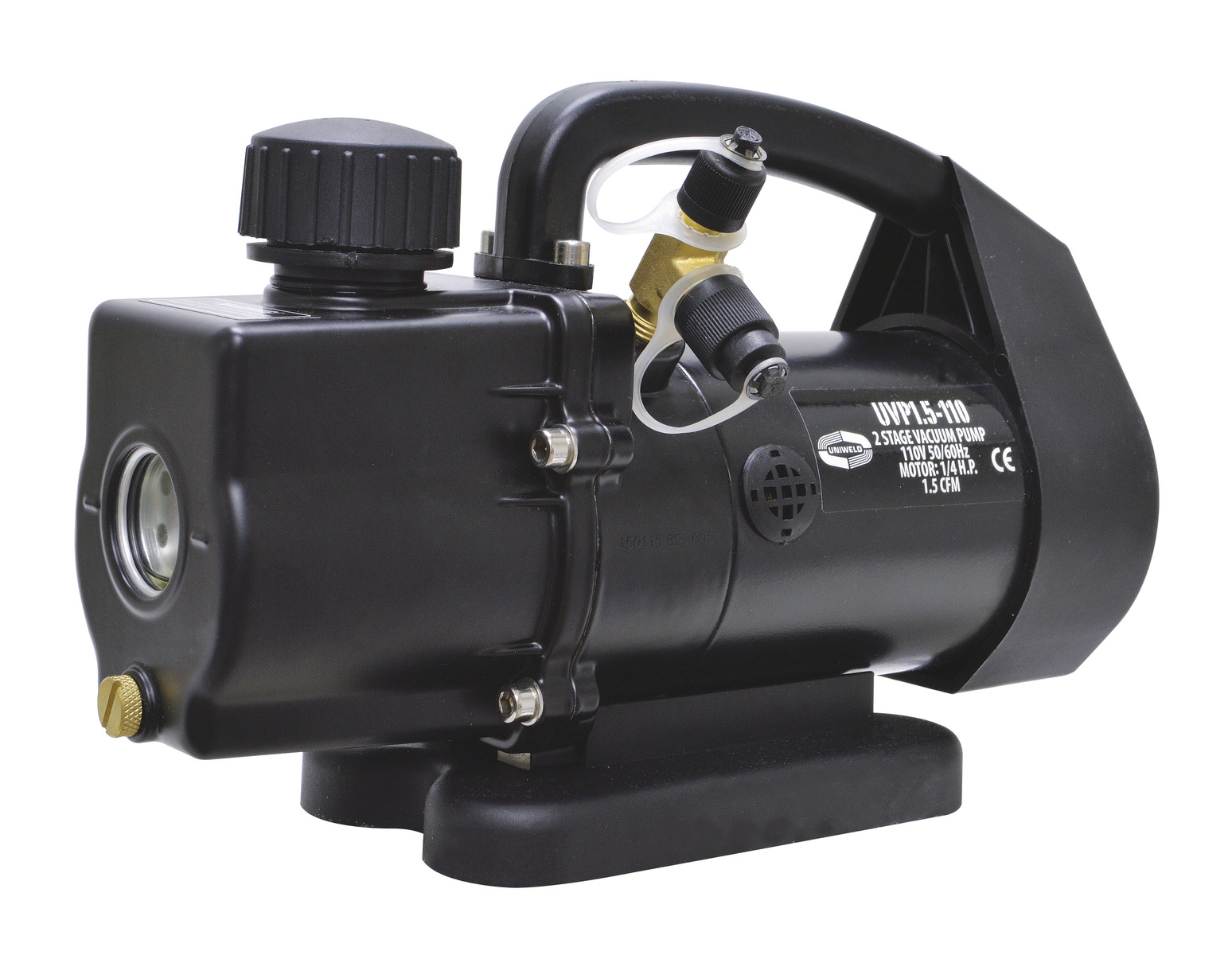

Ductless Mini-Split 1.5 CFM Vacuum Pump
The UVP1.5 (1.5CFM) pump is built for deep vacuum service on Ductless Mini-Splits and Automotive A/C Systems. A reliable mini-pump providing the latest in vacuum pump technology.

Categories: ,

Product Information

Part

#

 Free

Air

Displacement

CFM [L/Min]

 Number of

Stages

 Factory

Micron

Rating

 Intake

Fittings

[SAE]

 Motor

H.P.

 Voltage Power Cord Oil

Capacity

 Dimensions

Inches [cm]

LxWxH

 Weight

Lbs. [Kg]

Net

 Weight

Lbs. [Kg]

Shipping

 Color
UVP1.5-110 1.43 [40.5] 2-Stage Rotary Vane 38 1/4″ Male Flare & 1/2″ Acme 1/4 110V 50/60Hz 72″ [1.83m], U.S. Type B Plug 4.7 Oz. [140 ml] 10.23 x 3.5 x 6.4
[26 x 9 x 16.5]		 10 [4.5] 14 [6.3] Black
UVP1.5-220 1.43 [40.5] 2-Stage Rotary Vane 38 1/4″ Male Flare & 1/2″ Acme 1/4 220V 50/60Hz 72″ [1.83m], Europe- Type F 4.7 Oz. [140 ml] 10.23 x 3.5 x 6.4
[26 x 9 x 16.5]		 10 [4.5] 14 [6.3] Black
U5VP2 5.5 [155] 2-Stage Rotary Vane 15 1/4″ & 3/8″ Male Flare 1/2 110/220V-50/60Hz 72″ [1.83m] 11.1 Oz. [350 ml] 12.5 x 4 x 9.5
[32.5 x 10 x 24]		 20 [9.1] 22.2 [10.8] Gray

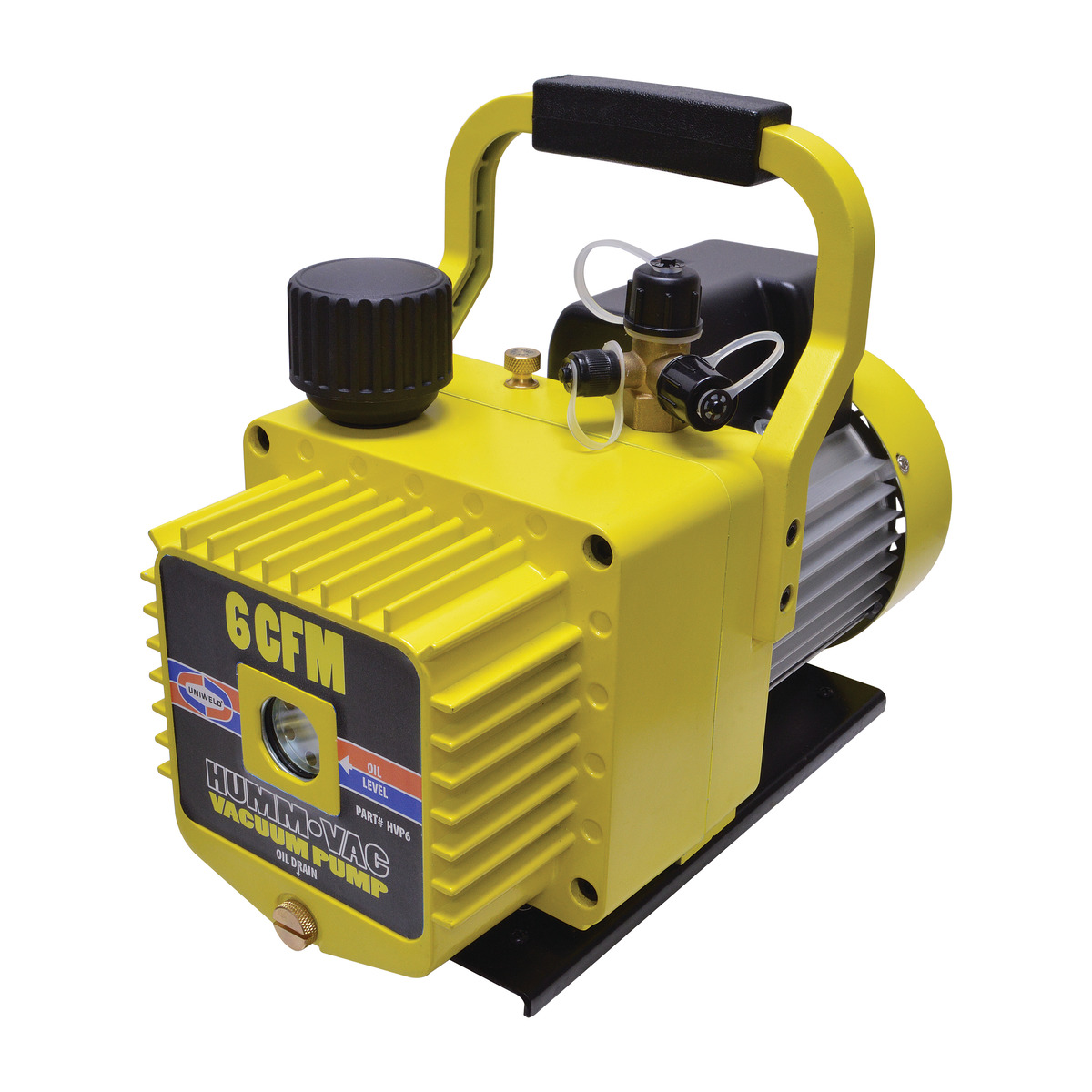

HVP6 6.0 CFM, 170 liter/min 2-Stage Rotary Vane 15 1/4″, 3/8″ & 1/2″ Male Flare 1/2 HP 110/220V-50/60Hz 72″ [1.83m], U.S. Type B Plug* 27.1 [800 ml] 13.65 x 6.82 x 10.3
[34.66 x 17.32 x 26.15]		 26.7 [12.1] 29.3 [13.3] Yellow

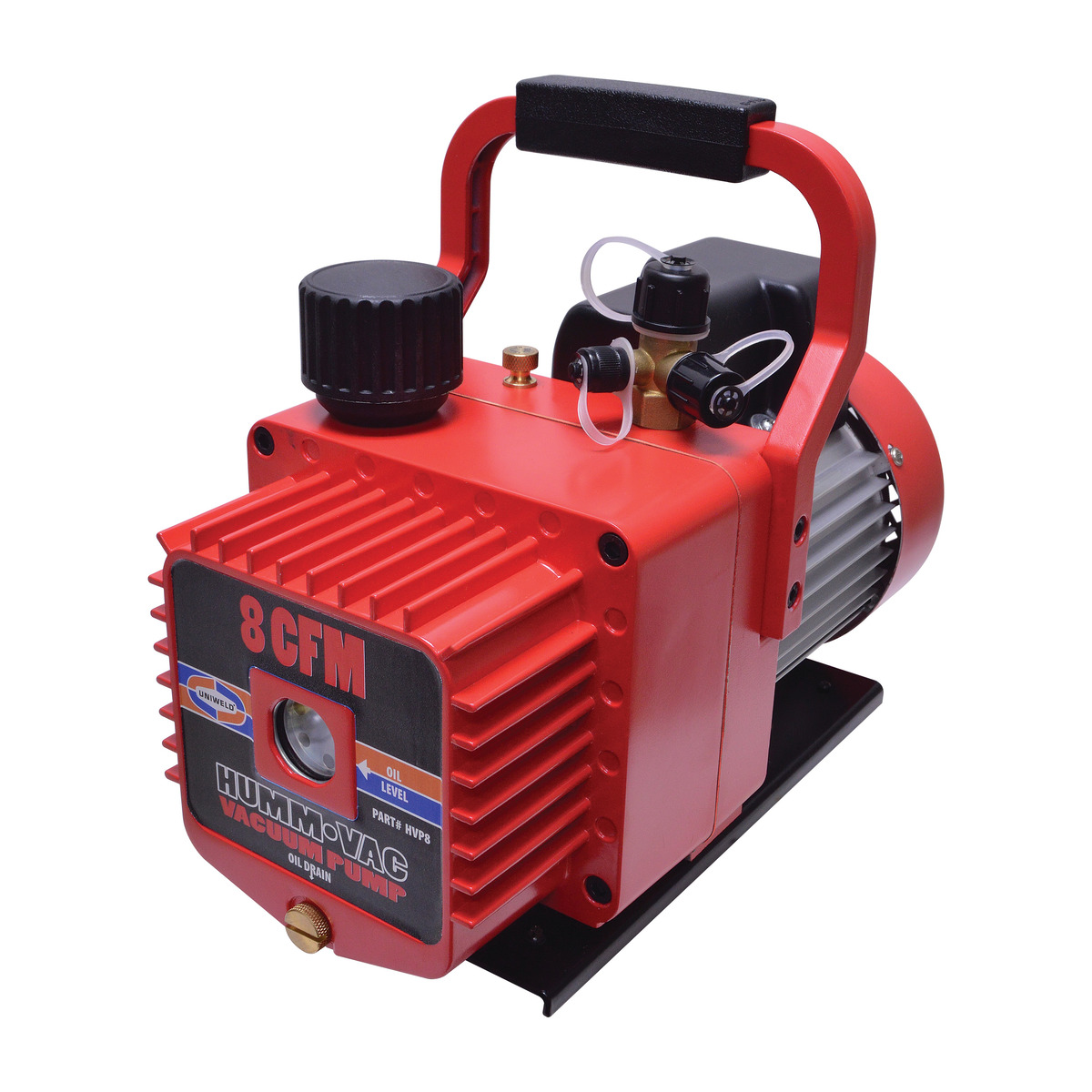

HVP8 8.0 CFM, 226 liter/min 2-Stage Rotary Vane 15 1/4″, 3/8″ & 1/2″ Male Flare 3/4 HP 110/220V-50/60Hz 72″ [1.83m], U.S. Type B Plug* 25 Oz. [740 ml] 13.65 x 6.82 x 10.3
[34.66 x 17.32 x 26.15]		 30.2 [13.7] 32.8 [14.9] Red

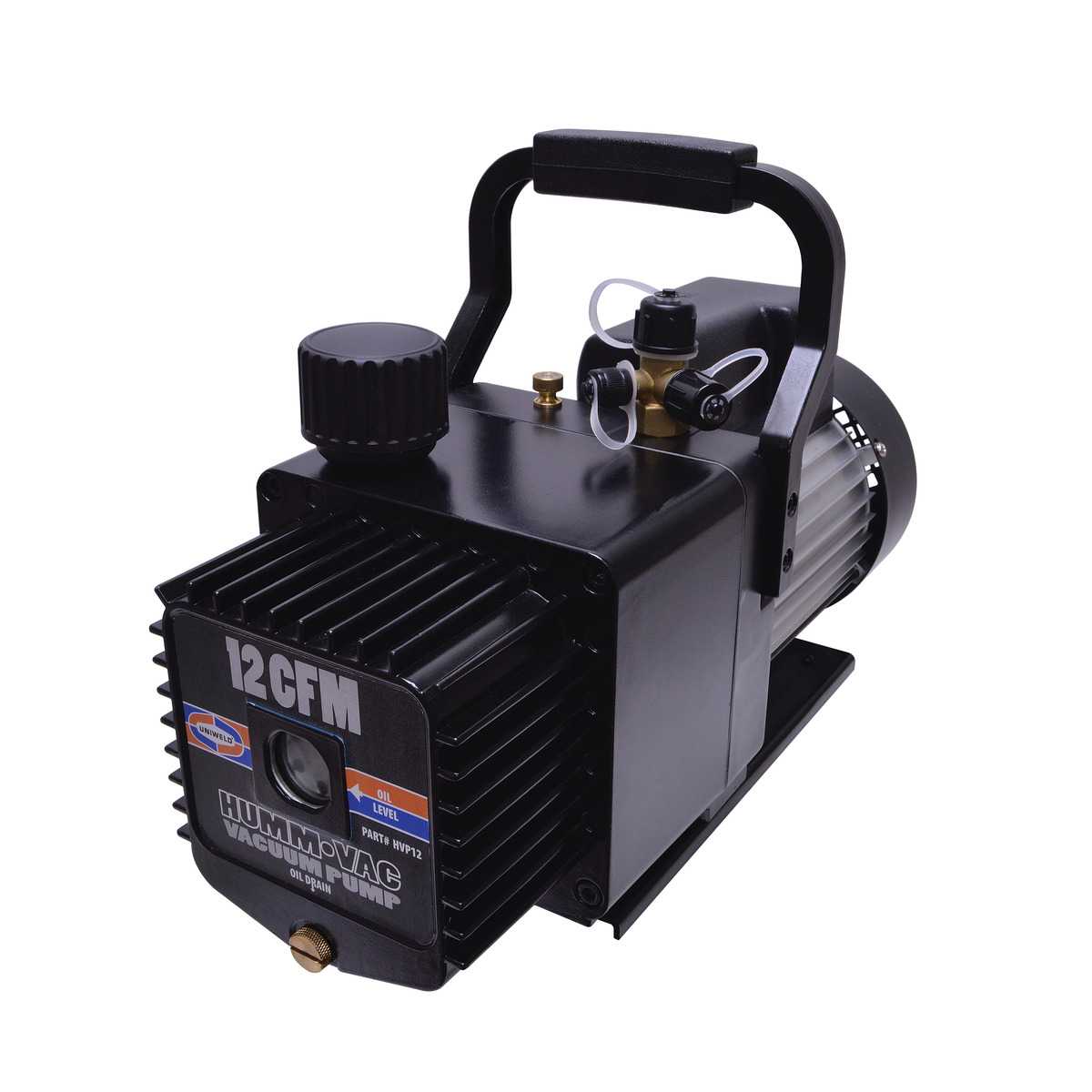

HVP12 12.0 CFM 340 liter/min 2-Stage Rotary Vane 15 1/4″, 3/8″ & 1/2″ Male Flare 1 HP 110/220V-50/60Hz 72″ [1.83m], U.S. Type B Plug* 33.8 Oz. [1,000 ml] 16.99 x 6.82 x 10.86
[43.15 x 17.32 x 27.58]		 38.6 [15.88] 41.7 [18.9] Black

*Optional International Power Cord Available on Request
