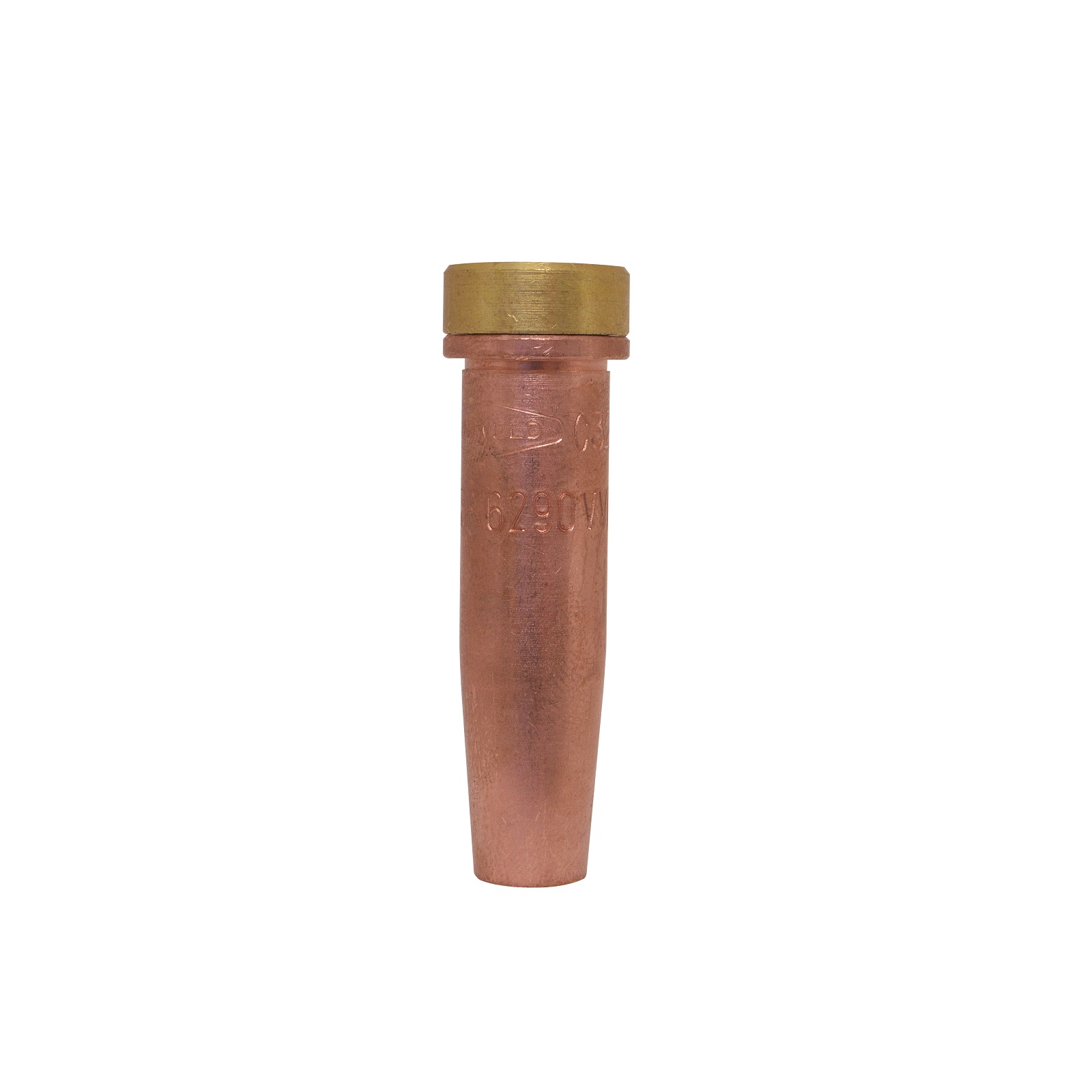

6290VVCM

High Speed Machine Cutting With Special Cutting Orifice.

Cutting is initiated by heating the edge of the steel to near melting point using the pre-heat jets only, then using the separate cutting oxygen valve to release the oxygen from the central jet. The steel is instantly oxidized into molten iron oxide, producing the cut. Robotic oxy-fuel cutters sometimes use a high-speed divergent nozzle. This uses an oxygen jet that opens slightly along its passage. This allows the compressed oxygen to expand as it leaves, forming a high-velocity jet that spreads less than a parallel-bore nozzle, allowing a cleaner cut. These are not used for cutting by hand since they need very accurate positioning above the work. Their ability to produce almost any shape from large steel plates gives them a secure future in shipbuilding and in many other industries.
