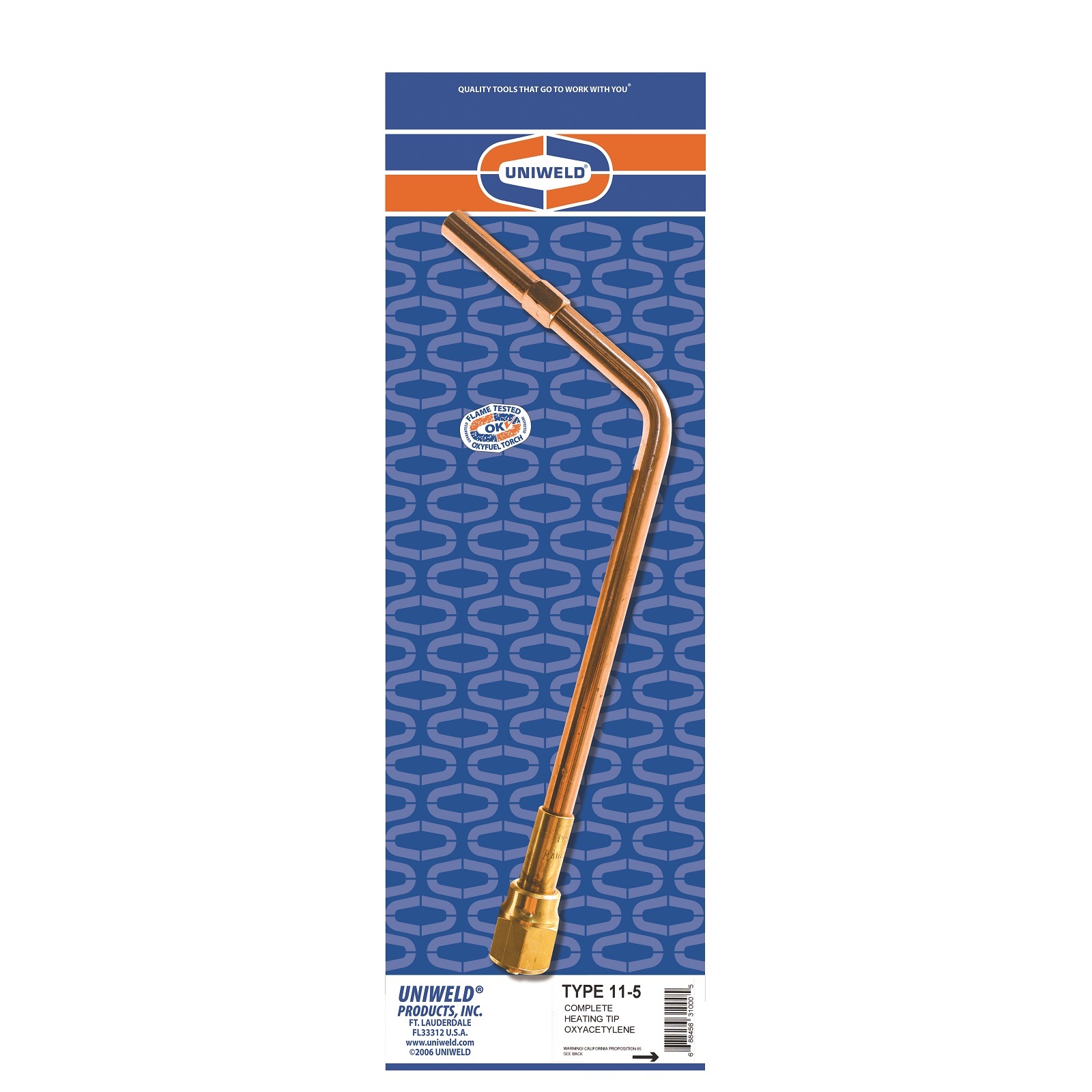

Type11

Uniweld’s TYPE11 Series Heating Tips are designed for Preheating & Straightening.

*Use 3/8″ hose on larger tips for adequate gas flow.

Product Information

Part# Tip End Only Mixer Only Elbow to Mixer
Thread Spec
Oxygen
PSIG
Acetylene
PSIG
Acetylene
SCFH
TYPE11-5 TYPE11TE-5 UM11 7/16”-27 (M,F) 10-15 7-10 6-20
TYPE11-6 TYPE11TE-6 UM11 7/16”-27 (M,F) 10-15 7-10 14-40
TYPE11-8 TYPE11TE-8 UM11 7/16”-27 (M,F) 20-30 10-15 30-80
TYPE11-10* TYPE11TE-10 UM11-1 1/2”-27 (M,F) 25-40 12-15 40-100
TYPE11-12* TYPE11TE-12 UM11-1 1/2”-27 (M,F) 40-60 12-15 60-150
TYPE11-15* TYPE11TE-15 UM11-1 1/2”-27 (M,F) 40-60 12-15 90-220

*Use 3/8″ hose on larger tips for adequate gas flow.

Additional information

Compatible Welding Handles:

• WH360
• WH360L
• 72L9
• 72L11
