Flexible Twin Heating Tip

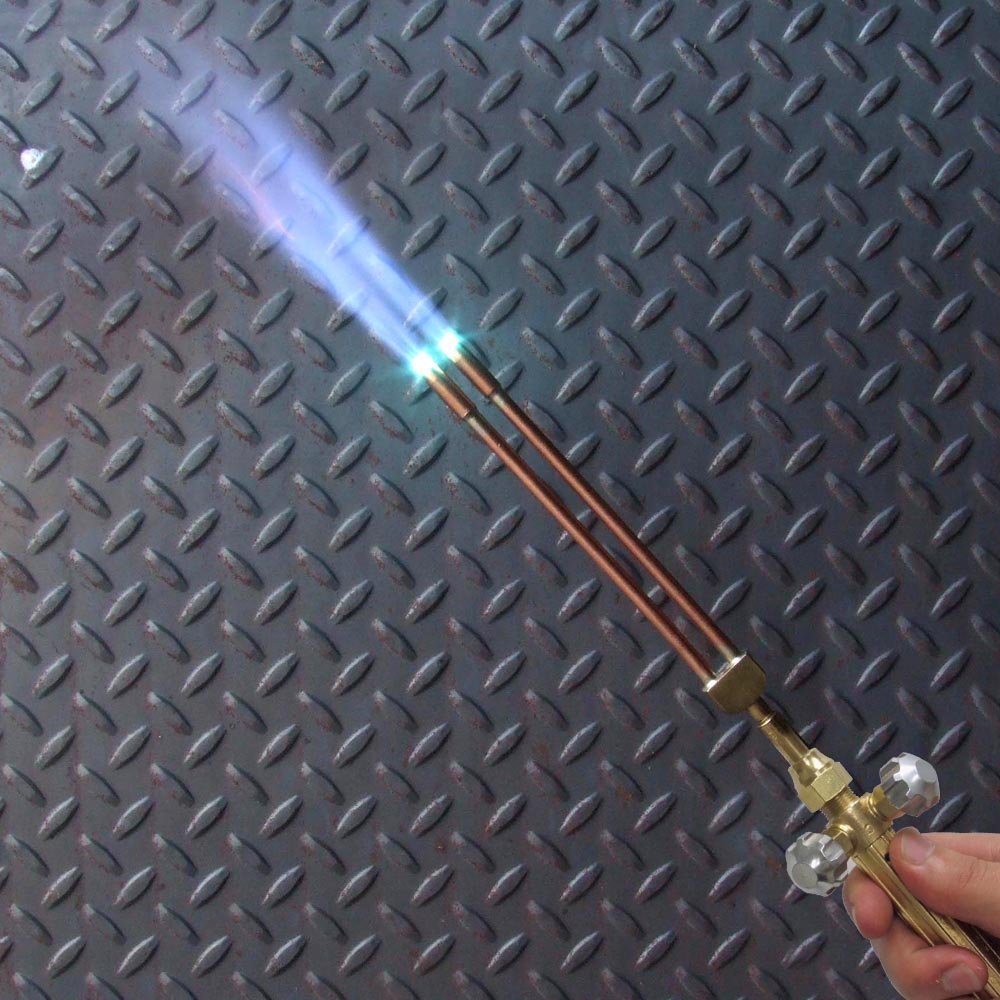

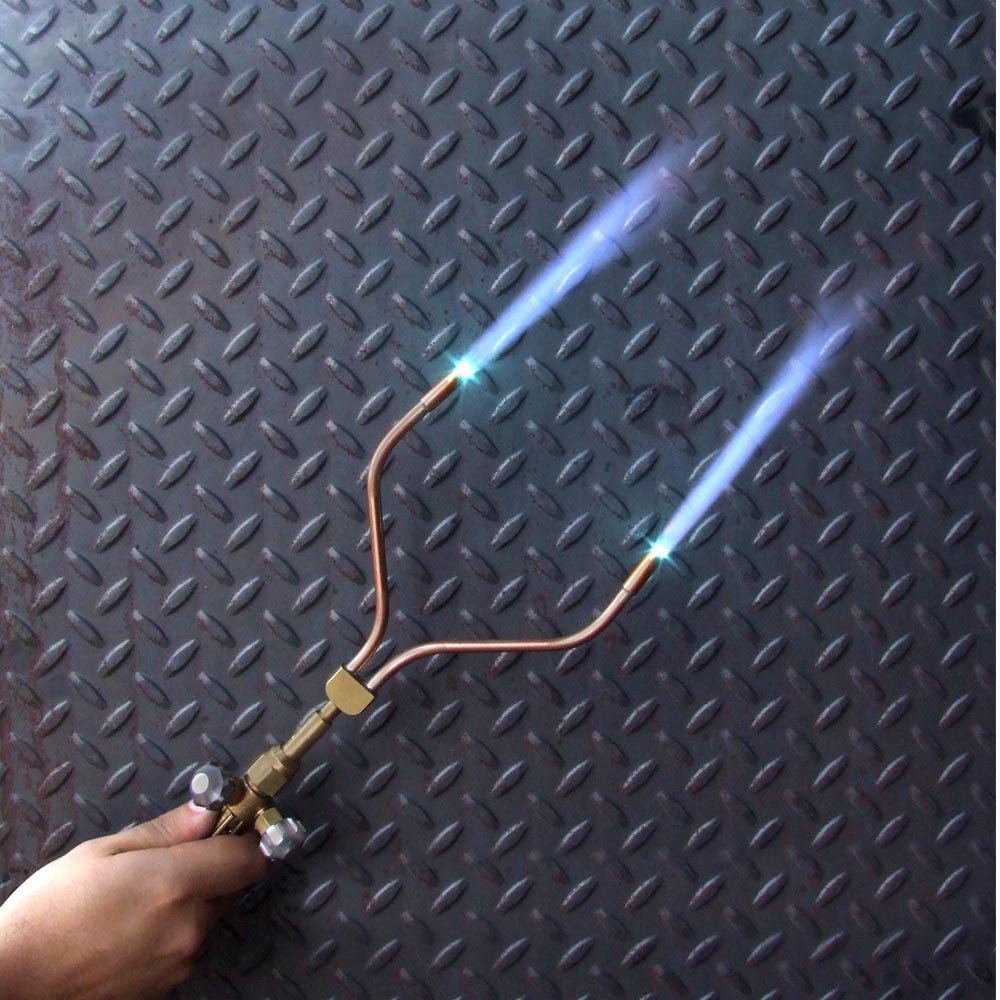

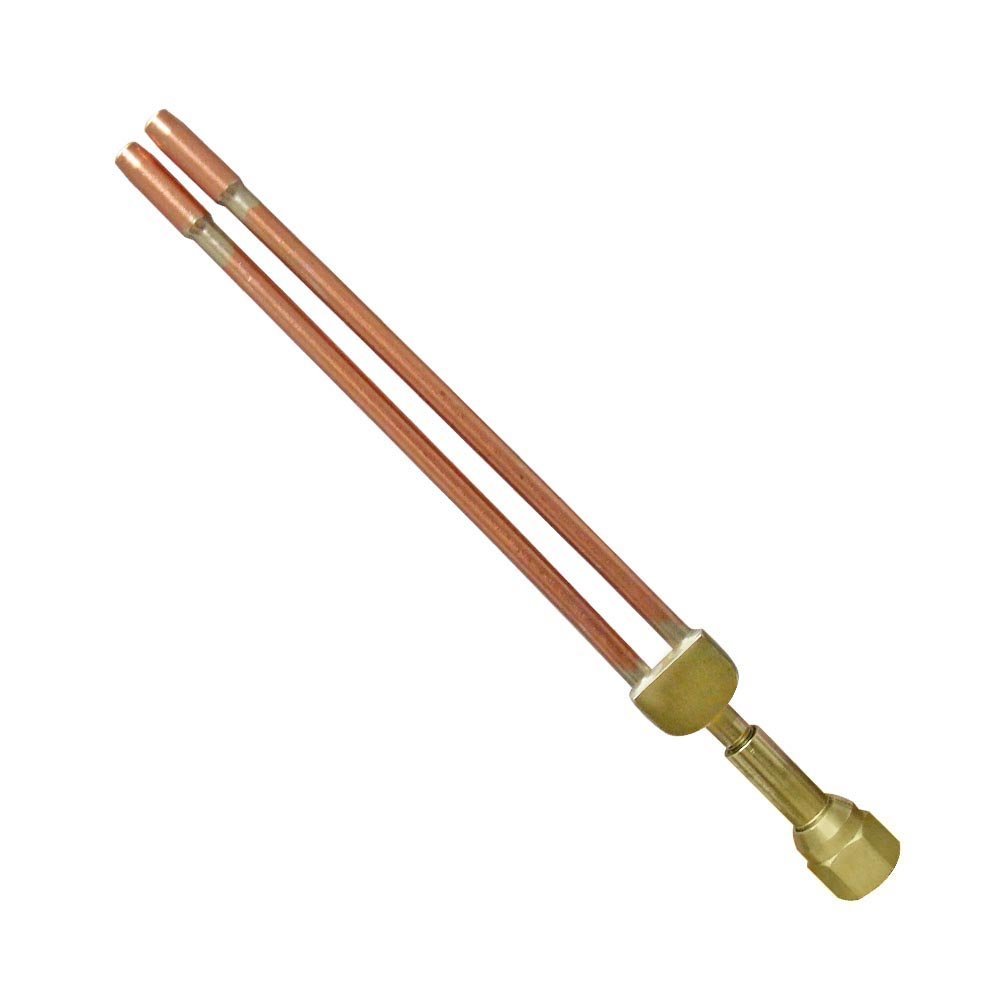

Uniweld's Twin Rosebud Heating Tip has two separate, bendable tip elbows that can be formed to fit big jobs, and two Type17-30 tip ends. Tip is capable of brazing 4″ to 12″ of copper tubing. Tip elbows are copper, mixer and nut are brass. Includes two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.


Product Information

Part # Acetylene Consumption SCFH Oxygen Pressure PSIG Acetylene Pressure PSIG Brazing Copper Tubing
Type13-8VM 60 25 15 4″-12″

Additional information

Compatible Welding Handle
