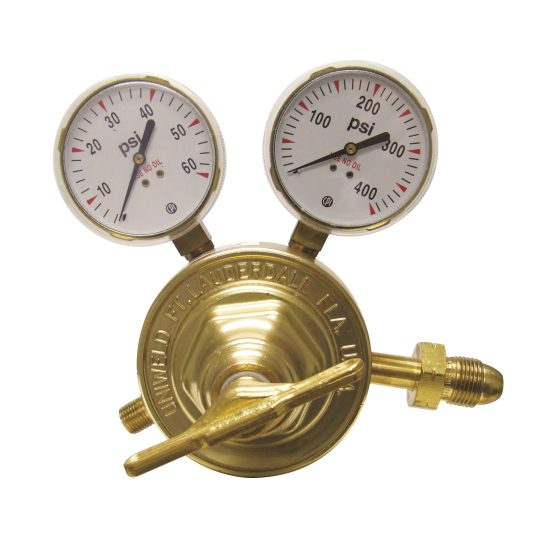

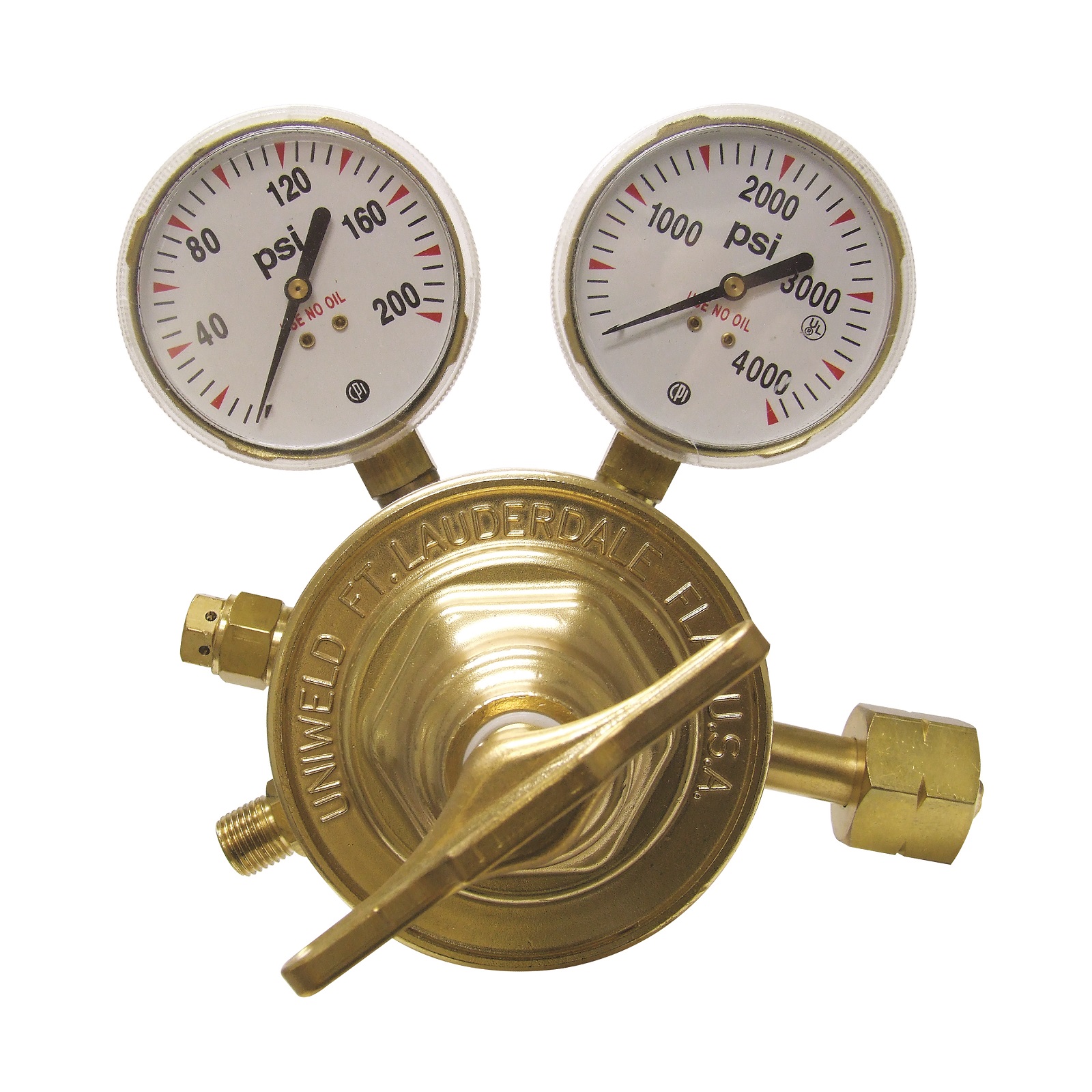

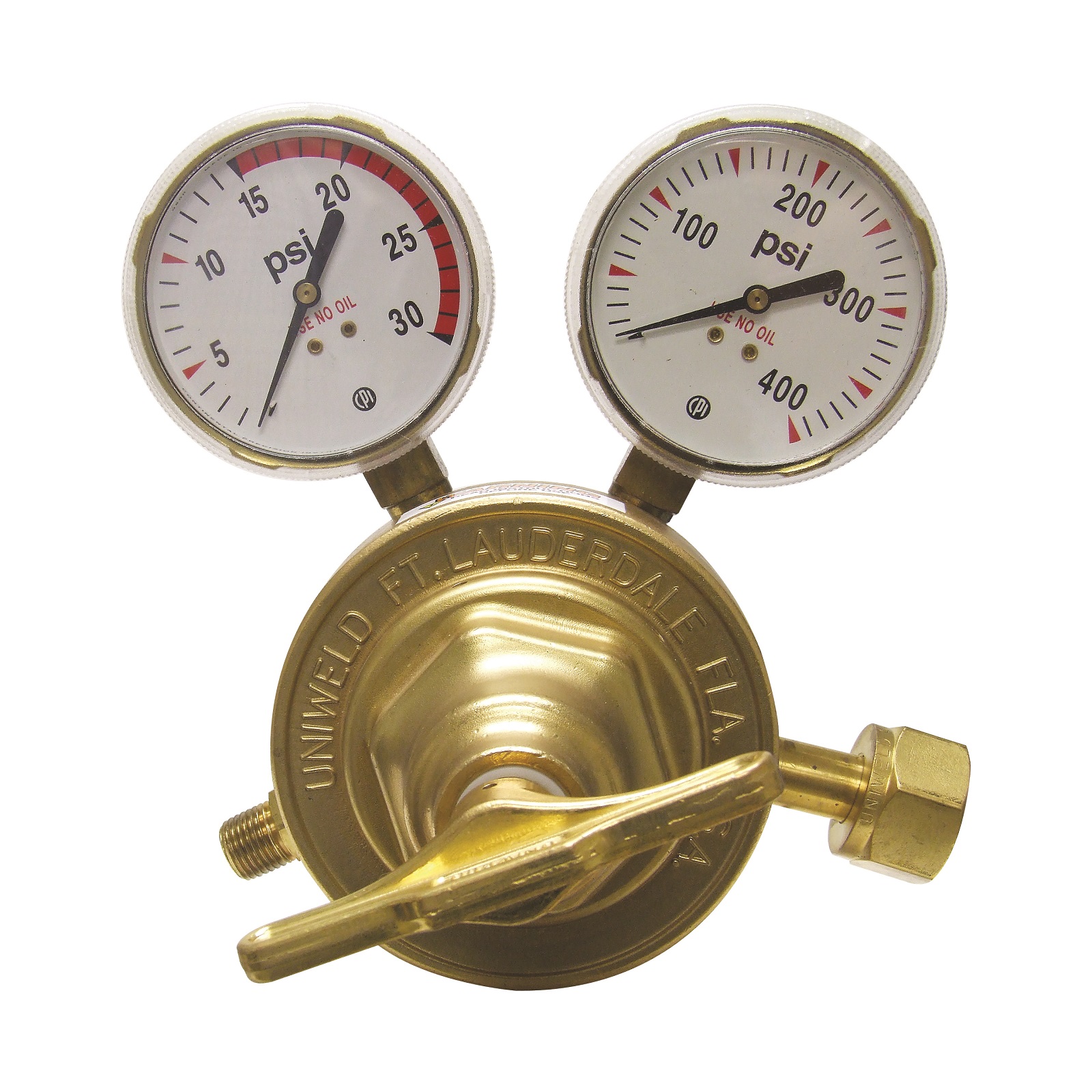

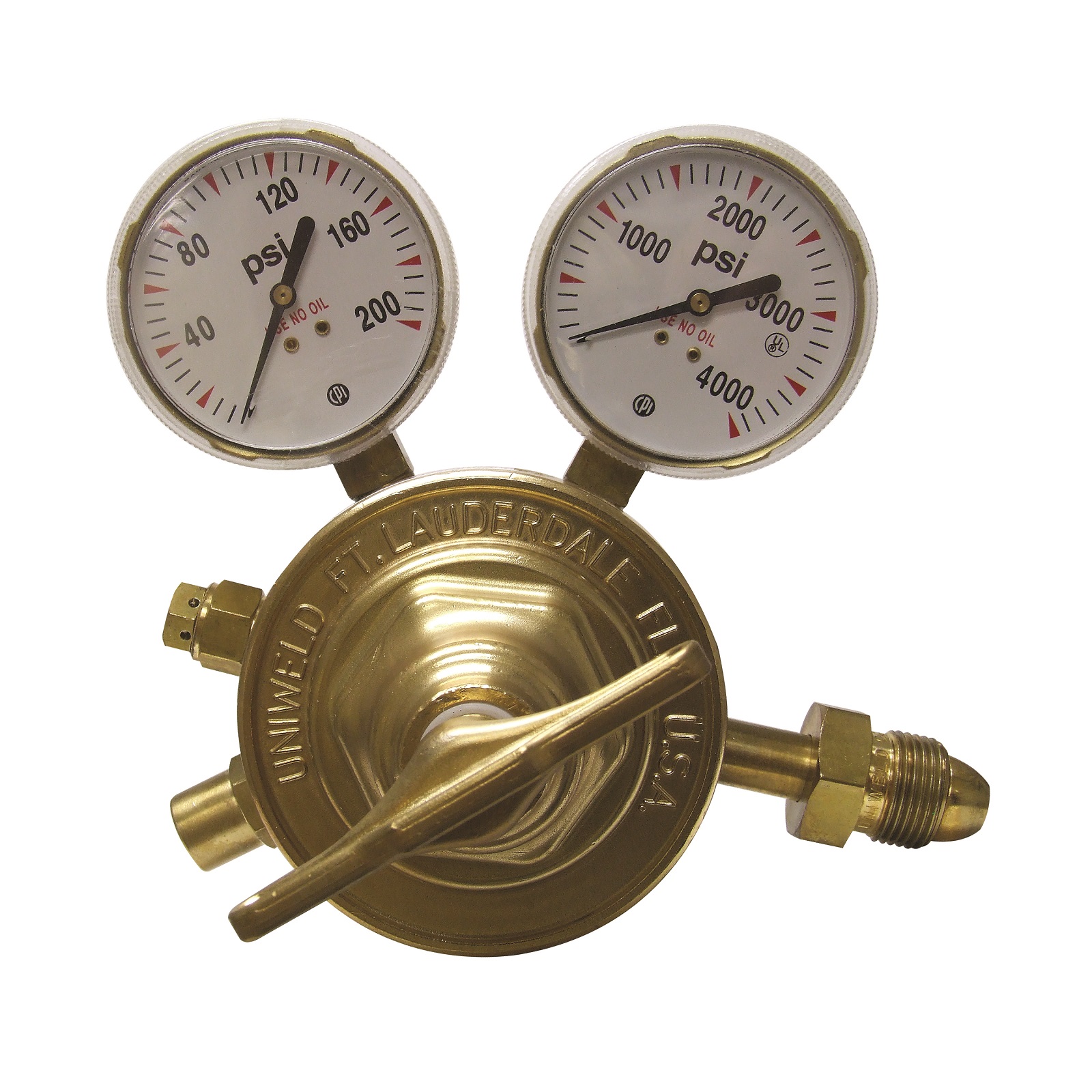

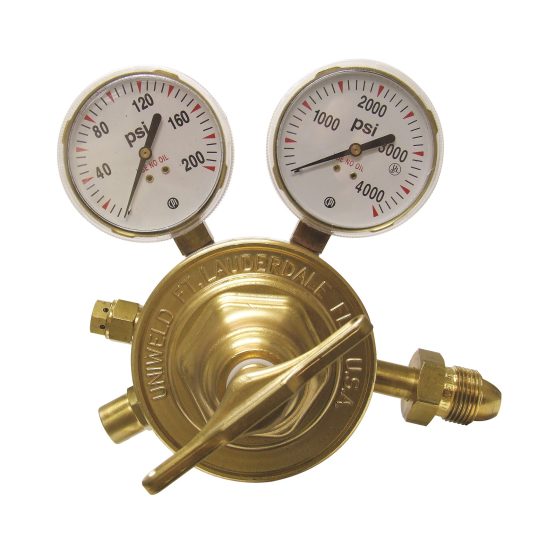

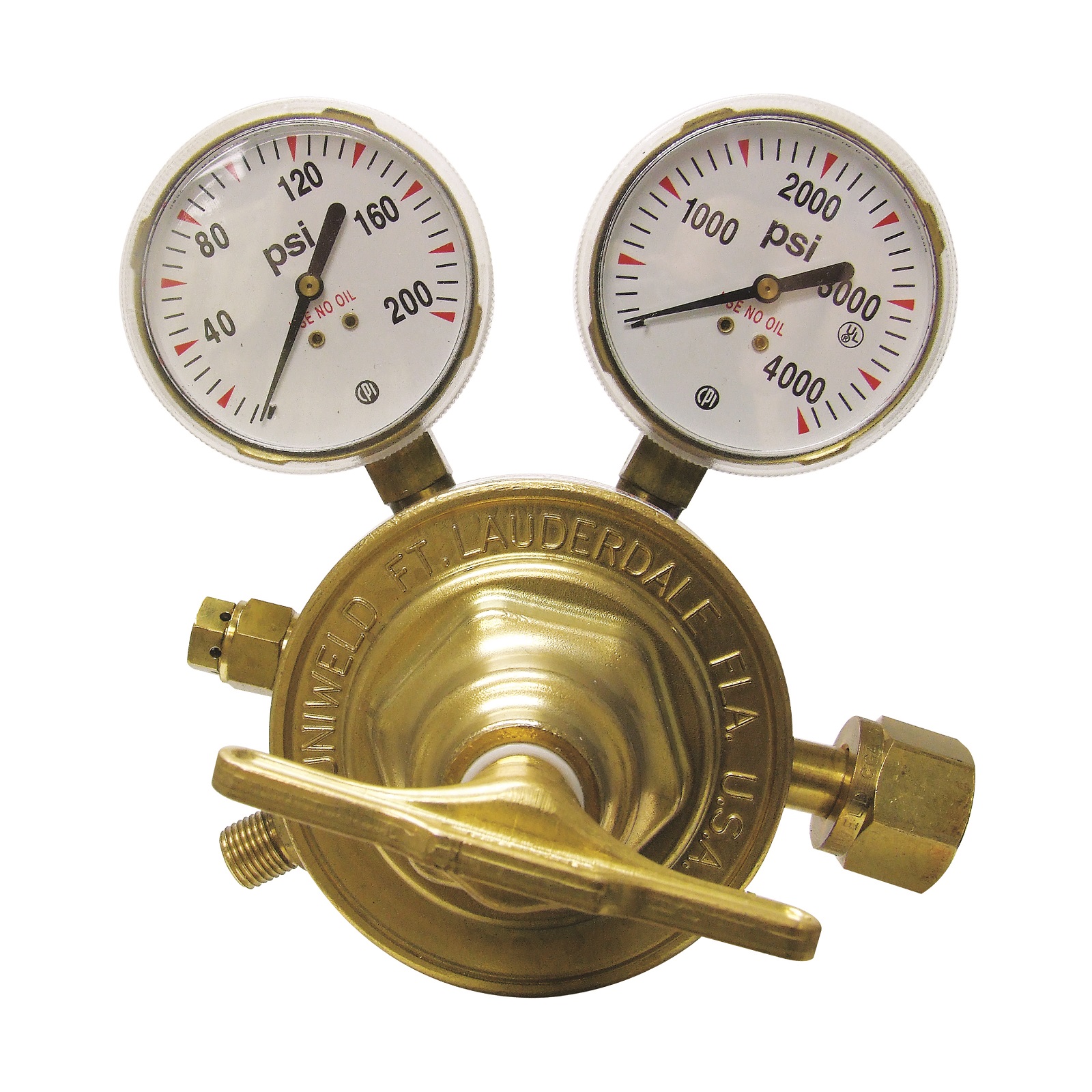

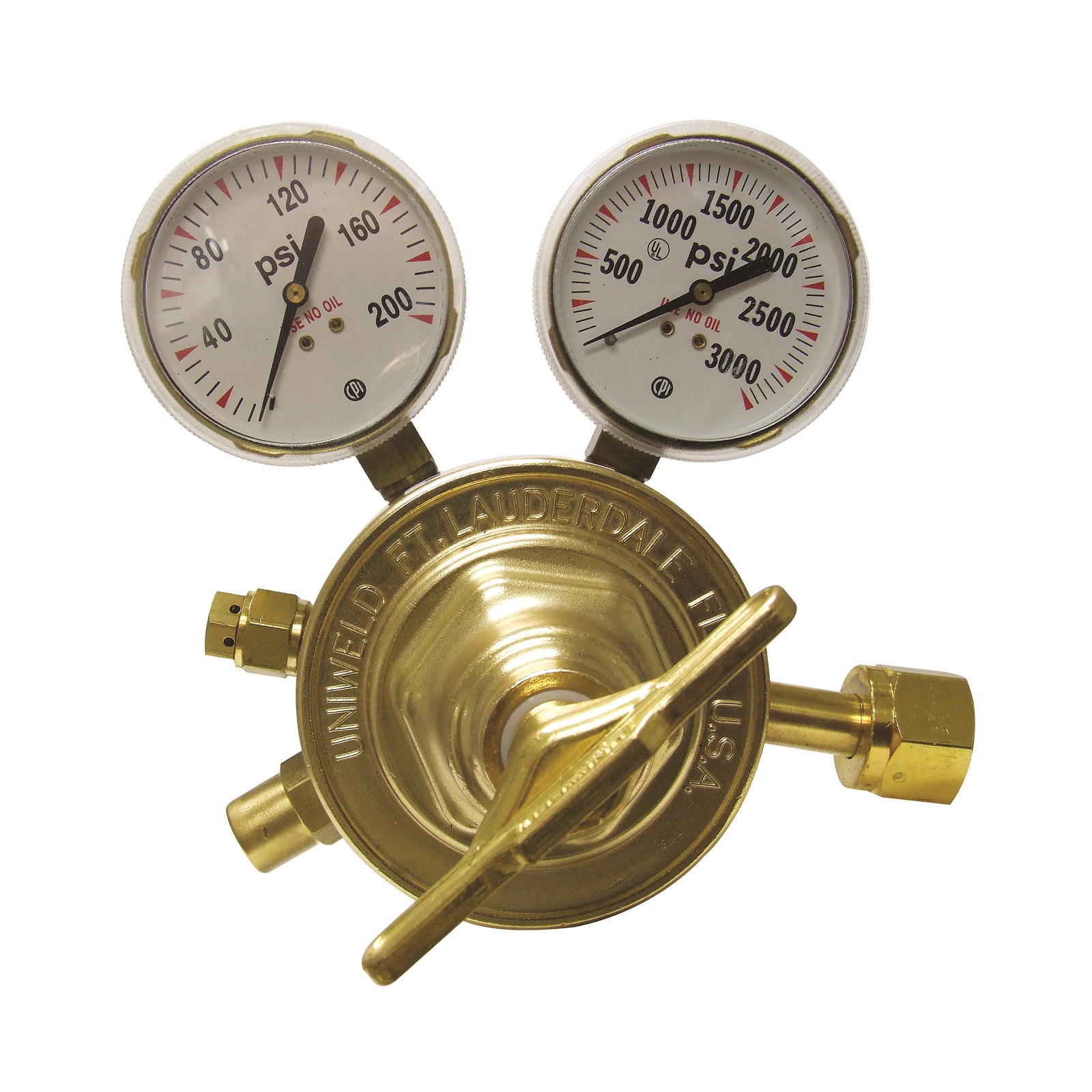

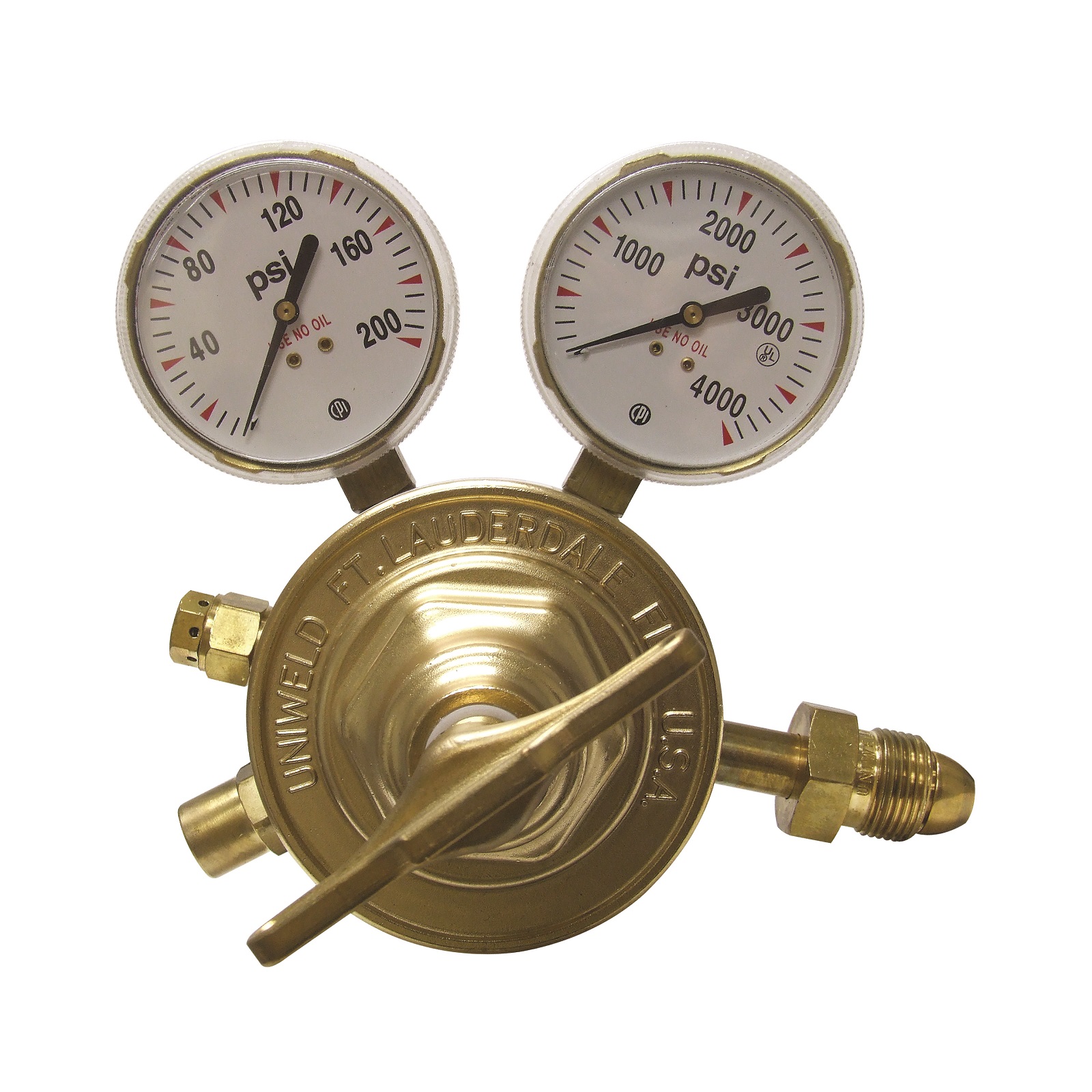

RV80 Series

Uniweld’s RV80 Heavy Duty Regulator Series features:

• Forged brass body and bonnet
• Easy-to-read 2 1/2″ gauges
• 3 1/4″ stainless steel diaphragm
• Heavy duty mechanical stem type seat and nozzle assembly with removable back plug for ease of seat service.
• Delrin bushing for smooth flow adjustment
• Fine mesh filter screen between inlet and seat

**Different Pressure Scales & Inlet Connections Available Upon Request**

Category: Tags: , , , , ,

Product Information

Part # CGA Inlet Outlet Connection Delivery PSIG 2-1/2″ Replacement Gauges
RV8010 Oxxygen 540 “B” (RH) 9/16″-18 (M) 5-125 G24; 200 PSI

G27; 4000 PSI
RV8010-3 Oxygen 540 “B” (RH) 9/16″-18 (M) 10-250 G21; 400 PSI

G27; 4000 PSI
RV8011 Acetylene 510 “B” (LH) 9/16″-18 (M) 2-15 G22; 30 PSI (RL)

G21; 400 PSI
RV8011-1 Acetylene 300 “B” (LH) 9/16″-18 (M) 2-15 G22; 30 PSI (RL)

G21; 400 PSI
RV8011-CND Acetylene 410 “B” (LH) 9/16″-18 (M) 2-15 G22; 30 PSI (RL)

G21; 400 PSI
RV8012 LPG & All Fuel Gas 510 “B” (LH) 9-16″-18 (M) 2-40 G25; 60 PSI

G21; 400 PSI
RV8013 Carbon Dioxide 320 5/8″-18 (RH) (F) 5-125 G24; 200 PSI

G23; 3000 PSI
RV8014 Argon 580 5/8″-18 (RH) (F) 5-125 G24; 200 PSI

G27; 4000 PSI
RV8015 Nitrogen 580 5/8″-18 (RH) (F) 5-125 G24; 200 PSI

G27; 4000 PSI
RV8015A-1 Nitrogen 580 1/4″ Flare (M) 10-300 G21; 400 PSI

G27; 4000 PSI
RV8016 Helium 580 5/8″-18 (RH) (F) 5-125 G24; 200 PSI

G27; 4000 PSI
RV8017 Hydrogen 350 “B” (LH) 9/16″-18 (M) 5-125 G24; 200 PSI

G27; 4000 SPI
RV8018 Air 346 9/16″-18 (RH) (M) 5-125 G24; 200 PSI

G27; 4000 PSI
RV8018A-1 Air 346  1/4″ Flare (M) 10-300 G21; 400 PSI

G27; 4000 PSI
RV8018-2 Air 346 5/8″-18 (LH) (F) 5-125 G24; 200 PSI

G27; 4000 PSI
