Product Information
| Part # | Head Angle | Torch Length | Weight | Lever Position | Cutting Capacity |
|---|---|---|---|---|---|
| 30ATT-13 | 90° | 13″ | 45 oz | Trigger Type | 12″ |
| 30ATT-21 | 90° | 21″ | 52 oz | Trigger Type | 12″ |
| 30TT-21 | 75° | 21″ | 52 oz | Trigger Type | 12″ |
| 30BTT-21 | 180° | 21″ | 52 oz | Trigger Type | 12″ |
| 30ATT-36 | 90° | 36″ | 71 oz | Trigger Type | 12″ |
| 30TT-36 | 75° | 36″ | 71 oz | Trigger Type | 12″ |
| 30BTT-36 | 180° | 36″ | 71 oz | Trigger Type | 12″ |
| 30ATT-48 | 90° | 48″ | 84 oz | Trigger Type | 12″ |
| 30TT-48 | 75° | 48″ | 84 oz | Trigger Type | 12″ |
| 30BTT-48 | 180° | 48″ | 84 oz | Trigger Type | 12″ |

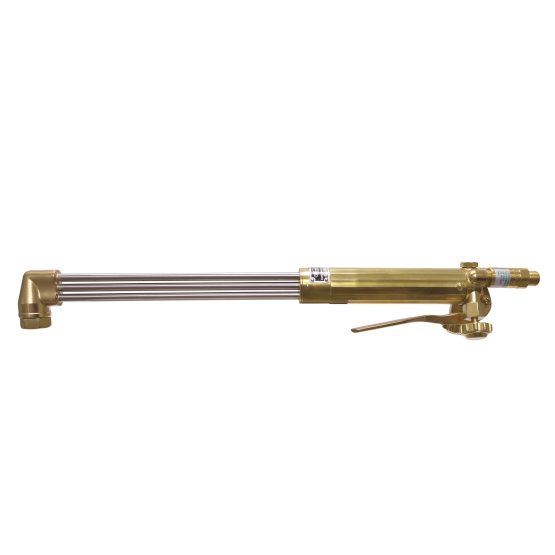

| 30SA-18 | 90° | 18″ | 58 oz | Bottom Rear | 12″ |
| 30S-18 | 75° | 18″ | 58 oz | Bottom Rear | 12″ |
| 30SB-18 | 180° | 18″ | 58 oz | Bottom Rear | 12″ |
| 30SA-21 | 90° | 21″ | 71 oz | Bottom Rear | 12″ |
| 30S-21 | 75° | 21″ | 71 oz | Bottom Rear | 12″ |
| 30SB-21 | 180° | 21″ | 71 oz | Bottom Rear | 12″ |
| 30SA-36 | 90° | 36″ | 84 oz | Bottom Rear | 12″ |
| 30S-36 | 75° | 36″ | 84 oz | Bottom Rear | 12″ |

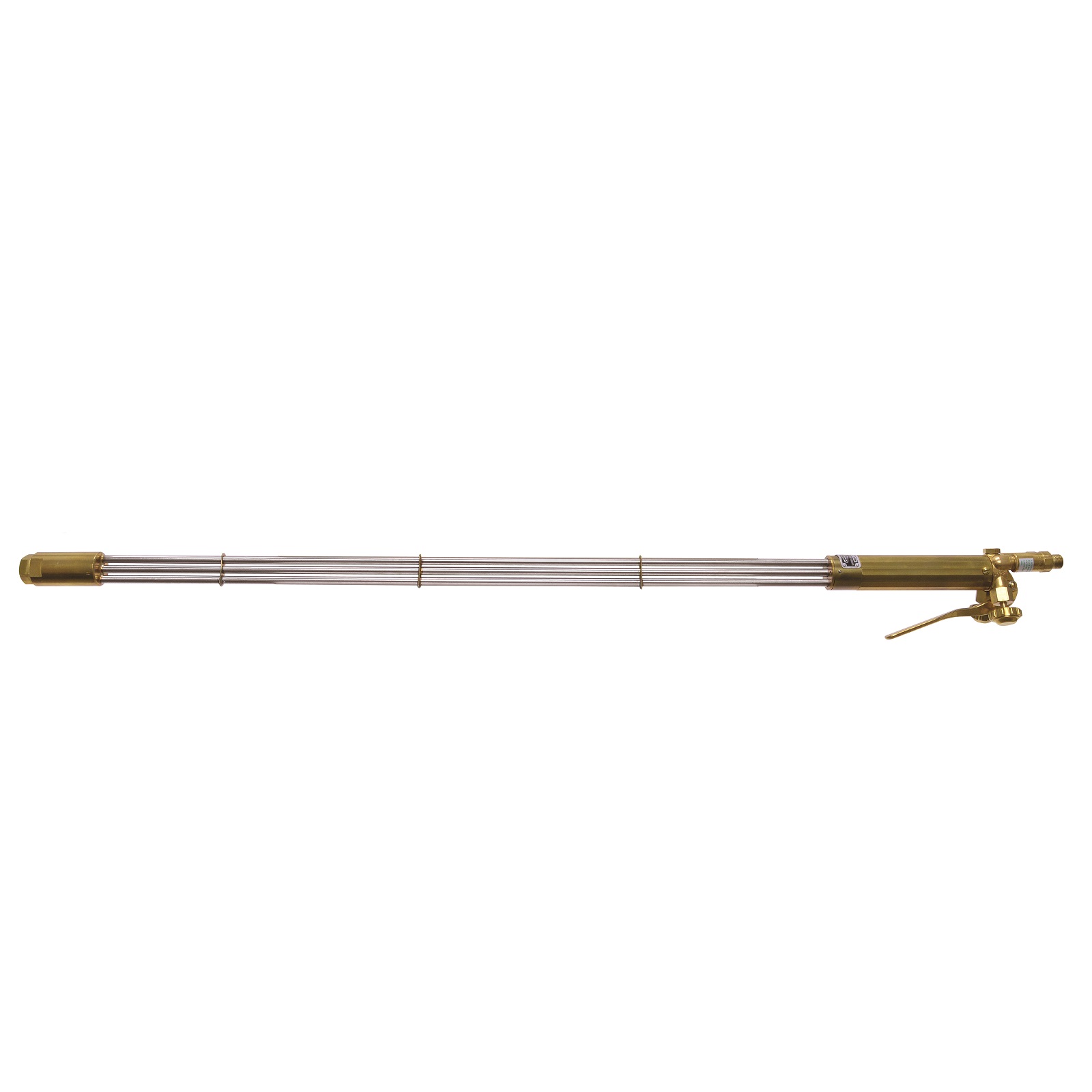

| 30SB-36 | 180° | 36″ | 84 oz | Bottom Rear | 12″ |
| 30SA-48 | 90° | 48″ | 52 oz | Bottom Rear | 12″ |
| 30S-48 | 75° | 48″ | 52 oz | Bottom Rear | 12″ |
| 30SB-48 | 180° | 48″ | 52 oz | Bottom Rear | 12″ |
| 50A-21 | 90° | 21″ | 58 oz | Bottom Rear | 12″ |
| 50-21 | 75° | 21″ | 58 oz | Bottom Rear | 12″ |
| 50B-21 | 180° | 21″ | 58 oz | Bottom Rear | 12″ |
| 50A-36 | 90° | 36″ | 71 oz | Bottom Rear | 12″ |
| 50-36 | 75° | 36″ | 71 oz | Bottom Rear | 12″ |
| 50B-36 | 180° | 36″ | 71 oz | Bottom Rear | 12″ |
| 50A-48 | 90° | 48″ | 84 oz | Bottom Rear | 12″ |
| 50-48 | 75° | 48″ | 84 oz | Bottom Rear | 12″ |
| 50B-48 | 180° | 48″ | 84 oz | Bottom Rear | 12″ |
| 54A-21* | 90° | 21″ | 38 oz | Bottom Middle | 12″ |
| 54-21* | 75° | 21″ | 38 oz | Bottom Middle | 12″ |
| 54B-21* | 180° | 21″ | 38 oz | Bottom Middle | 12″ |
| 54A-36* | 90° | 36″ | 38 oz | Bottom Middle | 12″ |
| 54-36* | 75° | 36″ | 38 oz | Bottom Middle | 12″ |
| 54B-36* | 180° | 36″ | 38 oz | Bottom Middle | 12″ |
| 52A-21 | 90° | 21″ | 40 oz | Bottom Rear | 12″ |
| 56A-21 | 90° | 21″ | 40 oz | Bottom Middle | 12″ |
*Additional torch lengths are available, except for series 54 & 56. Hand Cutting Torches come with Check Valves installed. Add (FB) to part number to substitute U.L. Listed Flashback Arrestors for Check Valves. Uniweld Check Valves and Flashback Arrestors are both field replaceable.
