Product Information
| Part # | Cut Metal Thickness | Cut Oxy Drill Size | Cutting Oxygen PSIG | Cutting Oxygen SCFH | Acetylene PSIG | Speed I.P.M | Standard Size |
|---|---|---|---|---|---|---|---|
| ASP-72 | 1/8” | 72 | 60/70 | 55/65 | 2/4 | 22/24 | 000 |
| ASP-68 | 1/4″ – 3/8” | 68 | 70/80 | 66/70 | 2/4 | 20/22 | 00 |
| ASP-65 | 1/2” | 65 | 75/80 | 80/90 | 2/4 | 20/22 | 0 |
| ASP-60 | 5/8” | 60 | 75/80 | 110/130 | 3/5 | 19/22 | 0 |
| ASP-56 | 1” | 56 | 80/85 | 160 | 3/5 | 17/22 | 1 |
| ASP-54 | 1-1/2” | 54 | 80/85 | 230 | 4/7 | 16/19 | 2 |
| ASP-52 | 2” | 52 | 80/85 | 340 | 4/7 | 15/16 | 3 |
| ASP-49 | 3” – 4” | 49 | 85/95 | 480 | 5/9 | 12/15 | 4 |
| ASP-44 | 4” | 44 | 85/95 | 500 | 5/9 | 12/15 | 5 |

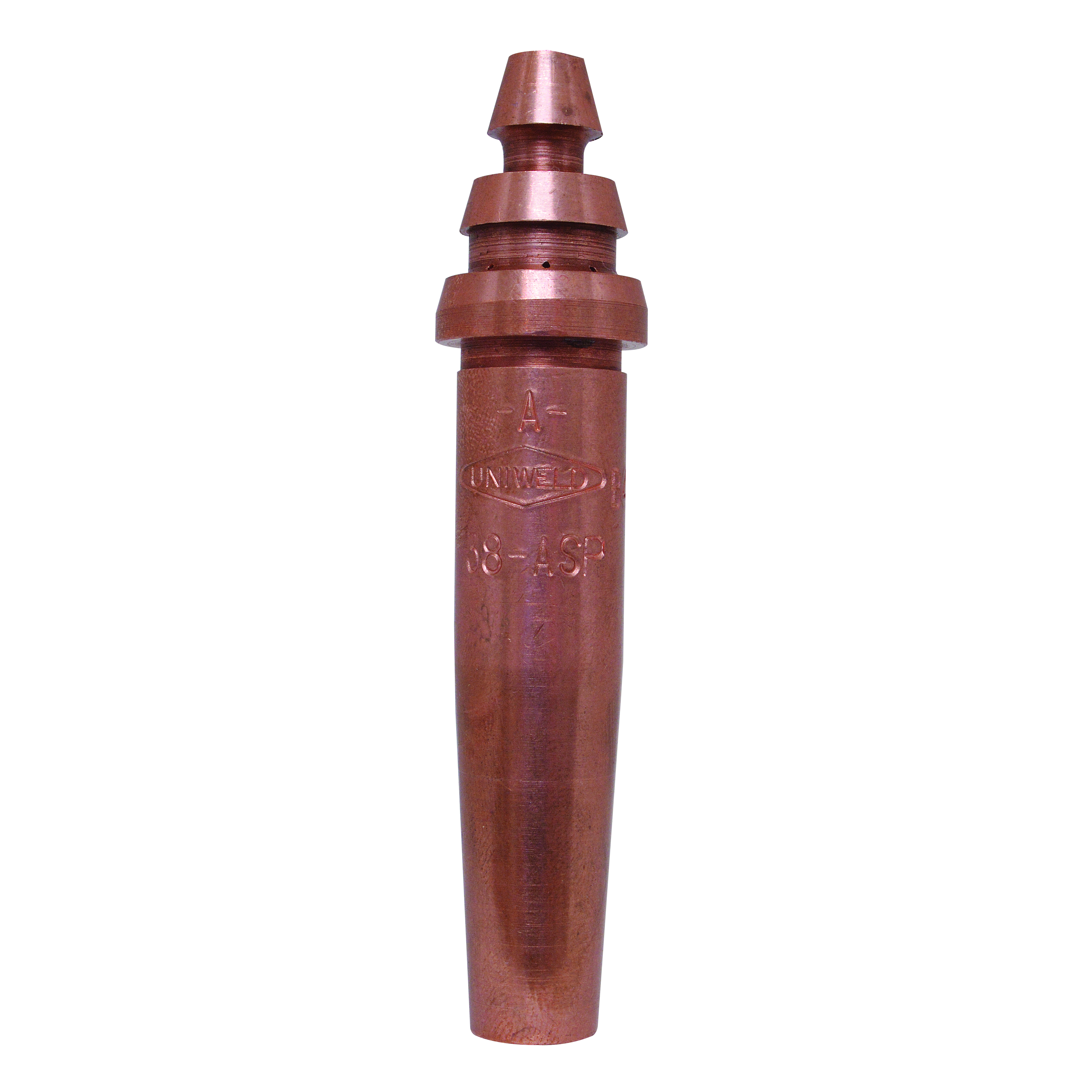

| ASP-38 | 6” | 38 | 85/95 | 540 | 6/10 | 10/13 | 6 |
| ASP-31 | 12” | 31 | 90/95 | 600 | 7/12 | 8/10 | 8 |
