2 Valve

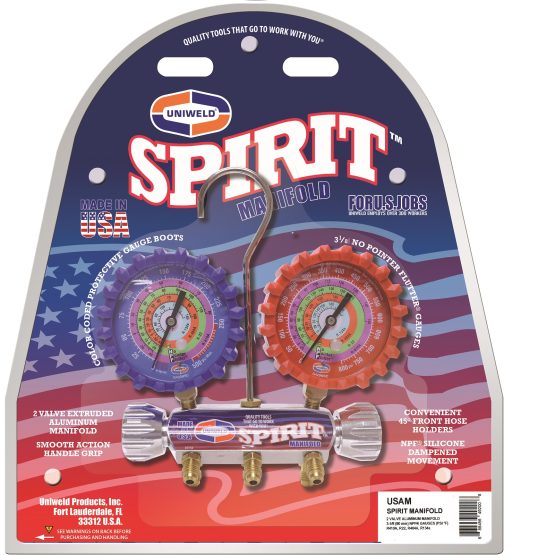

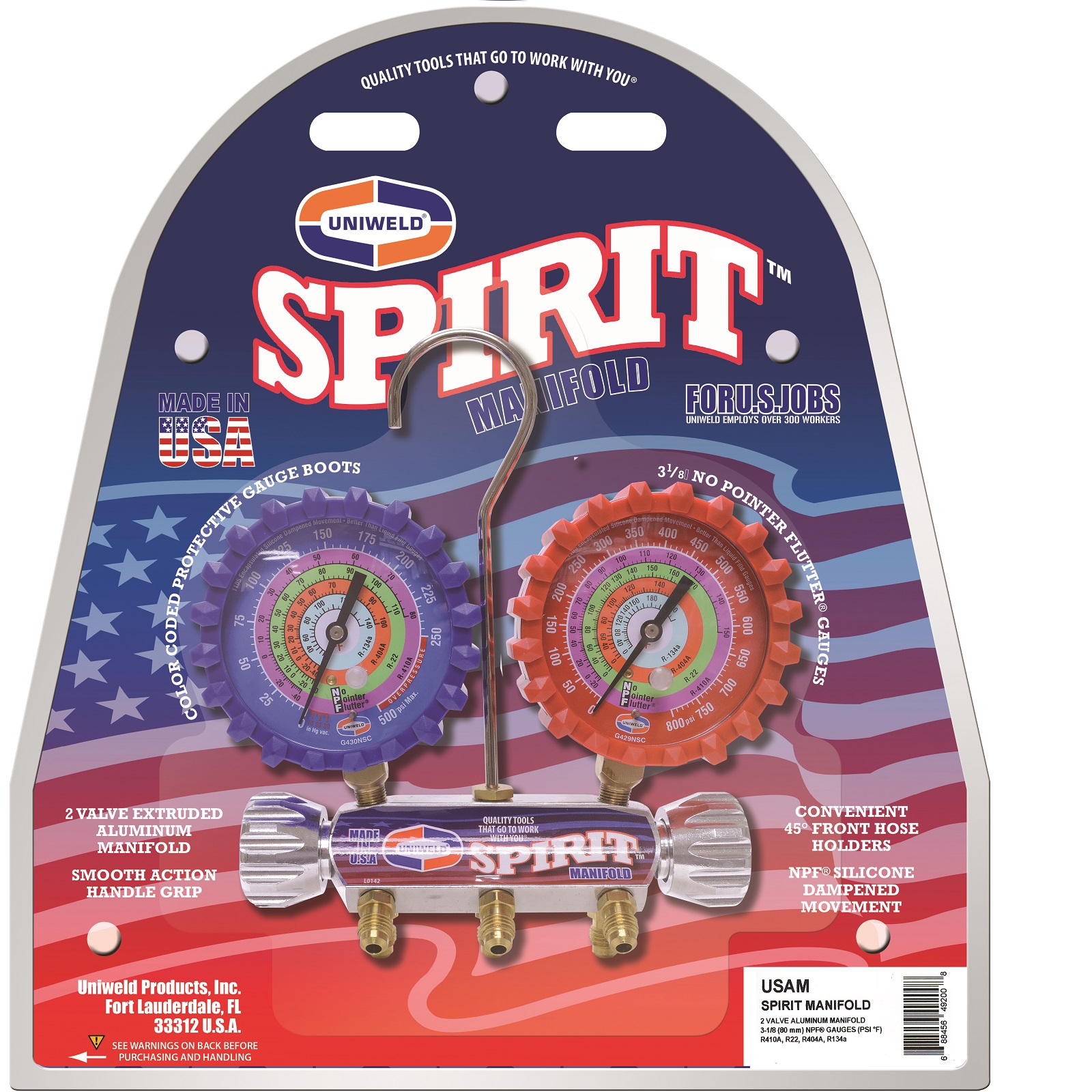

2 Valve Aluminum Manifold with 3-1/8″ NPF® Gauges
Uniweld’s Spirit Manifold is designed and built right here in the U.S.A, proudly emphasizes the quality and the superior workmanship that signifies American Made.
– Lightweight extruded aluminum body
– Easy-grip handles for positive control
– Double O-Ring piston valve for long reliable service
– Easy access front hose holders
– USFM models feature a 3/8″ center port for faster charging
– Large easy-to-read 3-1/8″ steel case NPF™ gauges with color-coded protective boots
– USAM models include 5′ High Pressure Soft Magic® Barrier Hose set with optional EZ-Turn anti-blowback or ball valve fittings
– USFM models include a Fast-Flo Hose Set which include a 3/8″ Heavy Duty Charging hose along with a 5′ EZ-Turn or Ball Valve Hose with a T-Fitting for micron gauge connection.

The following Manifolds all feature:
– Extended valve stems for ample knuckle clearance
– Quick action valve assembly for 1/2 turn fully open or fully closed
– Convenient 45° front hose holders
– High Pressure Soft Magic® Barrier Hoses with EZ-Turn anti-blowback fittings



2 Valve Brass Manifold with 3-1/8″ NPF® Gauges
The 2 Valve forged Brass Manifold is manufactured with reseatable Teflon® valve stem packing for durability and leakproof reliability. These user-friendly, accurate, manifolds feature:
– NPF® No Pointer Flutter®
– 3-1/8″ easy-to-read gauges with color coded refrigerant scales and color coded gauge boots

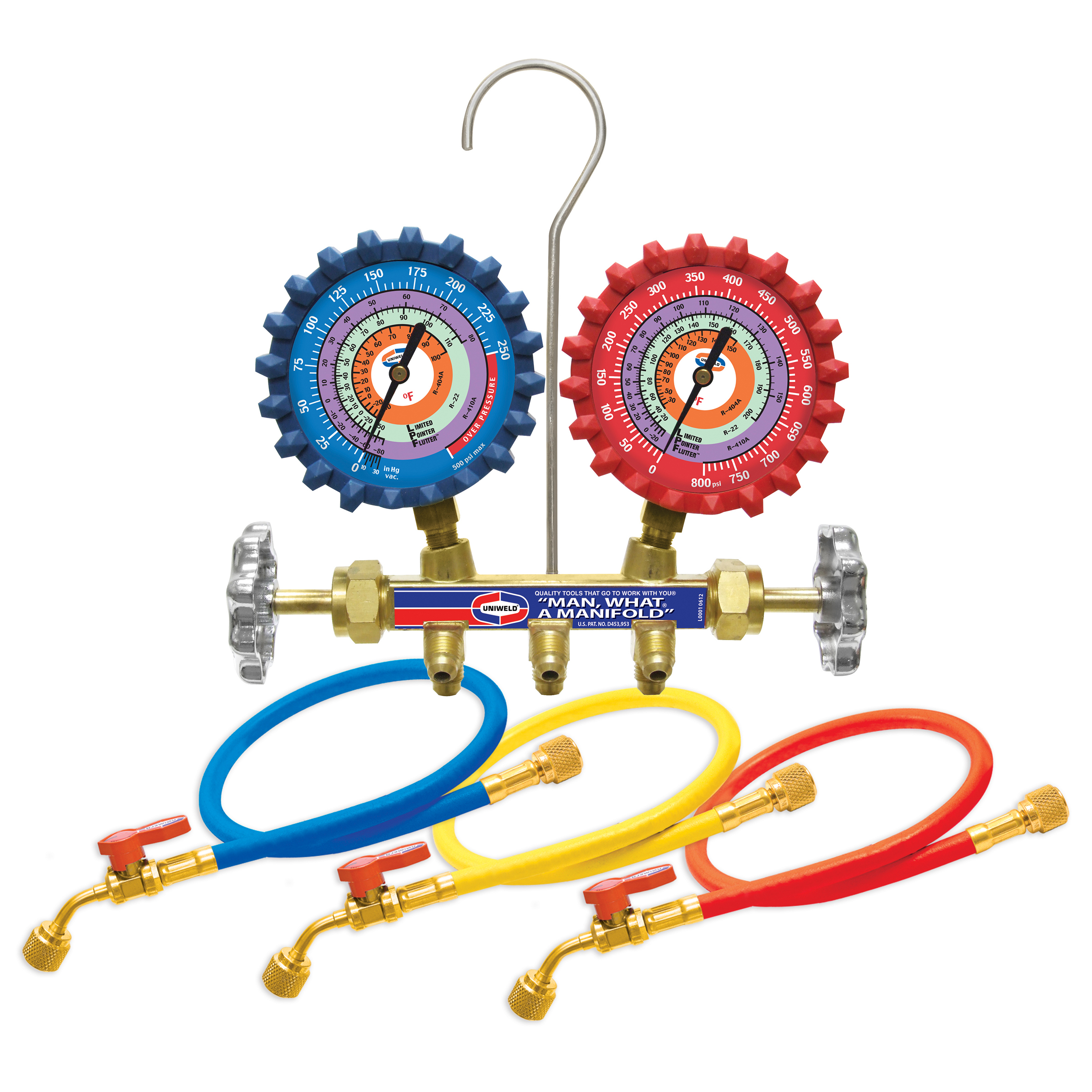

2 Valve Brass Manifold with 2-1/2″ LPF™ Gauges
This 2 Valve Brass Manifold is manufactured with reseatable Teflon® valve stem packing for durability and leakproof reliability. They feature:
– Limited Pointer Flutter™
– 2-1/2″ easy-to-read gauges with color coded refrigerant scales and color coded gauge boots

Categories: ,

Product Information

Part # Gauge Size Metal Description Refrigerant
QAL 2-1/2″ LPF™ Brass No Hoses R-22/R-404A/R-134a
QAL3SM 2-1/2″ LPF™ Brass 3 ft. Soft Magic® Hose Set R-22/R-404A/R-134a
QAL5SM 2-1/2″ LPF™ Brass 5 ft. Soft Magic® Hose Set R-22/R-404A/R-134a
QAL6SM 2-1/2″ LPF™ Brass 6 ft. Soft Magic® Hose Set R-22/R-404A/R-134a
QAL3SMEZ 2-1/2″ LPF™ Brass 3 ft. Soft Magic® EZ-Turn Anti-Blowback Hose Set R-22/R-404A/R-134a
QAL5SMEZ 2-1/2″ LPF™ Brass 5 ft. Soft Magic® EZ-Turn Anti-Blowback Hose Set R-22/R-404A/R-134a
QAL6SMEZ 2-1/2″ LPF™ Brass 6 ft. Soft Magic® EZ-Turn Anti-Blowback Hose Set R-22/R-404A/R-134a
QS4L 2-1/2″ LPF™ Brass No Hoses R-410A/R-22/R-404A
QS4L3H 2-1/2″ LPF™ Brass 3 ft. Soft Magic® Barrier Hose Set R-410A/R-22/R-404A
QS4L5H 2-1/2″ LPF™ Brass 5 ft. Soft Magic® Barrier Hose Set R-410A/R-22/R-404A
QS4L6H 2-1/2″ LPF™ Brass 6 ft. Soft Magic® Barrier Hose Set R-410A/R-22/R-404A

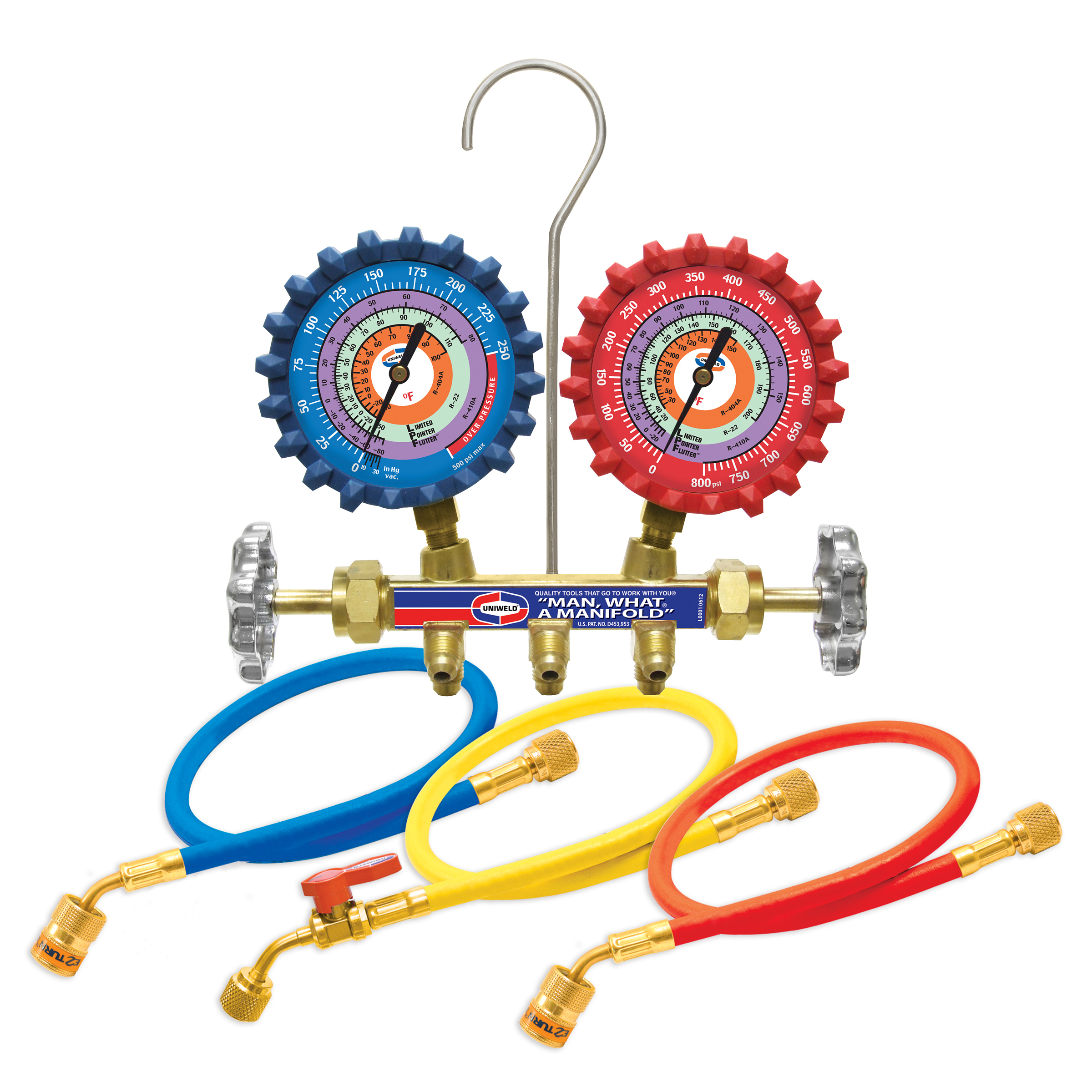

QS4L3HEZ 2-1/2″ LPF™ Brass 3 ft. Soft Magic® Barrier EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A
QS4L5HEZ 2-1/2″ LPF™ Brass 5 ft. Soft Magic® Barrier EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A
QS4L6HEZ 2-1/2″ LPF™ Brass 6 ft. Soft Magic® Barrier EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A
QS8N 3-1/8″ NPF® Brass No Hoses R-410A/R-22/R-404A/R
QS8N3SMEZ 3-1/8″ NPF® Brass 3 ft. EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A/R-134a
QS8N5SMEZ 3-1/8″ NPF® Brass 5 ft. EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A/R-134a
QS8N6SMEZ 3-1/8″ NPF® Brass 6 ft. EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A/R-134a
USAM 3-1/8″ NPF® Aluminum No Hoses R-410A/R-22/R-404A/R-134a
USAM3EZ 3-1/8″ NPF® Aluminum 3 ft. EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A/R-134a
USAM5EZ 3-1/8″ NPF® Aluminum 5 ft. EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A/R-134a
USAM6EZ 3-1/8″ NPF® Aluminum 6 ft. EZ-Turn Anti-Blowback Hose Set R-410A/R-22/R-404A/R-134a
USAM3BV 3-1/8″ NPF® Aluminum 3 ft. Ball Valve Hose R-410A/R-22/R-404A/R-134a
USAM5BV 3-1/8″ NPF® Aluminum 5 ft. Ball Valve Hose R-410A/R-22/R-404A/R-134a
USAM6BV 3-1/8″ NPF® Aluminum 6 ft. Ball Valve Hose R-410A/R-22/R-404A/R-134a
USFM 3-1/8″ NPF® Aluminum No Hoses, Center Port has 3/8″ connection R-410A/R-22/R-404A/R-134a
USFM5BV 3-1/8″ NPF® Aluminum (1) 5 ft. Red EZ-Turn Hose, (1) 5 ft. Heavy Duty Charging Hose, (1) 5 ft. Blue Ball Valve Hose with T-Fitting R-410A/R-22/R-404A/R-134a

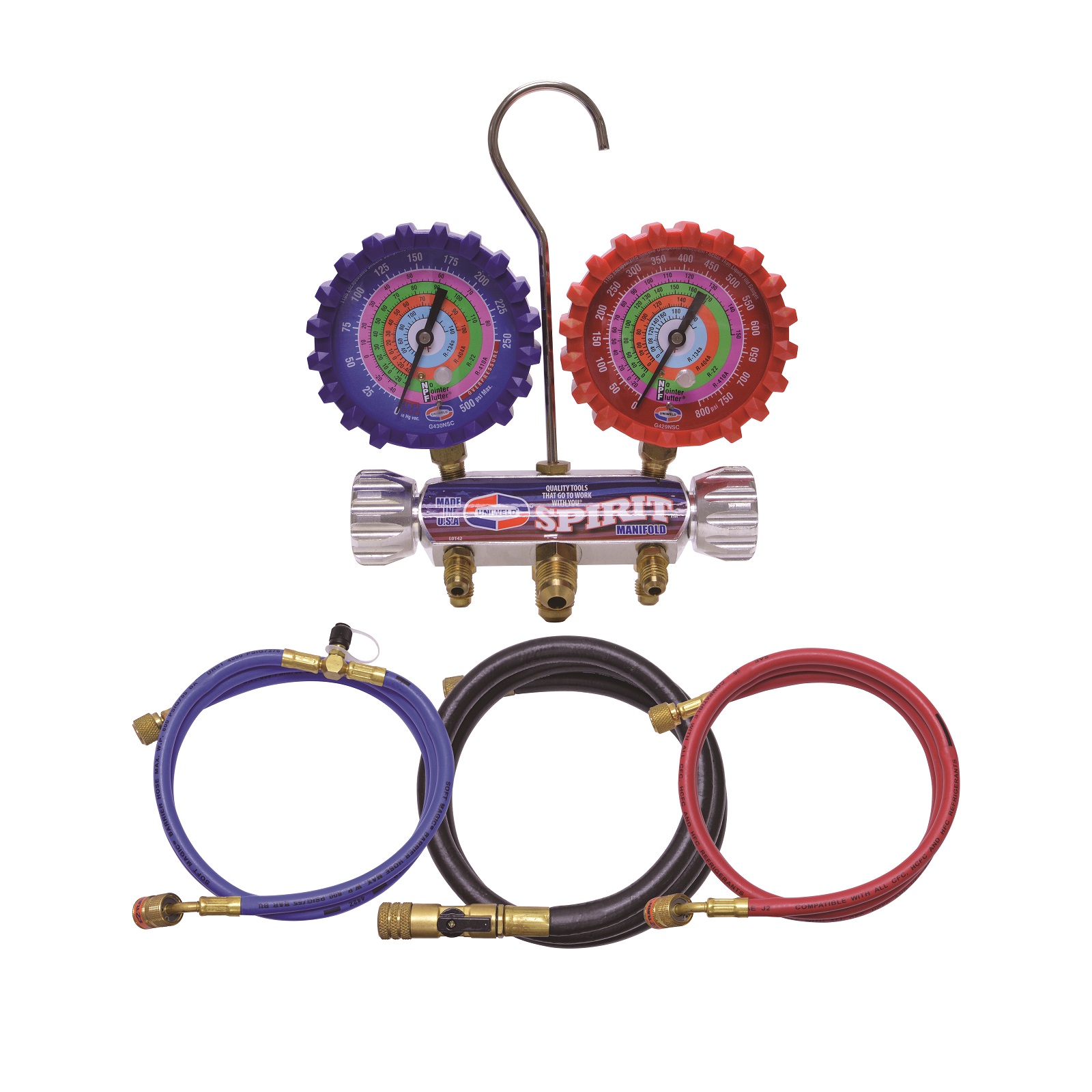

USFM5EZ 3-1/8″ NPF® Aluminum (1) 5 ft. Red EZ-Turn Hose, (1) 5 ft. Heavy Duty Charging Hose, (1) 5 ft. Blue EZ-Turn Hose with T-Fitting R-410A/R-22/R-404A/R-134a
USFM6BV 3-1/8″ NPF® Aluminum (1) 6 ft. Red EZ-Turn Hose, (1) 6 ft. Heavy Duty Charging Hose, (1) 6 ft. Blue Ball Valve Hose with T-Fitting R-410A/R-22/R-404A/R-134a
USFM6EZ 3-1/8″ NPF® Aluminum (1) 6 ft. Red EZ-Turn Hose, (1) 6 ft. Heavy Duty Charging Hose, (1) 6 ft. Blue EZ-Turn Hose with T-Fitting R-410A/R-22/R-404A/R-134a

*Refrigerant gauges are represented in PSI/°F |Different pressure scales & pressure readings are available upon request.
