Product Information
| Complete Assembly Part # | Elbow Only | Mixer Only | Elbow to Mixer Thread Spec | Weld Metal Thickness | Oxygen PSIG | Acetylene Fuel Gas PSIG | Acetylene Fuel Gas SCFH |
|---|---|---|---|---|---|---|---|
| TYPE13-000 | TYPE13E-000 | UM13-0 | 5/16”-27 (M,F) | Up To 1/32” | 5 | 5 | 1.5 |
| TYPE13-00 | TYPE13E-00 | UM13-0 | 5/16”-27 (M,F) | 1/64”-3/64” | 5 | 5 | 2.5 |
| TYPE13-0 | TYPE13E-0 | UM13-0 | 5/16”-27 (M,F) | 1/32”-5/64” | 5 | 5 | 4 |
| TYP13-1 | TYPE13E-1 | UM13-1 | 5/16”-27 (M,F) | 3/64”-3/32” | 5 | 5 | 6 |

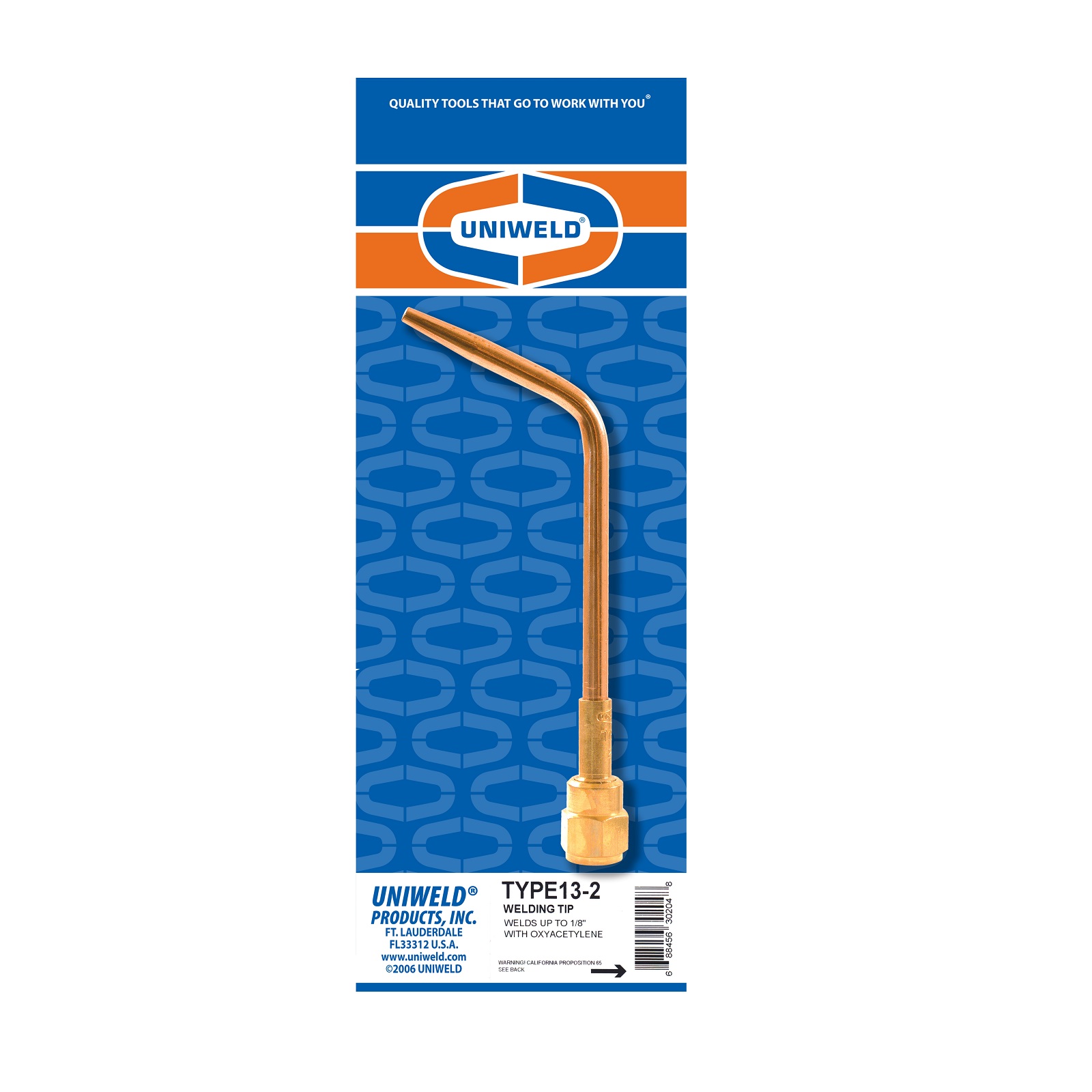

| TYPE13-2 | TYPE13E-2 | UM13-2 | 5/16”-27 (M,F) | 1/16”-1/8” | 5 | 5 | 10 |
| TYPE13-3 | TYPE13E-3 | UM13-3 | 5/16”-27 (M,F) | 1/8”-3/16” | 7 | 6 | 18 |
| TYPE13-4 | TYPE13E-4 | UM13-4 | 5/16”-27 (M,F) | 3/16”-1/4” | 10 | 7 | 28 |
| TYPE13-5 | TYPE13E-5 | UM13-5 | 3/8”-24 (M,F) | 1/4”-1/2” | 12 | 8 | 40 |
| TYPE13-6 | TYPE13E-6 | UM13-5 | 3/8”-24 (M,F) | 1/2”-3/4” | 14 | 9 | 52 |
| TYPE13-7 | TYPE13E-7 | UM13-5 | 3/8”-24 (M,F) | 3/4”-1-3/4” | 16 | 10 | 60 |
