Type1

Uniweld Type1 Series Tips are designed for Welding, Heating, Brazing, and Soldering.

Product Information

Complete Assembly Part # Tip End Only Elbow to Mixer Thread Spec Weld Metal Thickness Oxygen PSIG Acetylene Fuel Gas PSIG Acetylene Fuel Gas SCFH

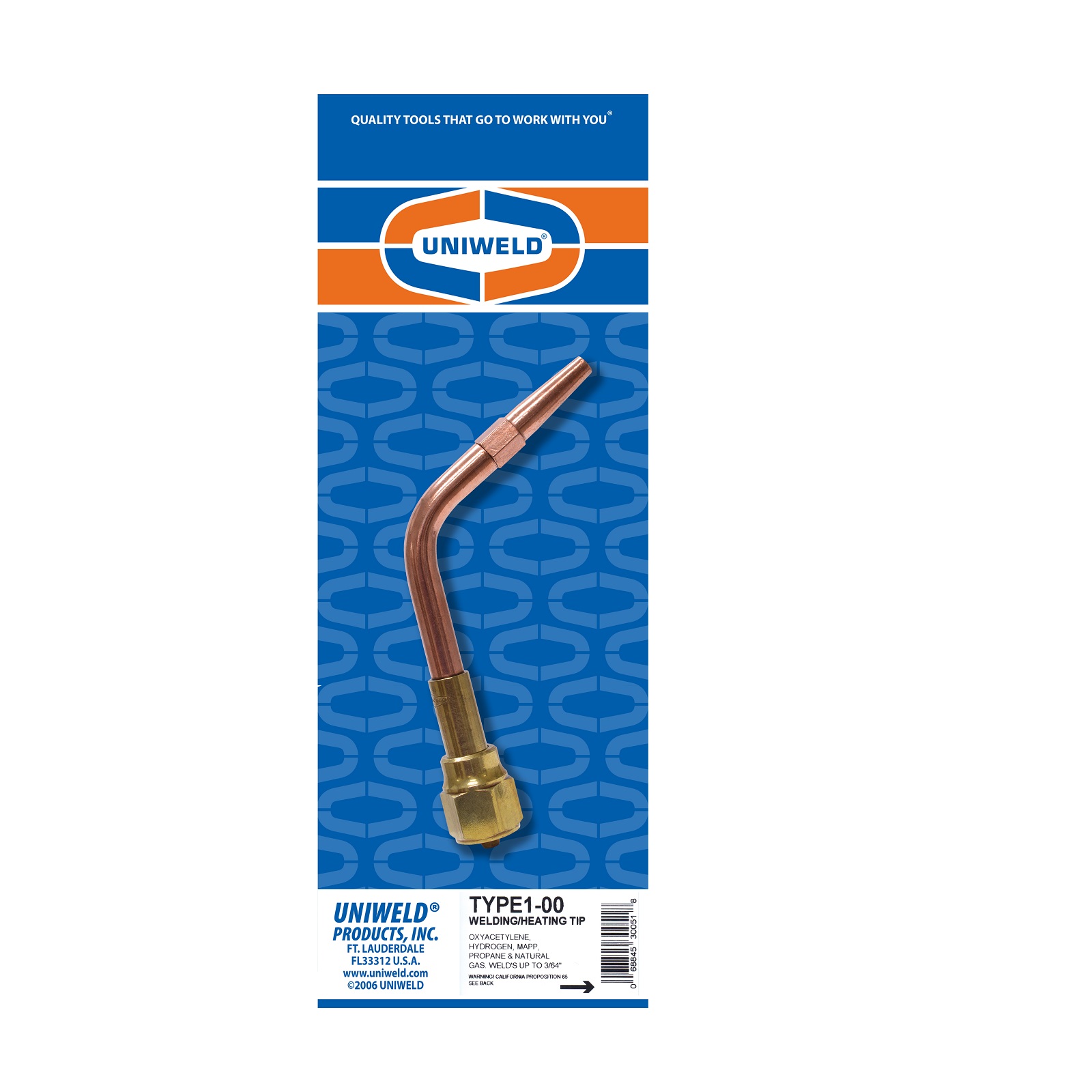

TYPE1-00 TYPE1TE-00 5/16”-27 (M,F) 1/64”-3/64” 5 5 2.5

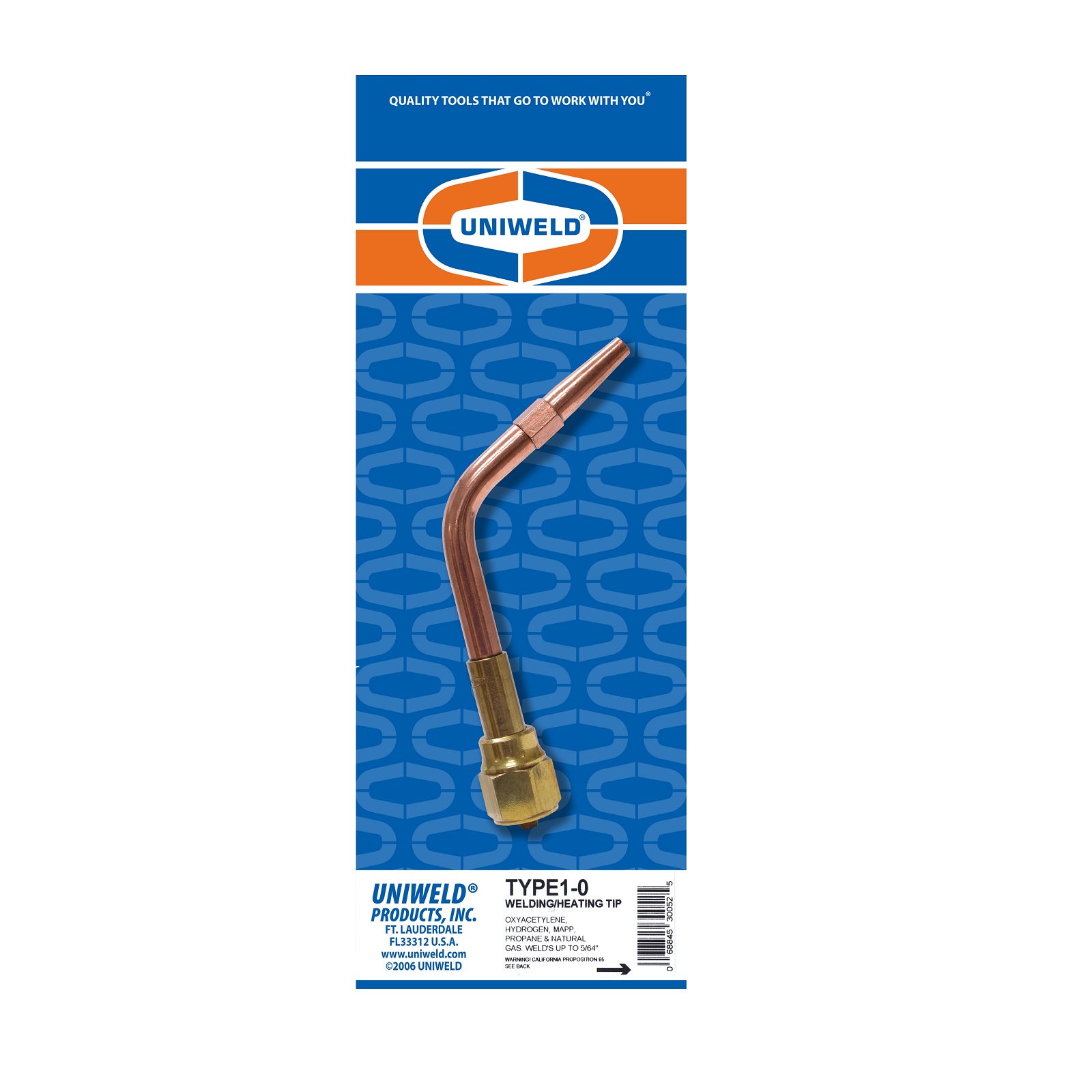

TYPE1-0 TYPE1TE-0 5/16”-27 (M,F) 1/32”-5/64” 5 5 4

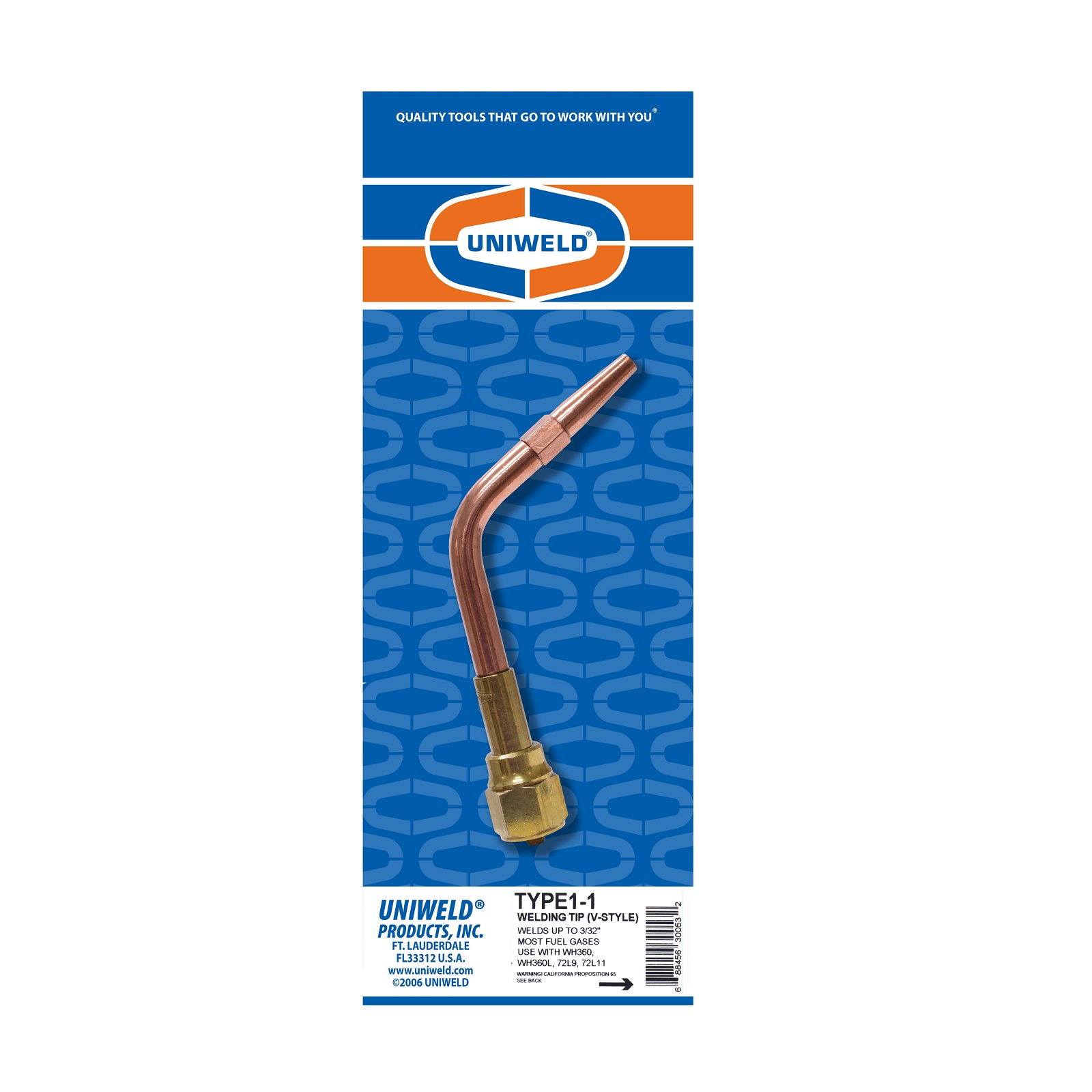

TYPE1-1 TYPE1TE-1 5/16”-27 (M,F) 3/64”-3/32” 5 5 6
TYPE1-2 TYPE1TE-2 5/16”-27 (M,F) 1/16”-1/8” 5 5 10

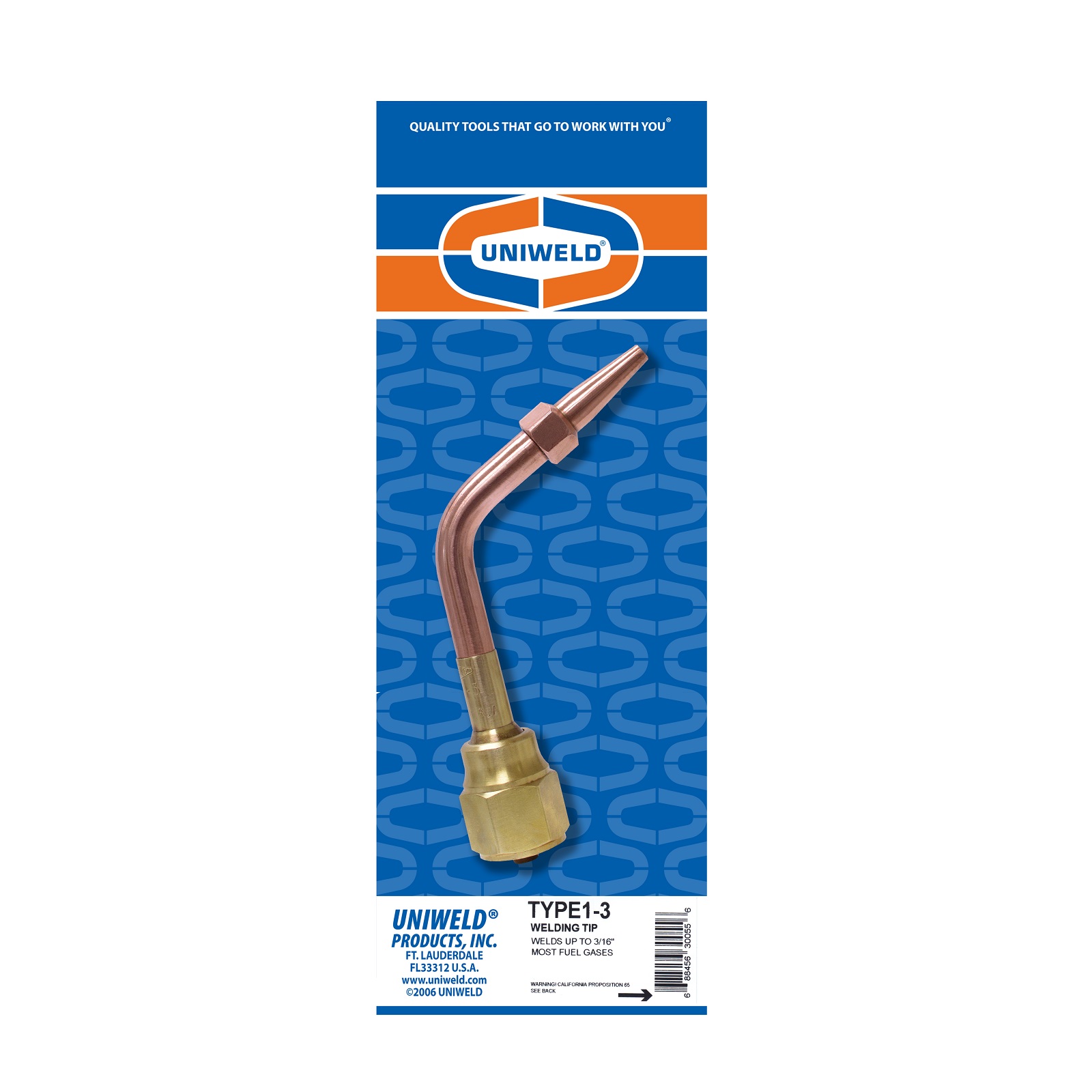

TYPE1-3 TYPE1TE-3 3/8”-27 (M,F) 1/8”-3/16” 7 6 18

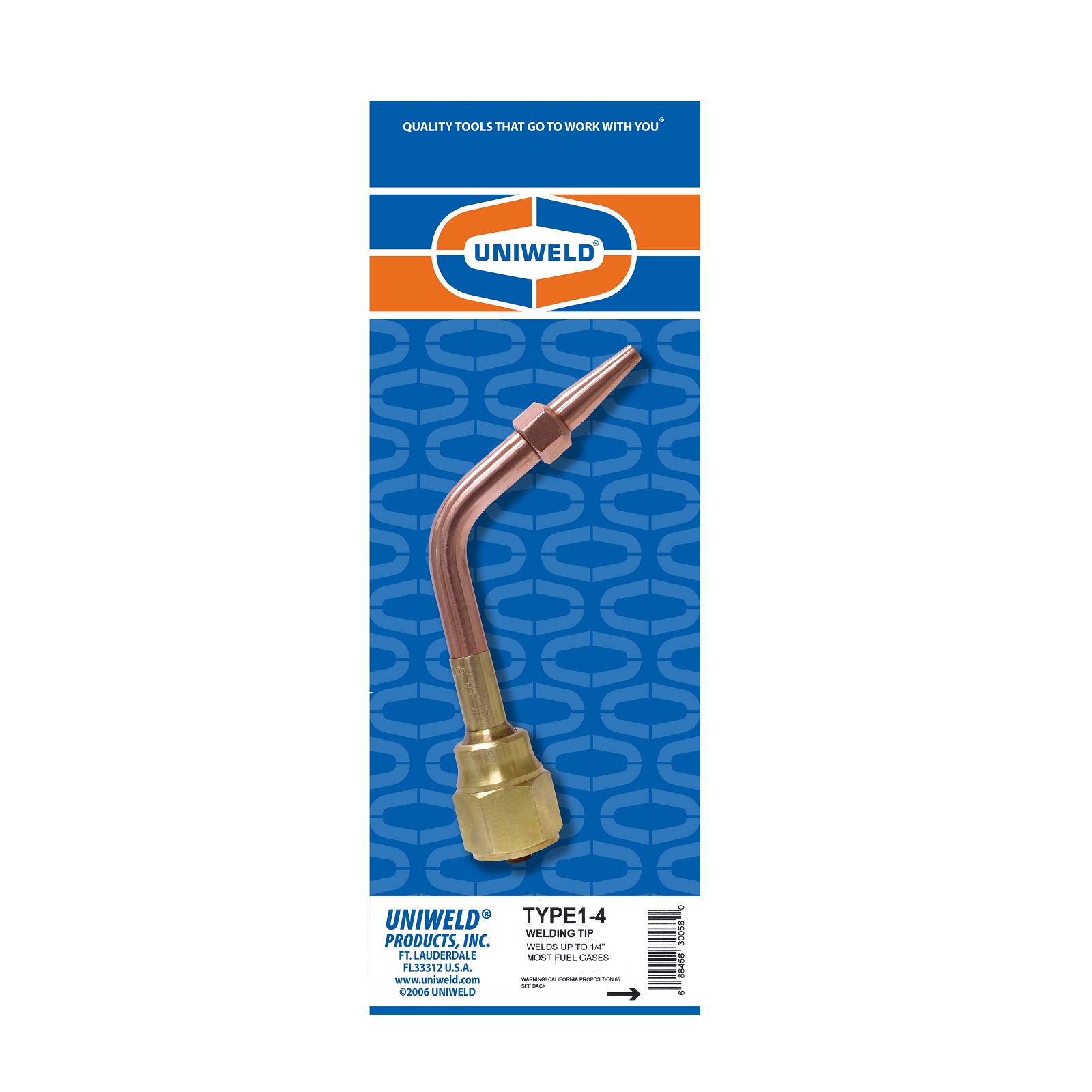

TYPE1-4 TYPE1TE-4 3/8”-27 (M,F) 3/16”-1/4” 10 7 28

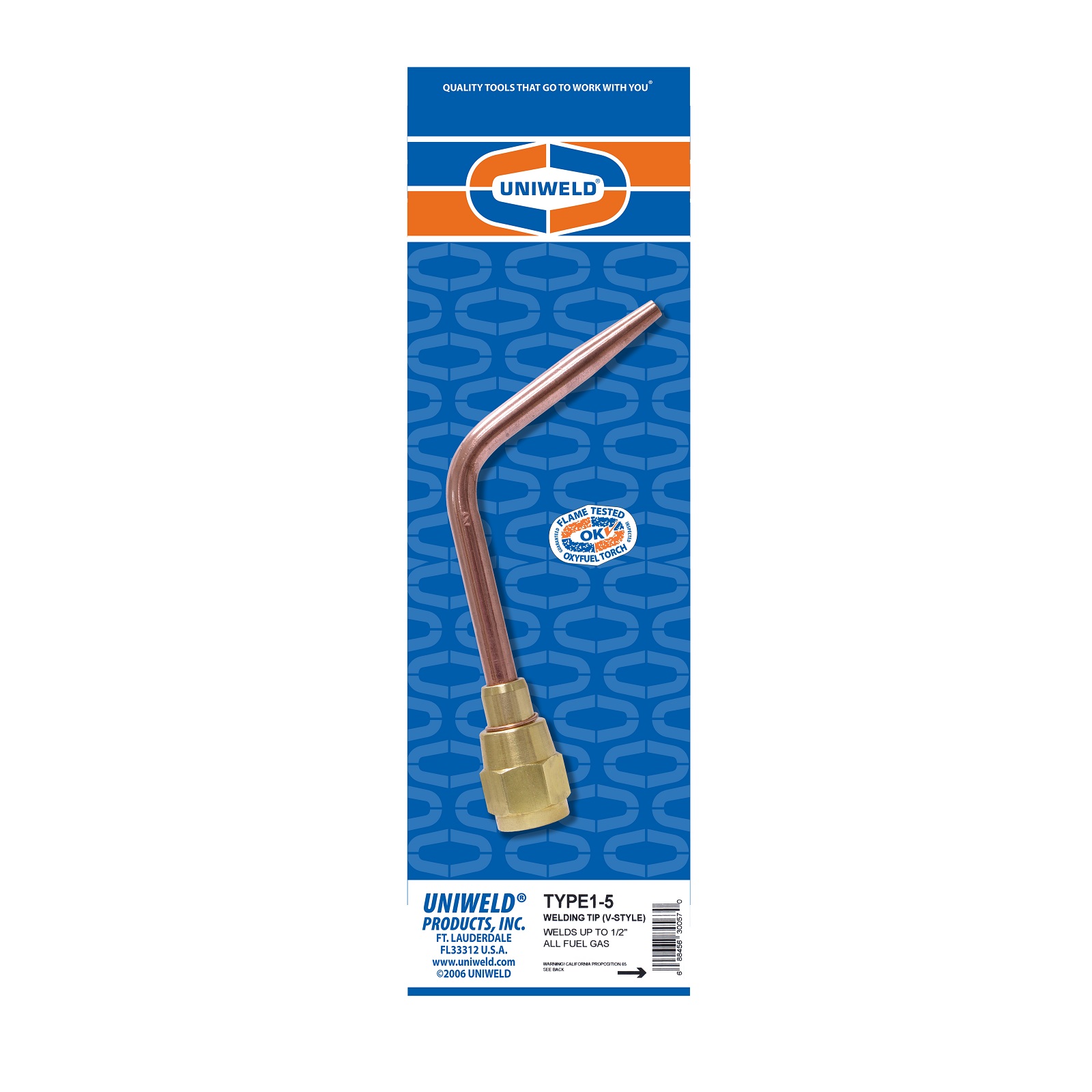

TYPE1-5 TYPE1TE-5 7/16”-27 (M,F) 1/4”-1/2” 12 8 40
TYPE1-6 TYPE1TE-6 7/16”-27 (M,F) 1/2”-3/4” 14 9 52

Additional information

Compatible Welding Handles:

• WH360
• WH360L
• 72L9
• 72L11
