Product Information
Part# | Elbow Only | Weld Metal Thickness | Oxygen (PSIG) | Acetylene Fuel Gas ( PSIG) | Acetylene Fuel Gas (SCFH) |
---|---|---|---|---|---|

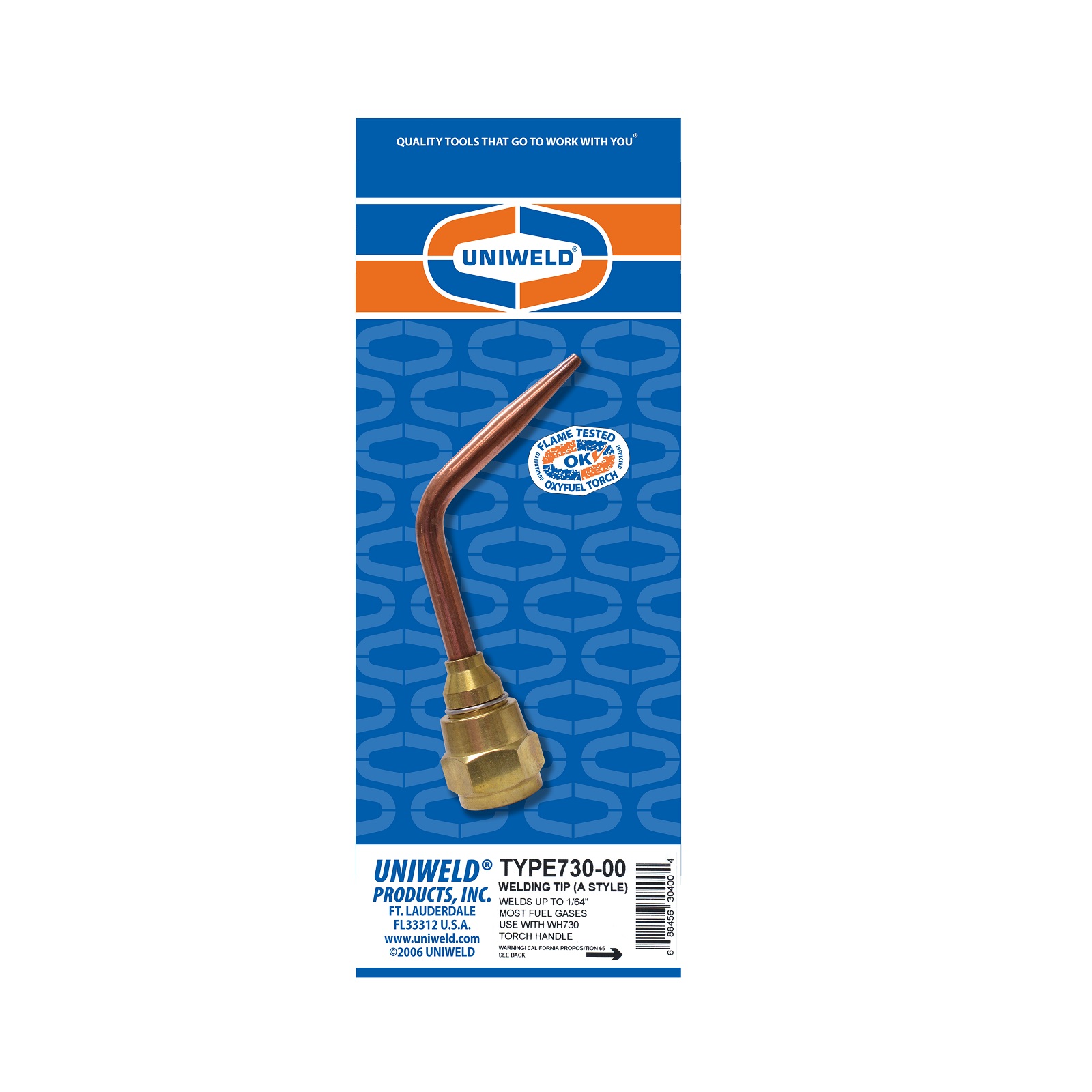

TYPE730-00 | TYPE98E-00 | 1/64″ | 5 | 5 | 2 |

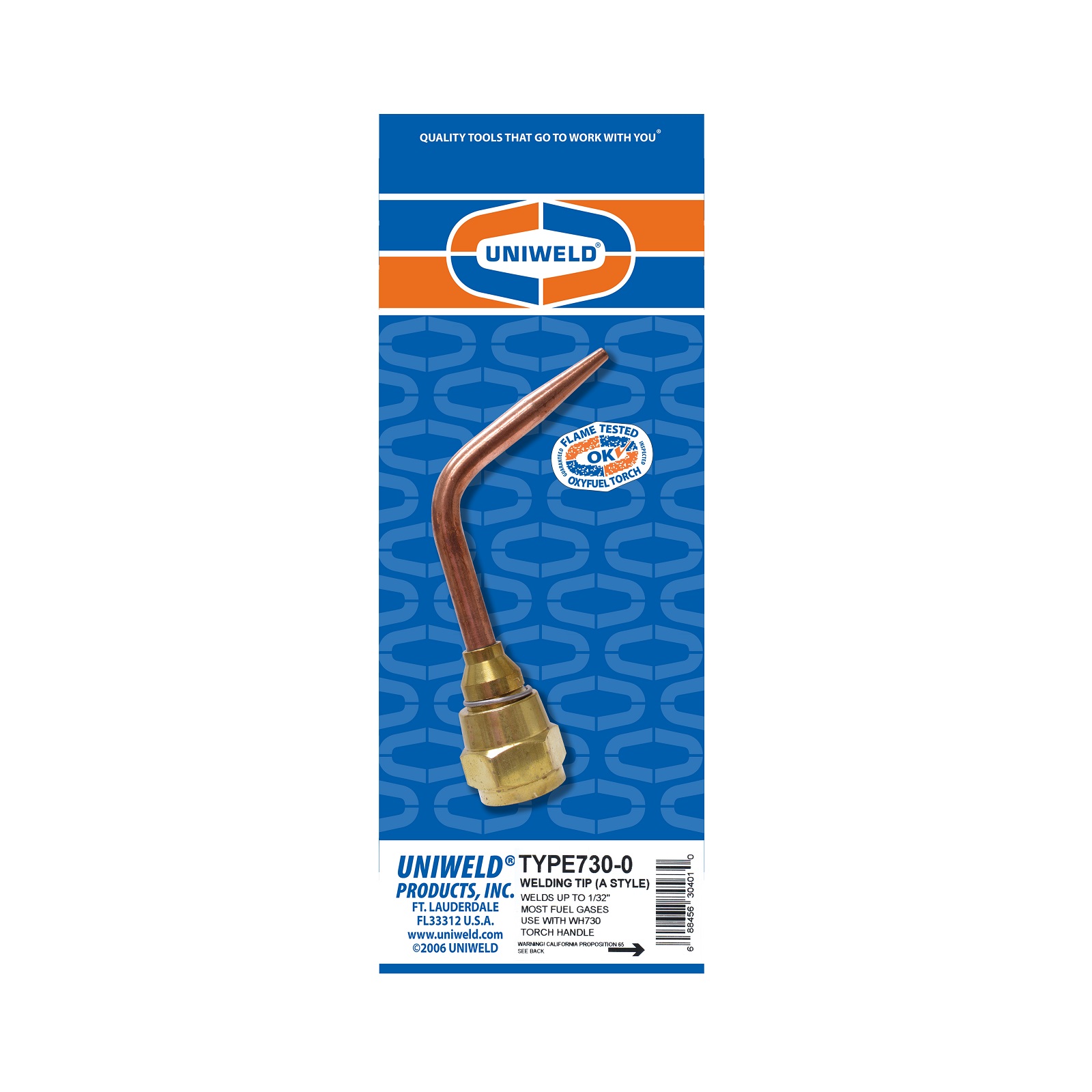

TYPE730-0 | TYPE98E-0 | 1/32″ | 5 | 5 | 3 |

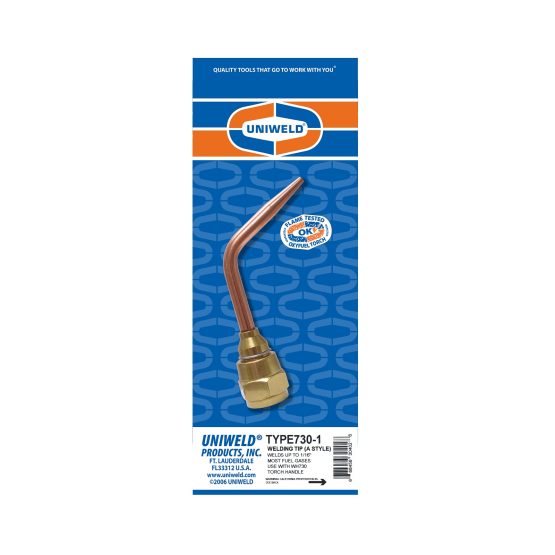

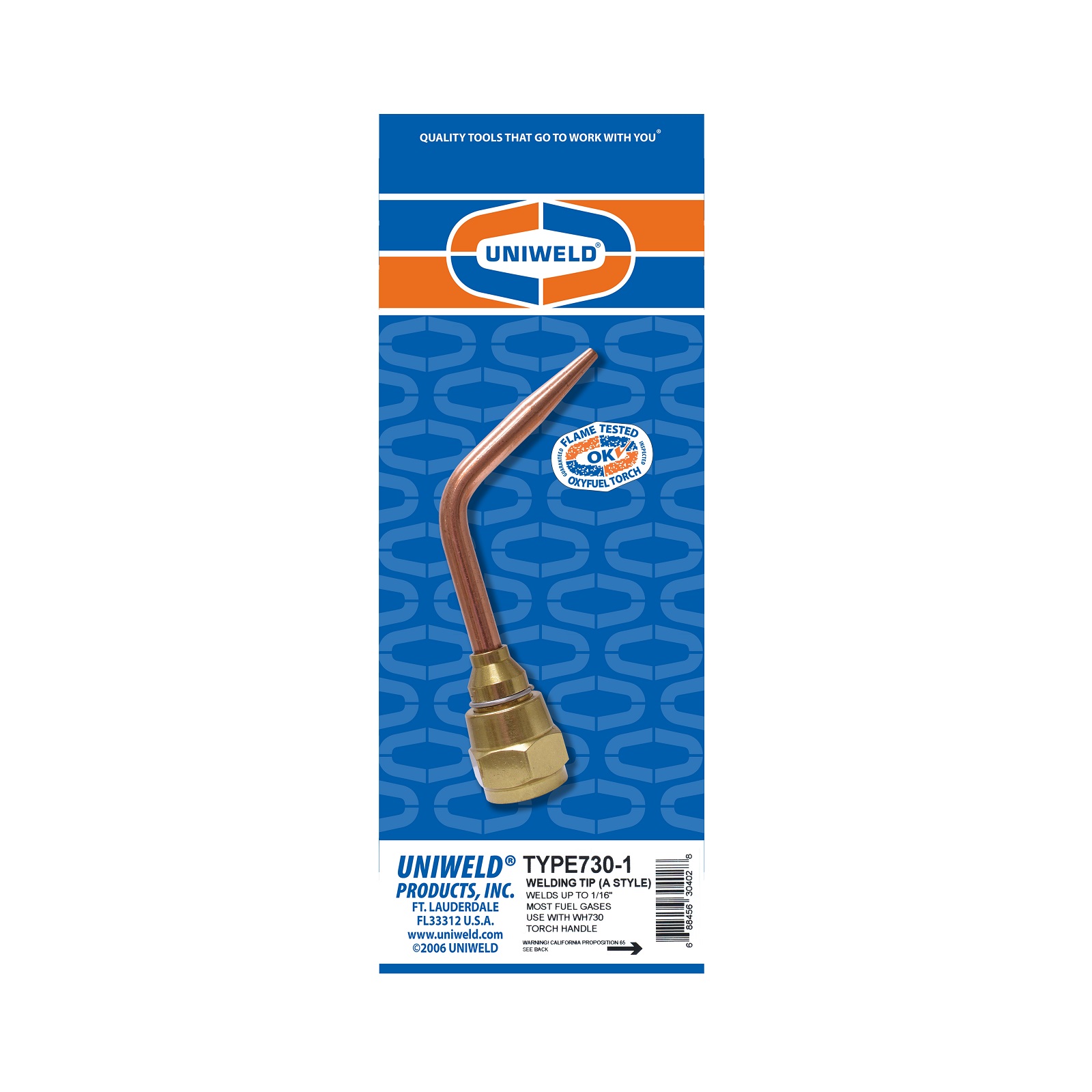

TYPE730-1 | TYPE98E-1 | 1/16″ | 5 | 5 | 5 |

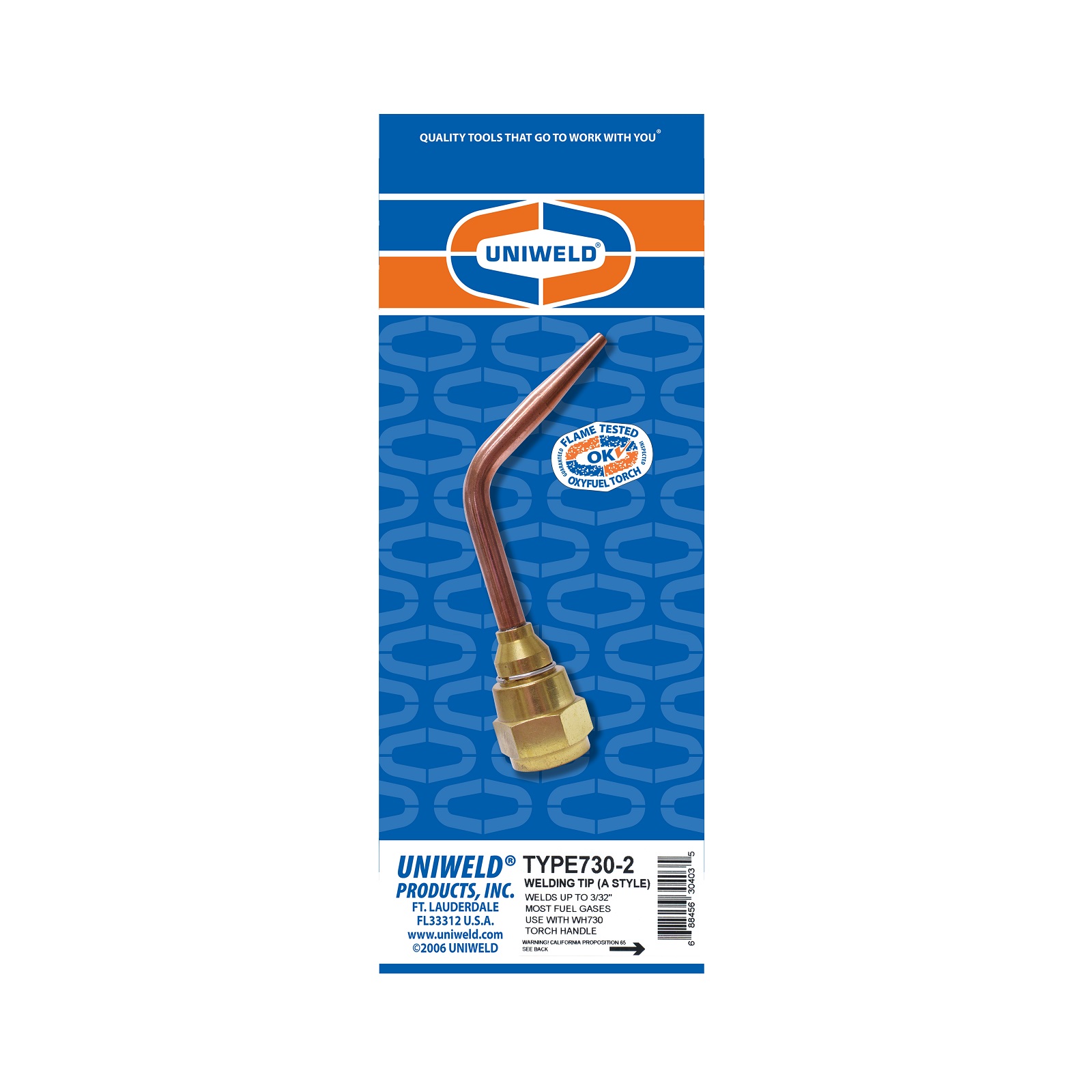

TYPE730-2 | TYPE98E-2 | 3/32″ | 5 | 5 | 8 |

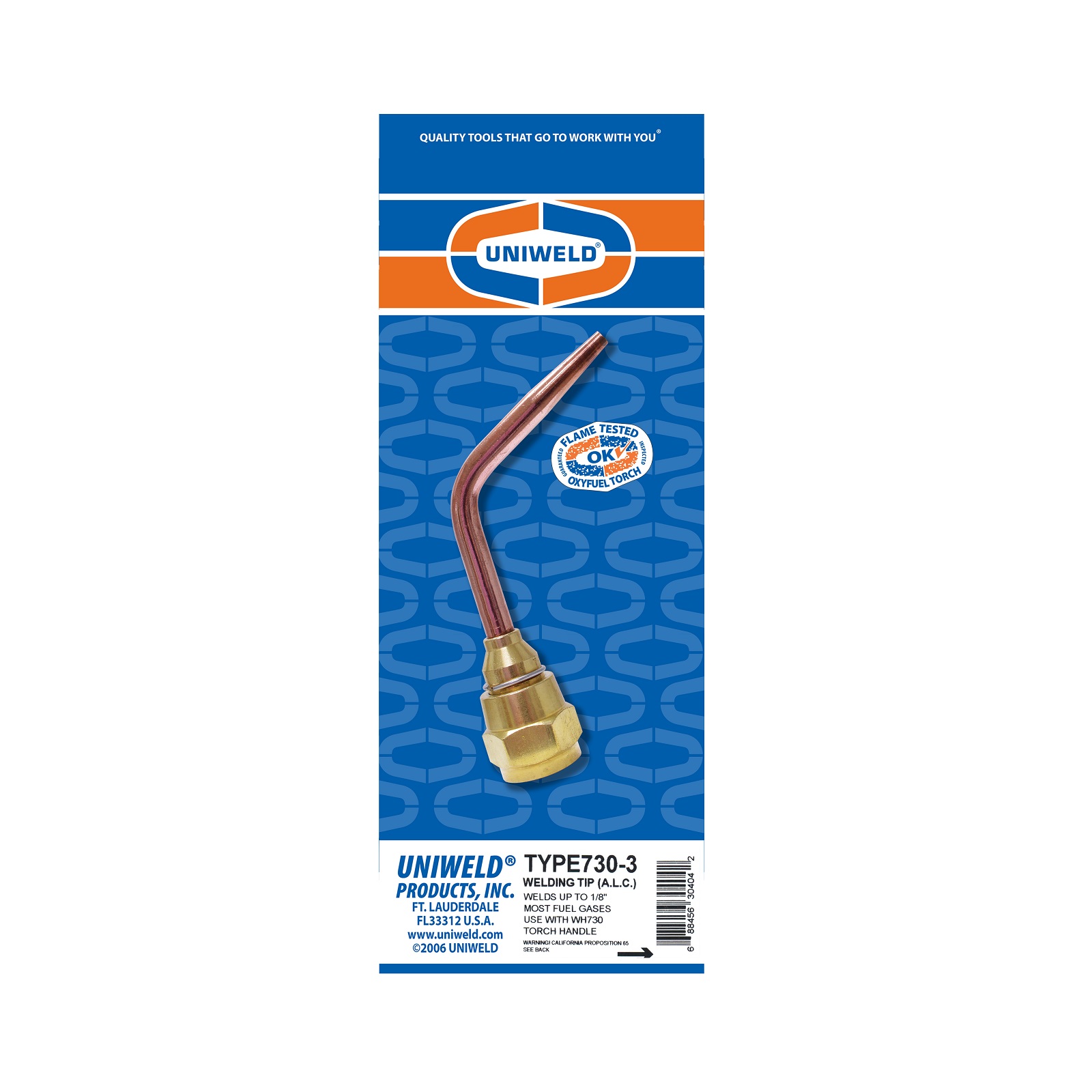

TYPE730-3 | TYPE98E-3 | 1/8″ | 5 | 5 | 12 |

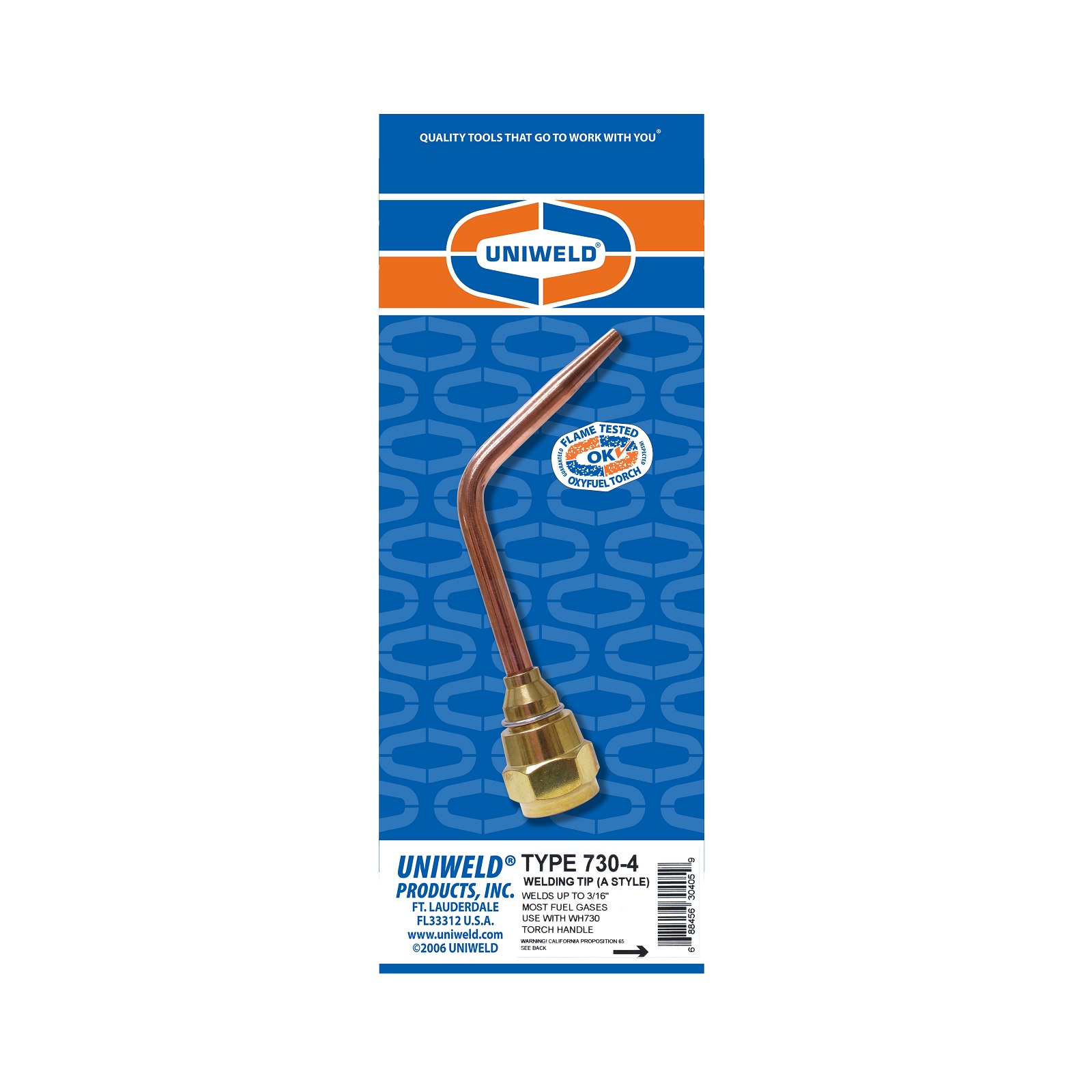

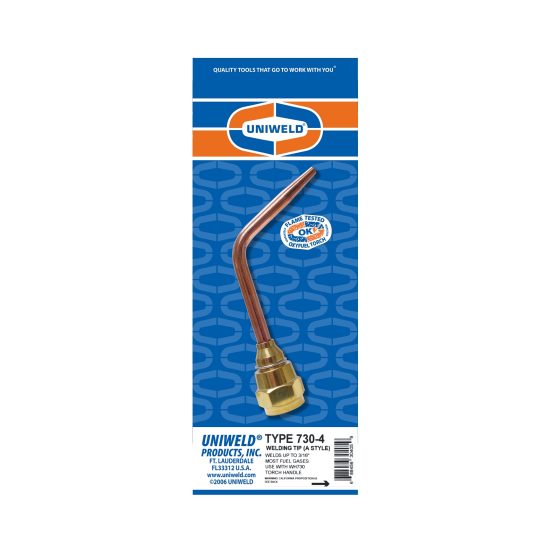

TYPE730-4 | TYPE98E-4 | 3/16″ | 5 | 5 | 15 |

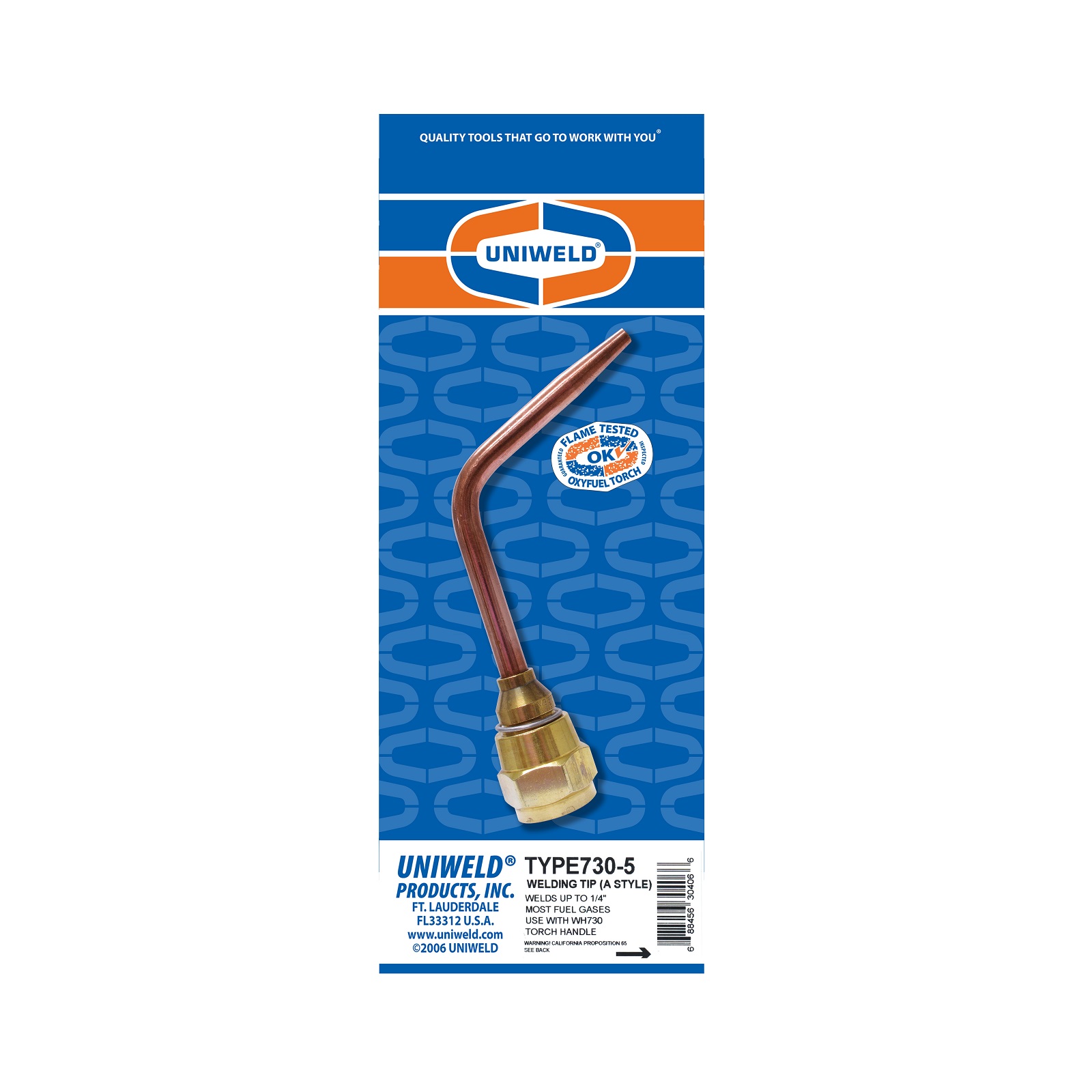

TYPE730-5 | TYPE98E-5 | 1/4″ | 5 | 5 | 24 |
TYPE730-6 | TYPE98E-6 | 3/8″ | 6 | 6 | 35 |

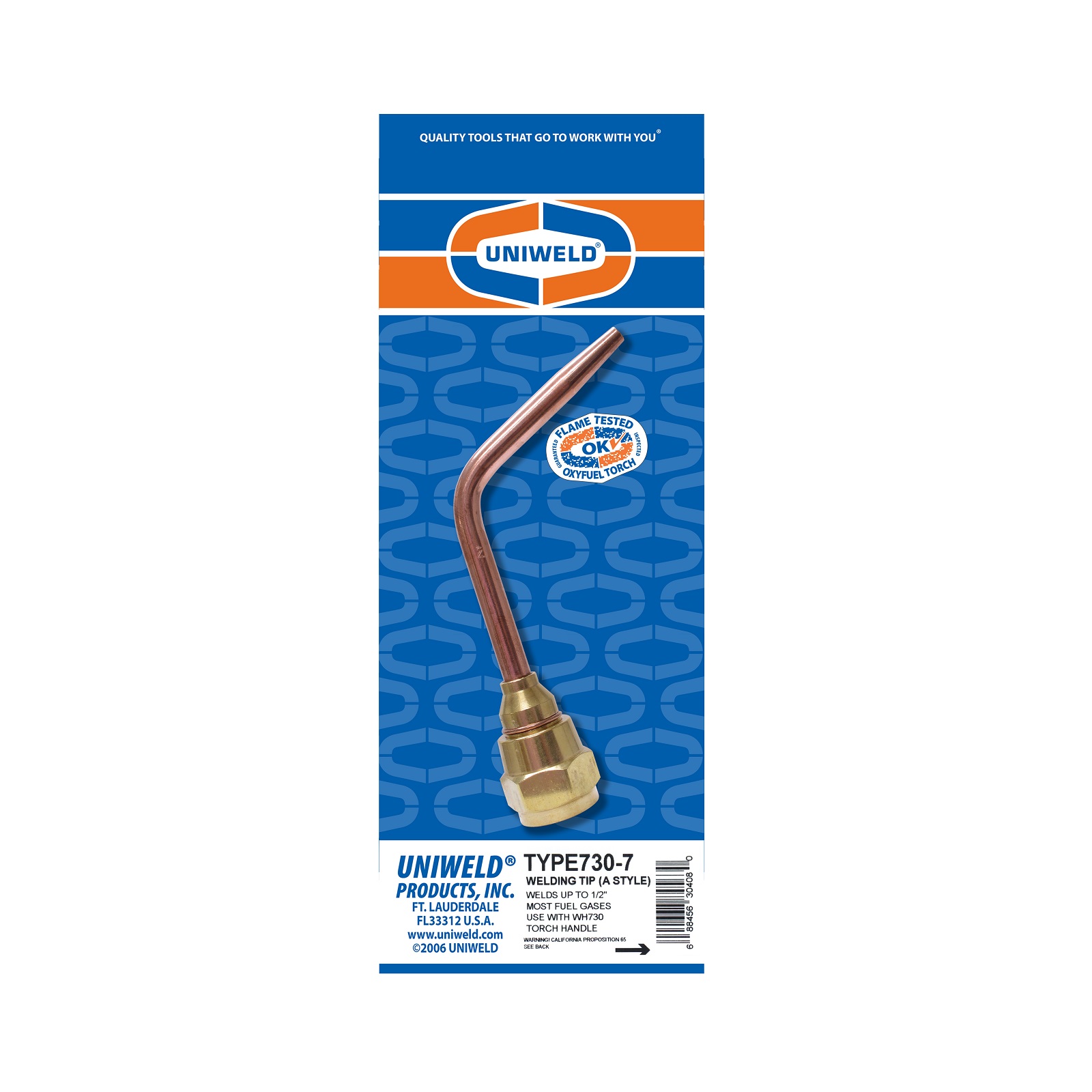

TYPE730-7 | TYPE98E-7 | 1/2″ | 7 | 7 | 43 |

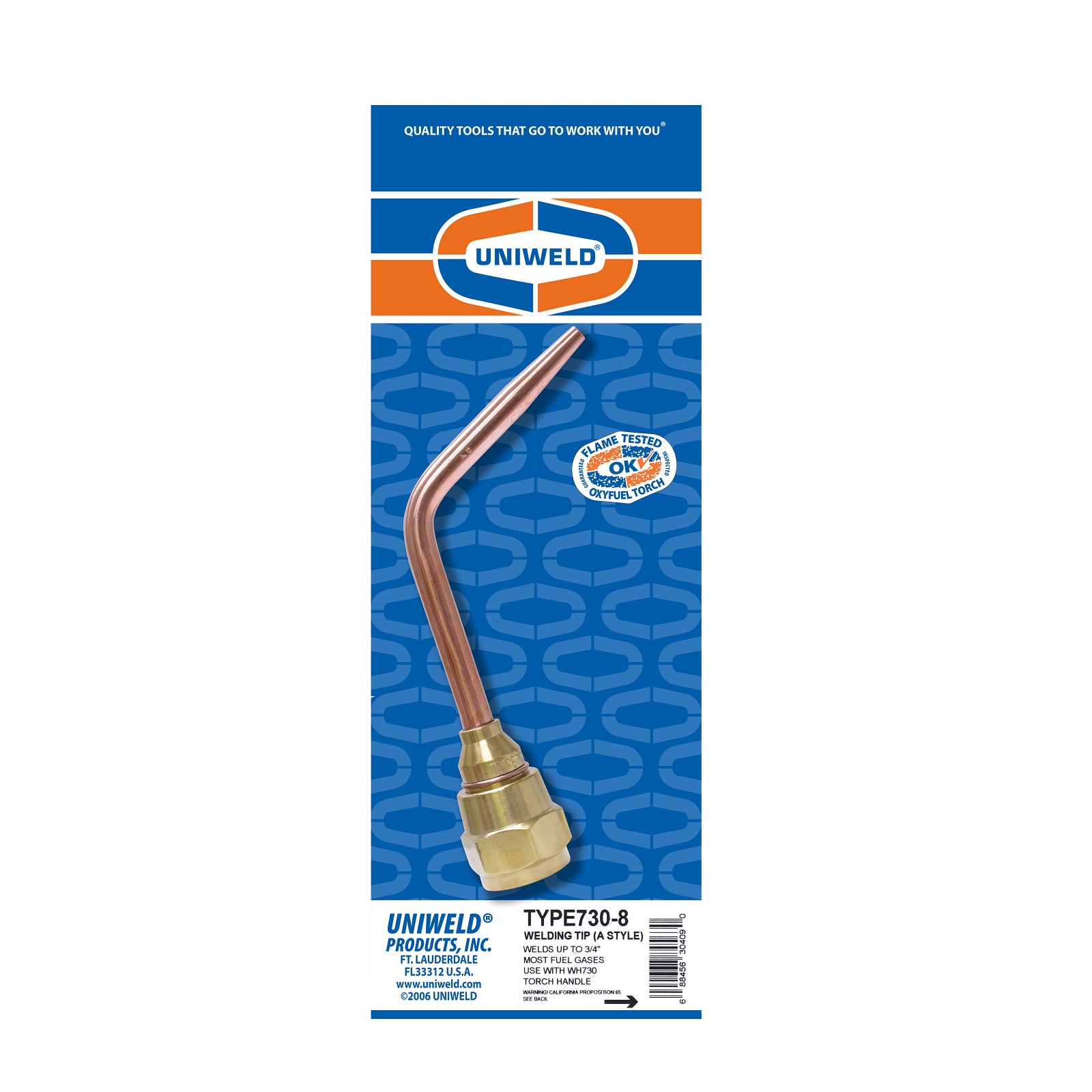

TYPE730-8 | TYPE98E-8 | 3/4″ | 7 | 7 | 55 |
TYPE730-9 | TYPE98E-9 | 1″ | 7 | 7 | 63 |
TYPE730-10 | TYPE98E-10 | 1-1/2″ | 9 | 9 | 76 |
