Product Information
| Part # | Acetylene Consumption SCFH | Oxygen Pressure PSIG | Acetylene Pressure PSIG | Brazing Copper Tubing |
|---|---|---|---|---|
| Type13-8VM | 60 | 25 | 15 | 4″-12″ |

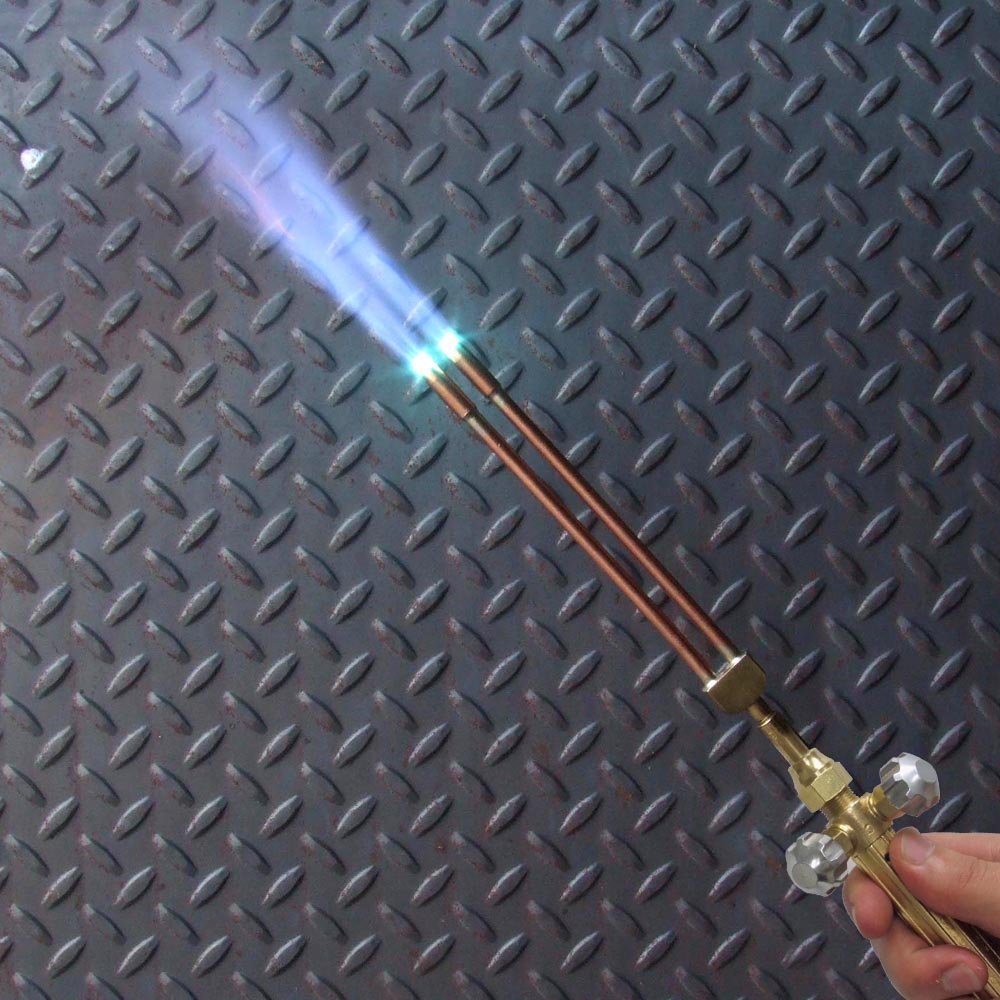

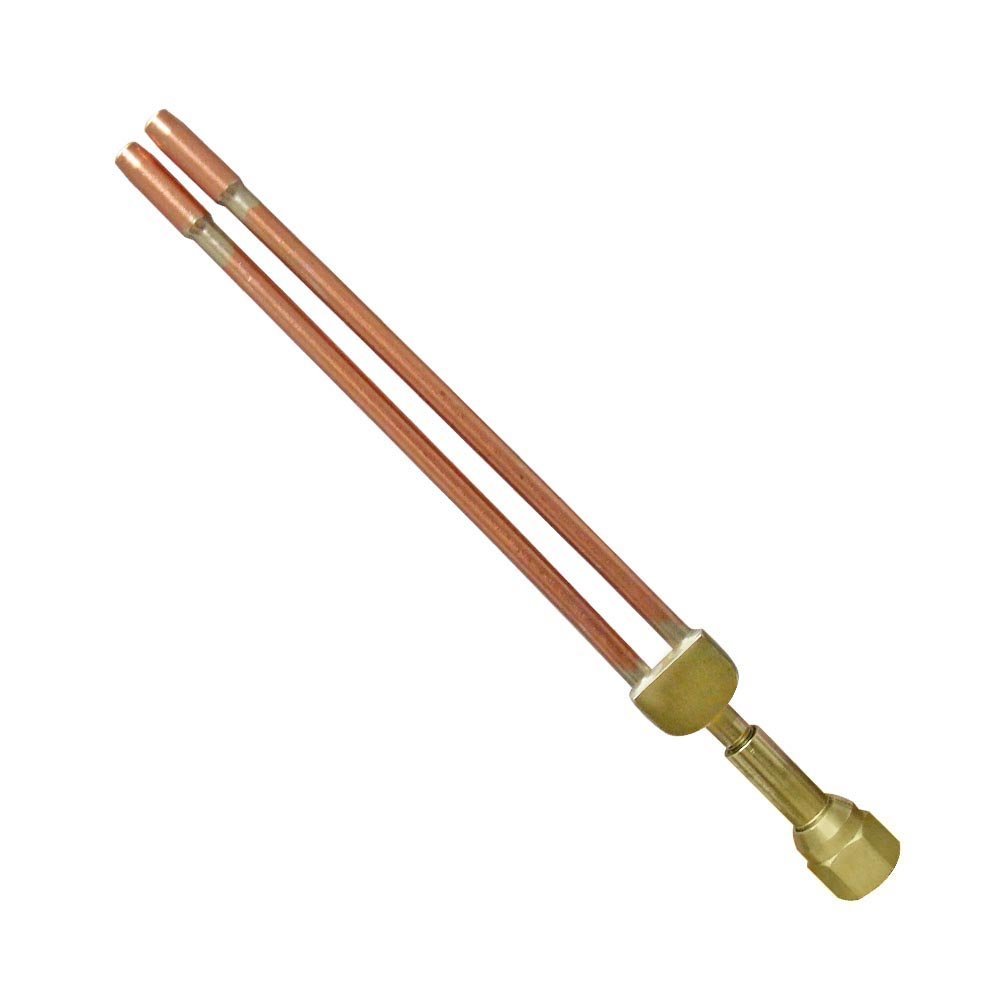

Flexible Twin Heating Tip

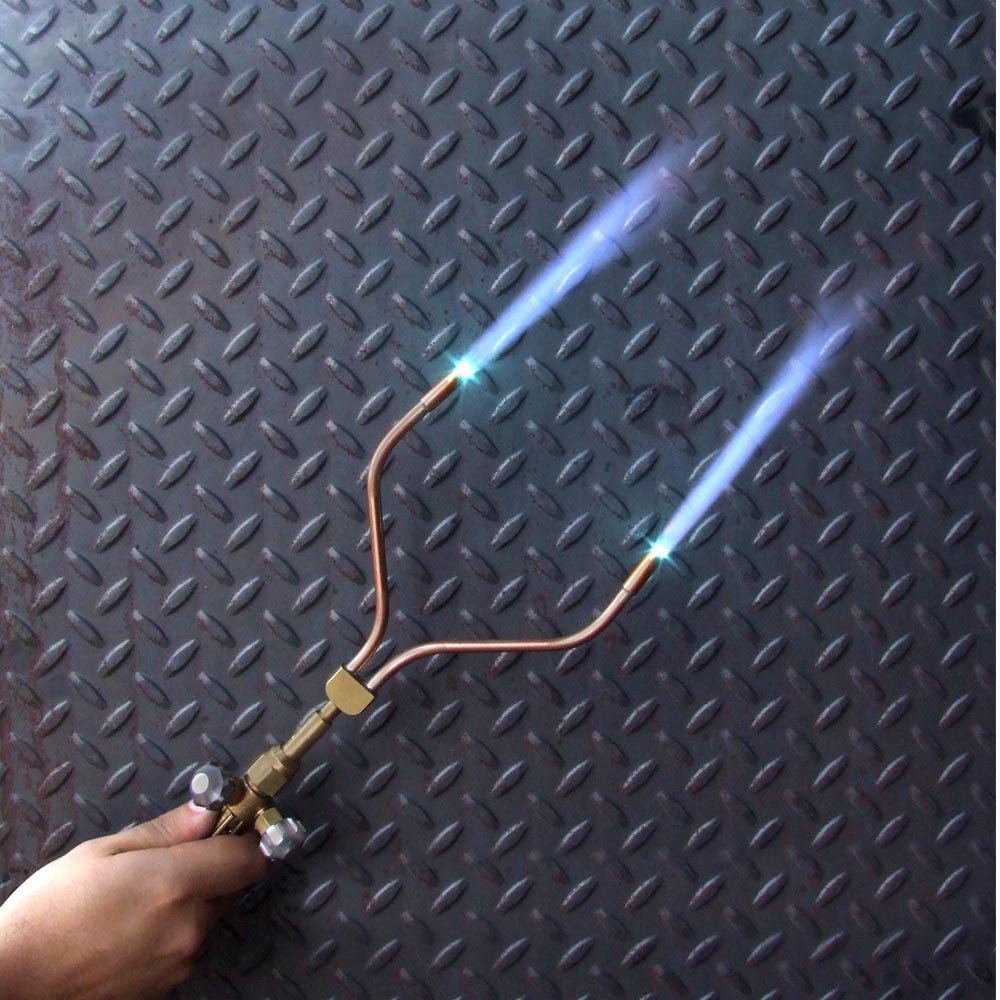

Uniweld's Twin Rosebud Heating Tip has two separate, bendable tip elbows that can be formed to fit big jobs, and two Type17-30 tip ends. Tip is capable of brazing 4″ to 12″ of copper tubing. Tip elbows are copper, mixer and nut are brass. Includes two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.
Additional information
| Compatible Welding Handle | •71 |
|---|
