Spiral Tip Savers

Uniweld’s popular Spiral Tip Cleaners, Tip Savers™, are well known for their exclusive Lock-in-Knot on small cleaning wires and for the tapered pilot ends that will not damage tip orifices. The roll formed spiral stainless steel wires are rustproof and strong and the long roll formed spiral cleans a larger number of tip styles. A hard steel file is included in each durable aluminum case, which has drill size cleaning data stamped on the back.



Tip Savers® Features:

  • Rustproof, stainless steel wire.
  • The spiral is roll formed to last longer.
  • Exclusive LOCK-IN-KNOT on small wires.
  • Long spiral cleans a larger number of tip styles.
  • Tapered pilot ends will not damage tip orifice.
  • Stainless steel file included in each case.
Categories: ,

Product Information

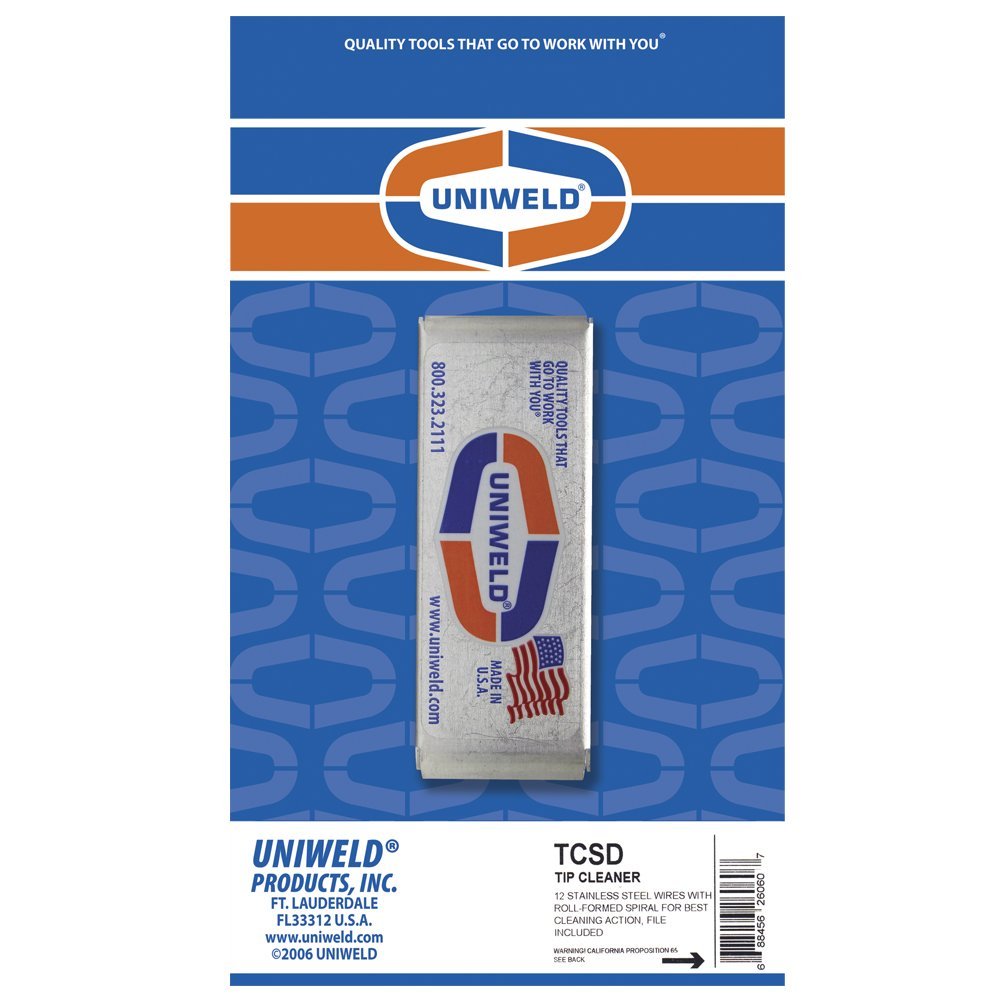

All Tip Savers® include a hinged aluminum case with cleaning data stamped on the back. Spiral Tips Savers® are also available on display cards by adding a “D” to the end of the part number. Example: TCSD

Available Sets: TCS (Standard Set), TCM (Standard Master Set), TCJ (Jumbo), TCL (Extra Long)

TCS – Standard Set



Tip No. Drill Type Length
1 75-74 Standard
2 73-72-71 Standard
3 70-69-68 Standard
4 67-66-65 Standard
5 64-63-62 Standard
6 61-60 Standard
7 59-58 Standard
8 57 Standard
9 56 Standard
10 55-54 Standard
11 53-52 Standard
12 51-50-49 Standard



TCL – Extra Long Set



Tip No. Drill Type Length
1 75-74 Extra Long
2 73-72-71 Extra Long
3 70-69-68 Extra Long
4 67-66-65 Extra Long
5 64-63-62 Extra Long
6 61-60 Extra Long
7 59-58 Extra Long
8 57 Extra Long
9 56 Extra Long
10 55-54 Extra Long
11 53-52 Extra Long
12 51-50-49 Extra Long



TCJ – Jumbo Set



Tip No. Drill Type Length
13 48-47 Standard
14 46-45 Standard
15 44-43 Standard
16 42-41 Standard
17 40-39-38 Standard
18 37-36 Standard
19 35-34-33 Standard
20 32-31 Standard
21 30 Standard

TCM – Master Set



Tip No. Drill Type Length
1 75-74 Standard
2 73-72-71 Standard
3 70-69-68 Standard
4 67-66-65 Standard
5 64-63-62 Standard
6 61-60 Standard
7 59-58 Standard
8 57 Standard
9 56 Standard
10 55-54 Standard
11 53-52 Standard
12 51-50-49 Standard
13 48-47 Standard
14 46-45 Standard
15 44-43 Standard
16 42-41 Standard
17 40-39-38 Standard
18 37-36 Standard
19 35-34-33 Standard
20 32-31 Standard
21 30 Standard
