Sparkless Vacuum Pumps

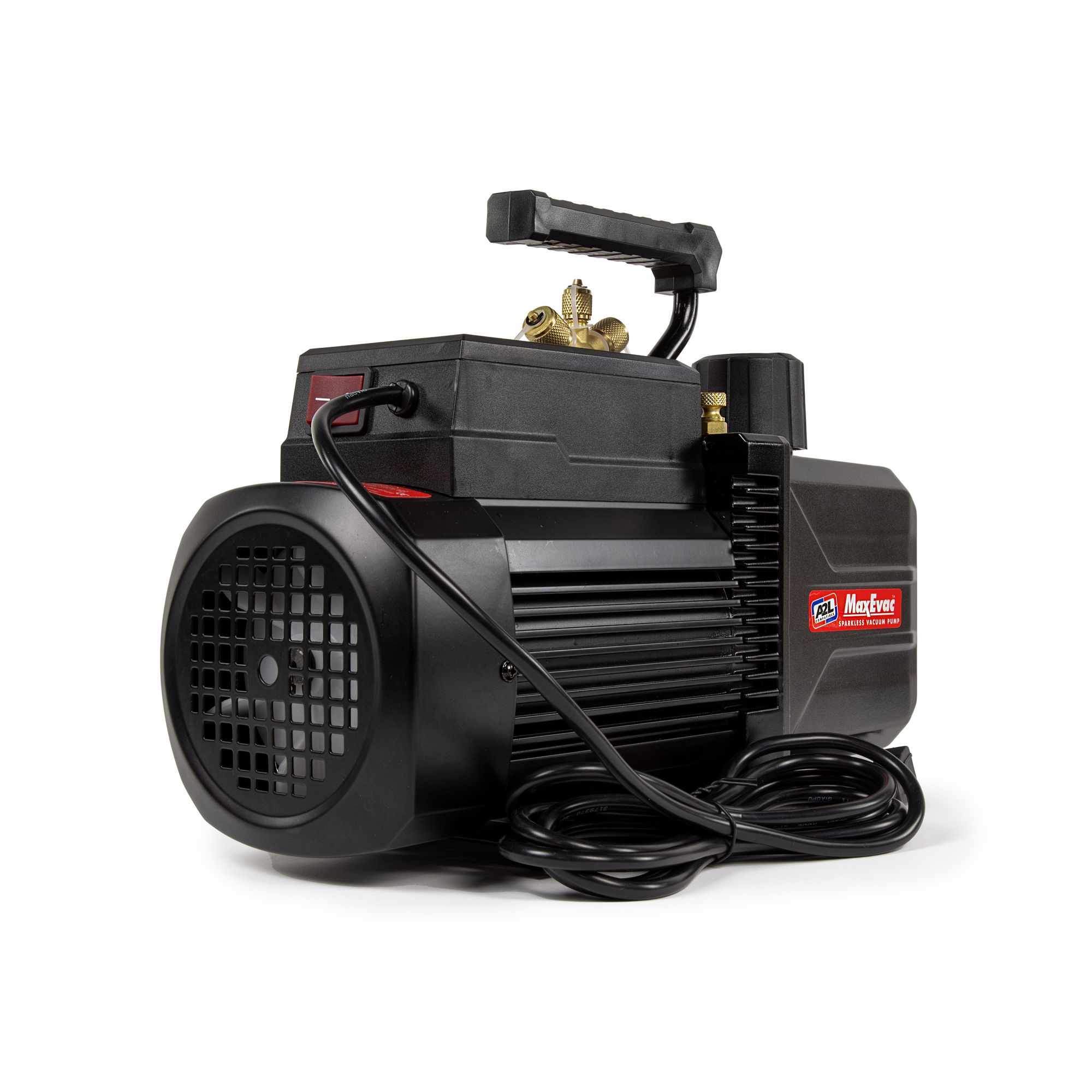

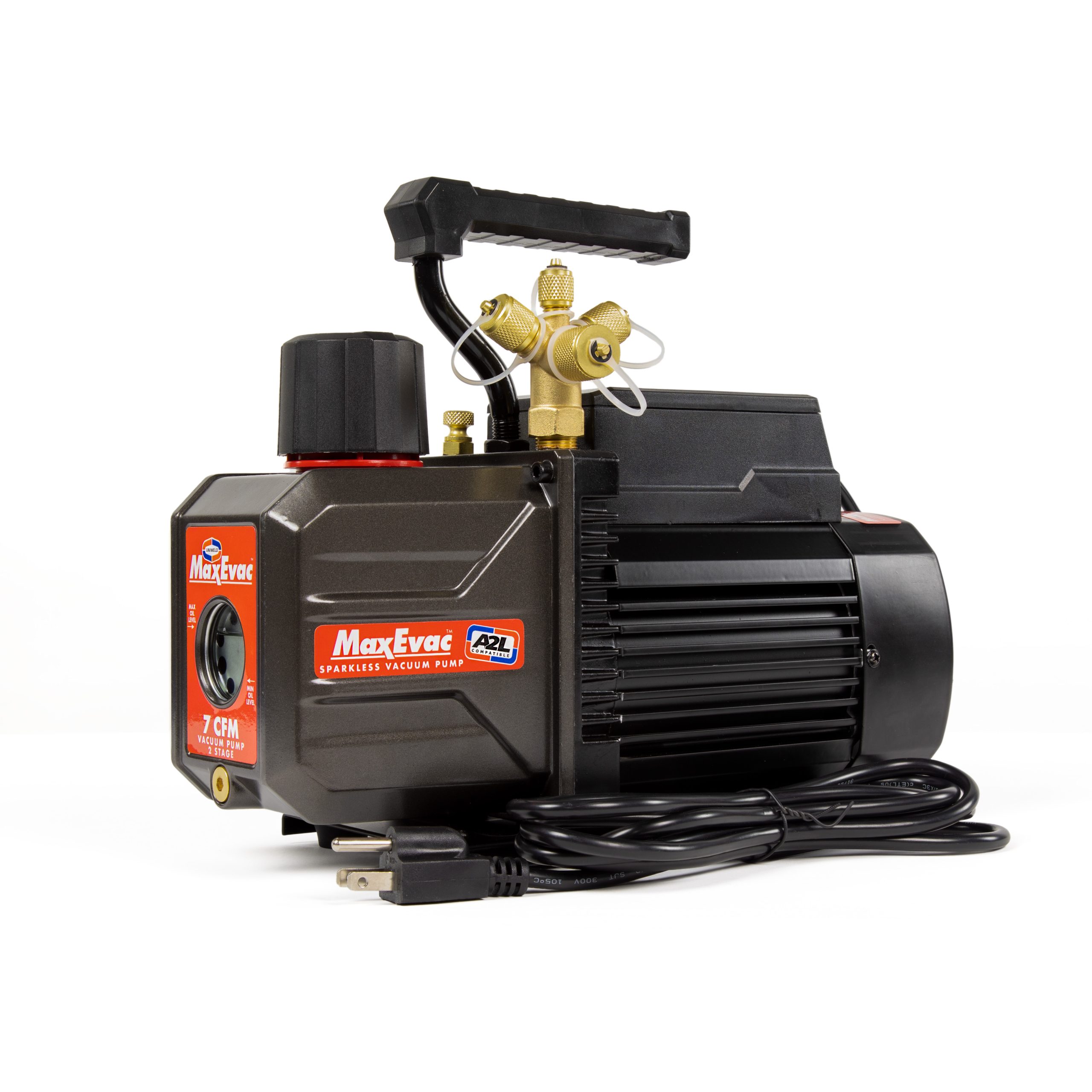

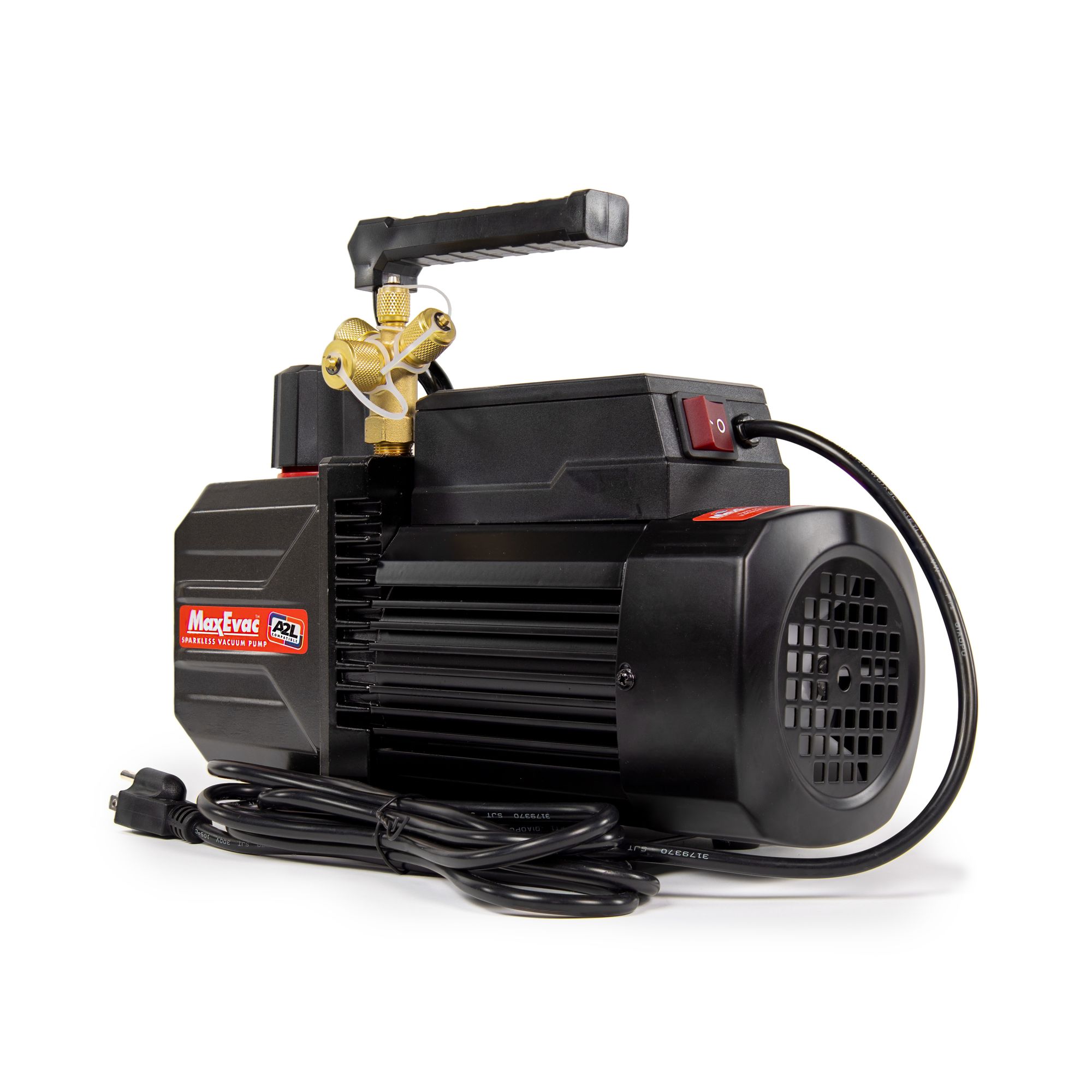

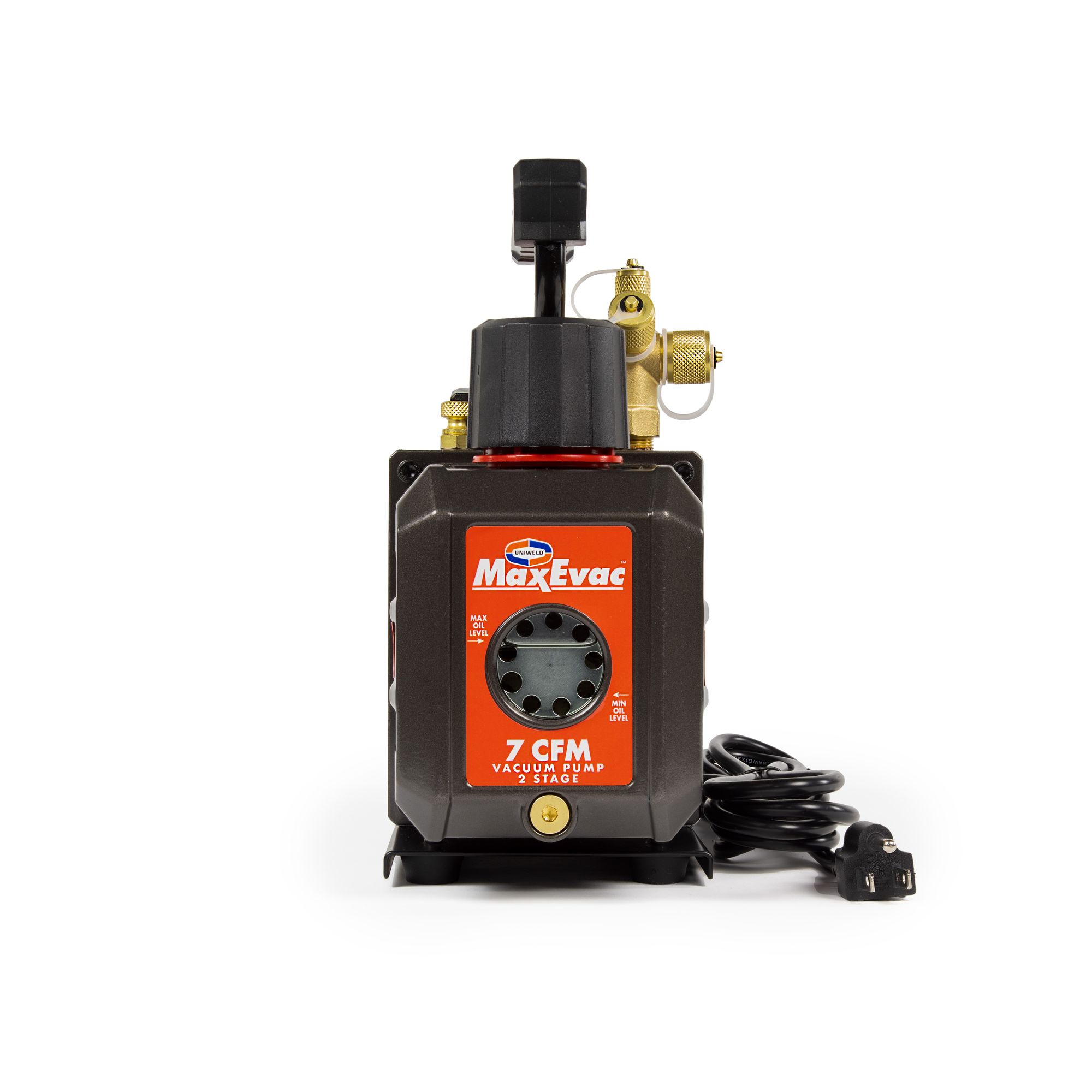

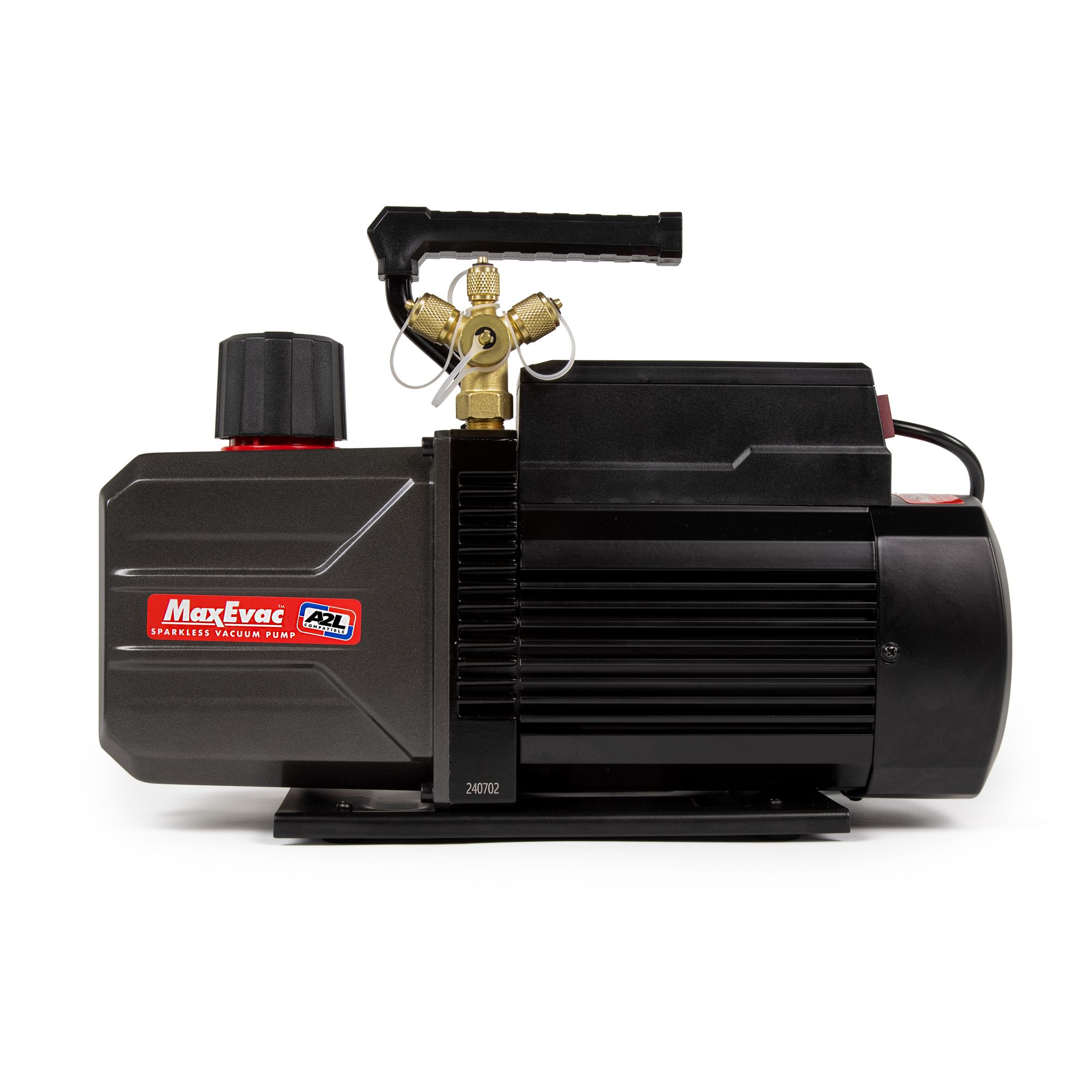

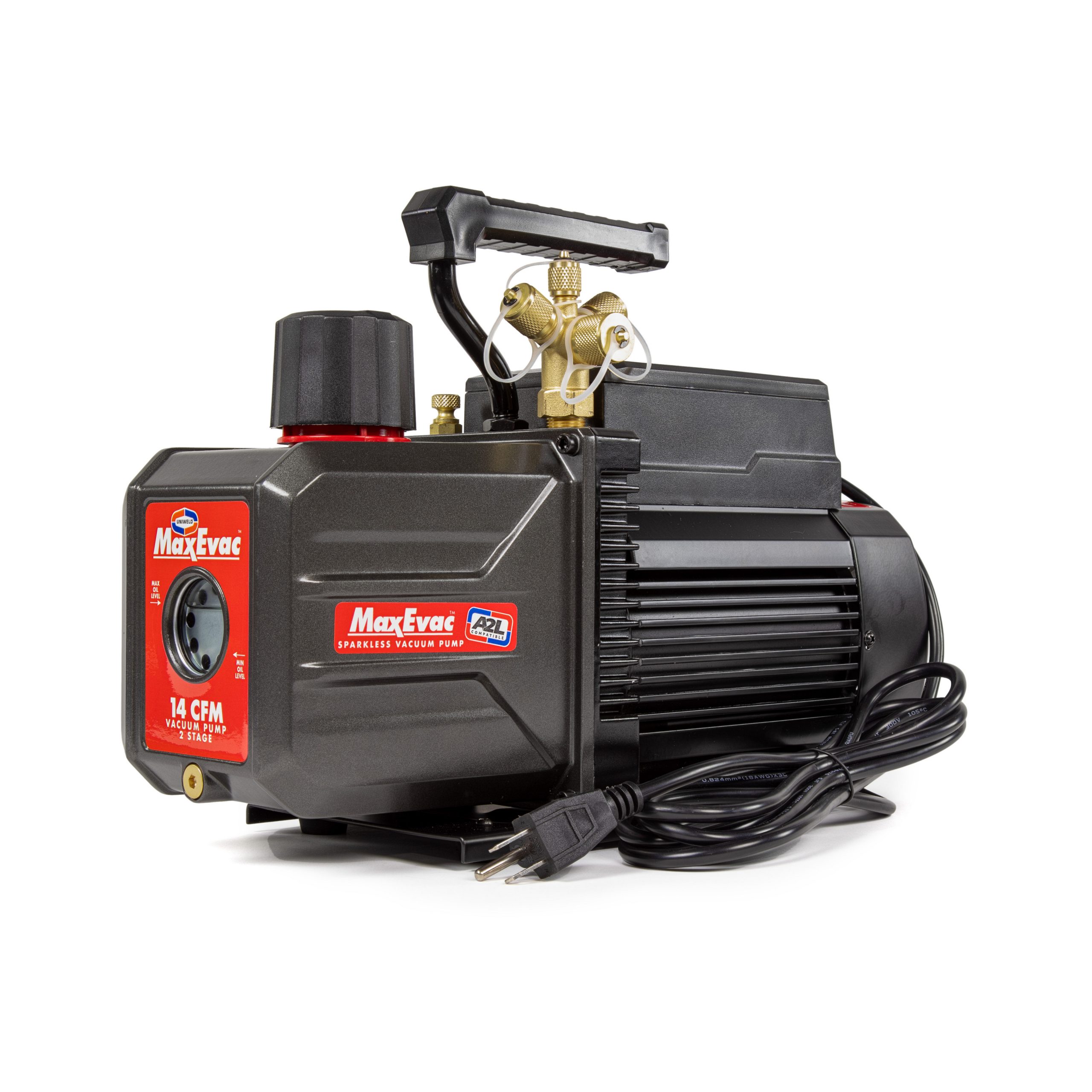

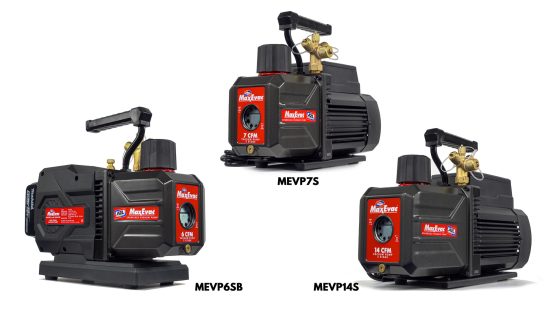

MaxEvac™ MEVP7S and MEVP14S sparkless vacuum pumps are A2L compatible and designed to maximize your evacuation efficiency. The high-capacity intake fitting has dual 3/8″ connections in a Y shape to increase flow.

The gas ballast allows dry atmospheric air to enter the second stage chamber and prevent water vapor from condensing before it is exhausted from the vacuum pump. This extends the life of the vacuum pump oil which means fewer oil changes. *U.S. and International Patent Pending

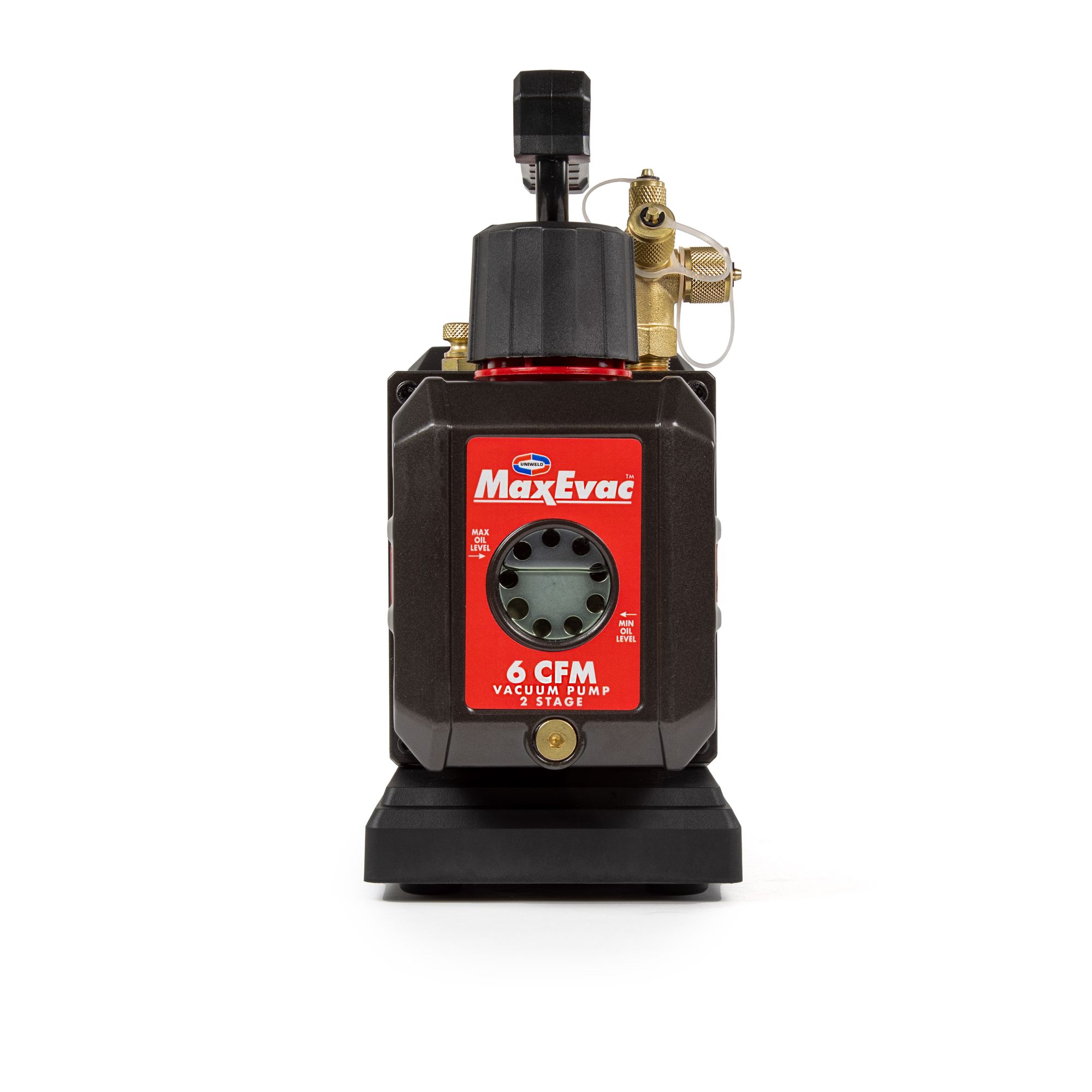

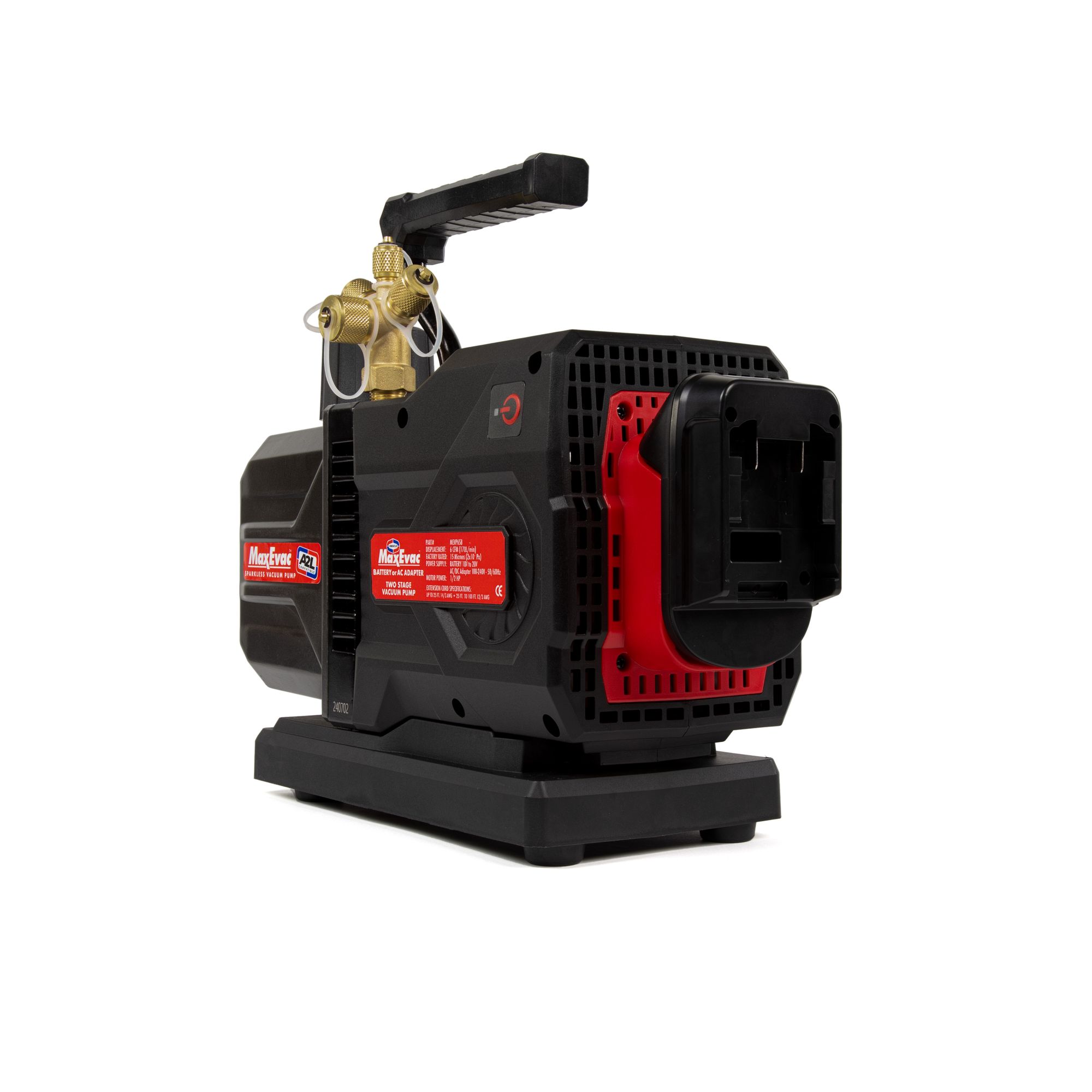

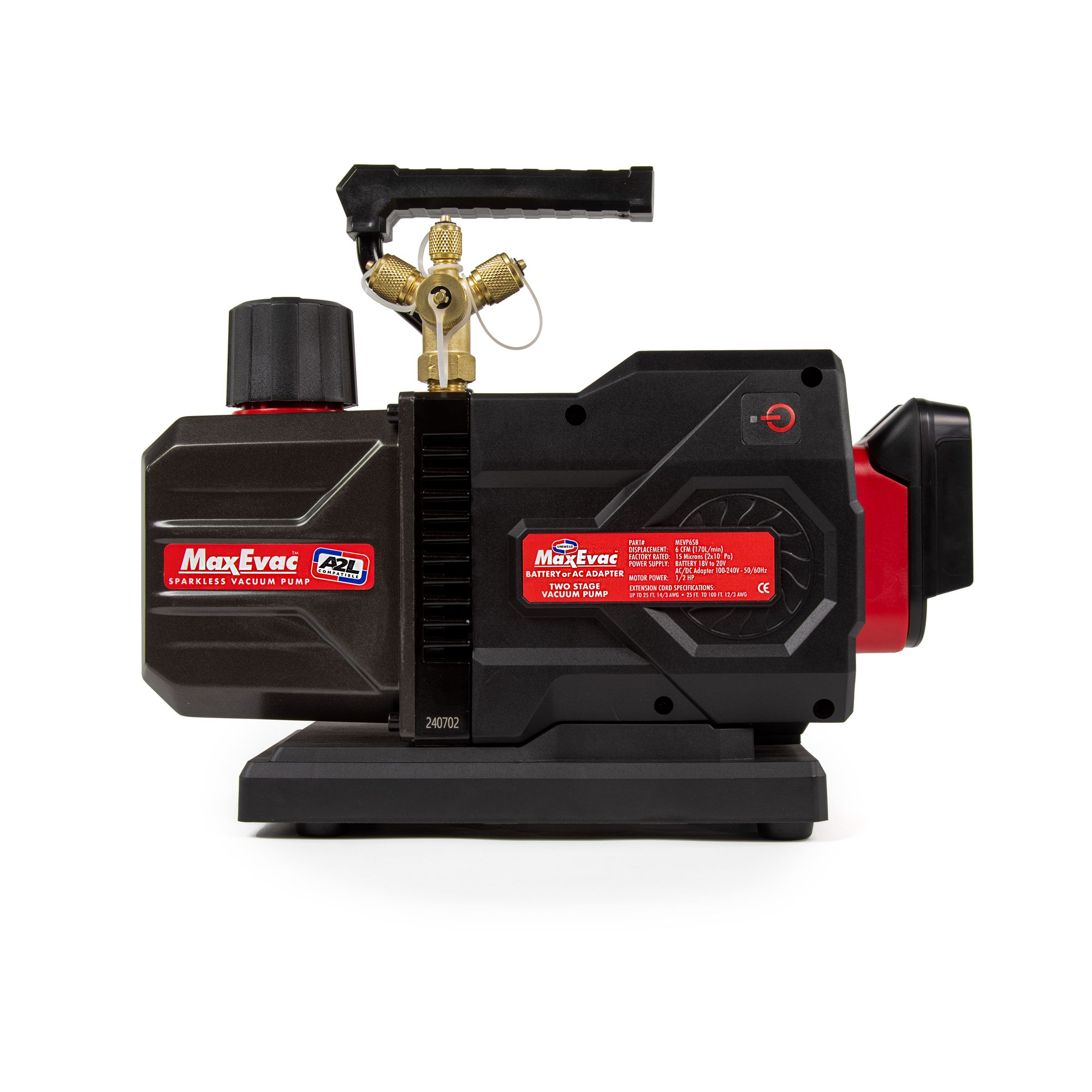

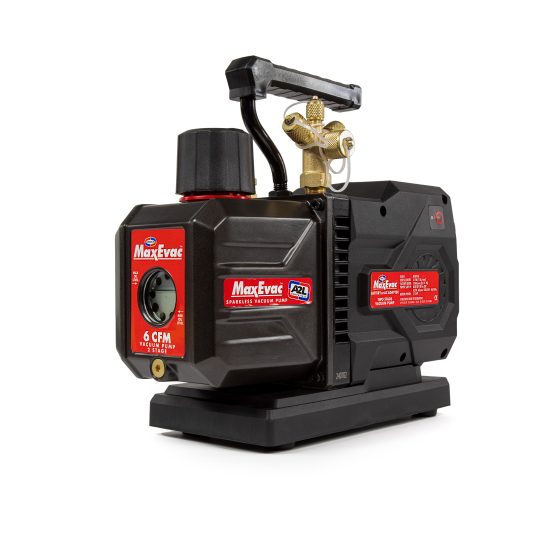

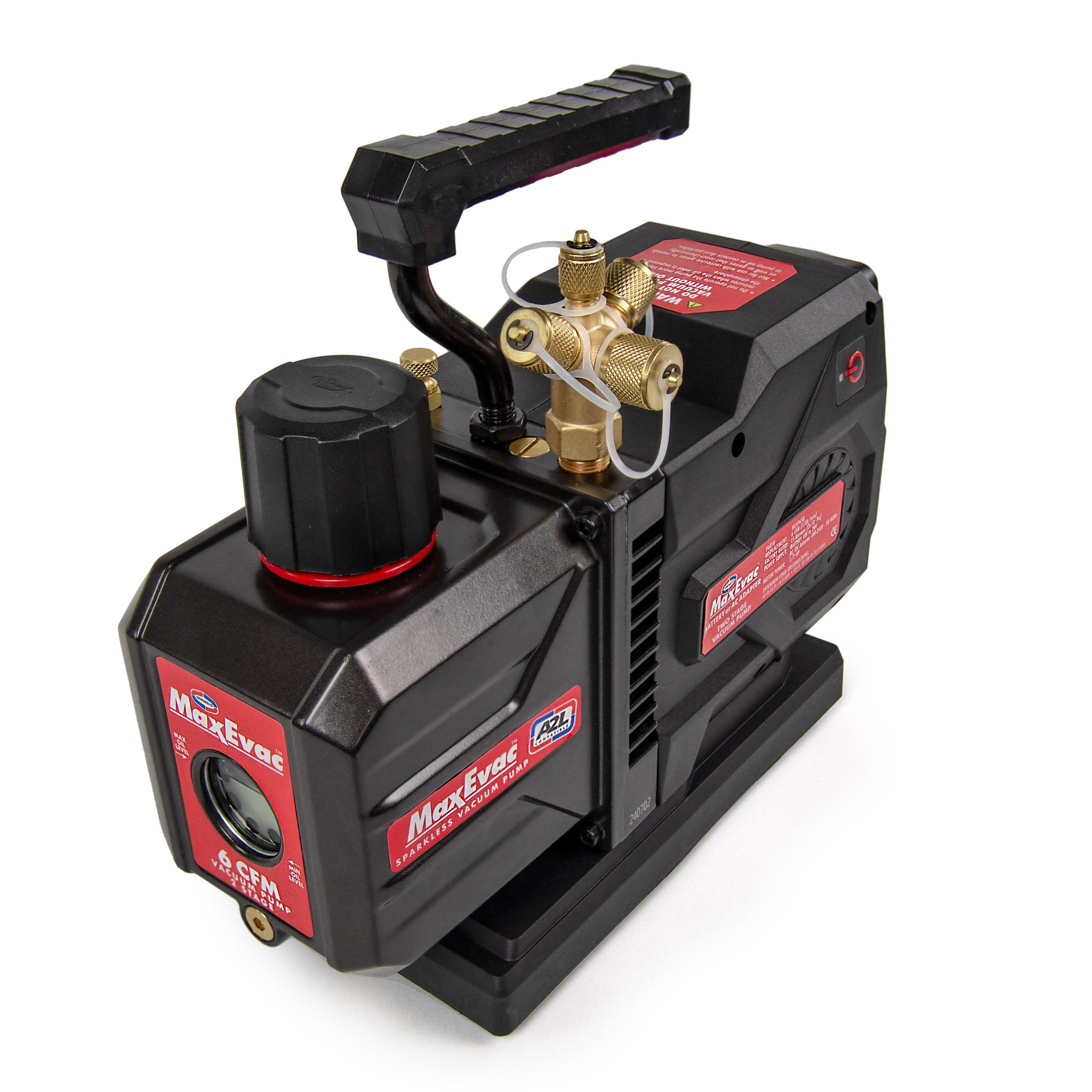

MEVP6SB
Type: 6 CFM, 2-Stage Sparkless Battery Powered Vacuum Pump
Compatibility: A2L Compatible
Power Source: Can be powered by Makita®, DeWalt®, and Milwaukee® batteries or an AC/DC power adapter.
Features:
High Capacity Y Design Intake Fitting: 1/4″, (2) 3/8″, 1/2″
Tethered Brass Caps to prevent loss
Gas Ballast: Allows atmospheric air to enter the second stage chamber, extending pump oil life
Vacuum Tight Solenoid Valve: Prevents backflow
AC/DC Adapter: 100-240V, 50/60Hz (sold separately, Part# MEACA)

Trademarks:
Makita®, LXT®, AVT® and the Makita® logo, Teal color and Black & White color combination are the registered trademarks of Makita®. DEWALT® is a registered trademark of DEWALT Power Tools. Milwaukee® is a registered trademark of Milwaukee Power Tools.

Category: Tags: , , , , ,

Product Information



Part

#

 Free

Air

Displacement

CFM [L/Min]

 Number of

Stages

 Factory

Micron

Rating

 Intake

Fittings

[SAE]

 Motor

H.P.

 Voltage Power Cord Oil

Capacity

 Dimensions

Inches [cm]

LxWxH

 Weight

Lbs. [Kg]

Net

 Weight

Lbs. [Kg]

Shipping

 Color
MEVP6SB 6 [170.0] 2-Stage Sparkless 15 1/4″ Male Flare, 1/2″, (2) 3/8″ 1/2 Battery 18V to 20V AC/DC Adapter 100-240~50/60Hz
sold separately Part# MEACA		 16.907 Oz. [500 ml] 13 x 5.1 x 11.4
[33.02 x 12.95 x 28.96]		 16.5 [7.48] 17.8 [8.07] Black

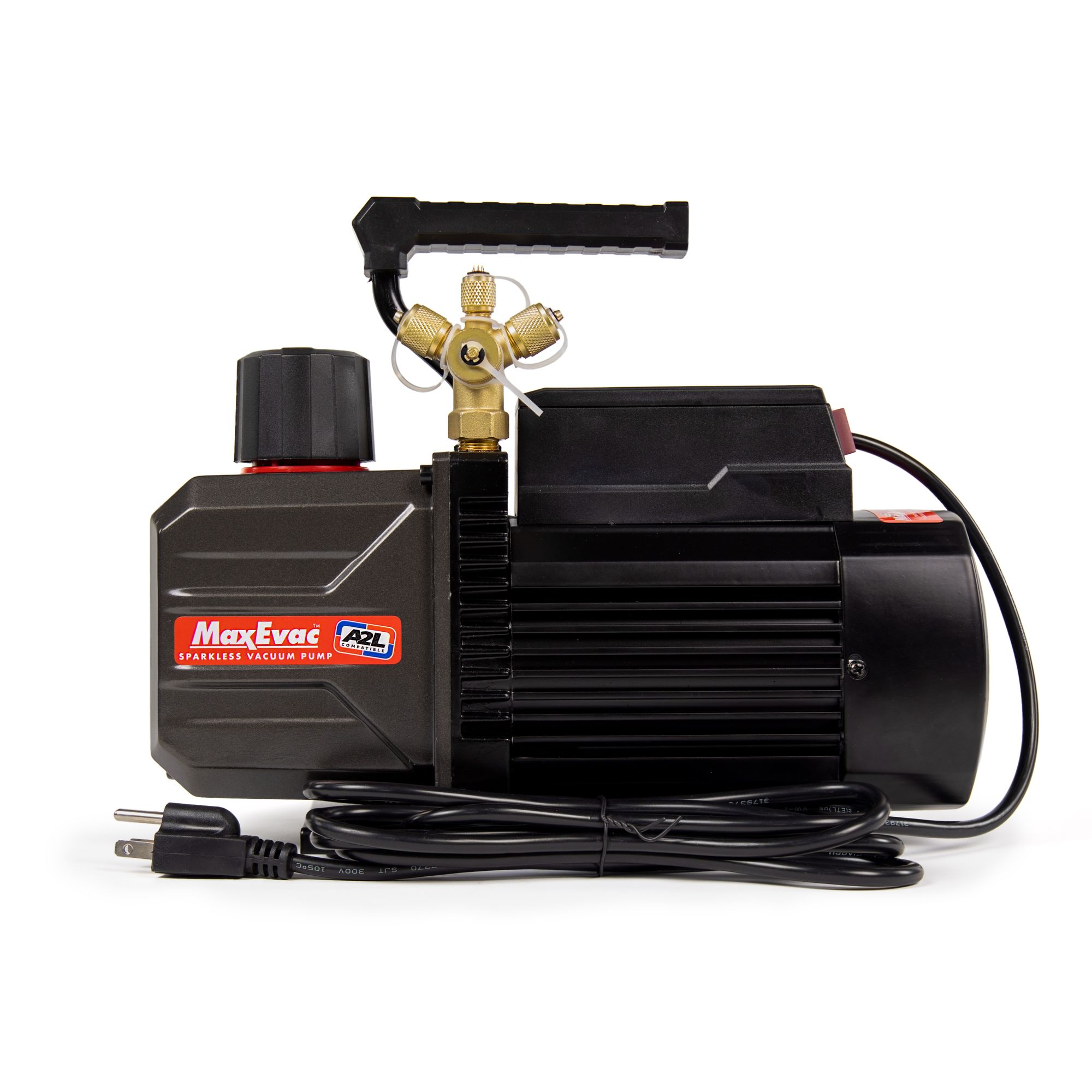

MEVP7S 7.2 [203] 2-Stage Sparkless 15 1/4″ Male Flare, 1/2″, (2) 3/8″ 3/4 115V/60Hz 10ft U.S. Type B Plug 16.907 Oz. [500 ml] 13.2 x 5.125 x 10.56
[33.53 x 13.02 x 26.82]		 22.76 [10.32] 25.85 [11.72] Black
MEVP7S-220 7.2 [203] 2-Stage Sparkless 15 1/4″ Male Flare, 1/2″, (2) 3/8″ 3/4 220V/50Hz 10ft U.S. Type B Plug 16.907 Oz. [500 ml] 13.2 x 5.125 x 10.56
[33.53 x 13.02 x 26.82]		 22.76 [10.32] 25.85 [11.72] Black
MEVP14S 14.4 [407] 2-Stage Sparkless 15 1/4″ Male Flare, 1/2″, (2) 3/8″ 1.5 115V/60Hz 10ft U.S. Type B Plug 16.907 Oz. [500 ml] 15.39 x 5.56 x 10.75
[39.1 x 14.12 x 27.31]		 35.16 [15.95] 39.1 [17.74] Black
MEVP14S-220 14.4 [407] 2-Stage Sparkless 15 1/4″ Male Flare, 1/2″, (2) 3/8″ 1.5 220V/50Hz 10ft U.S. Type B Plug 16.907 Oz. [500 ml] 15.39 x 5.56 x 10.75
[39.1 x 14.12 x 27.31]		 35.16 [15.95] 39.1 [17.74] Black
