RUHL Series

Uniweld’s RUHL Line Regulator Series feature:

• Machined brass body
• Polished Chrome bonnet
• Easy-to-read single scale 2″ gauges
• 2″ tri-layered reinforced neoprene diaphragm
• Mechanical stem type seat
• Delrin bushing for smooth flow adjustment
• Pressure relief device for low pressure gauge protection only



WARNING
Do Not Connect A Line Regulator To A Cylinder!



**Different Pressure Scales & Inlet Connections Available Upon Request**

Product Information

Part # CGA Inlet Outlet Connection Delivery PSIG 2″ Replacement Gauges
RUHL8210 Oxygen 1/4″ NPT (F) “B” RH 9/16″-18 (M) 5-125 G4S; 200 PSI
RUHL8211 Acetylene 1/4″ NPT (F) “B” LH 9/16″-18 (M) 2-15 G2S; 30 PSI (RL)

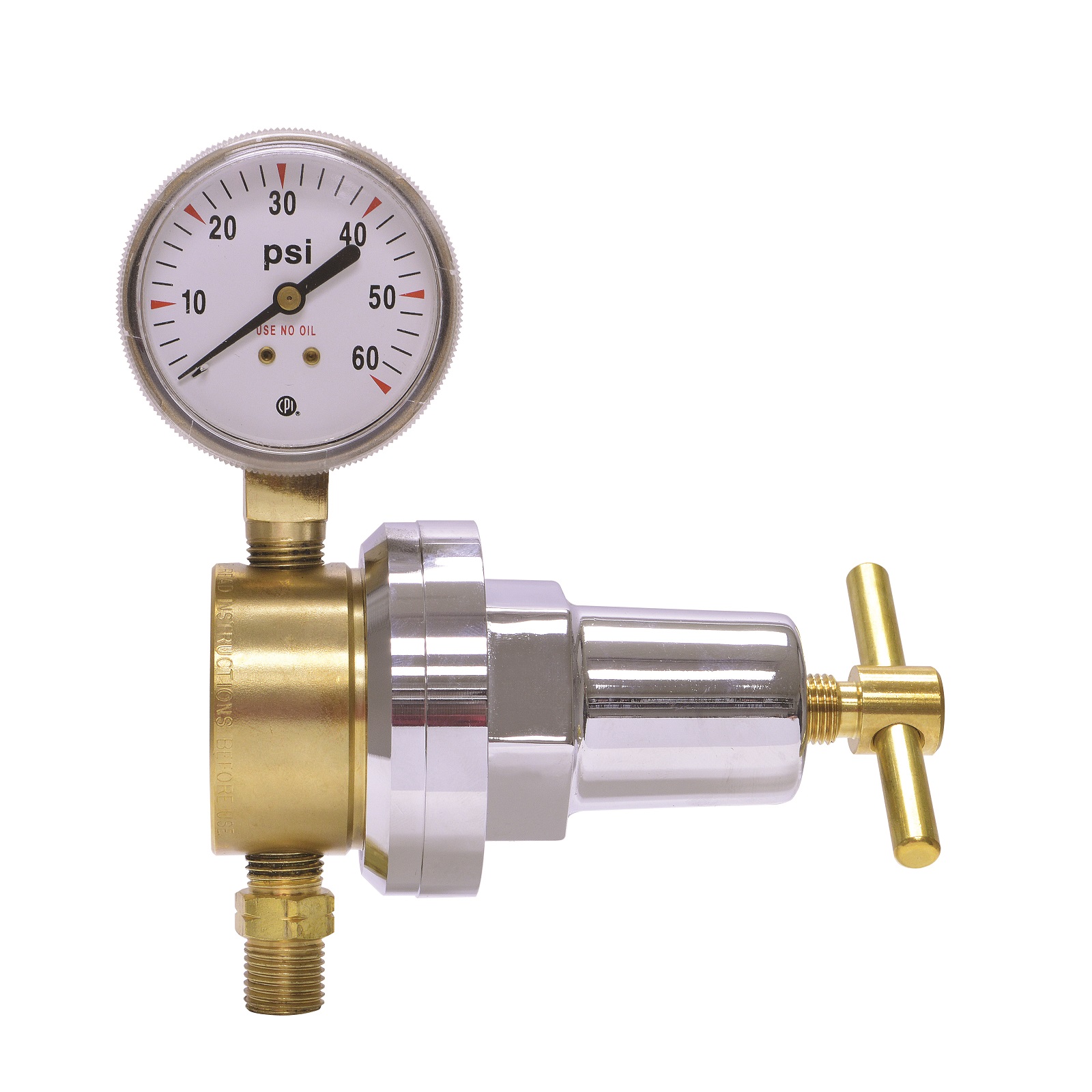

RUHL8212 LP & All Fuel Gas 1/4″ NPT (F) “B” LH 9/16″-18 (M) 2-40 G5S; 60 PSI

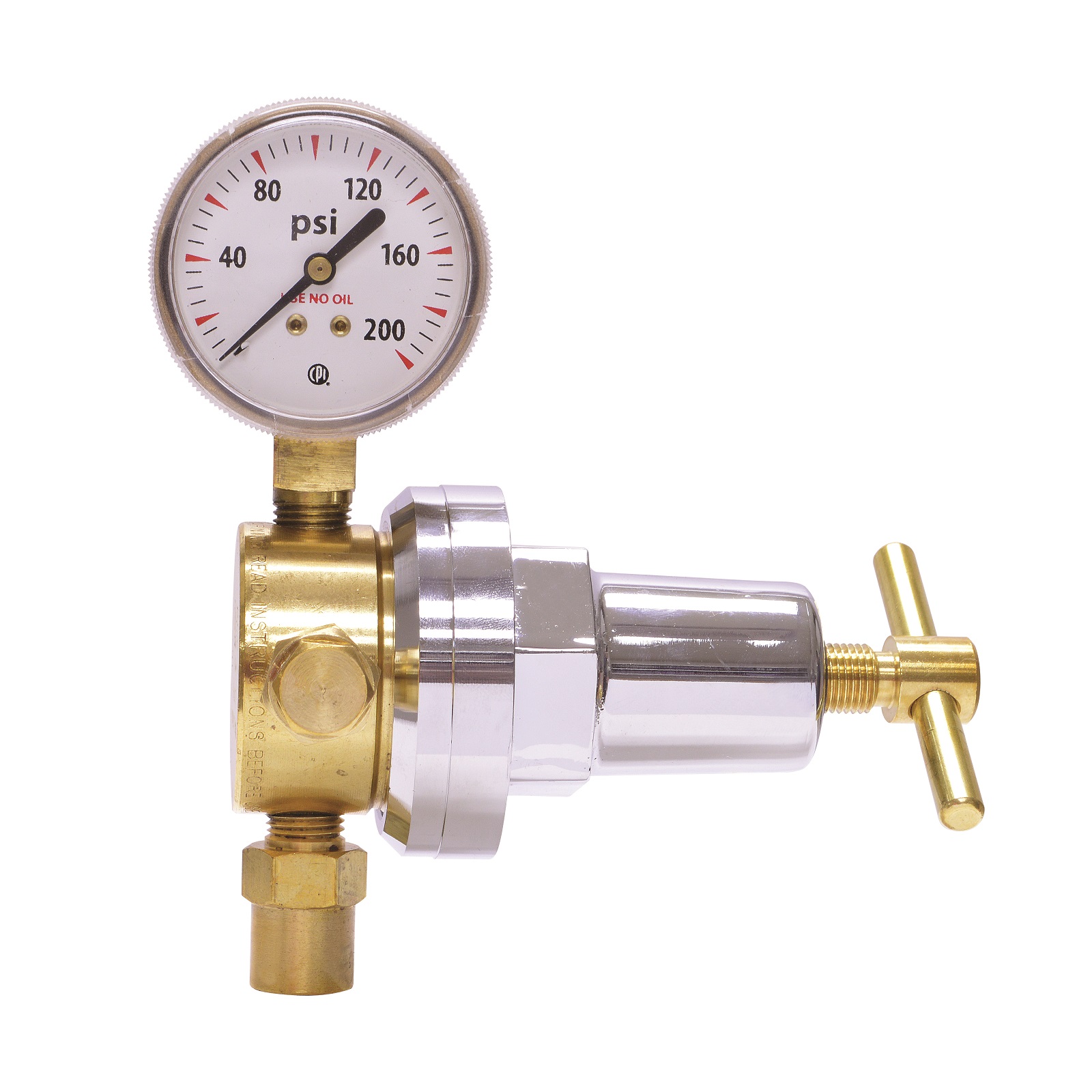

RUHL8213 Carbon Dioxide 1/4″ NPT (F) RH (F) 5/8″-18 5-125 G4S; 200 PSI
RUHL8214 Argon 1/4″ NPT (F) RH (F) 5/8″-18 5-125 G4S; 200 PSI

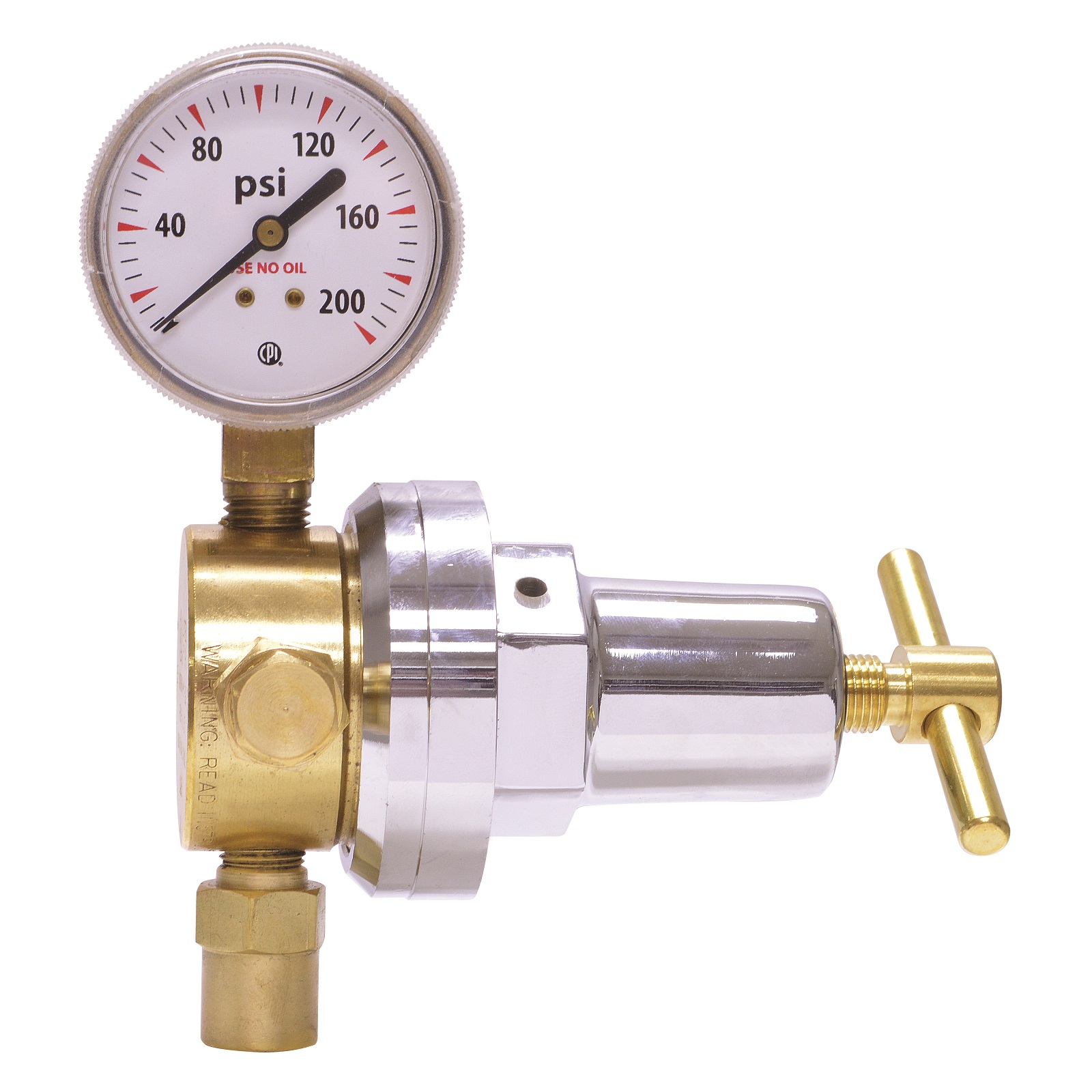

RUHL8215 Nitrogen 1/4″ NPT (F) RH (F) 5/8″-18 5-125 G4S; 200 PSI
