Roughneck

Roughneck

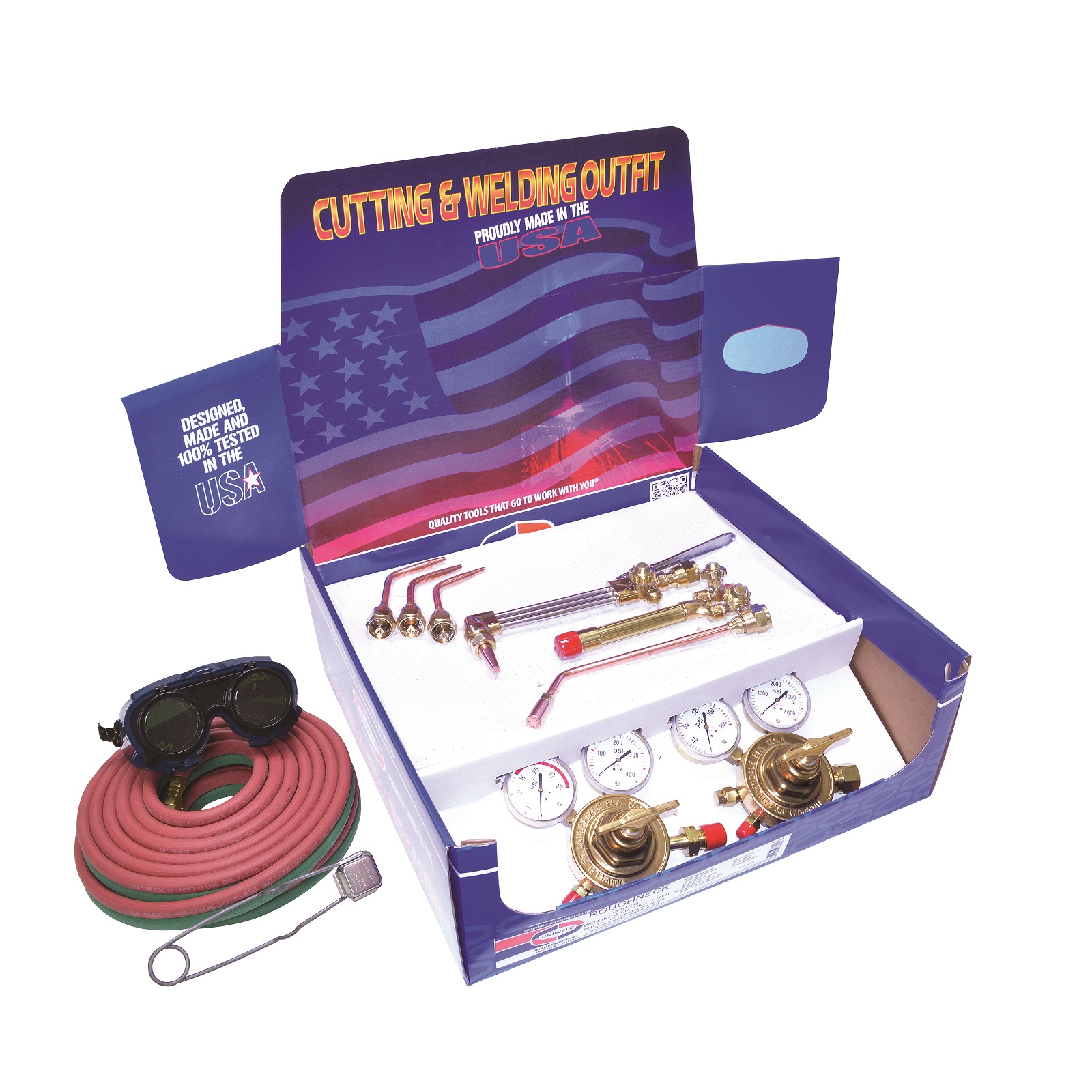

The Uniweld Roughnecks are complete heavy duty Oxyacetylene outfits for industrial and commercial cutting, welding, brazing, and heating, using the most fuel gases.

– Cutting Capacity: 1/2” with supplied tip; up to 8” with optional tips.
– Welding Capacity: 1/4” with supplied tip; up to 1-1/2” with optional tips.

Product Information

Part #	Product Name	Duty Class	Welding Handle	Cutting Attachment	Cutting Tip	Welding/ Brazing Tips	Heating Tip	Oxygen Regulator 5-125 PSIG	Acetylene Regulator 2015 PSIG	Accessories
KX98	A-Style Roughneck	Heavy Duty	98L9	CA98A	144-1	Type 98 -1, -3, -5	Type 911-8	RV8010 CGA540	RV8011 CGA510	Twin Hose 25′ 1/4” “B” Goggles Lighter
KX98-4	A-Style Roughneck	Heavy Duty	98L9	CA98A	144-1	Type 98 -1, -3, -5	Type 911-8	RV8010 CGA540	RV8011 CGA510	No Accessories
OPH1-730	A.L.C. Roughneck	Heavy Duty	WH730	CA730	144-1	Type 730 -1, -3, -5	Type 73-8	RV8010 CGA540	RV8011 CGA510	Twin Hose 25′ 1/4” “B” Goggles Lighter
OPH1-730-4	A.L.C. Roughneck	Heavy Duty	WH730	CA730	144-1	Type 730 -1, -3, -5	Type 73-8	RV8010 CGA540	RV8011 CGA510	No Accessories

*Roughneck and Roughneck A.L.C. outfits available with CGA300 Acetylene Regulators- Order by adding (-1) to end of part number.

Additional information

A-Style KX98:	• CA98A Cutting Attachment with silver brazed triangular tube construction. Tip mix technology is the safest and most reliable choice for cutting applications. • RV Series Regulators have single scale 2-1/2” gauges, stainless steel diaphragms and accessibility to the seat from the rear. • 98L9 Welding Handle with separate two tube silver brazed construction and ribbed outer handle that is vented for safety.
A.L.C. OPH1-730:	• CA730 Cutting Attachment with its three tube in-line construction. Tip mix technology for maximum safety, features an ergonomically designed oxygen lever. NOTE: will work with A.L.C. Handles. • RV Series Regulators have single scale 2-1/2” gauges, stainless steel diaphragms and accessibility to the seat from the rear. • WH730 Welding Handle can be used with most fuel gases and acetylene for heating, brazing, welding and other flame processes. NOTE: will work with A.L.C. Cutting attachments and A.L.C. Welding tips.

A-Style KX98:

• CA98A Cutting Attachment with silver brazed triangular tube construction. Tip mix technology is the safest and most reliable choice for cutting applications.

• RV Series Regulators have single scale 2-1/2” gauges, stainless steel diaphragms and accessibility to the seat from the rear.

• 98L9 Welding Handle with separate two tube silver brazed construction and ribbed outer handle that is vented for safety.

A.L.C. OPH1-730:

• CA730 Cutting Attachment with its three tube in-line construction. Tip mix technology for maximum safety, features an ergonomically designed oxygen lever. NOTE: will work with A.L.C. Handles.

• RV Series Regulators have single scale 2-1/2” gauges, stainless steel diaphragms and accessibility to the seat from the rear.

• WH730 Welding Handle can be used with most fuel gases and acetylene for heating, brazing, welding and other flame processes. NOTE: will work with A.L.C. Cutting attachments and A.L.C. Welding tips.
