Listed Outfits Include:
– RV8010 CGA540 Oxygen Regulator 5-125 PSIG
– RV8011 CGA510 Acetylene Regulator 2-15 PSIG

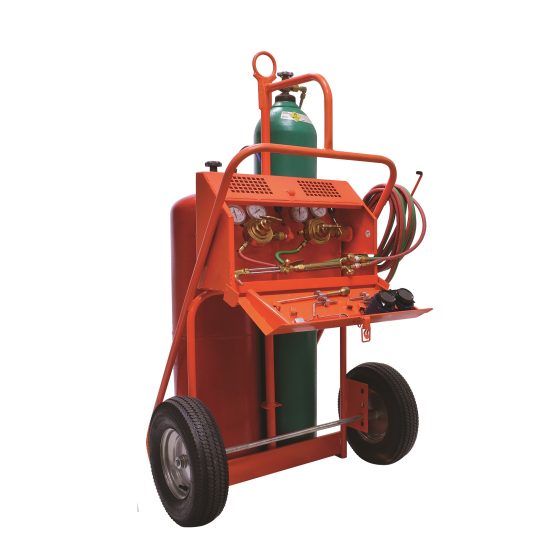

The Uniweld Rollin’ Roughneck is the roughest, toughest most complete portable heavy duty Oxyacetylene welding and cutting system you’ll ever find.
– CA43A Cutting Attachment with its universal multi-gas head mixer for Acetylene (3 PSIG and above) and for most fuel gases 5 oz. and above. Cuts up to 1″ with supplied tip.
– RV Series Regulators have single scale 2-1/2″ gauges, stainless steel diaphragms and accessibility to the seat from the rear.
– 43L9 Welding Handle with separate silver brazed two tube construction and ribbed outer handle, vented for safety.
Cutting Capacity: 1″ with supplied tip; up to 8″ with optional tips.
Welding Capacity: 1/8″ with supplied tips; up to 1/2″ with optional tips.
| Part # | Welding Handle | Cutting Attachment | Cutting Tip | Weld/Braze Tip | Heating Tip | Oxygen Regulator | Acetylene Regulator | Rollin’ Roughneck Cart |
|---|---|---|---|---|---|---|---|---|
| 83550 | 43L9E with UM43 Mixer | CA43A | 6290A-1 | TYPE 79E -1, -3, -5 | TYPE 7928E-8 | RV8010 CGA540 | RV8011 CGA510 | 509 w/o Cylinders |
| 83551 | 43L9E with UM43 Mixer | CA43A | 6290A-1 | TYPE 79E -1, -3, -5 | TYPE 7928E-8 | RV8010 CGA540 | RV8011 CGA510 | 509FW w/o Cylinders |
| Part# | Welding Handle | Cutting Attachment | Cutting Tip | Weld/Braze Tip | Heating Tip | Oxygen Regulator | Acetylene Regulator | Da Box Cabinet |
|---|---|---|---|---|---|---|---|---|
| DABOX-H | 43L9E with UM43 Mixer | CA43A | 6290A-1 | TYPE79E -1, -3, -5 | TYPE7928E-8 | RV8010 CGA540 | RV8011 CGA510 | DA BOX |
| Part # | Length | Description |
|---|---|---|
| PT300-24 | 24” | CGA300 Acetylene, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT300-36 | 36” | CGA300 Acetylene, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT300-48 | 48” | CGA300 Acetylene, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT510-24 | 24” | CGA510 Acetylene or Propane, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT510-36 | 36” | CGA510 Acetylene or Propane, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT510-48 | 48” | CGA510 Acetylene or Propane, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT540-24 | 24” | CGA540 Oxygen 3000 PSIG, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT540-36 | 36” | CGA540 Oxygen 3000 PSIG, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
| PT540-48 | 48” | CGA540 Oxygen 3000 PSIG, Flexible Stainless Steel Pigtail, Assemblies with Brass Fittings |
