RHP Series

Uniweld’s RHP Series Regulators feature:



• Piston actuated seat for durability
• Easy-to-read 2″ gauges with steel case construction with polycarbonate lens
• Protective Rubber Gauge Boots
• Porous metal inlet filter
• Fine mesh filter screen between inlet and seat
• T-handle for ease of pressure adjustment
• For all your testing and evaluating needs



RHP200
– Used for operating pneumatic tools such as nail guns and impact wrenches.



RHP400/RHP800
– Purging and pressure testing regulator. Designed for HVAC/R Technicians.



RHP800/RHP1500
– For high pressure testing applications.



RHP3000/RHP3680
– For high pressure testing of cylinders and vessels.

**Different Pressure Scales & Inlet Connections Available Upon Request**

Product Information

Part # CGA Inlet Outlet Connection Delivery PSIG 2″ Replacement Gauges
RHP200 Nitrogen 580 1/4″ Flare (M) 5-180 G4S; 200 PSI

G7S; 4000 PSI

*RHP218 Air 346 1/4″ Flare (M) 5-180 G4S; 200 PSI

G7S; 4000 PSI

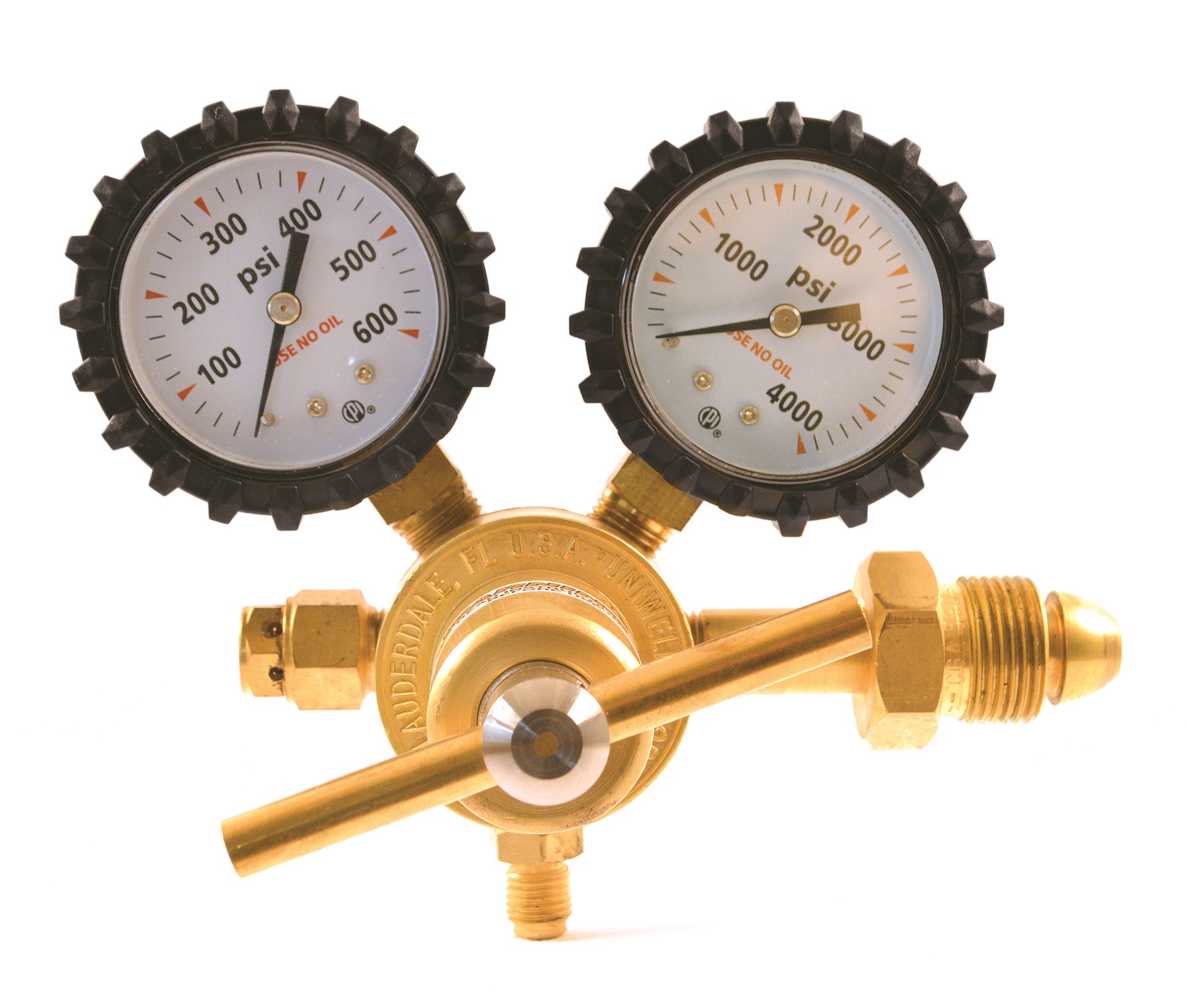

RHP400 Nitrogen 580 1/4″ Flare (M) 20-400 G8S; 600 PSI

G7S; 4000 PSI

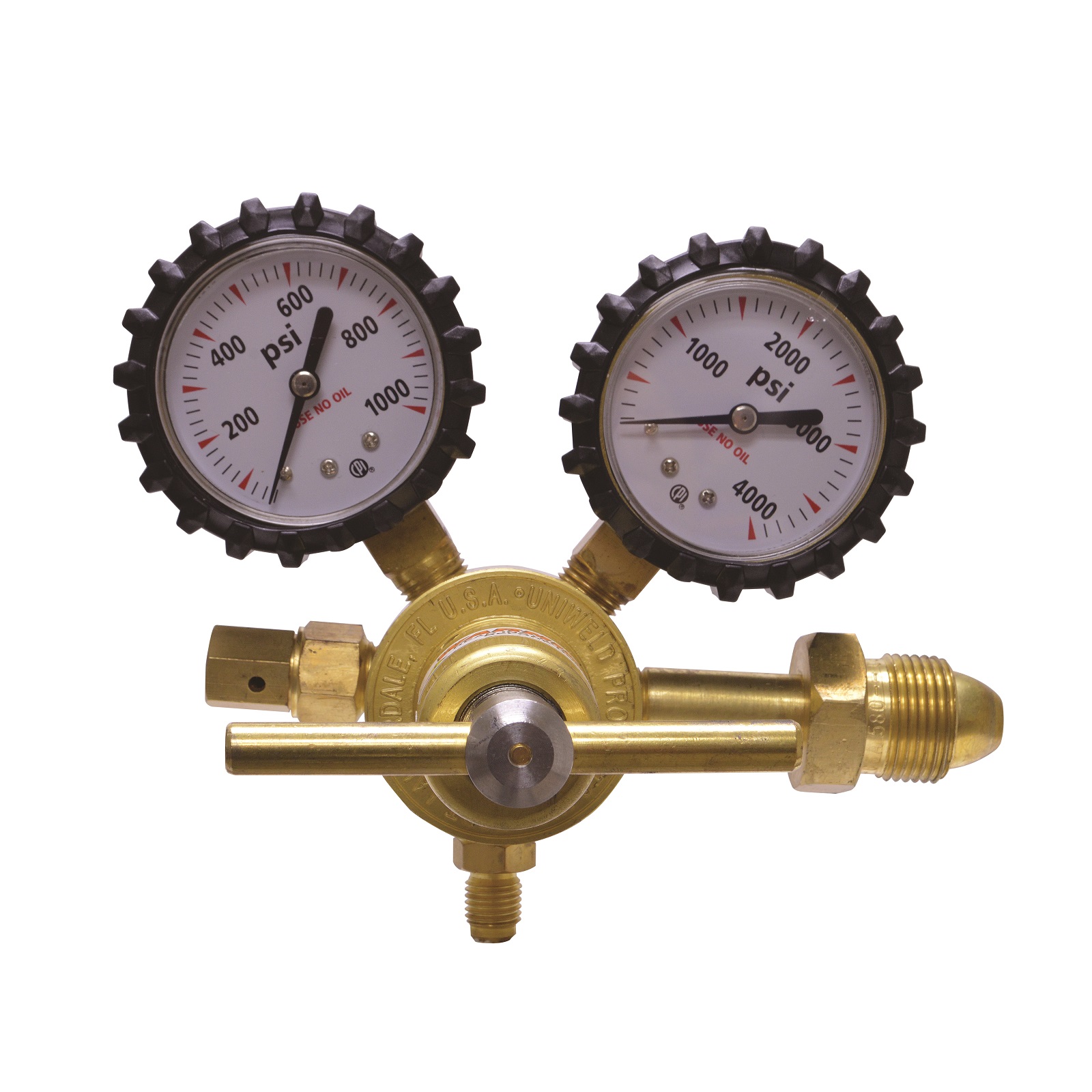

RHP800 Nitrogen 580 1/4″ Flare (M) 50-800 G34S; 1000 PSI

G7S; 4000 PSI

RHP800N Regulator: Nitrogen 580

NV1: 1/4″ Flare (F)

Regulator: 1/4″ Flare (M)

NV1: 1/4″ Flare (M)

50-800 G34S; 1000 PSI
G7S; 4000 PSI
RHP818 Air 346 1/4″ Flare (M) 50-800 G34S; 1000 PSI

G7S; 4000 PSI

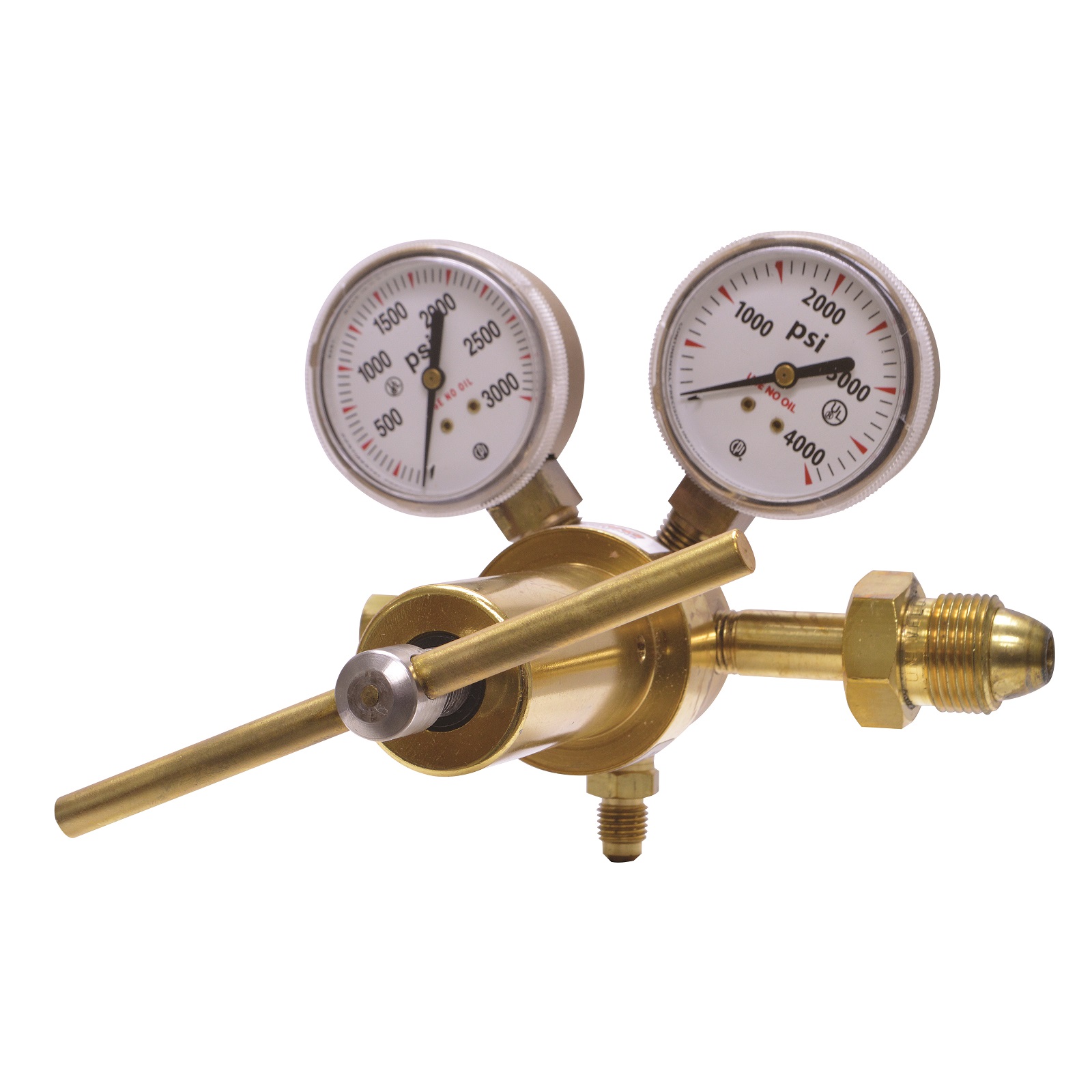

RHP1500 Nitrogen 580 1/4″ NPT (F) 100-1500 G3S; 3000 PSI

G7S; 4000 PSI

RHPC1500 CO2 320 1/4″ NPT (F) 100-1500 G3S; 3000 PSI

G7S; 4000 PSI

RHP1518 Air 346 1/4″ NPT (F) 100-1500 G3S; 3000 PSI

G7S; 4000 PSI

RHP3000 Nitrogen 580 1/4″ NPT (F) 200-2500 G7S; 4000 PSI

G44S; 6000 PSI

RHP3018 Air 346 1/4″ NPT (F) 200-2500 G7S; 4000 PSI

G44S;6000 PSI

RHP3680 Nitrogen 680 1/4″ NPT (F) 200-3000 G7S; 4000 PSI

G44S; 6000 PSI
