RHF Series Flowmeter

Uniweld’s Flowmeter Regulator is designed for MIG and TIG welding. Flowmeters are more accurate than flowgauge regulators. The pressure gauge shows how much gas is left in the tank and goes from 0 to 4000 PSI. The output flow is adjustable in cubic feet per hour and is indicated by the ball which moves up and down in the flow tube., This flowmeter will handle MIG and TIG welding for both steel and aluminum.

**Different Pressure Scales & Inlet Connections Available Upon Request**

Category: Tags: , , , , , , , ,

Product Information

Part # CGA Inlet Outlet Connection Flow Cap. (SCFH) Flowmeter Tube Cover Tube 2” Gauges Gas Calibration

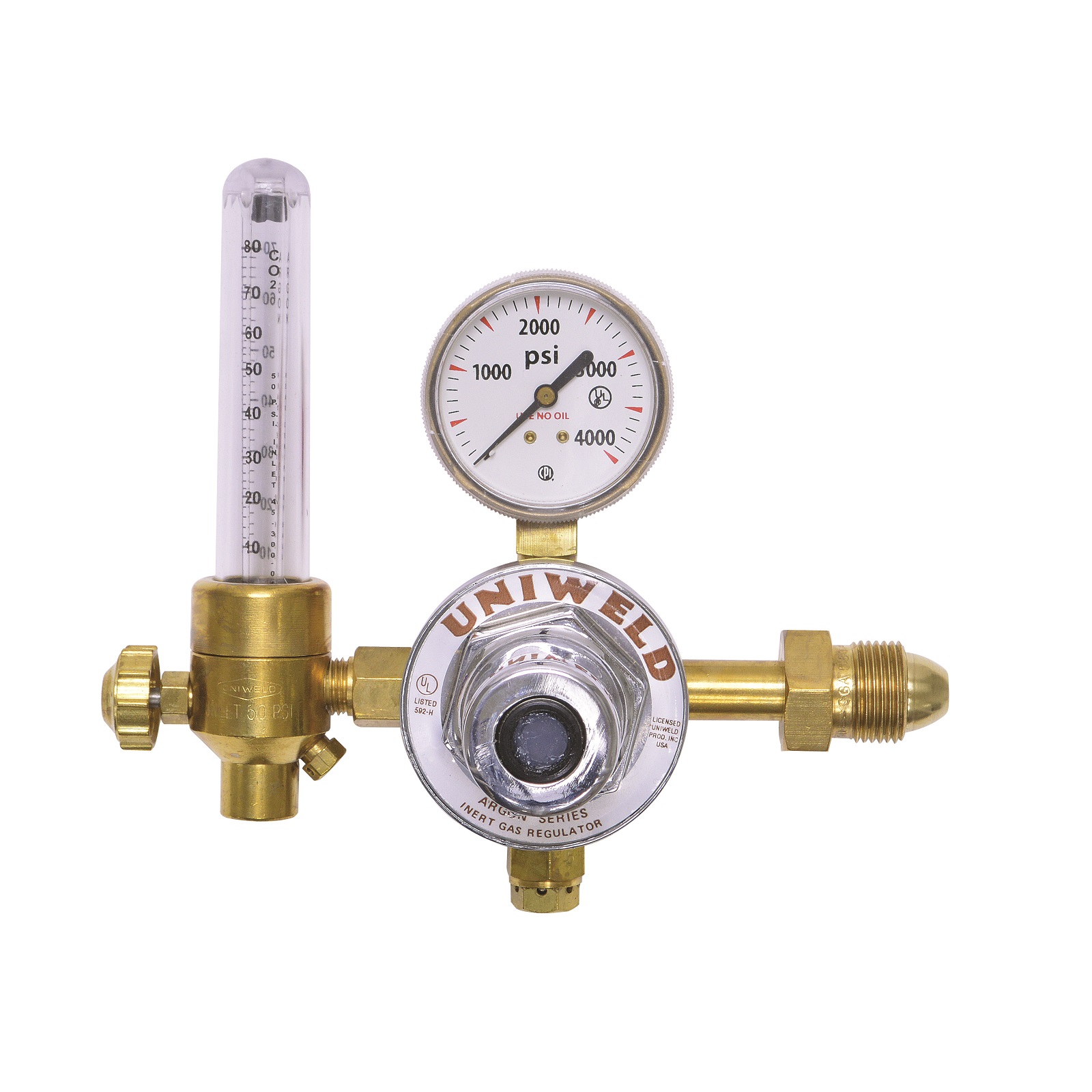

RHF8213 Carbon Dioxide 320 5/8″-18 RH (F) 10-80 UAF22 UCF18 G3S; 3000 PSI Single Gas

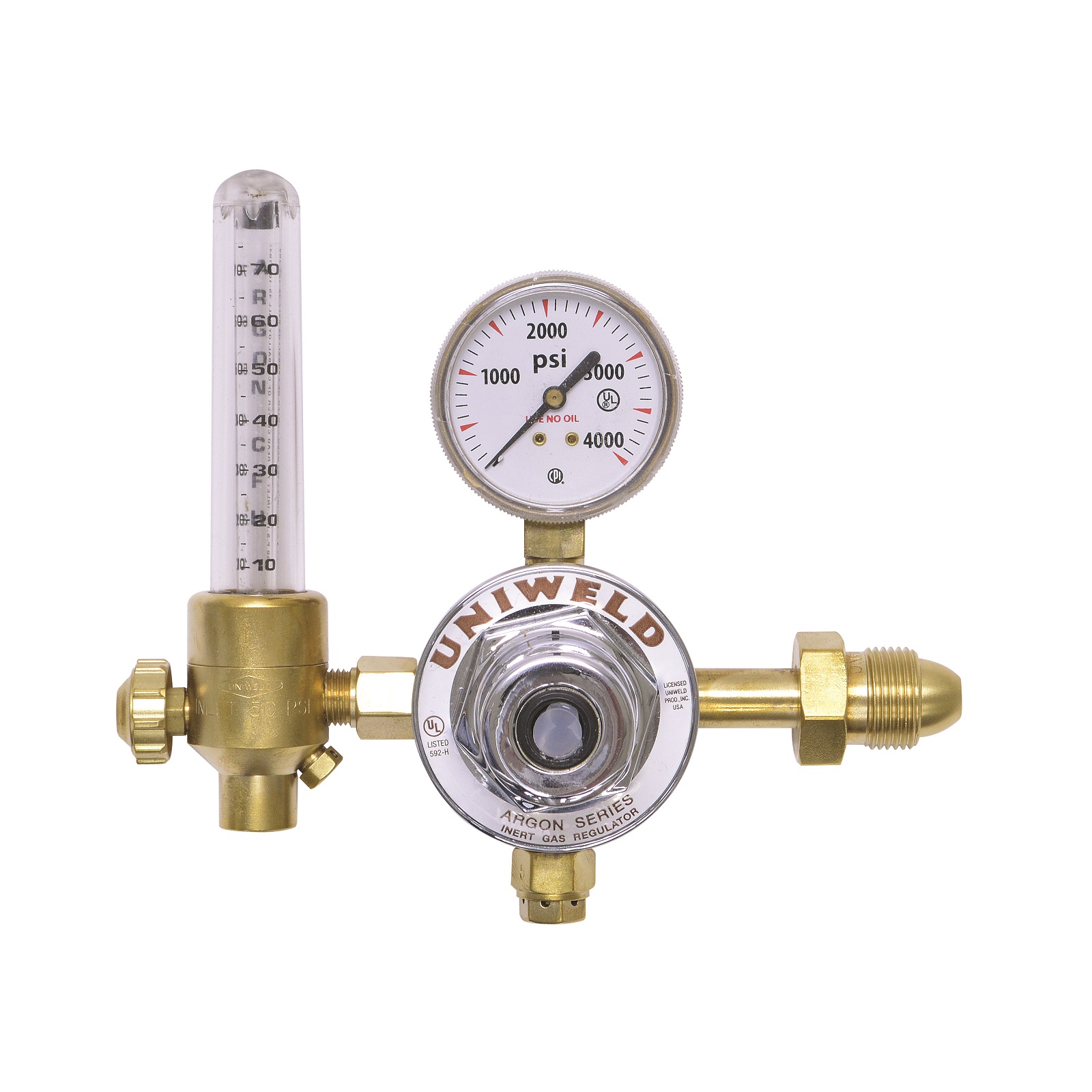

RHF8214 Argon 580 5/8″-18 RH (F) 10-70 UAF22 UAF18 G7S; 4000 PSI Single Gas
RHF1413 Argon/ Carbon Dioxide 580 5/8″-18 RH (F) 10-70 UAF22 UACF18 G7S; 4000 PSI Two Gas

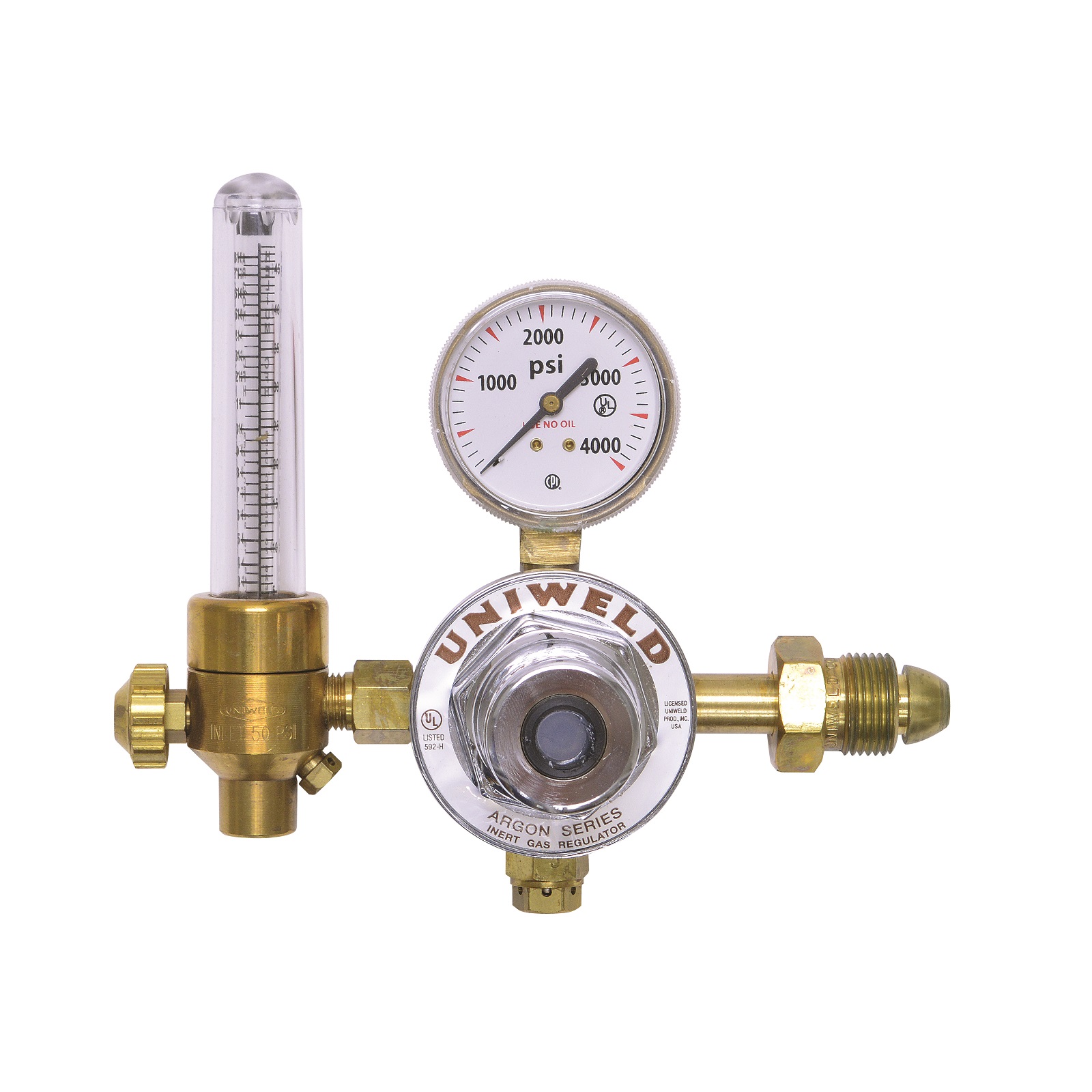

RHF8214-6 Argon/ Helium 580 5/8″-18 RH (F) 2-18 & 5-50 UAF22 UAHF18 G7S; 4000 PSI Two Gas

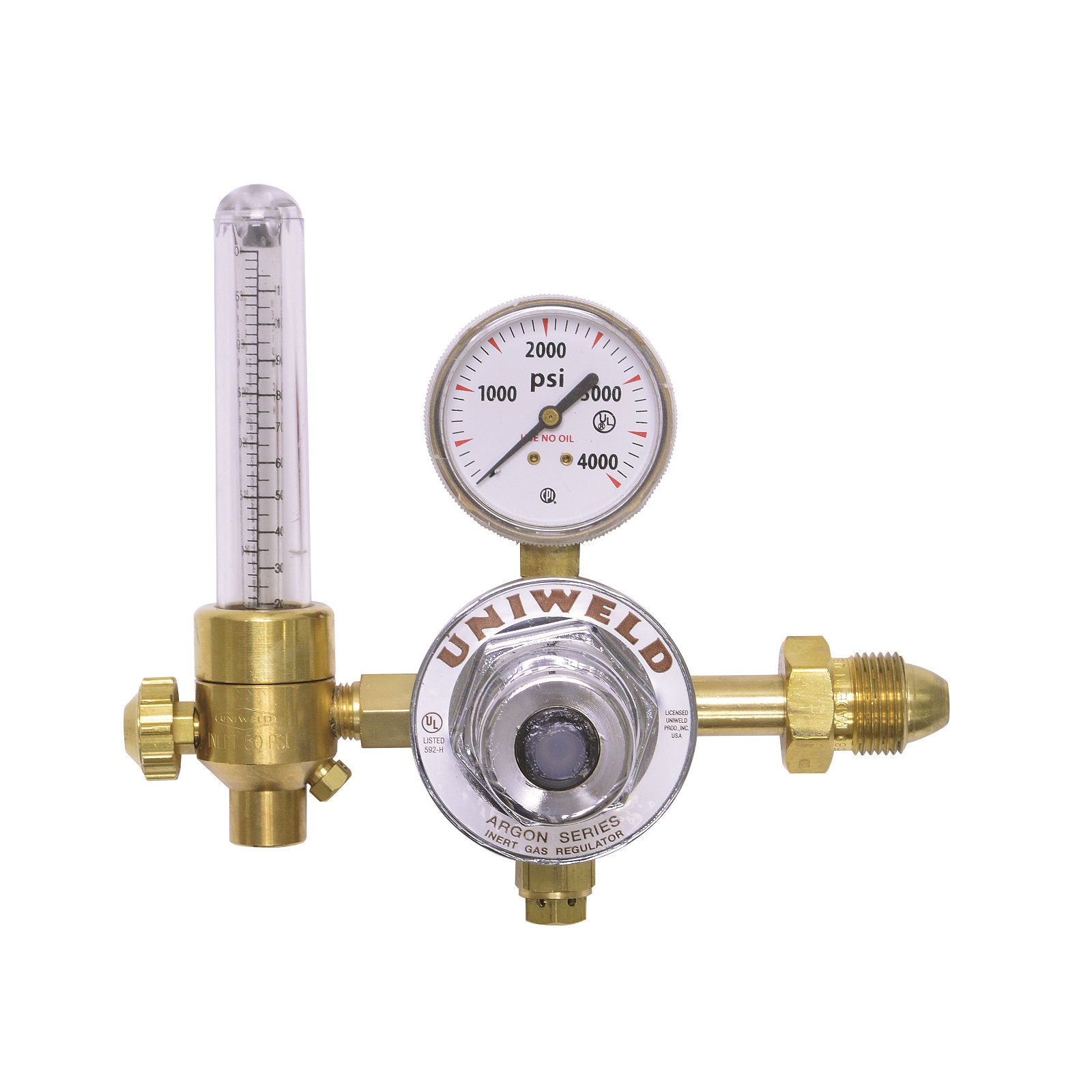

RHF8214-8 Argon/ Helium 580 5/8″-18 RH (F) 5-40 & 10-110 UAF22 UAHF18-1 G7S; 4000 PSI Two Gas
RHF8214-10 Argon/ Helium 580 5/8″-18 RH (F) 10-70 & 25-205 UAF22 UAHF18-2 G7S; 4000 PSI Two Gas
