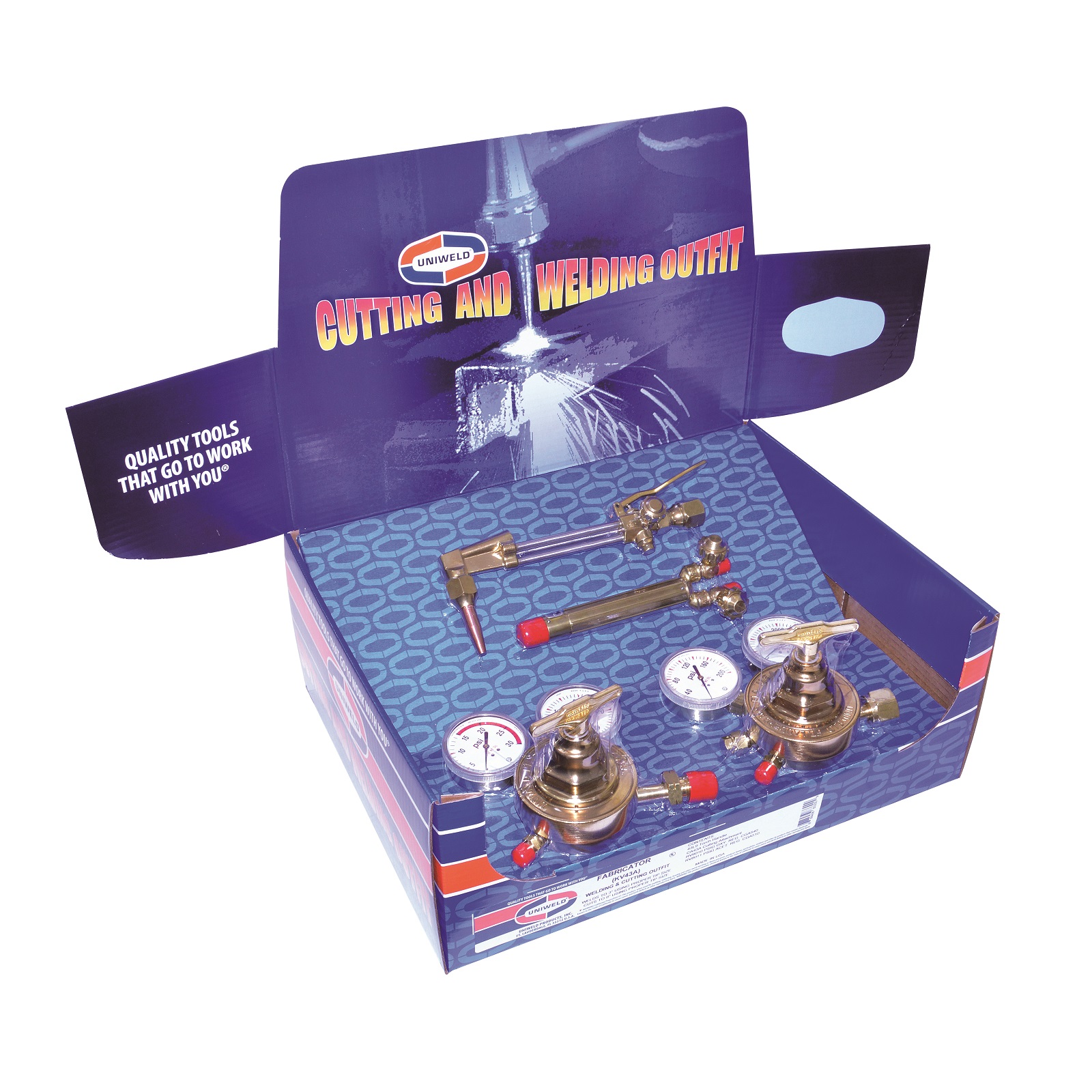

The Uniweld Fabricator is a basic head mix heavy duty Oxyacetylene outfit for cutting, brazing and heating.
– CA43A Cutting Attachment with universal multi-gas head mixer and machine forged brass head and body. Cuts up to 8″ with proper tip.
– RV Series Regulators have single scale 2-1/2″ gauges, stainless steel diaphragms and accessibility to the seat from the rear.
– RUH82 Series Regulators with a tri-layered reinforced diaphragm and single scale 2″ gauges.
– 43L9 Welding Handle features two tube silver brazed construction and ribbed outer handle, vented for safety.
– Cutting Capacity: 8″ with optional tips.
– Welding Capacity: 1/2″ with optional tips.
| Part # | Welding Handle | Cutting Attachment | Oxygen Regulator 5-125 PSIG |
Acetylene Regulator 2-15 PSIG |
Gauges |
|---|---|---|---|---|---|
| KV43A | 43L9 | CA43A | RV8010 CGA540 |
RV8011 CGA510 |
2-1/2” |
| KR43A | 43L9 | CA43A | RUH8210 CGA540 |
RUH8211 CGA510 |
2” |
Fabricator outfits available with CGA300 Acetylene Regulators- Order by adding (-1) to end of part number.
