GPN

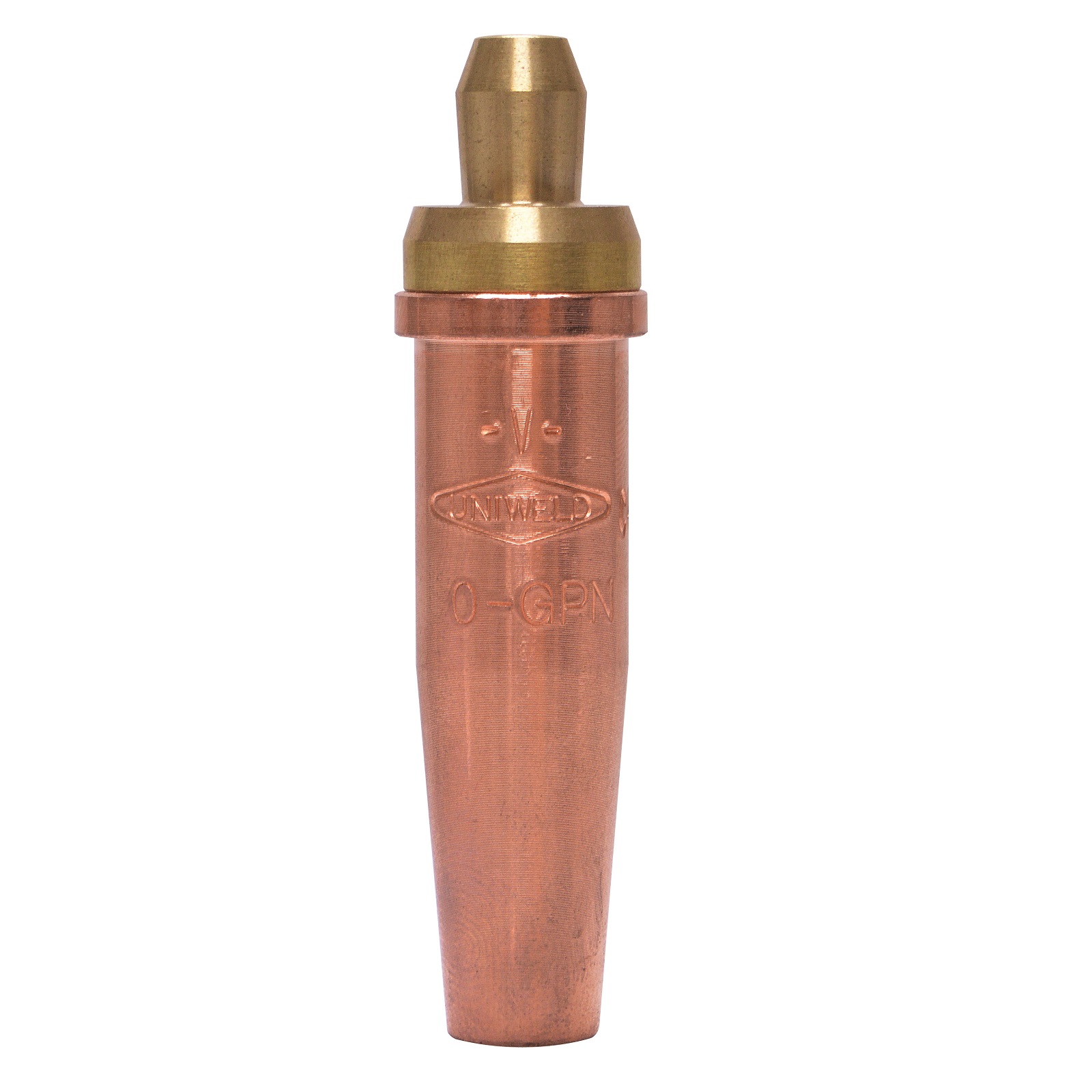

Uniweld’s GPN Series Cutting Tips are for use with Natural Gas/Propane and designed for general purpose and machine cutting.

Product Information

Part # Cut Metal Thickness Cut Oxy Drill Size Cutting Oxygen PSIG Cutting Oxygen SCFH Fuel Gas PSIG Fuel Gas SCFH Speed I.P.M. Kerf Width
GPN-000 1/8” 71 20/25 12/15 5 5/6 24/28 .04
GPN-00 1/4” 67 20/25 22/26 5 5/7 21/25 .05
GPN-0 3/8”

1/2”

60 25/30

30/35

45/55

50/55

5 8/10 20/24 .06
GPN-1 3/4” 56 30/35 70/80 6 10/12 15/20 .08
GPN-2 1”

1-1/2”

53 35/40

40/45

115/125

125/135

8

9

12/15 14/18

12/16

.09
GPN-3 2”

2-1/2”

50 40/45

45/50

150/175

175/200

9

10

14/18 10/14

9/12

.10

.11

GPN-4 3” 45 45/50 210/250 12 16/20 8/11 .12
GPN-5 4”

5”

39 45/55

50/55

300/360 12 20/30 7/10

6/9

.15
GPN-6 6”

8”

31 45/55

55/65

400/500

450/500

15 25/35 5/7

4/6

.17

.18

GPN-8 12″ 20 60/70 750/850 14 25/120 3/4 .41

Additional information

Cutting Attachment

•780

Hand Cutting Torches

•830
•850
•EC72780

Machine Cutting Torch

•68 Series
