Flaring Tools

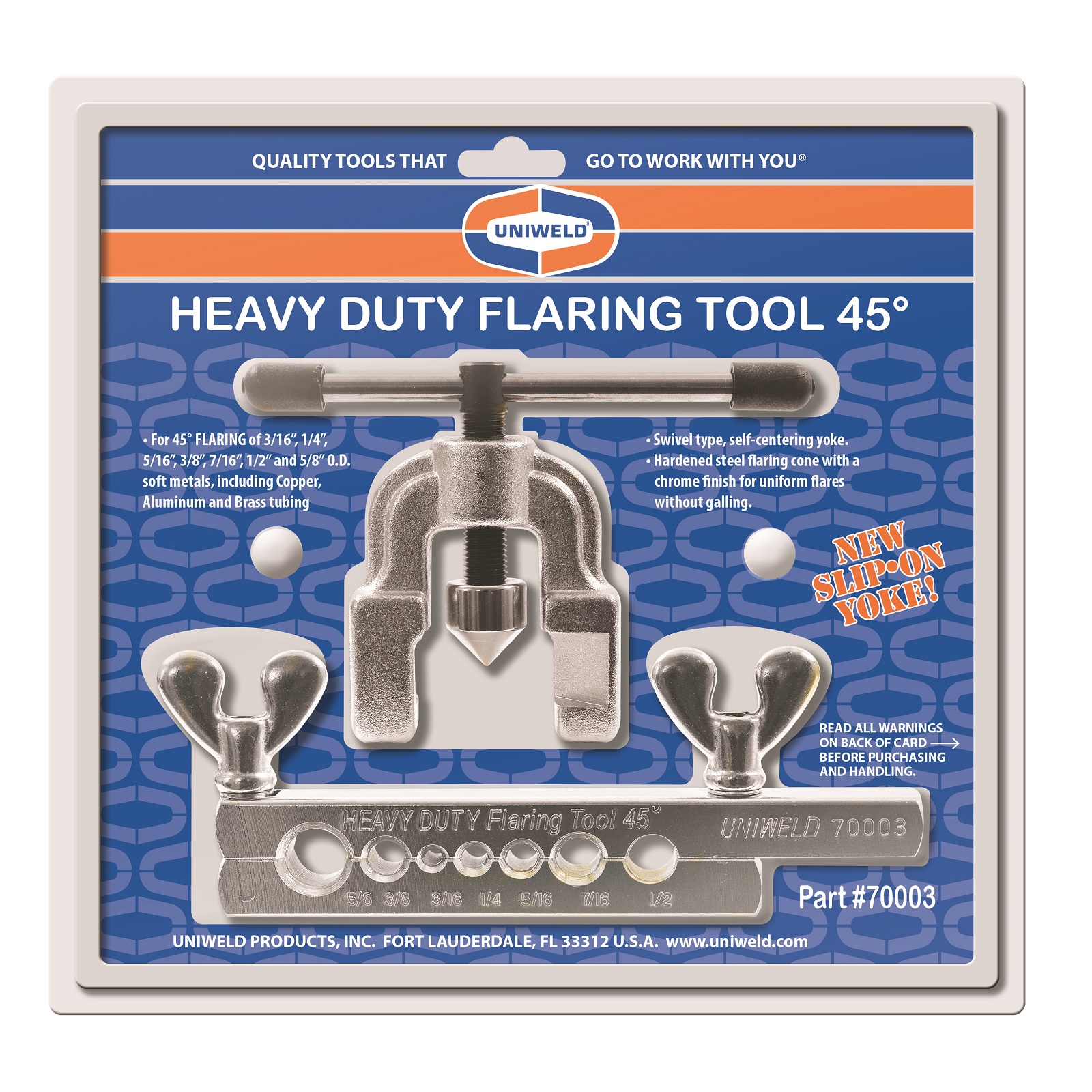

Uniweld’s 70003 Heavy Duty Flaring Tool has a hardened steel flaring cone with a chrome finish for more uniform flared without galling. Special shaped wing nuts allow the long handle of the self-centering yoke to be used as a lever when tightening. The hardened steel flaring bar grips without scoring.

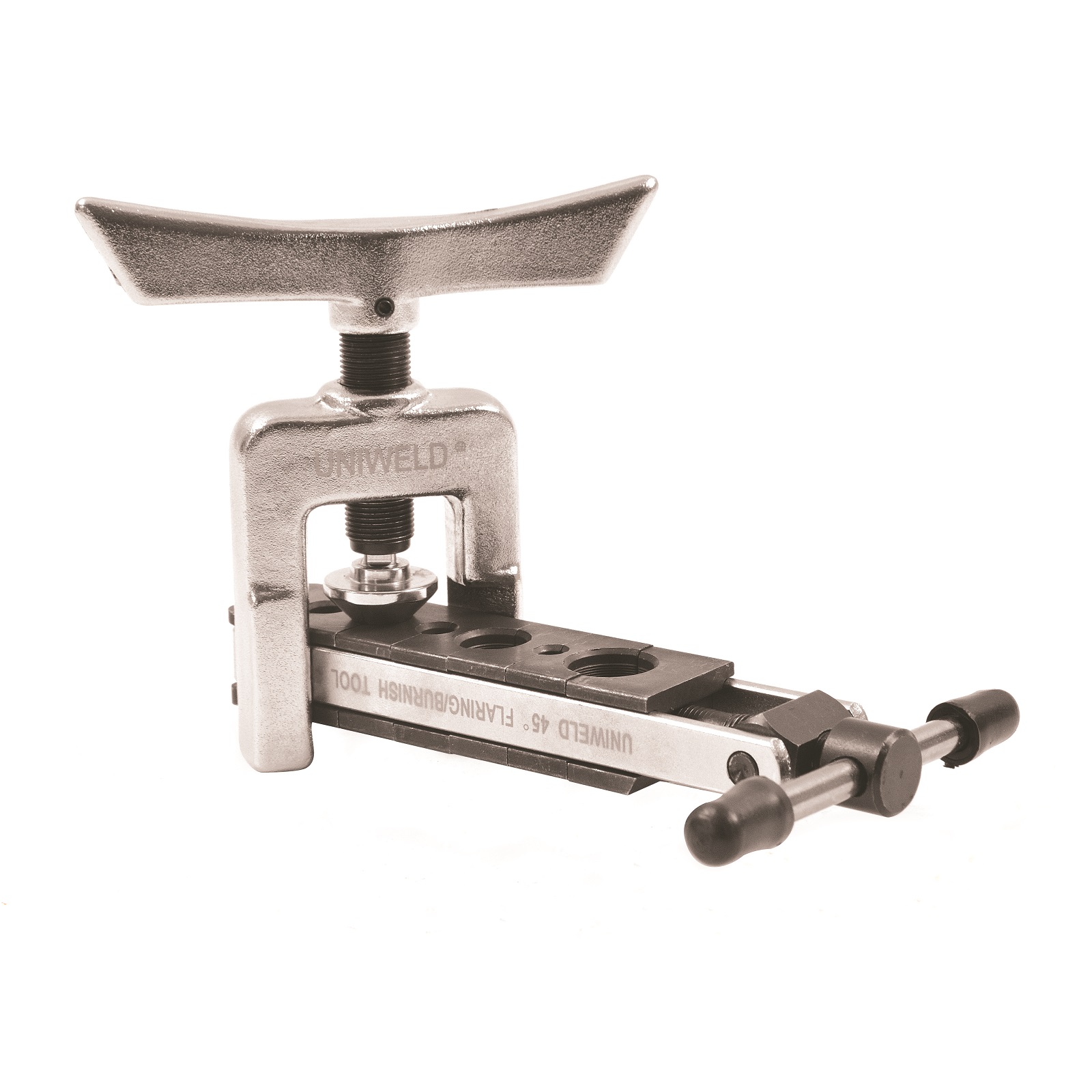

The 70004 Heavy Duty Flare/Burnish Tool has a specially designed hard chrome finish burnishing cone that automatically burnishes the flare face. The heat treated dies grip the tubing without scoring. the swivel-type yoke is self-centering.

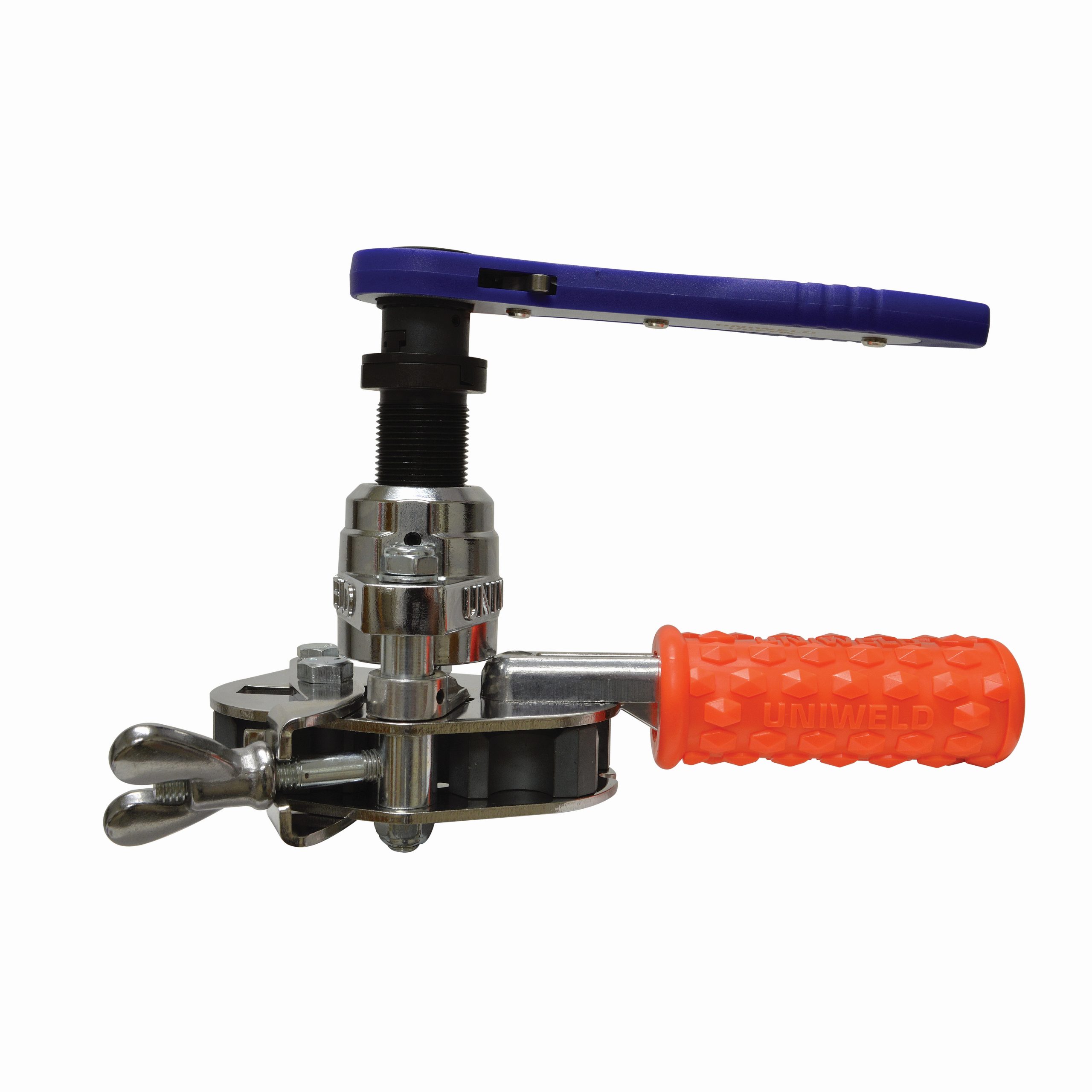

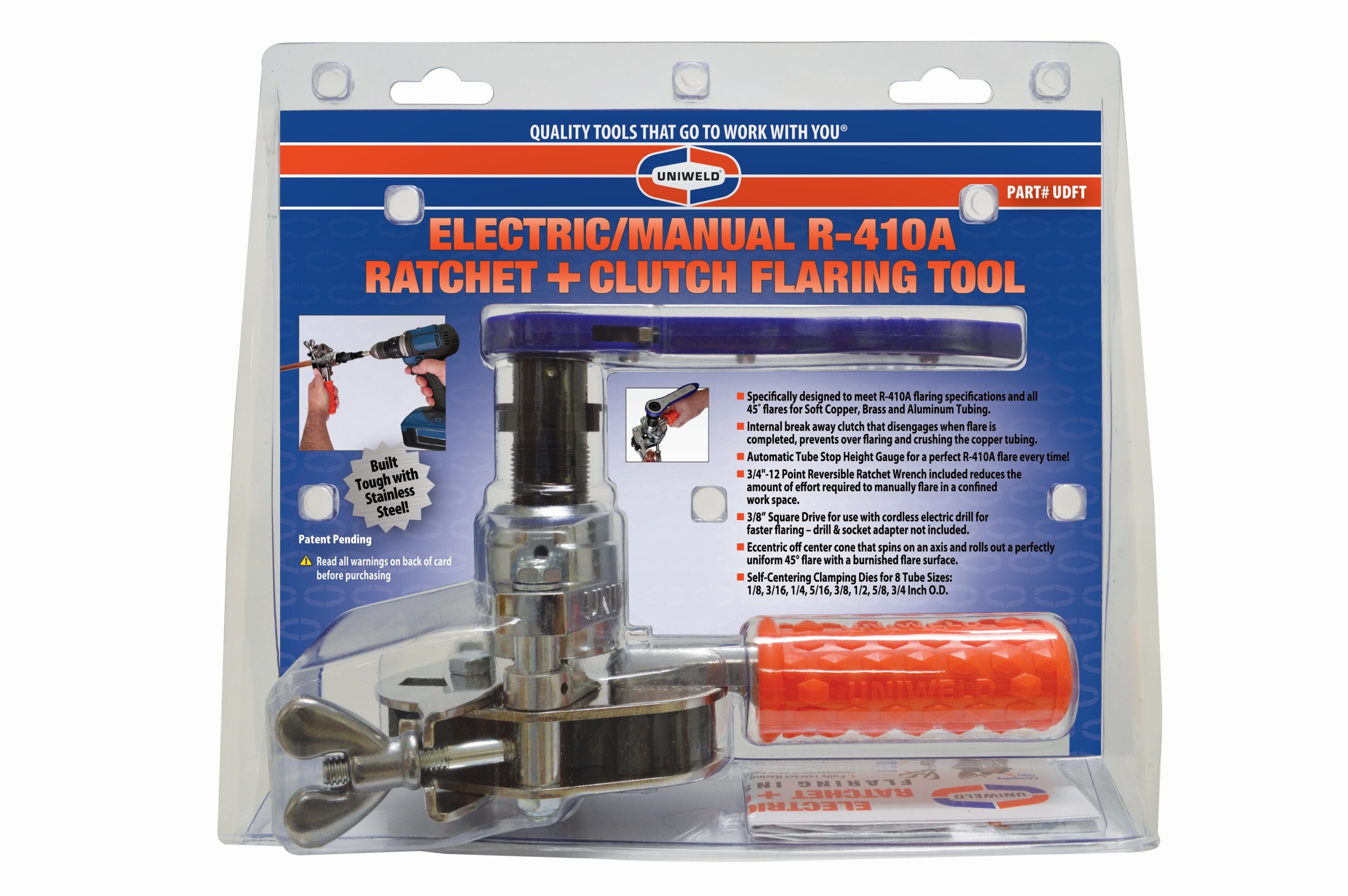

Uniweld’s UDFT Deluxe Flaring Tool is specifically designed to meet R-410A flaring specifications and all 45° flares for tubing. The internal break away clutch that disengages when flare is completed prevents over flaring and crushing the copper tubing. The 3/4″-12 point reversible ratchet wrench included reduces the amount of effort required to manually flare in a confined work space. The 3/8″ square drive can be used with a cordless electric drill for faster flaring. Features an eccentric off center cone that spins on an axis and rolls out a perfectly uniform 45° flare with a burnished flare surface.

Categories: ,

Product Information

Part # Description Sizes For Use With
70003 Heavy Duty Flaring Tool 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, and 5/8″ O.D Tubing Soft Copper, Aluminum, and Brass
70004 Heavy Duty Flare/Burnish Tool 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, and 5/8″ O.D Tubing Soft Copper, Aluminum, and Brass
UDFT Deluxe Flaring Tool 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, and 3/4″ O.D Tubing Soft Copper, Aluminum, and Brass
