ArTorch® Pinpoint Flame Tool

ArTorch® is the perfect tool for the jeweler who demands accuracy and reliability; the artist who wants to achieve creativity through intricate metal craft and sculpting, or the do-it-yourselfer who needs to make some home repairs.

Category: Artorch® Pinpoint Flame Tools Tags: Artorch, flame tool, jewelry, micro torch, pinpoint

Product Information

ArTorch® Handle

Part#	Description	Hose[Fittings]	Curved tip(s)	Package with Instructions
ART100	ArTorch® ART100	No Hose	(optional)	Display Card

ArTorch® Kits

Part#	Description	Hose	Tip(s)	Fittings	Package	Fuel Reg.	Oxy Reg.	Check Valves
ART1007A	ArTorch® Basic Kit ART1007A	6′ Twin, Color Coded	#4	“B”	Display Card	N/A	N/A	N/A
ART1001B	ArTorch® Oxyacetylene Kit ART1001B	6′ Twin, Color Coded	#2, #3, #4, #5, #6	“B”	Display Box	N/A	N/A	N/A
ART1001LP	ArTorch® Propane Kit ART1001LP	6′ Twin, Color Coded	#3, #4, #5, #6, #7	“B”	Display Box	N/A	N/A	N/A
ART100-6B	ArTorch® Basic Kit ART100-6B	6′ Twin, Color Coded	N/A	“B”	Display Card	N/A	N/A	N/A
ART100-6A	ArTorch® Basic Kit ART100-6A	6′ Twin, Color Coded	N/A	“A”	Display Card	N/A	N/A	N/A
ART100-12B	ArTorch® Basic Kit ART100-12B	12′ Twin, Color Coded	N/A	“B”	Display Card	N/A	N/A	N/A
ART1012	ArTorch® Oxyacetylene Kit ART1012	6′ Twin, Color Coded	#2, #3, #4, #5, #6	“B”	Display Card	N/A	N/A	N/A
ART1020	ArTorch® Oxyacetylene Kit ART1020	12′ Twin, Color Coded	#2, #3, #4, #5, #6	“A”	Display Card	N/A	N/A	N/A
ART1020LP	ArTorch® Propane Kit ART1020LP	12 Twin, Color Coded	#3, #4, #5, #6, #7	“B”	Display Card	N/A	N/A	N/A
ART1003	ArTorch® Acetylene Kit ART1003	6′ Twin	#2, #3, #4, #5, #6	“B”	Display Card	RMC2B	ROB	RCV100; RCV101
ART1003B	ArTorch® Acetylene Kit ART1003B	6′ Twin	#2, #3, #4, #5, #6	“B”	Display Card	RB2B	ROB	RCV100; RCV101
ART1003P	ArTorch® Propane Kit ART1003P	6′ Twin	#3, #4, #5, #6, #7	“B”	Display Card	RLPB	ROB	RCV100; RCV101

ArTorch® Outfits

Part#	Description	Hose	Tip(s)	Fittings	Package	Fuel Reg.	Oxy Reg.	Check Valves	Cylinder
ART1014	ArTorch® Mapp® Propane Outfit ART1014	6′ Twin	#4	“B”	511 Carrying Stand	RP3B	RPO3B	N/A	N/A
ART1015P	ArTorch® Propane Outfit ART1015P	12′ Twin	#3, #4, #5, #6, #7	“B”	500P Carrying Stand	RLPB	ROB	RCV100; RCV101	5P & R*
ART1004A	ArTorch® Oxyacetylene Outfit ART1004A	6′ Twin	#2, #3, #4, #5, #6	“B”	511 Carrying Stand	RMC2B	ROB	RCV100; RCV101	MC & R*
ART1010P	ArTorch® Propane Outfit ART1010P	6′ Twin	#3, #4, #5, #6, #7	“B”	511 Carrying Stand	RP3B	ROB	RCV100; RCV101	PDC** & R

*Tanks Shipped Empty

**PDC Disposable Cylinder Shipped Separately

ArTorch® Tips

Curved/Straight/Twin Tips

Part#	Tip Type	Flame Length	Orifice Diameter	PSI Oxygen	PSI Fuel

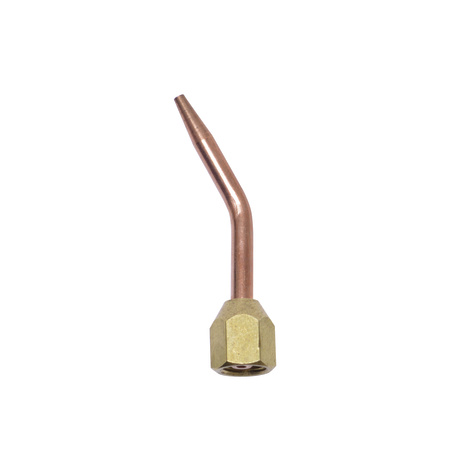

ART2A	Curved	1/4″	.006″	2	2
ART3A	Curved	1-3/4″	.011″	3	3
ART4A	Curved	3-1/2″	.020″	4	4
ART5A	Curved	5-1/2″	.029″	5	5

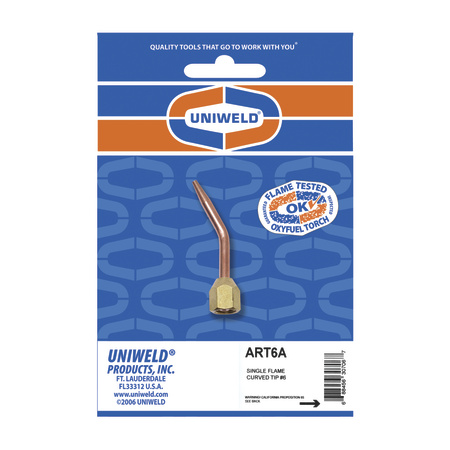

ART6A	Curved	6″	.037″	6	6
ART7A	Curved	6-1/2″	.047″	8	8

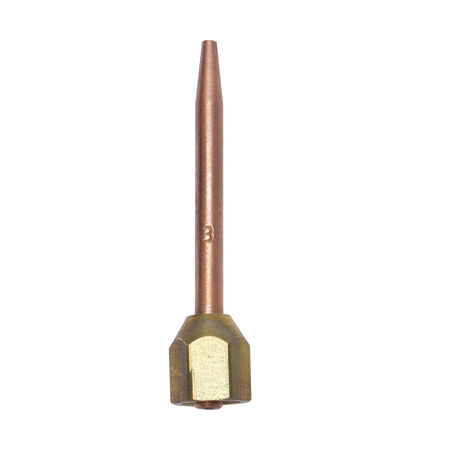

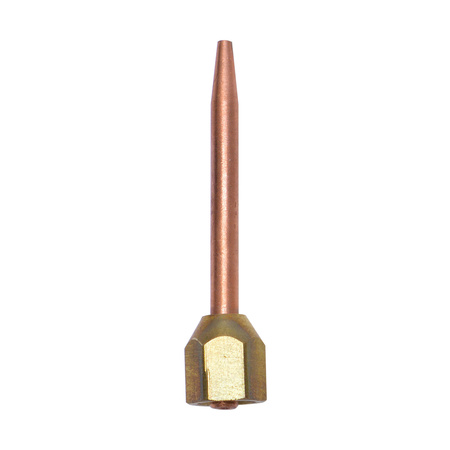

ART2AS	Straight	1/4″	.006″	2	2
ART3AS	Straight	1-3/4″	.011″	3	3
ART4AS	Straight	3-1/2″	.020″	4	4
ART5AS	Straight	5-1/2″	.029″	5	5
ART6AS	Straight	6″	.037″	6	6
ART7AS	Straight	6-1/2″	.047″	8	8

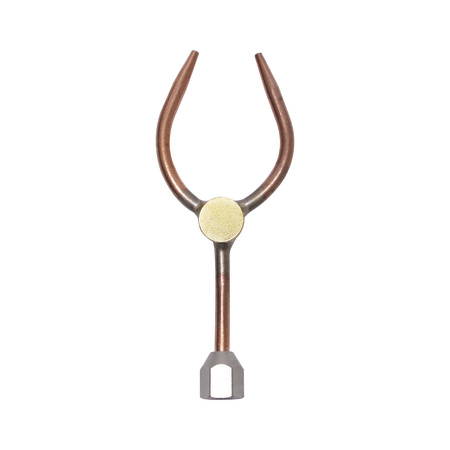

ART3AT*	Twin	1-3/4″	.011″	3	3
ART4AT*	Twin	3-1/2″	.020″	4	4
ART5AT*	Twin	5-1/2″	.029″	5	5
ART6AT*	Twin	6″	.037″	6	6

*Flame length may vary

Heating Tips / Melting Tip & Extensions

Part#	Description	Application	BTU Output

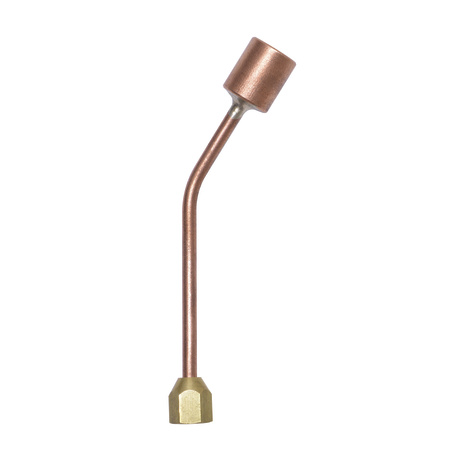

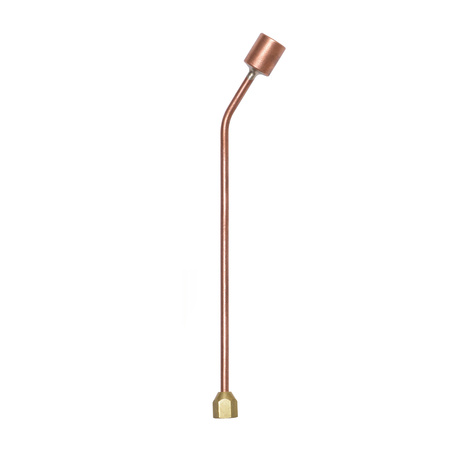

ART632	3″ ArTorch® Rosebud Heating Tip	Melts up to 3 oz of Gold, Bronze or Silver	8,000

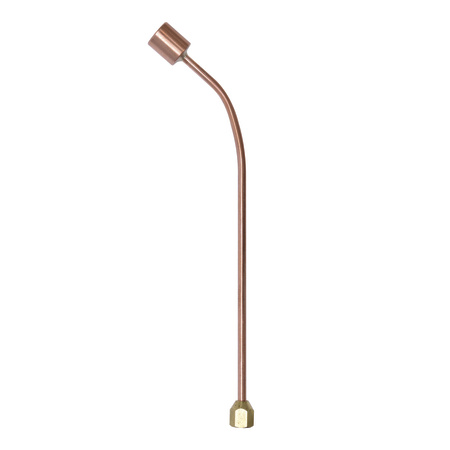

ART662	6″ ArTorch® Rosebud Heating Tip	Melts up to 3 oz of Gold, Bronze, or Silver	8,000
ART717	6″ ArTorch® Propane Heating Tip	For casting and annealing \| Melts up to 3 oz. of Gold, Bronze or Silver	N/A

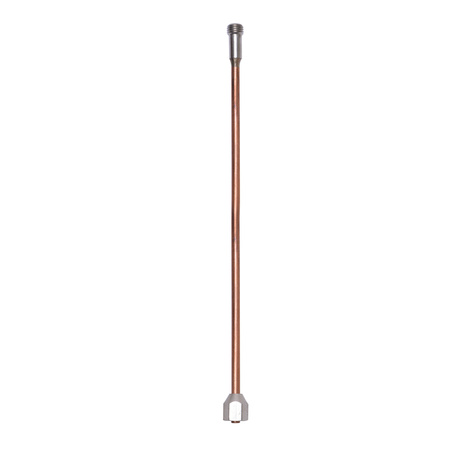

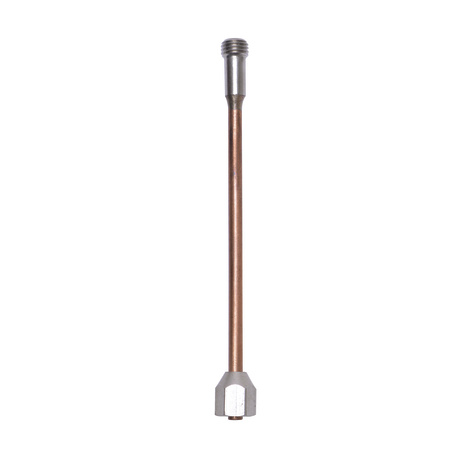

ART327-3	3″ ArTorch® Tip Extension	Fits all ArTorch® tips	N/A
ART327-6	6″ ArTorch® Tip Extension	Fits all ArTorch® tips	N/A

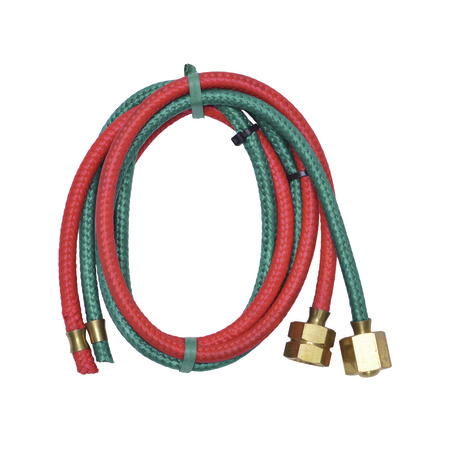

ArTorch® Hoses

ArTorch® Hoses

Part#	Description	Length	Ferrules	Fittings

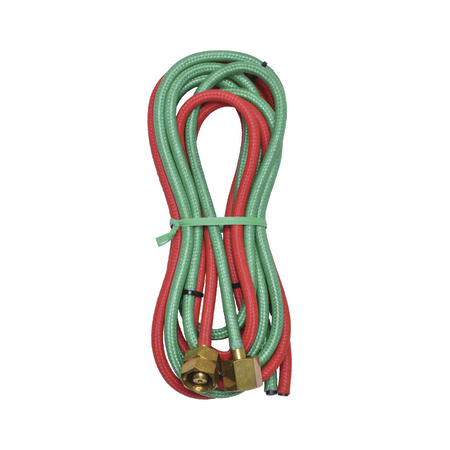

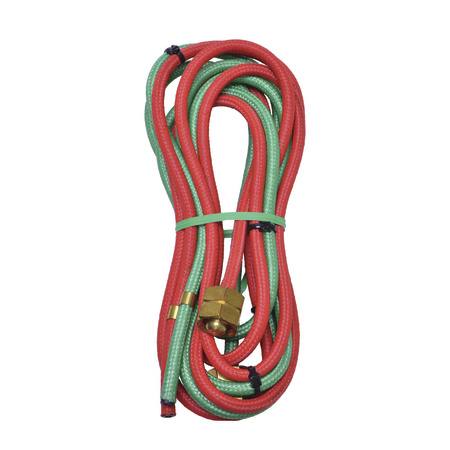

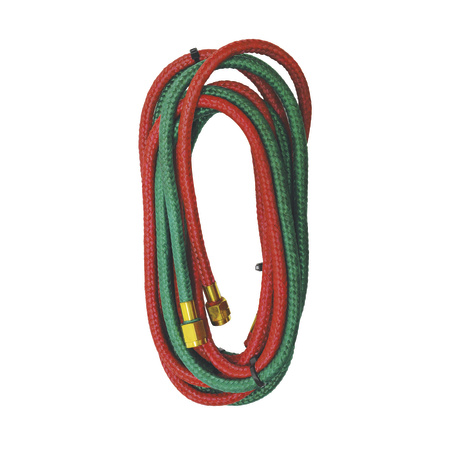

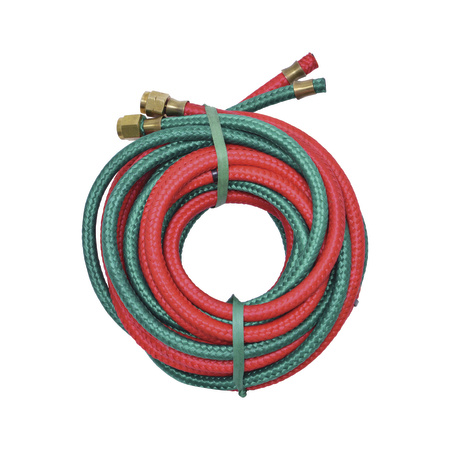

ARTH3B	Twin Hose Replacement Kit	3′	2	“B”
ARTH6B	Twin Hose Replacement Kit	6′	2	“B”
ARTH6A	Twin Hose Replacement Kit	6′	2	“A”
ARTH12B	Twin Hose Replacement Kit	12′	2	“B”
ARTH12A	Twin Hose Replacement Kit	12′	2	“A”

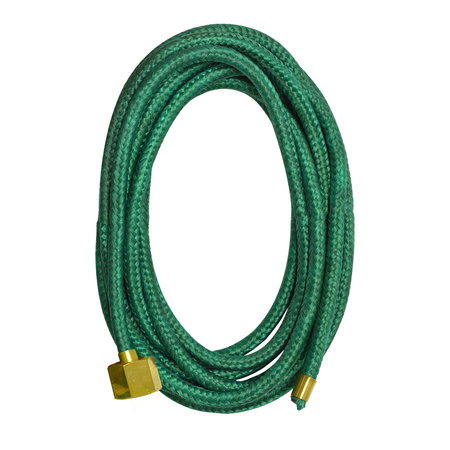

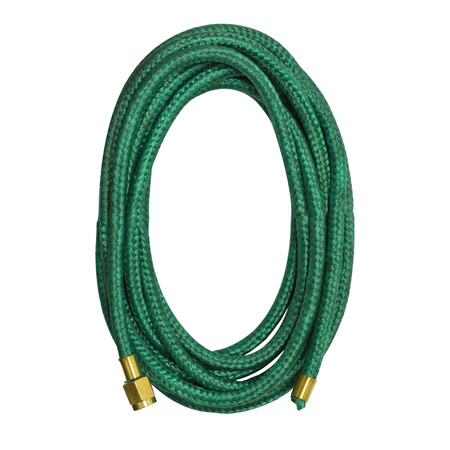

ART1GH6B	Oxygen Hose (Green)	6′	1	“B”
ART1GH6A	Oxygen Hose (Green)	6′	1	“A”
ART1GH12B	Oxygen Hose (Green)	12′	1	“B”
ART1GH12A	Oxygen Hose (Green)	12′	1	“A”

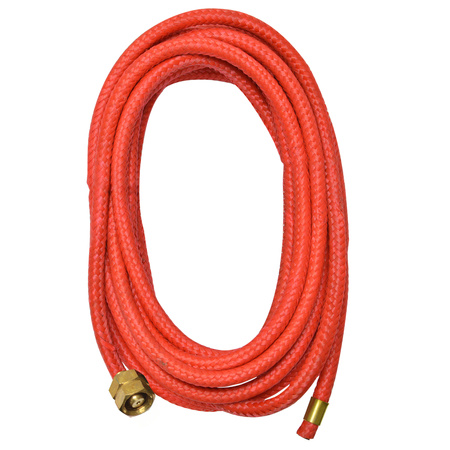

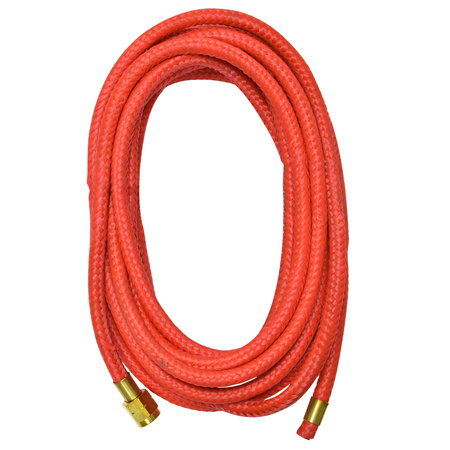

ART1RH6B	Fuel Hose (Red)	6′	1	“B”
ART1RH6A	Fuel Hose (Red)	6′	1	“A”
ART1RH12B	Fuel Hose (Red)	12′	1	“B”
ART1RH12A	Fuel Hose (Red)	12′	1	“A”
