All American

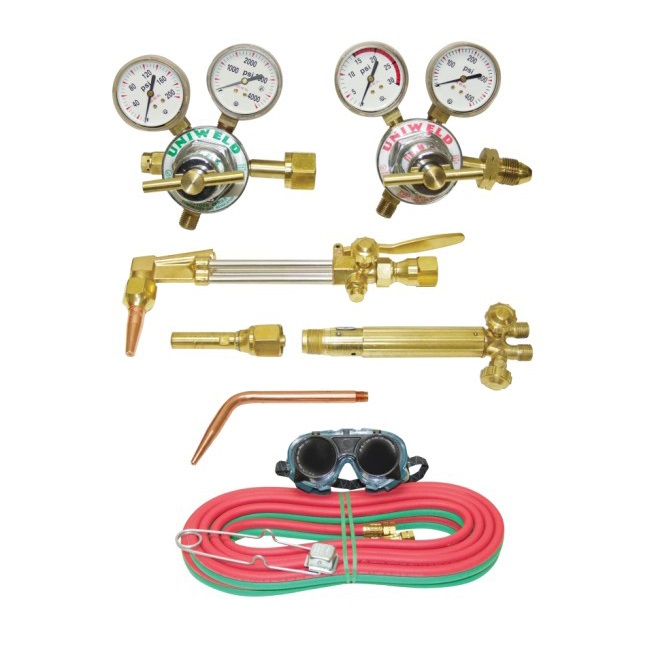

The Uniweld All-American is a head mix oxy-fuel outfit for cutting, brazing and welding.

Category: H-Style Outfits Tags: All American, Cutting, Heavy, Medium, Outfit, propane, Welding

Product Info
Additional information

Product Information

Part#	Product Name	Duty Class	Welding Handle	Mixer	Cutting Attachment	Cutting Tip	Weld/Braze Tip	Oxy. Reg. 5-125 PSIG	Acety. Reg. 2-15 PSIG	Accessories
KR79	All-American	Heavy Duty	WH79	UM79	CA79A	6290A-1	TYPE79E-3	RUH8210 CGA540	RUH8211 CGA510	Twin Hose 20′ 3/16” “B” Goggles Lighter
KR79-4	All-American	Heavy Duty	WH79	UM79	CA79A	6290A-1	TYPE79E-3	RUH8210 CGA540	RUH8211 CGA510	No Accessories
KM79	All-American	Medium Duty	WH79	UM79	CA79A	6290A-1	TYPE79E-3	MR8210 CGA540	MR8211 CGA510	Twin Hose 20′ 3/16” “B” Goggles Lighter
KM79-4	All-American	Medium Duty	WH79	UM79	CA79A	6290A-1	TYPE79E-3	MR8210 CGA540	MR8211 CGA510	No Accessories
KAV43A	All-American	Heavy Duty	43L9E	UM43	CA43A	6290A-1	TYPE79E-3	RV8010 CGA540	RV8011 CGA510	Twin Hose 20′ 1/4” “B” Goggles Lighter
KAV43A-4	All-American	Heavy Duty	43L9E	UM43	CA43A	6290A-1	TYPE79E-3	RV8010 CGA540	RV8011 CGA510	No Accessories
KAR43A	All-American	Heavy Duty	43L9E	UM43	CA43A	6290A-1	TYPE79E-3	RUH8310 CGA540	RUH8311 CGA510	Twin Hose 20′ 1/4” “B” Goggles, Lighter
KAR43A-4	All-American	Heavy Duty	43L9E	UM43	CA43A	6290A-1	TYPE79E-3	RUH8310 CGA540	RUH8311 CGA510	No Accessories
KAVP43A	All-American Propane	Heavy Duty	43L9E	UM43	CA43A	6290NX-1	TYPE1279E-5	RV8010 CGA540	RV8012 CGA510	Twin Hose 20′ 1/4” Grade “T” “B” Goggles Lighter
KAVP43A-4	All-American Propane	Heavy Duty	43L9E	UM43	CA43A	6290NX-1	TYPE1279E-5	RV8010 CGA540	RV8012 CGA510	No Accessories
KARP43A	All-American Propane	Heavy Duty	43L9E	UM43	CA43A	6290NX-1	TYPE1279E-5	RUH8310 CGA540	RUH8312 CGA510	Twin Hose 20′ 1/4” Grade “T” “B” Goggles Lighter
KARP43A-4	All-American Propane	Heavy Duty	43L9E	UM43	CA43A	6290NX-1	TYPE1279E-5	RUH8310 CGA540	RUH8312 CGA510	No Accessories

Additional information

Cutting Capacity:	1″ with supplied tip; up to 8″ with optional tips.
Welding Capacity:	1/16″ with supplied tip; up to 1/2″ with optional tips.
CA43A:	Cutting Attachment with universal multi-gas head mixer and machine forged brass head and body. Cuts up to 8″ with proper tip.
RV Series Regulators:	Have single scale 2-1/2″ gauges, stainless steel diaphragms and accessibility to the seat from the rear.
43L9:	Welding Handle with separate two tube silver brazed construction and ribbed outer handle, vented for safety.
RUH83 Series:	Regulators with tri-layered, reinforced diaphragm and single scale 2-1/2″ gauges.
MR Series:	Regulators with a cartridge type seat assembly and 2″ single scale gauges.
RUH82 Series:	Regulators with a tri-layered reinforced diaphragm and single scale 2″ gauges.
CA79A:	Cutting Attachment is solely for use with Acetylene 3 PSIG and above. Cuts up to 1″ with supplied tip.
WH79:	Welding Handle can be used with Acetylene and most fuel gases: MAP//Pro™, Propane, Propylene and Natural Gas
