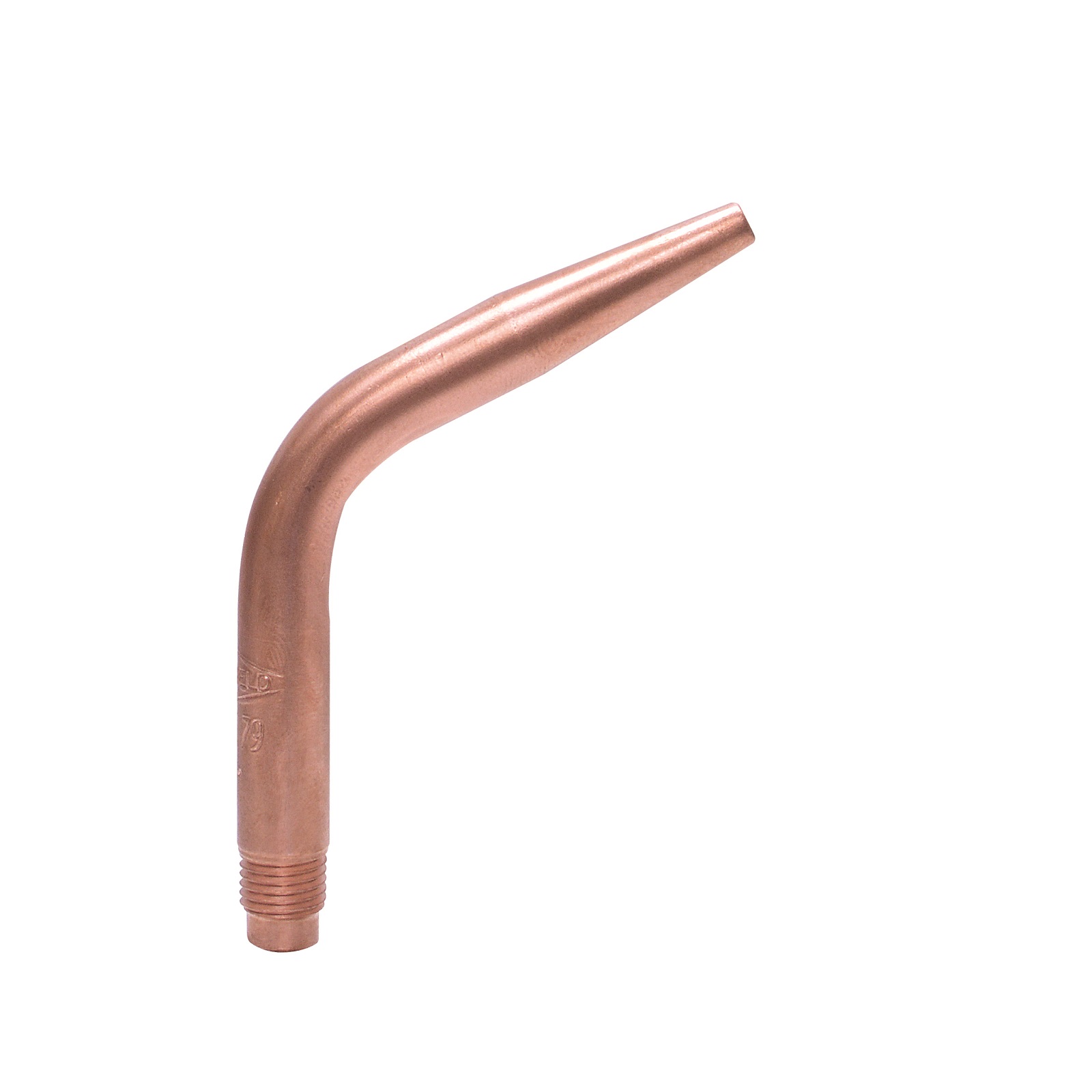

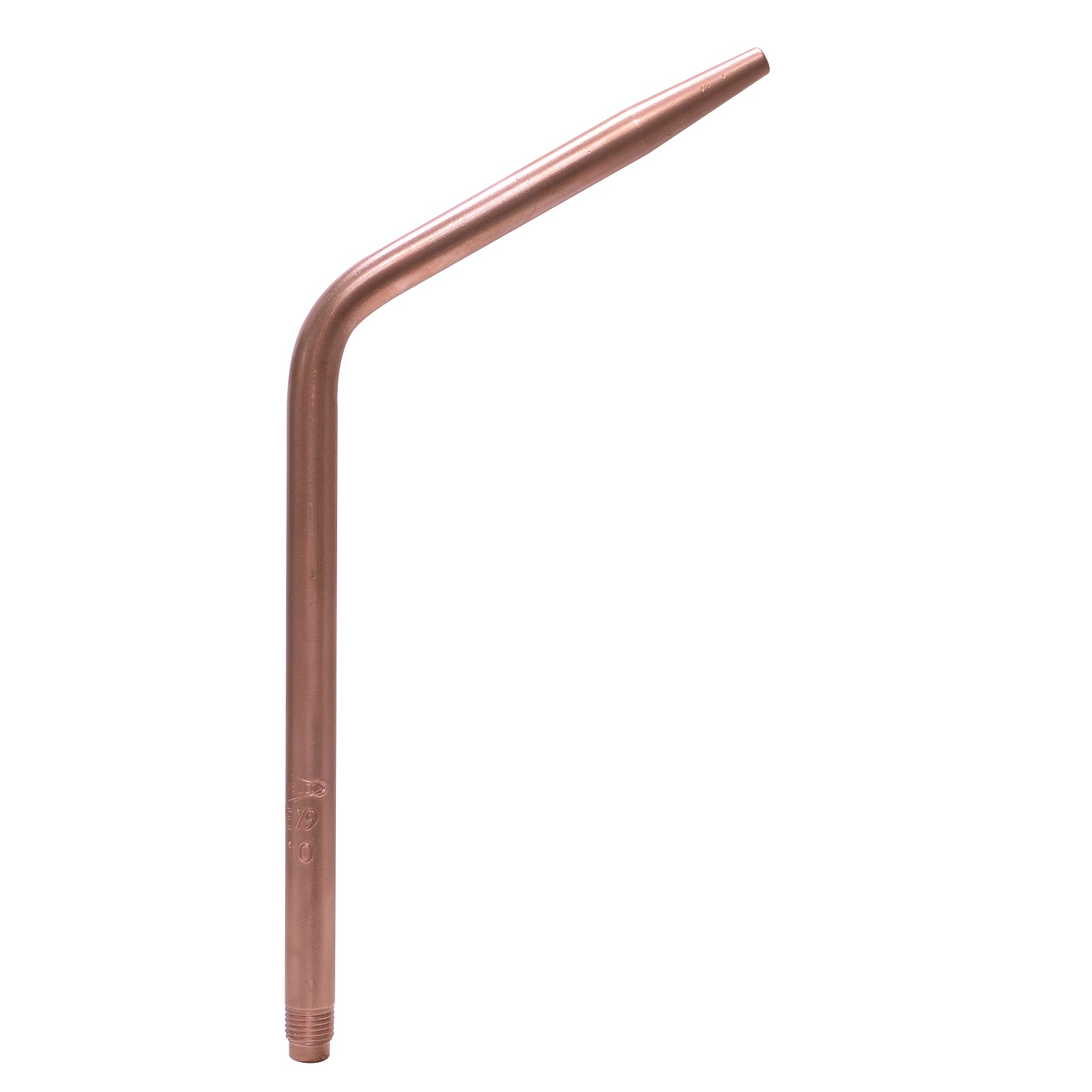

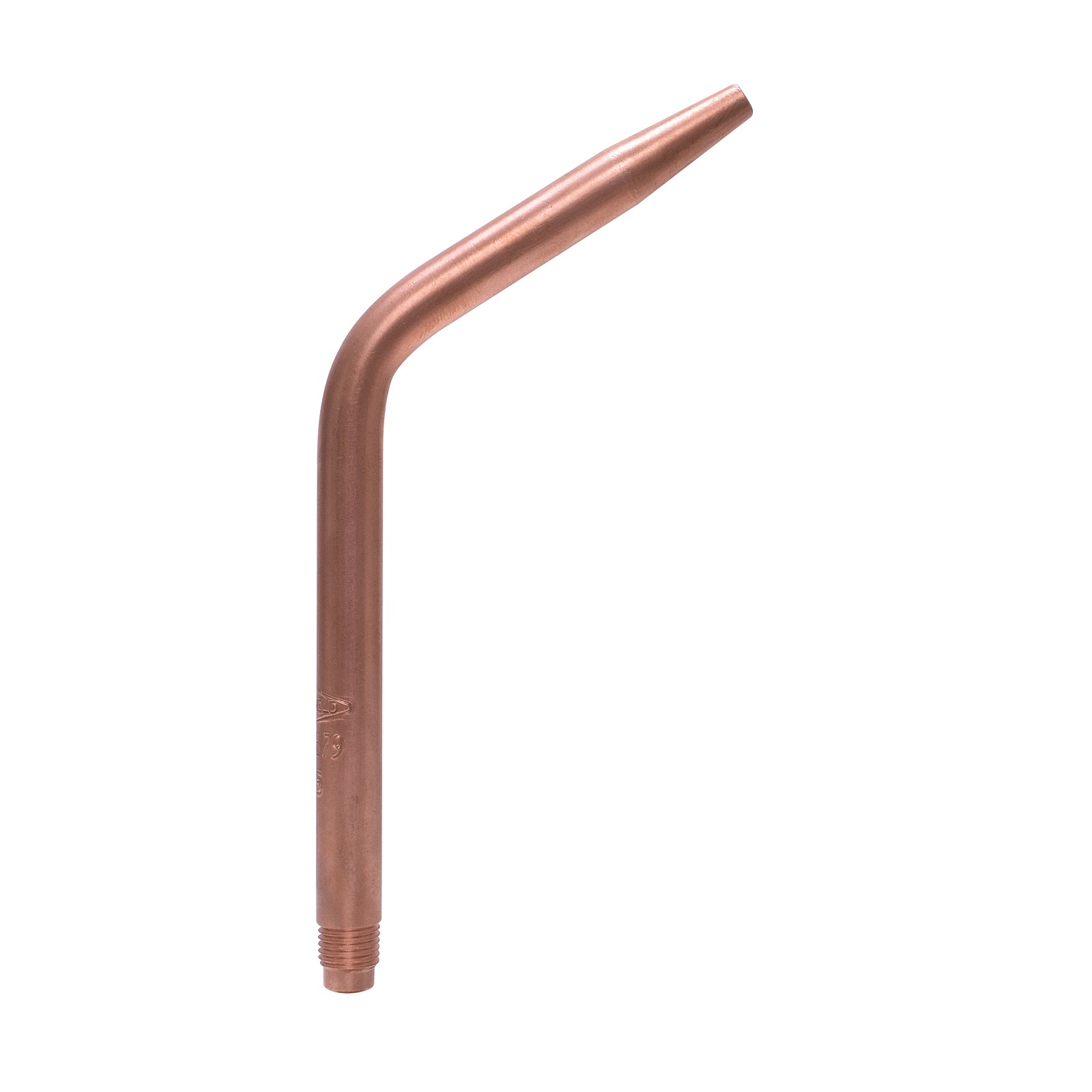

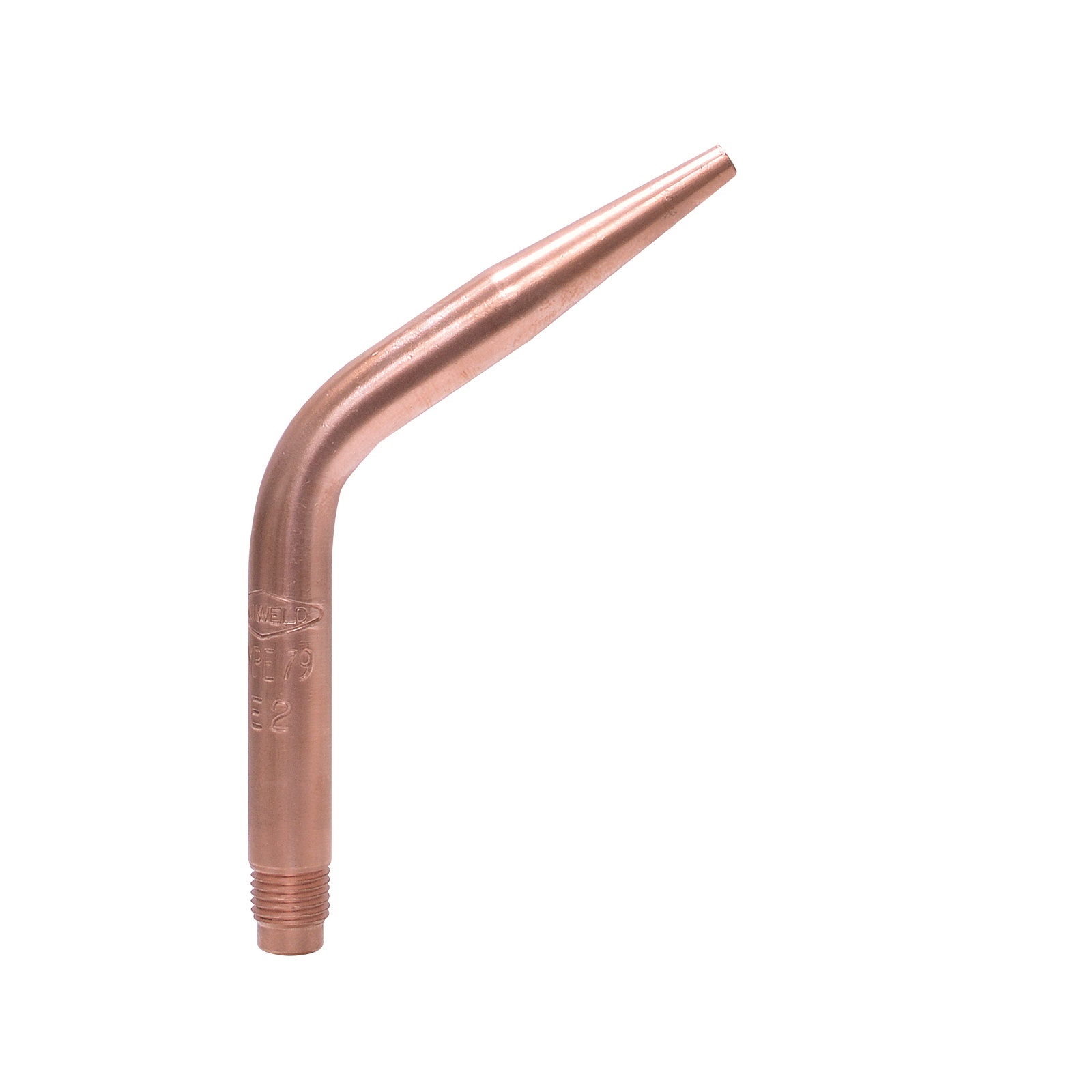

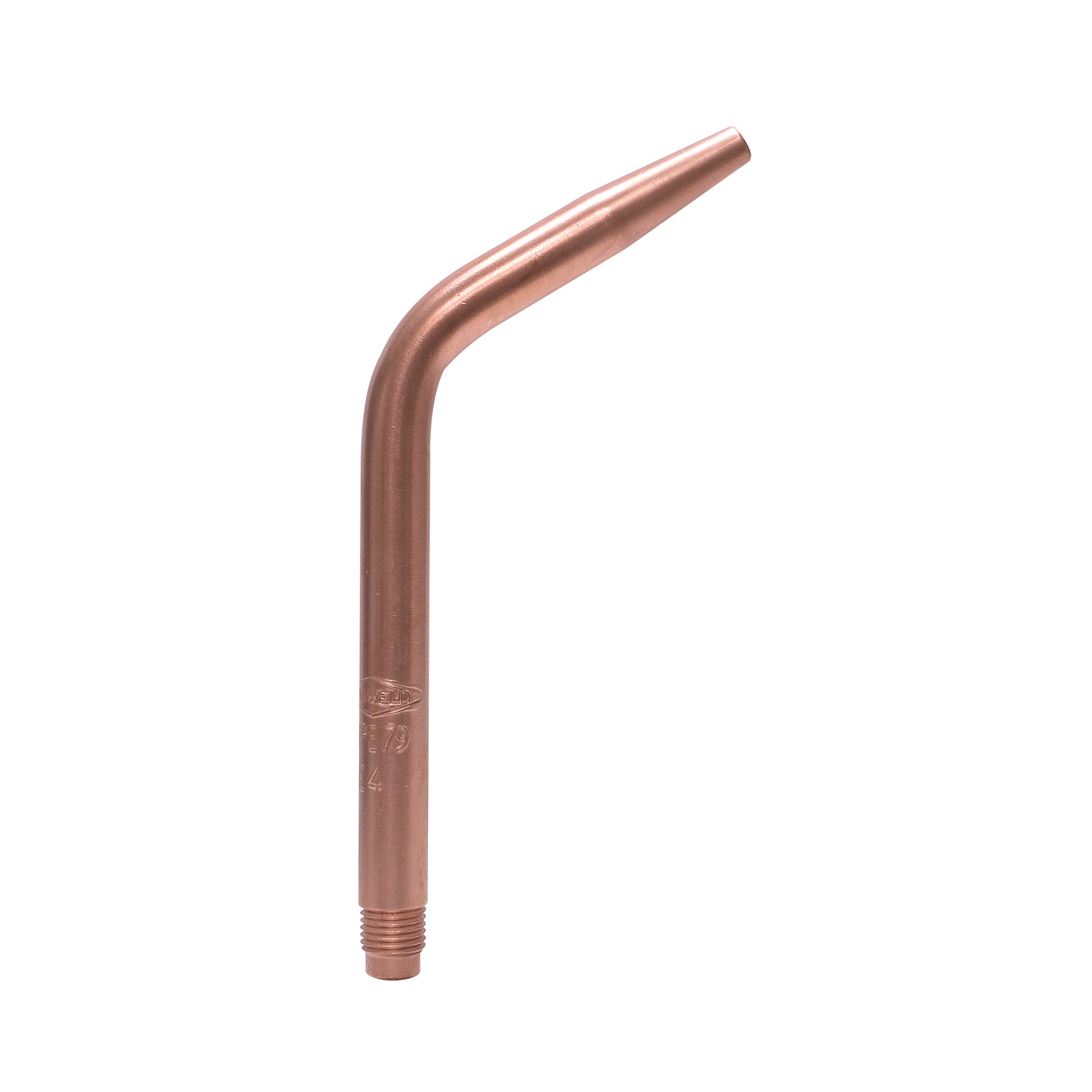

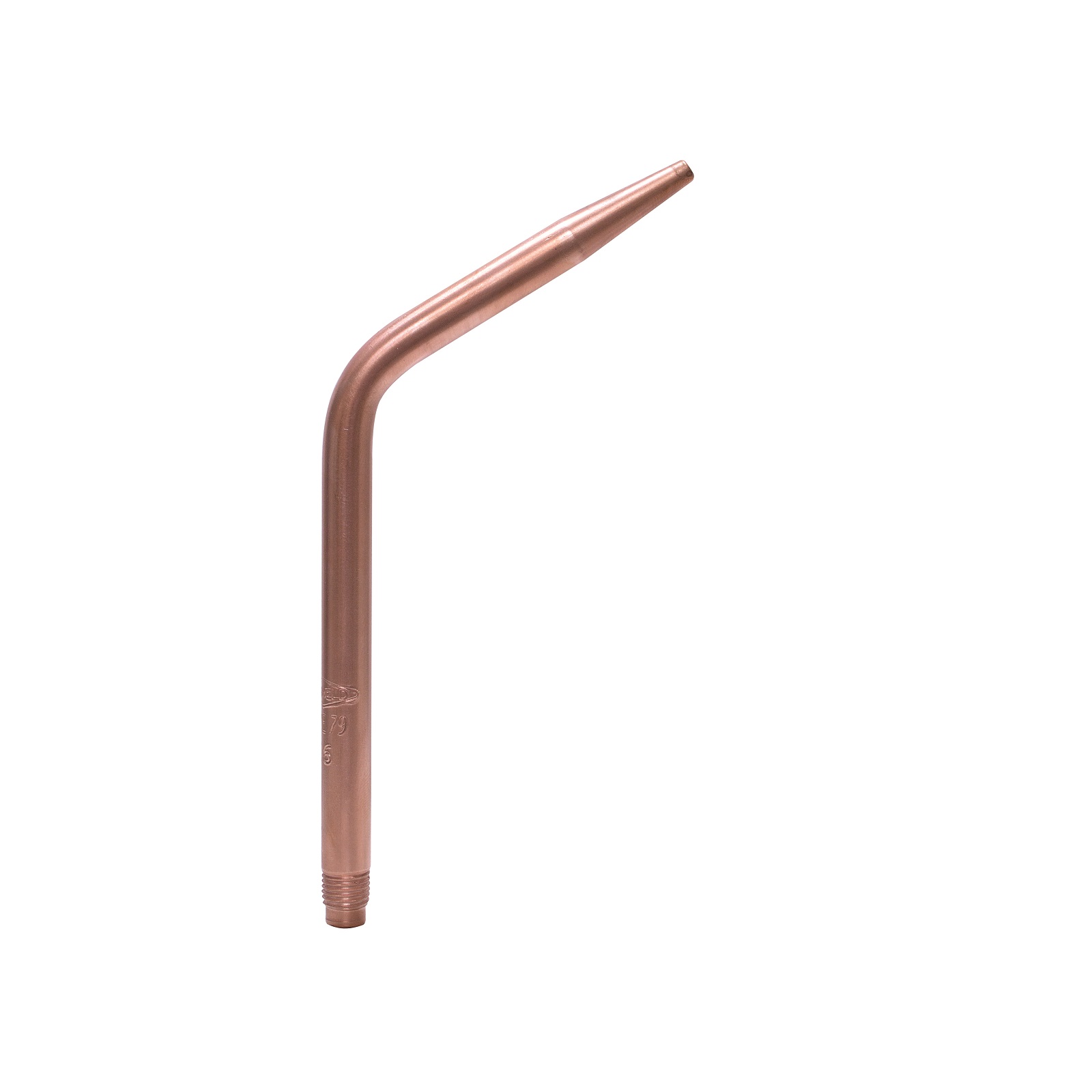

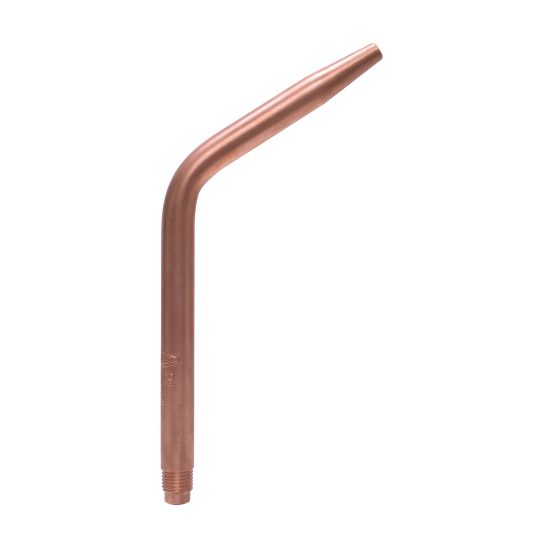

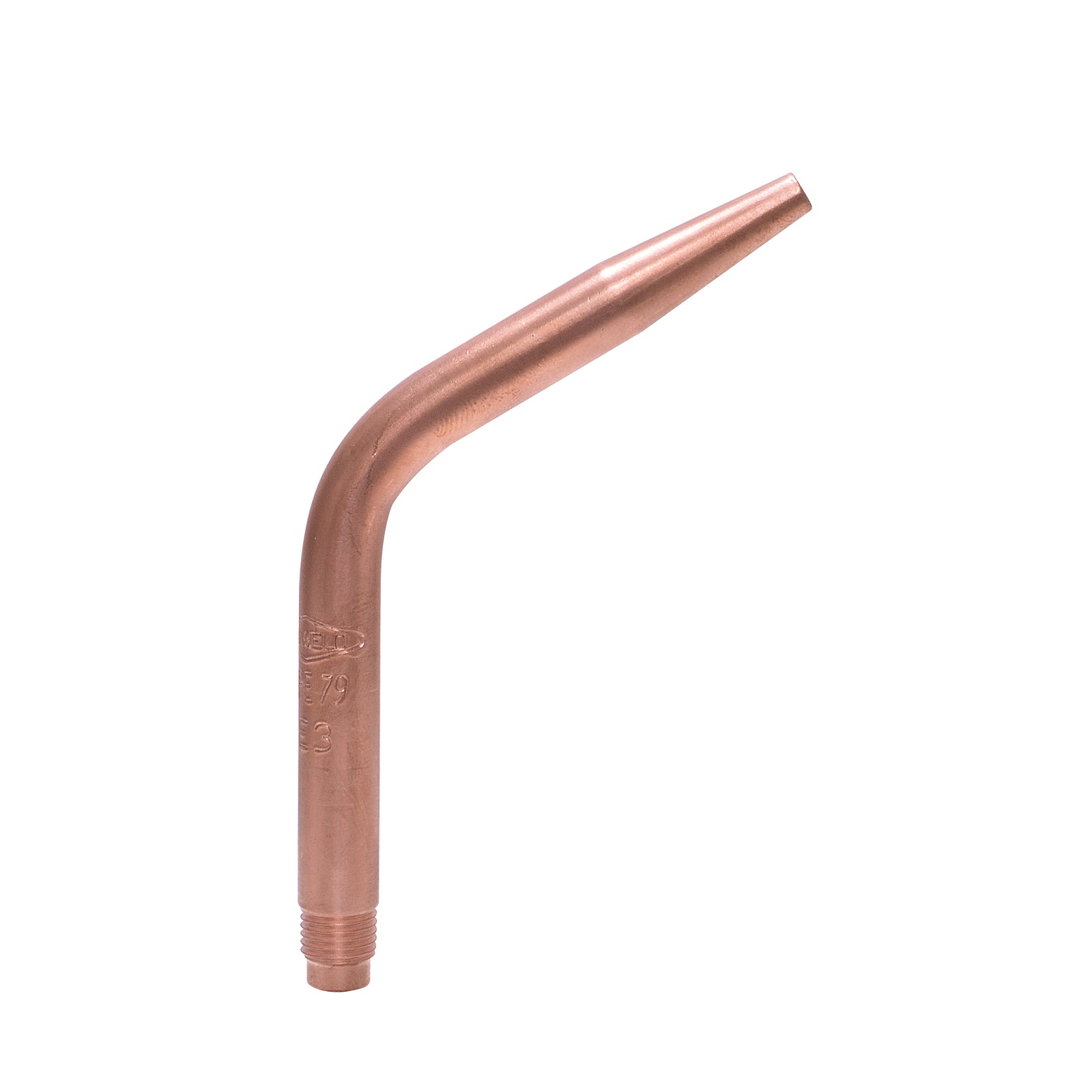

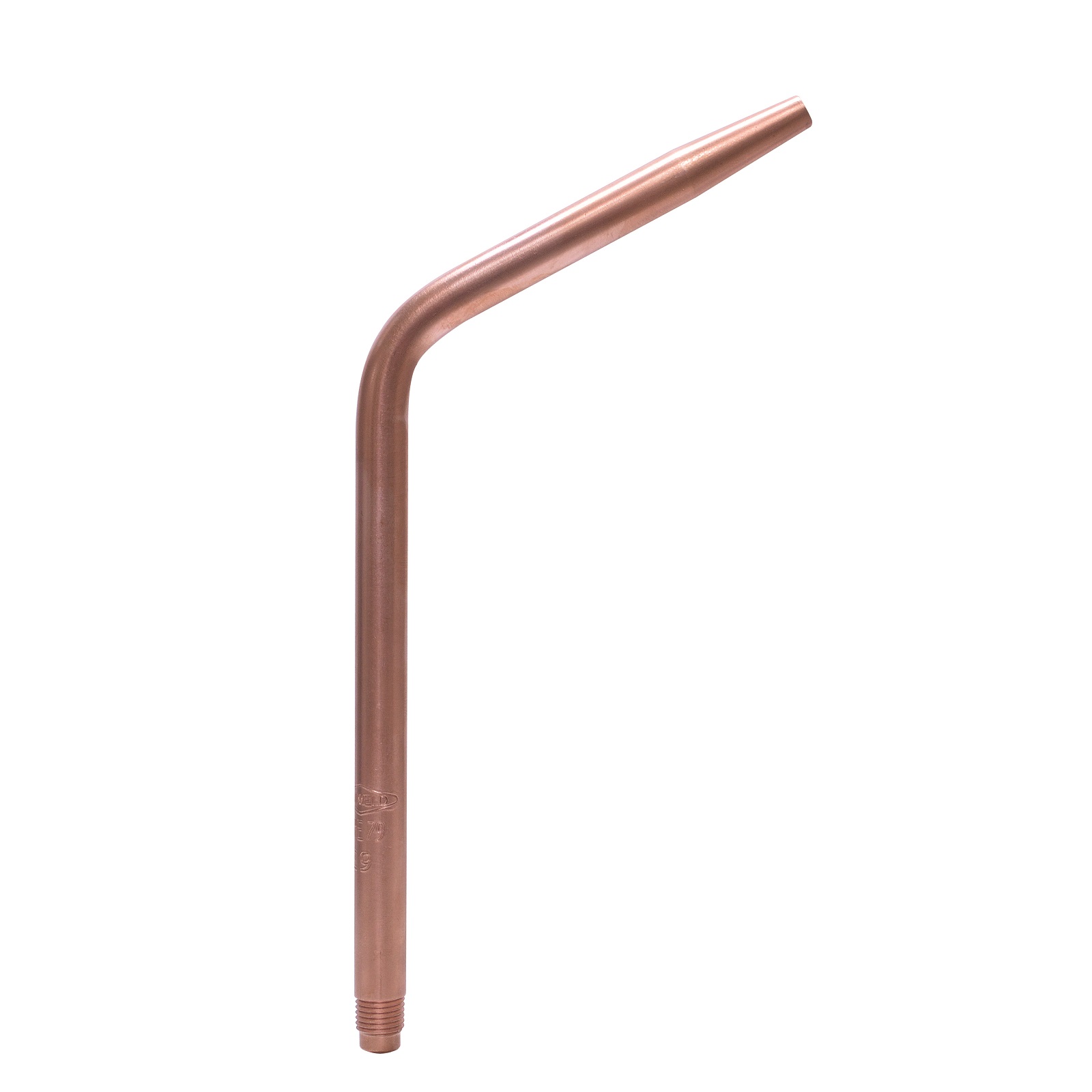

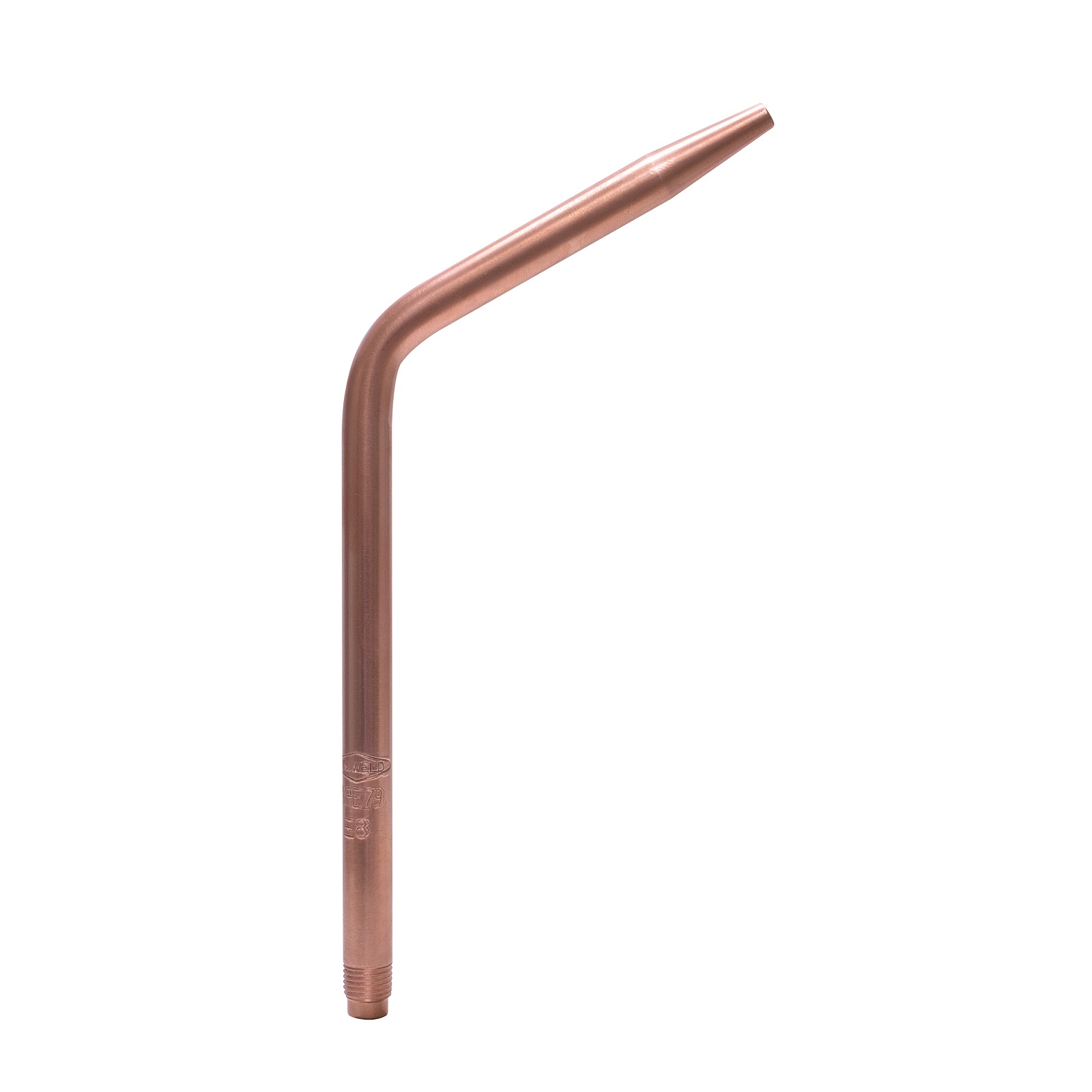

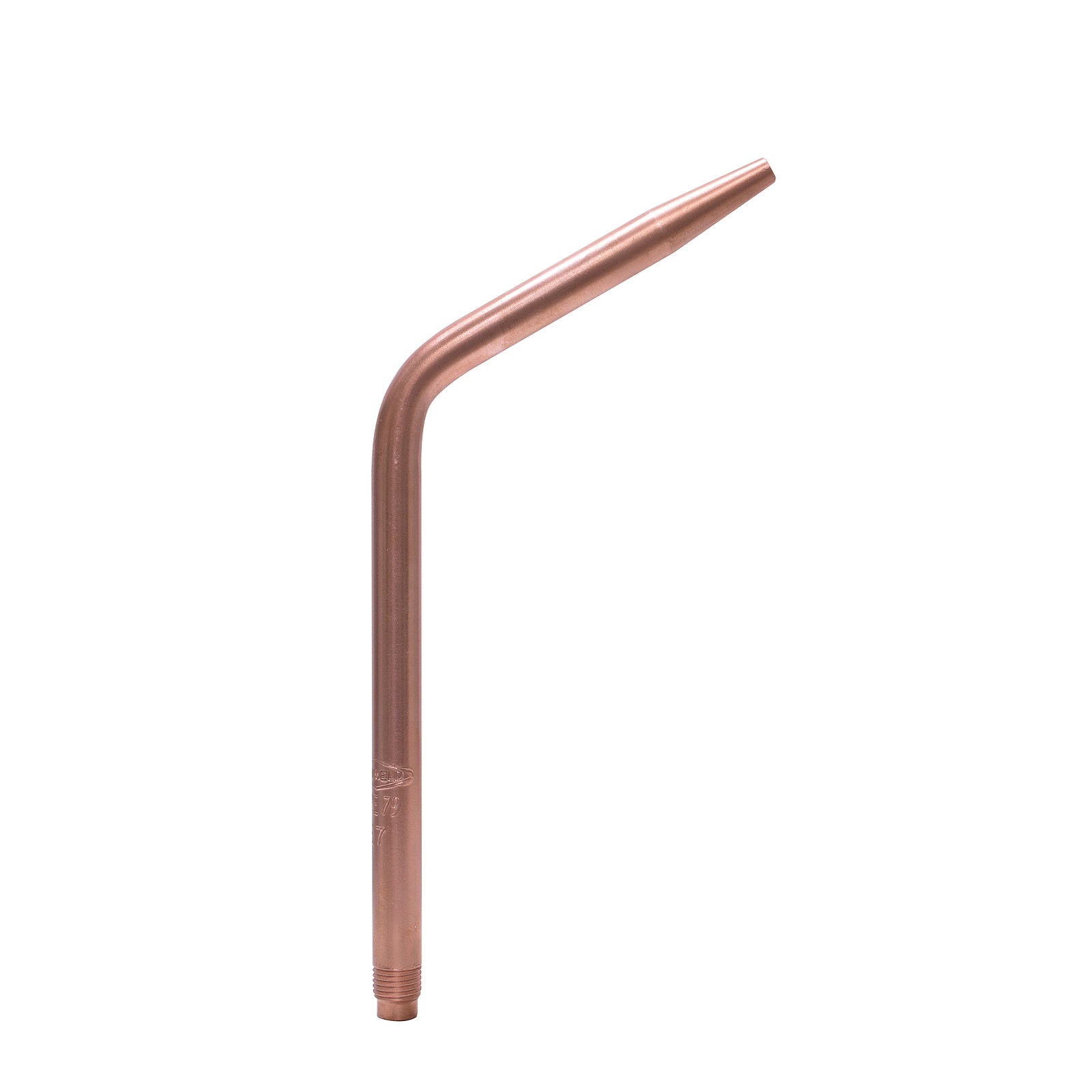

TYPE79E

Uniweld’s TYPE79E Series elbow tips require a mixer and are designed for Welding, Heating, Brazing, and Soldering.



Product Information

Elbow Only Part # Weld Metal Thickness Oxy-Fuel Acetylene Equal Pressure (PSIG) Flow (SCFH) Each Gas

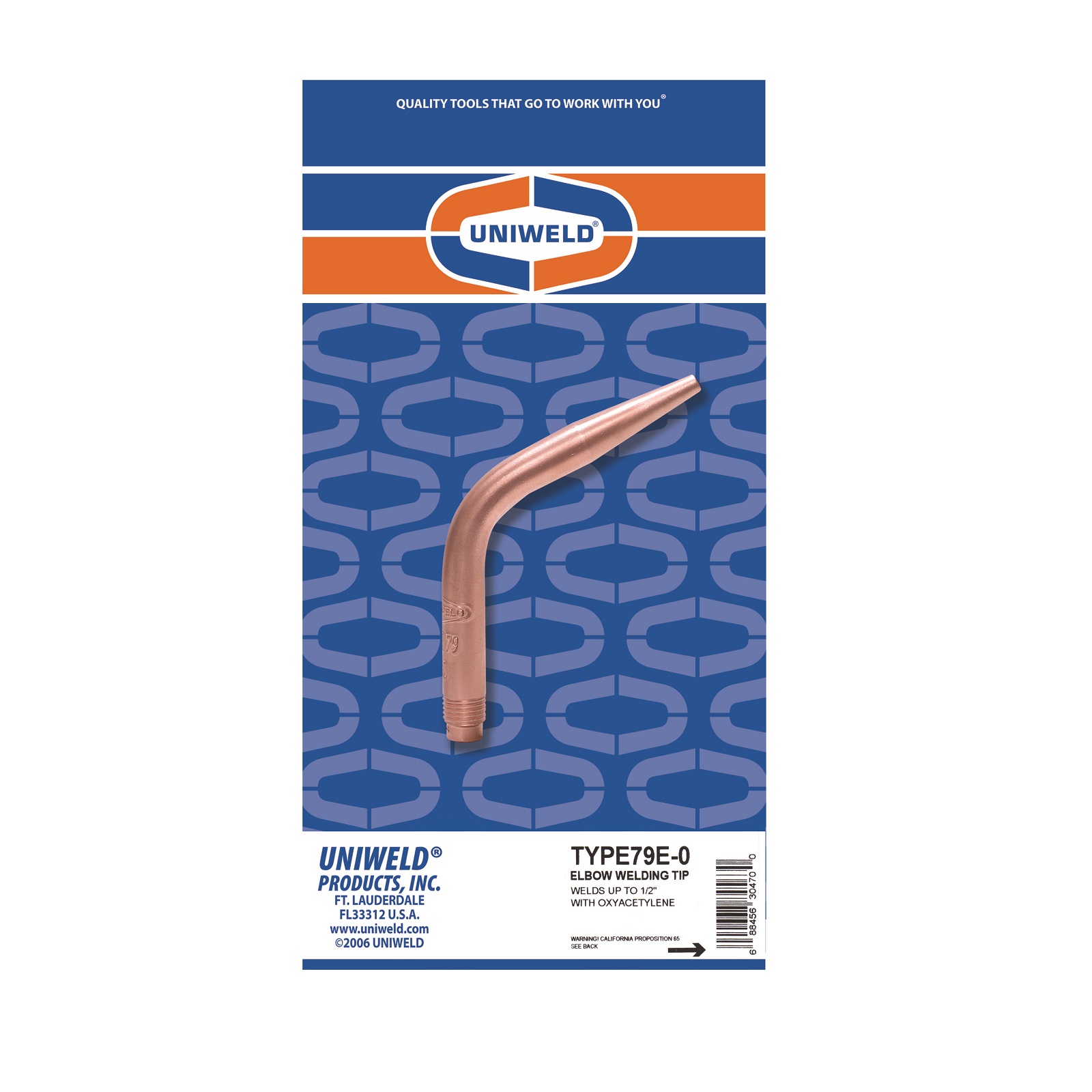

TYPE79E-0 1/64” 1 3
TYPE79E-1 1/32” 1 5
TYPE79E-2 3/64” 2 3
TYPE79E-3 1/16” 3 8
TYPE79E-4 3/32” 4 10
TYPE79E-5 1/8” 5 15
TYPE79E-6 3/16” 6 18
TYPE79E-7 1/4” 7 20
TYPE79E-8 5/16” 8 30
TYPE79E-9 3/8” 9 40
TYPE79E-10 1/2” 10 50

Additional information

Mixer for Handles 43L9 & 43L9E :

UM43

Mixer for Handle WH79:

UM79

Elbow to Mixer Thread Spec:

23/64"-26 (M)
