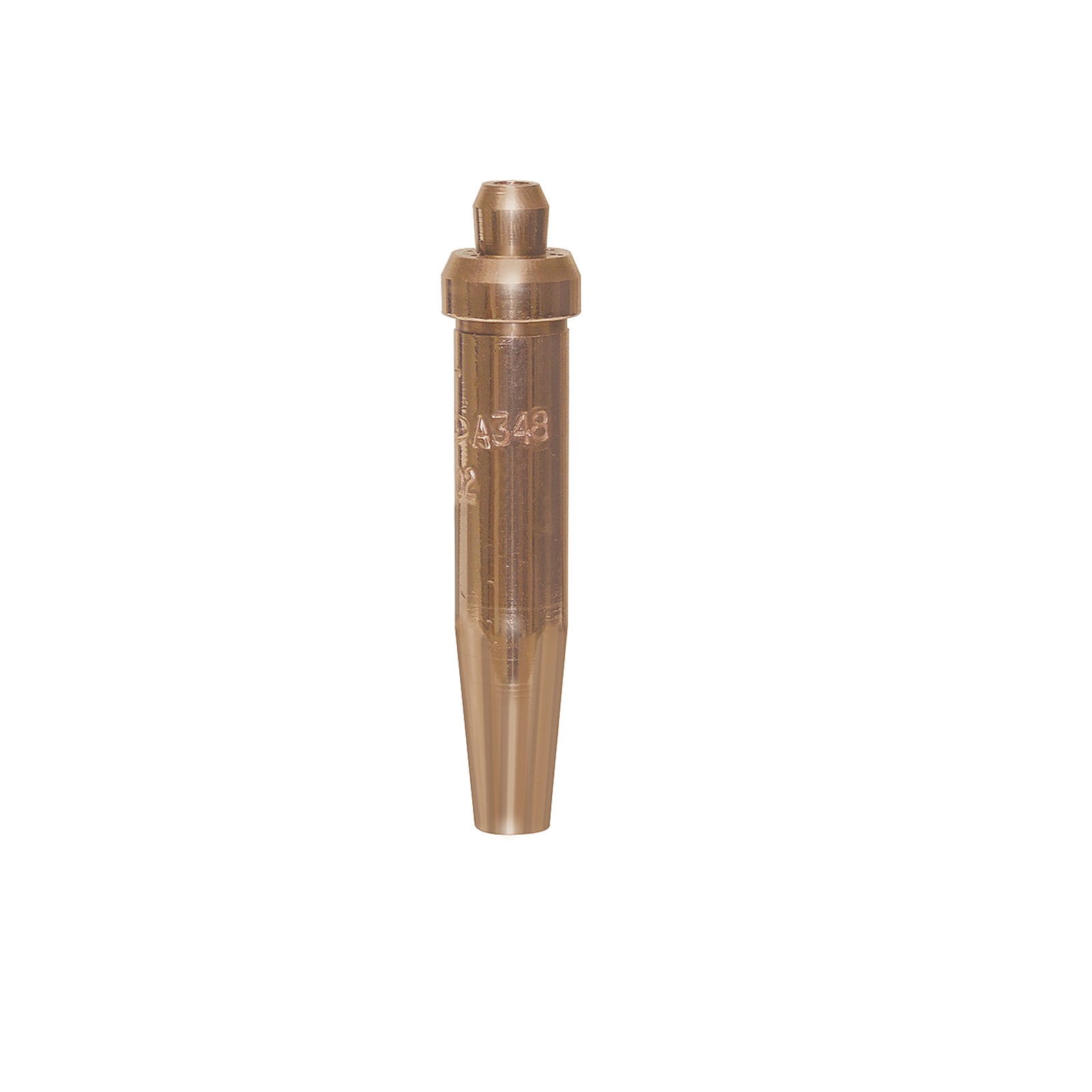

4202 Series (Purox Style)

The six outer jets of a cutting tip are for oxygen and acetylene (Preheat Flames) and the central jet carries only oxygen. The preheat flames are not intended to melt the metal, but to bring it to its ignition temperature.


Product Information

Part # Cut Metal Thickness Cut Oxy Drill Size Cutting Oxygen PSIG Cutting Oxygen SCFH Acetylene PSIG Acetylene SCFH Speed I.P.M Kerf Width
4202-3 1/4” 68 20/25 38/45 5/10 8/10 28/32 .055
4202-4 1/2” 60 30/35 70/75 5/10 10/12 18/22 .065
4202-5 1-1/2” 55 45/56 168/175 5/10 16/20 11/13 .090
4202-7 4” 50 60/73 300/325 5/12 21/25 8/10 .110
4202-9 6” 43 67/73 410/460 7/12 25/28 6/8 .160
4202-11 10” 35 80/86 680/740 7/12 40/45 1/2 .190
4202-13 12” 30 75/85 800/860 7/12 48/45 1/2 .210
