23 Series Elbows & Tip Ends

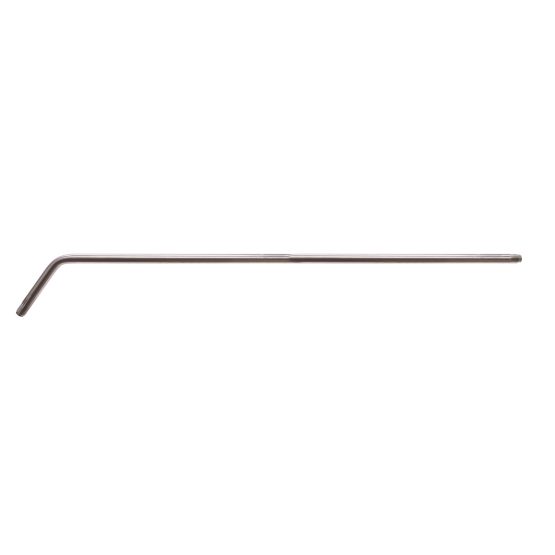

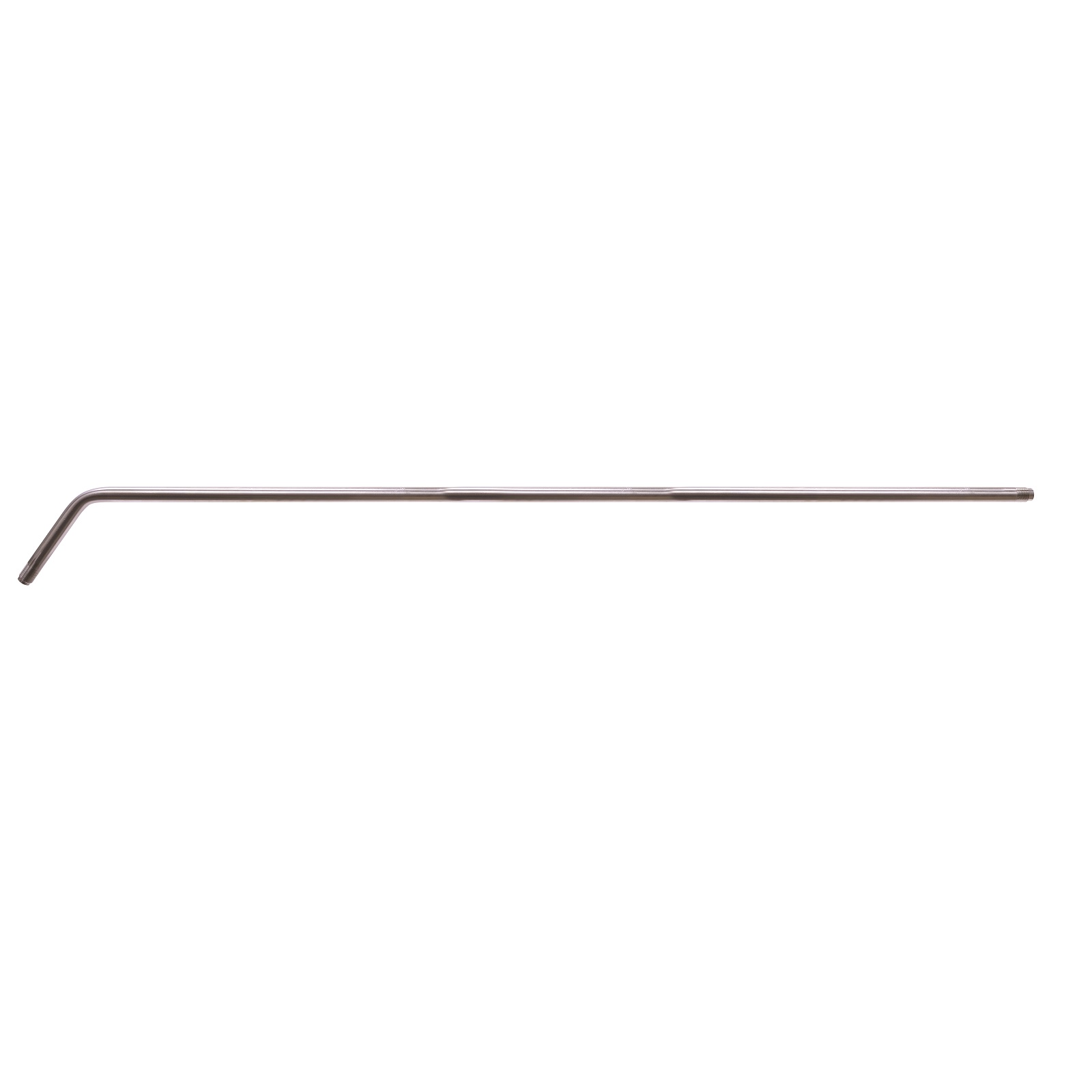

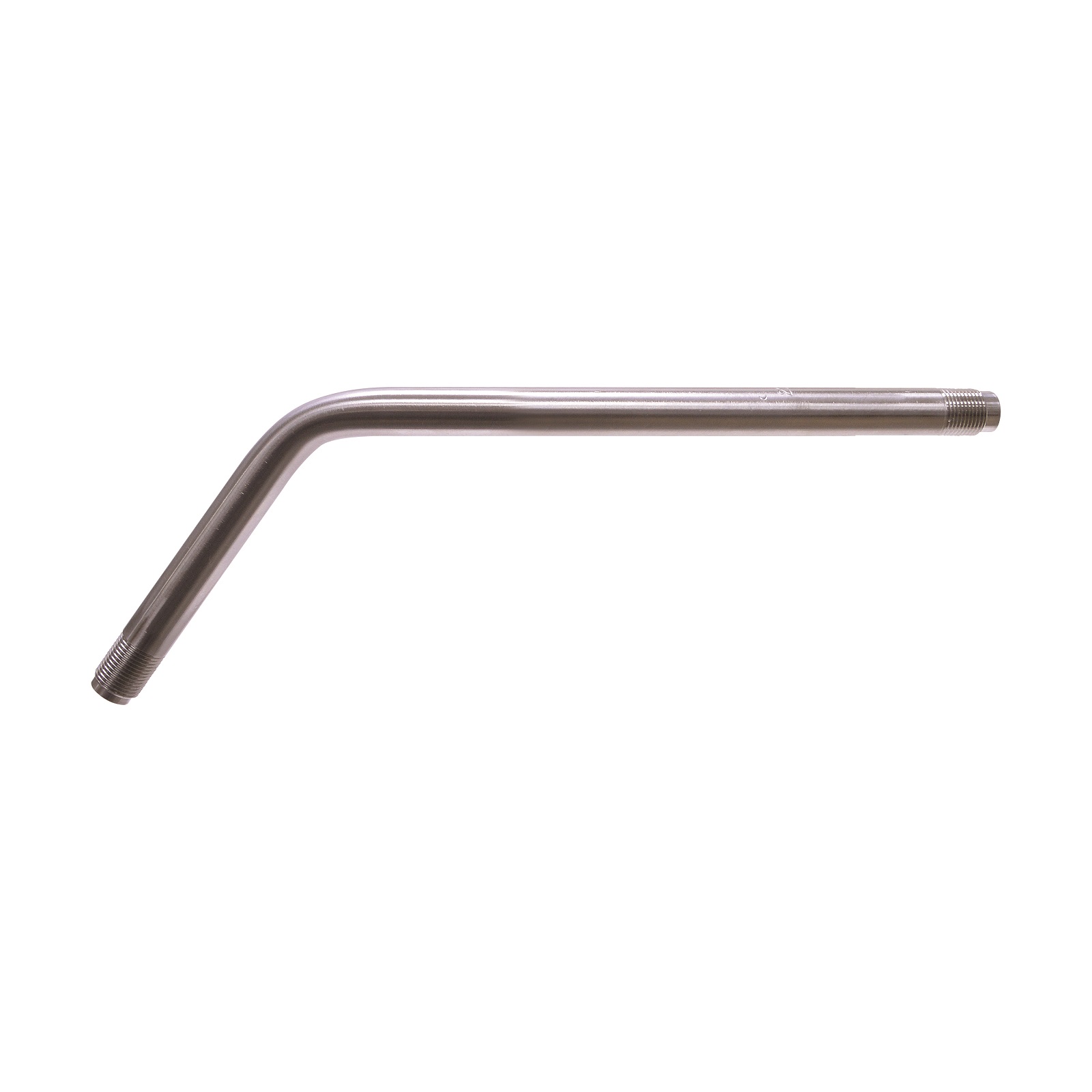

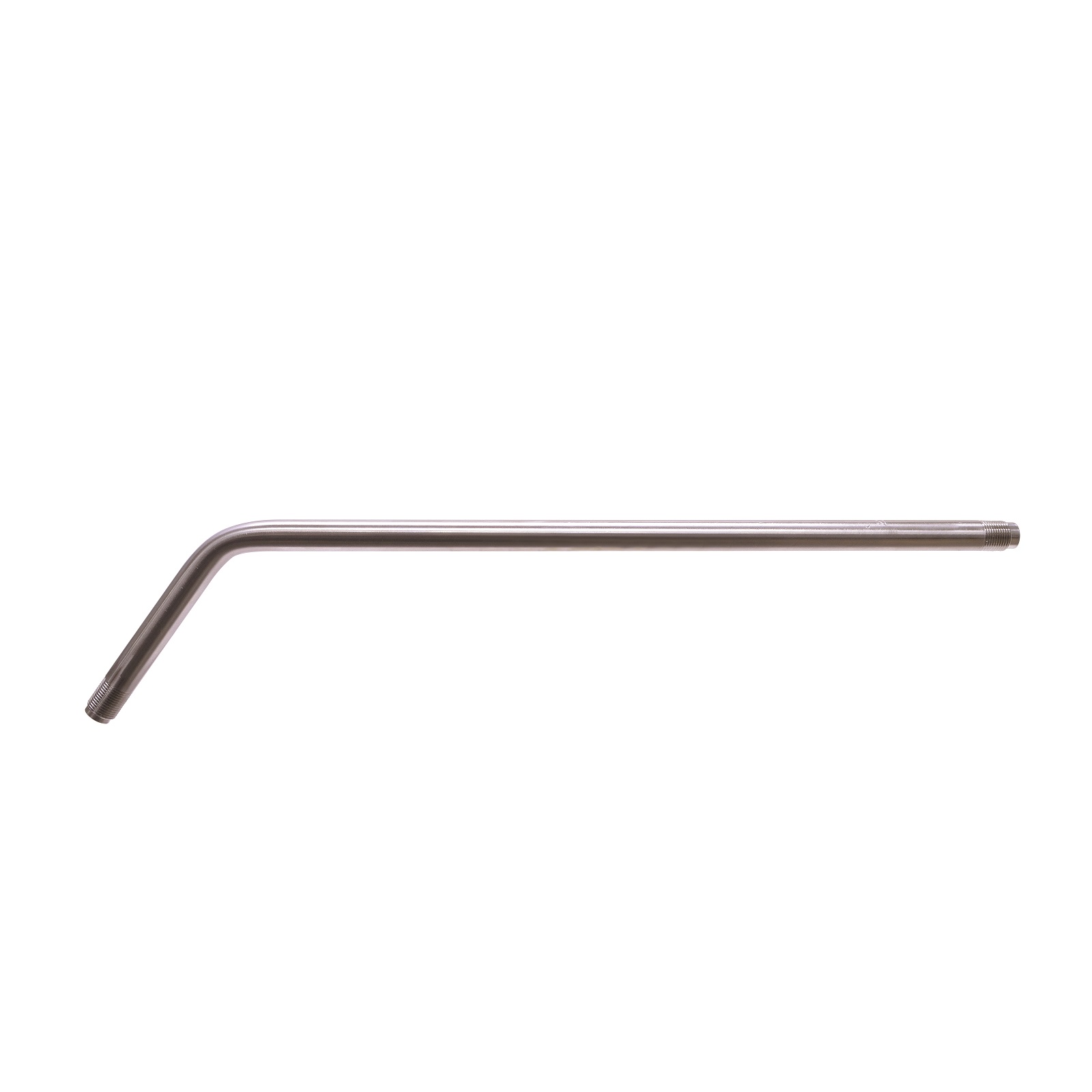

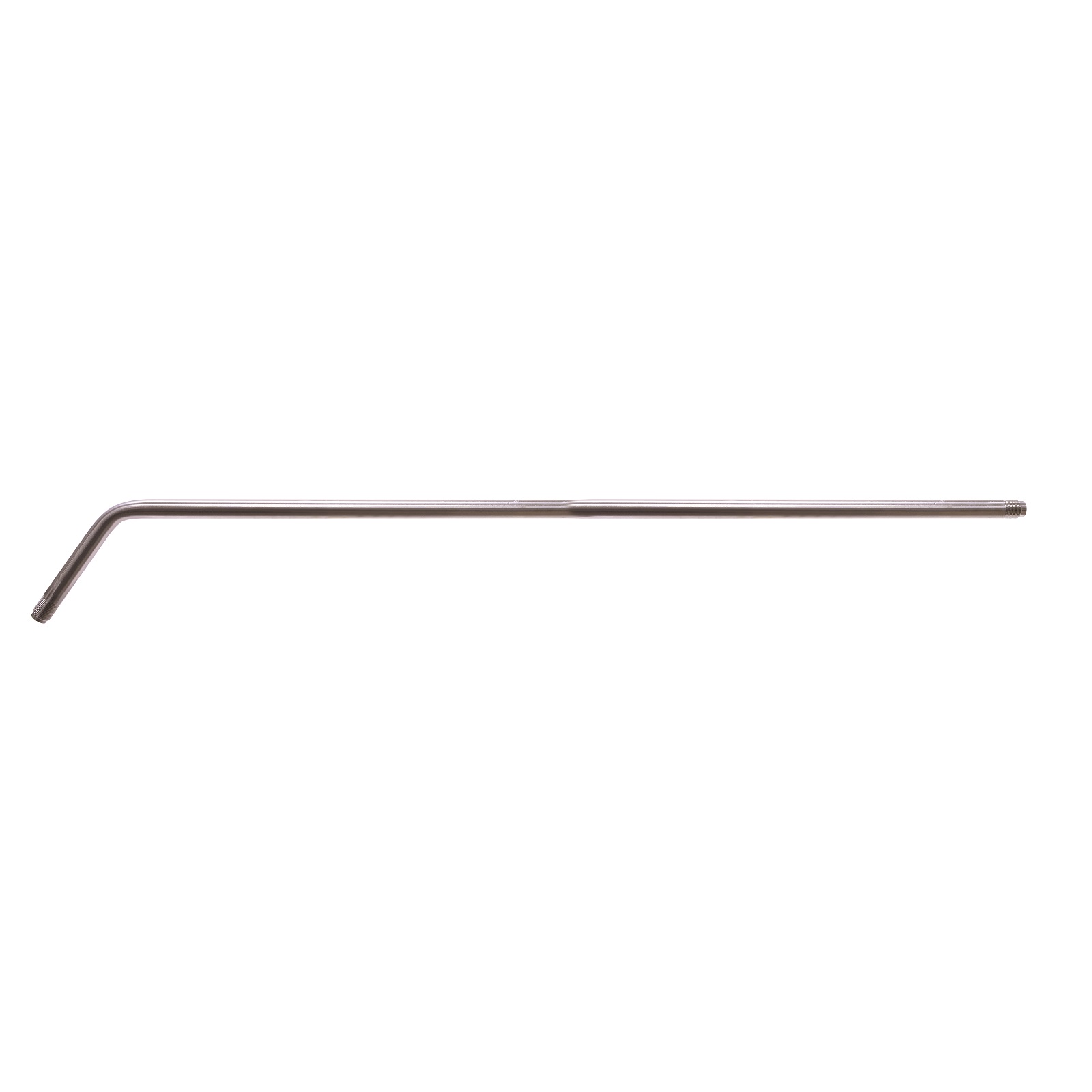

Uniweld’s 23 Series Elbows & 2290 Heating Tips are designed to tackle any situation by giving the operator different elbow lengths and heat outputs to choose from. Connecting to the UM43F mixer, the operator can mix and match different lengths of stainless steel elbows ( 10, 16, 28, and 36″) with different heating tips (100,000 to 1,000,000 BTUs).
Note: On continuous duty withdrawal, manifolding of cylinders may be required.

Categories: , , , , , Tags: , , , , ,

Product Information

Part# Length Elbow Tip End Thread Spec Mixer End Thread Spec
AHE10 10″ 1/2″-25(M) 1/2″-27(F)
AHE16 16″ 1/2″-25(M) 1/2″-27(F)
AHE28 28″ 1/2″-25(M) 1/2″-27(F)
AHE36 36″ 1/2″-25(M) 1/2″-27(F)




Part # Tip End Thread Spec Oxygen PSIG Flow SCFH Propane PSIG Flow SCFH Heat Output (BTU/HR)
2290-1H 1/2″-25(F) 10-25 160-320 4-12 40-80 100,00-200,000
2290-2H 1/2″-25(F) 15-45 220-520 7-22 55-130 140,000-330,000
2290-3H 1/2″-25(F) 25-70 340-920 8-25 85-230 215,000-580,000
2290-4H* 1/2″-25(F) 50-110 640-1300 10-30 160-325 400,000-820,000
2290-5H* 1/2″-25(F) 60-135 720-1600 14-40 180-400 450,000-1,000,000

*Use 3/8″ hose on larger tips for adequate gas flow.

Additional information

Welding Handle:

43L9
