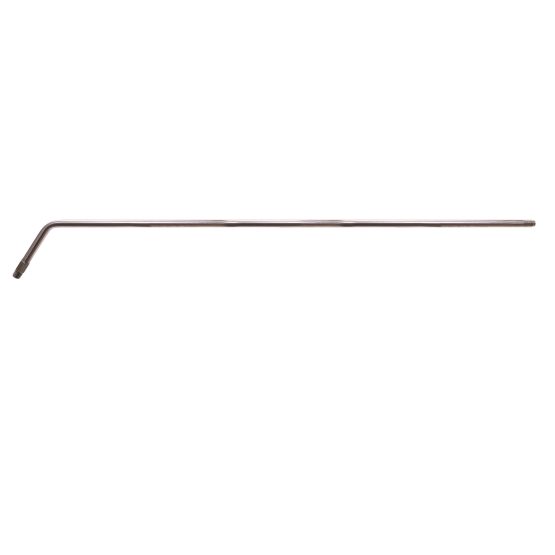

VHE Series Elbows & Tip Ends

Uniweld’s VHE Elbows & VH Heating Tips are designed to tackle any situation by giving the operator different elbow lengths and heat outputs to choose from. Connecting to the UM12-1 mixer, the operator can mix and match different lengths of stainless steel elbows ( 10, 16, 28, and 36″) with different heating tips (100,000 to 1,000,000 BTUs).
Note: On continuous duty withdrawal, manifolding of cylinders may be required.


Product Information

Part# Length Elbow Tip End Thread Spec Mixer End Thread Spec

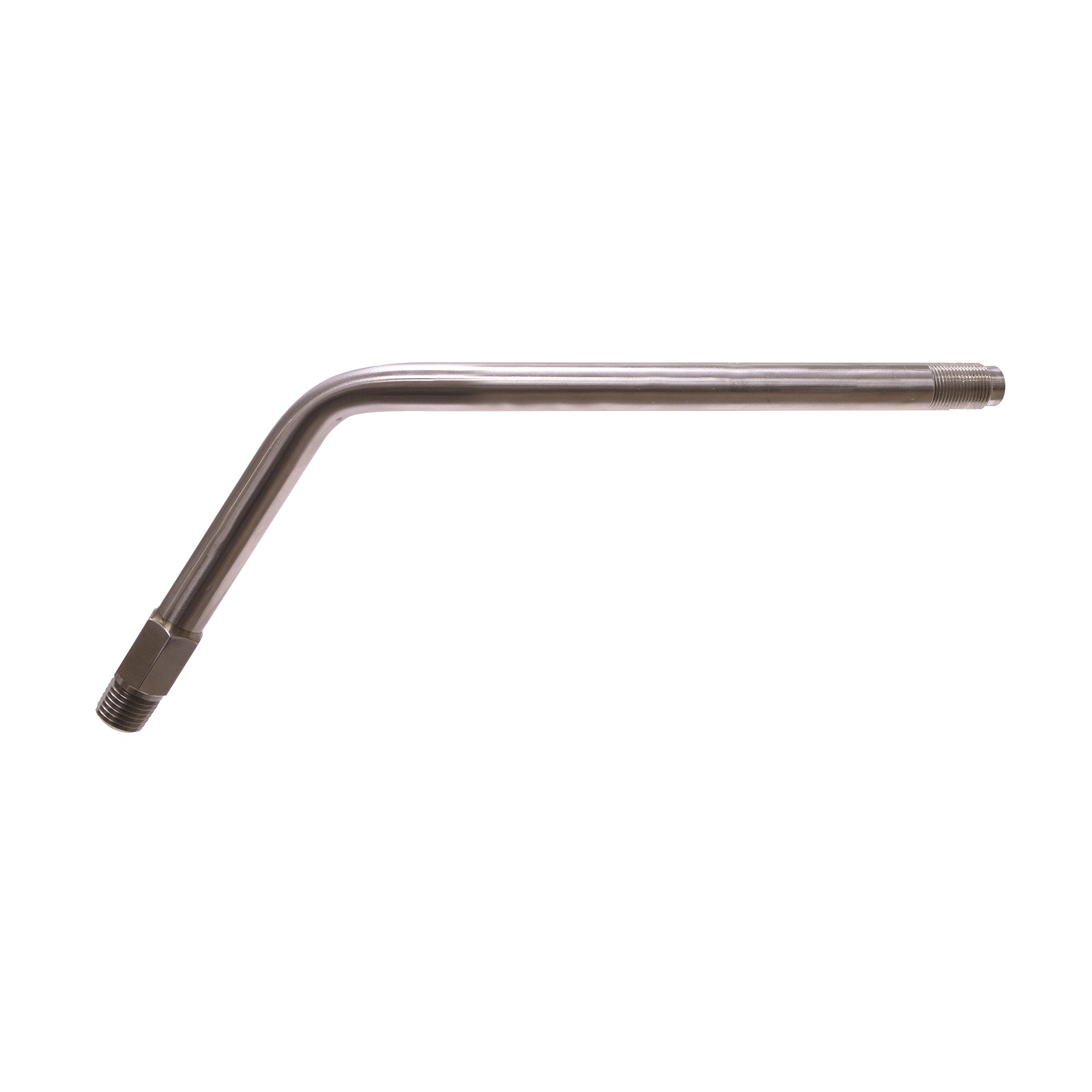

VHE10 10” 1/4”-18NPT(M) 1/2”-27(M,F)

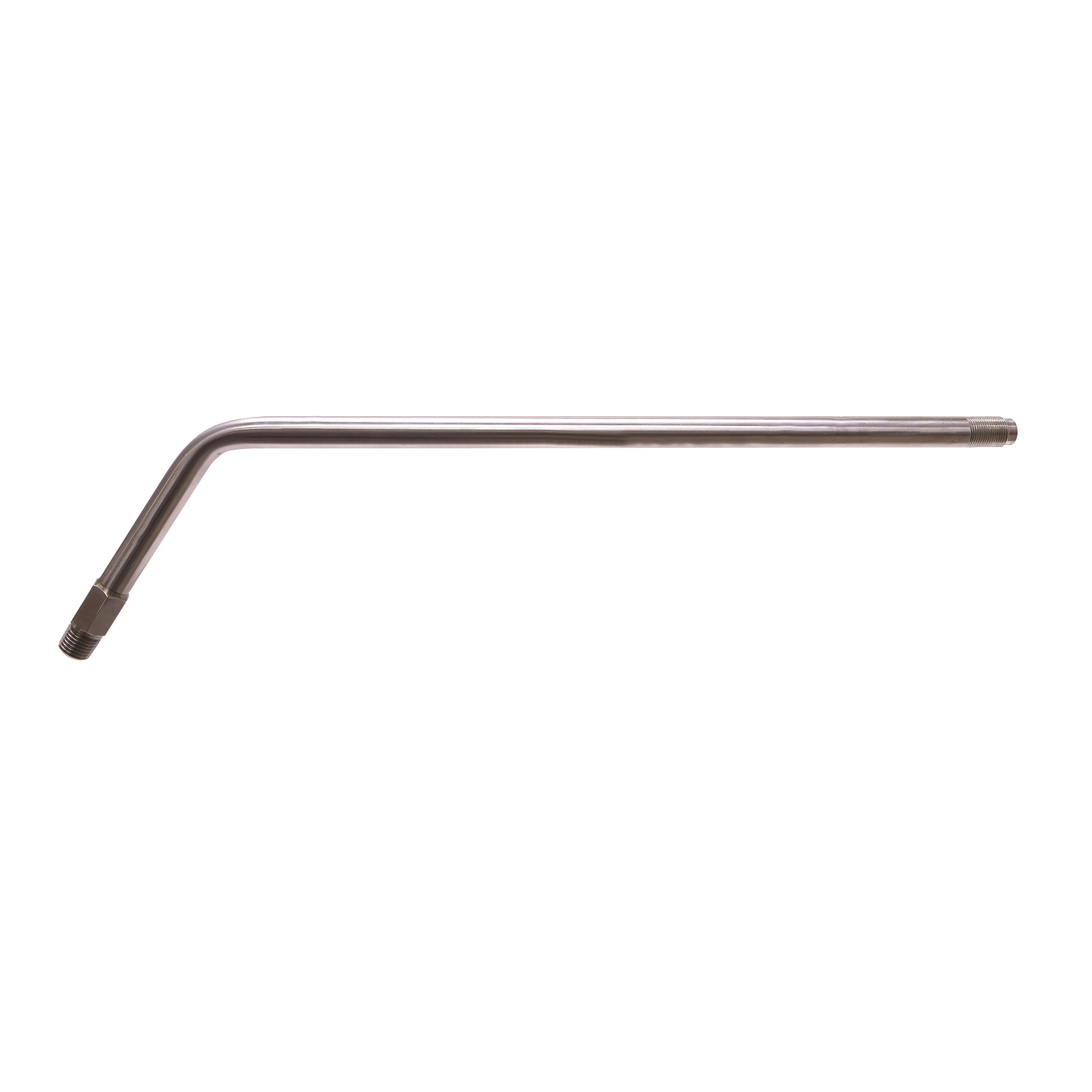

VHE16  16” 1/4”-18NPT(M) 1/2”-27(M,F)

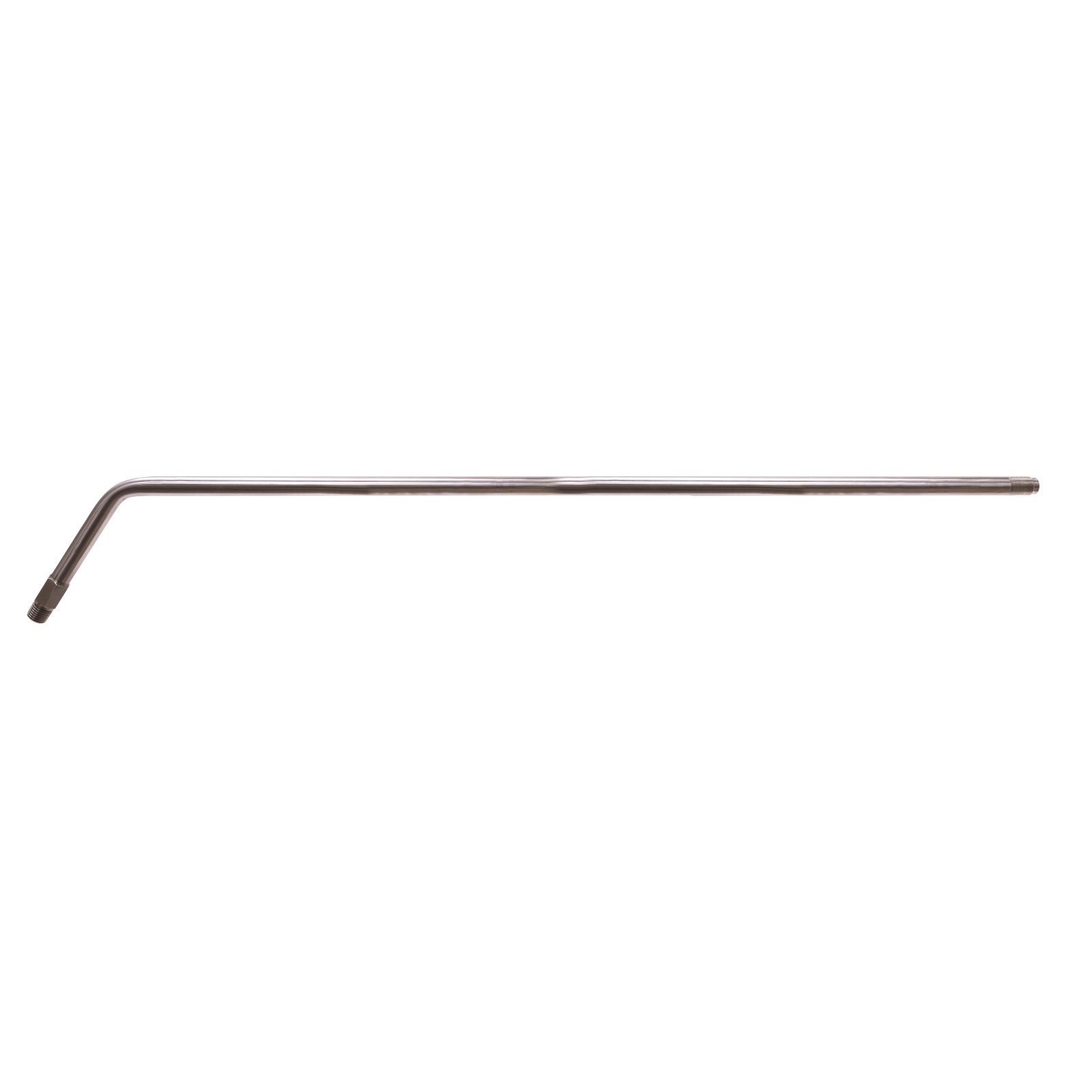

VHE28  28” 1/4”-18NPT(M) 1/2”-27(M,F)
VHE36  36” 1/4”-18NPT(M) 1/2”-27(M,F)




Part # Oxygen
PSIG
Oxygen
SCFH
Propane
PSIG
Propane
SCFH
Heat Output
(BTU/HR)

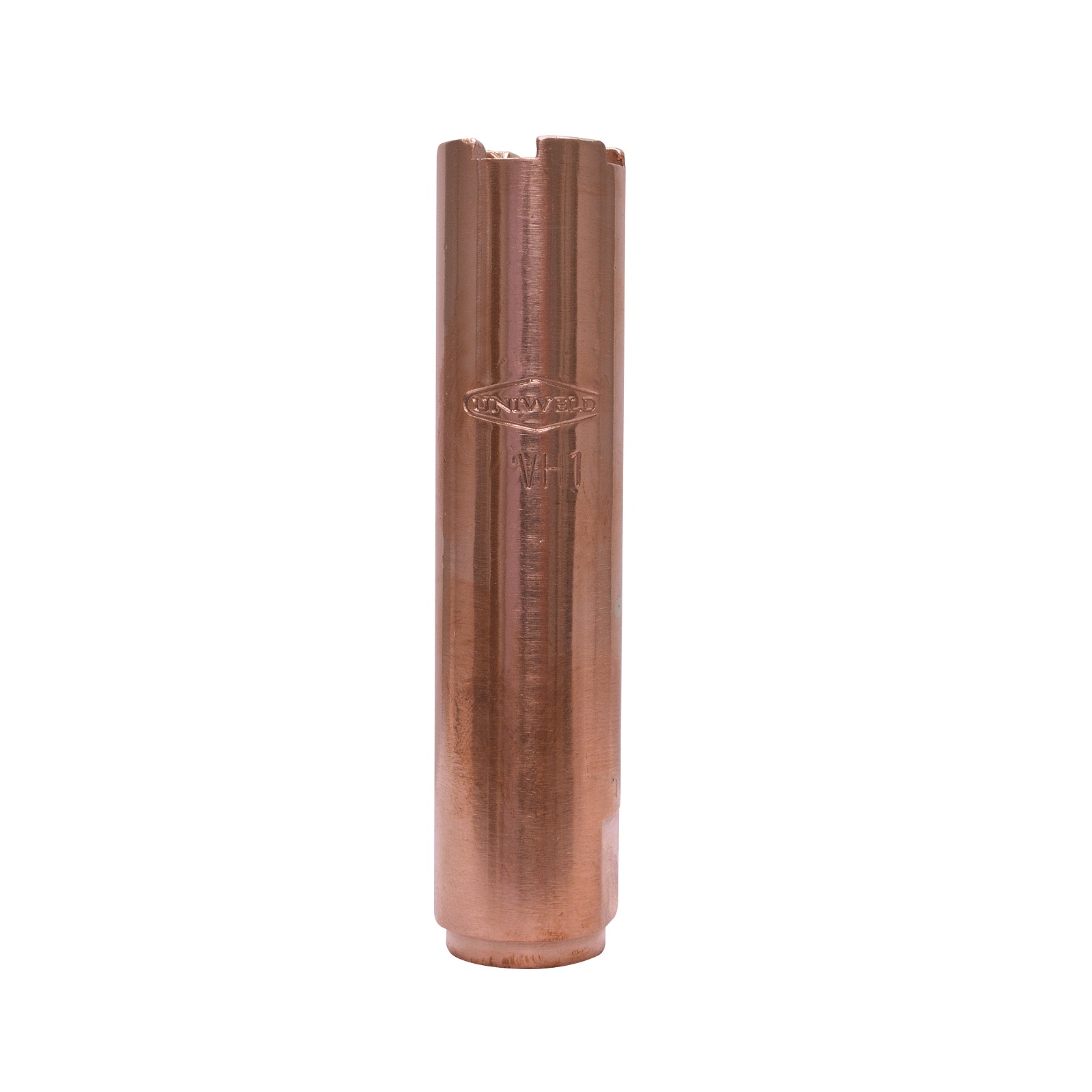

VH1 10-25 160-320 4-12 40-80 100,000-200,000

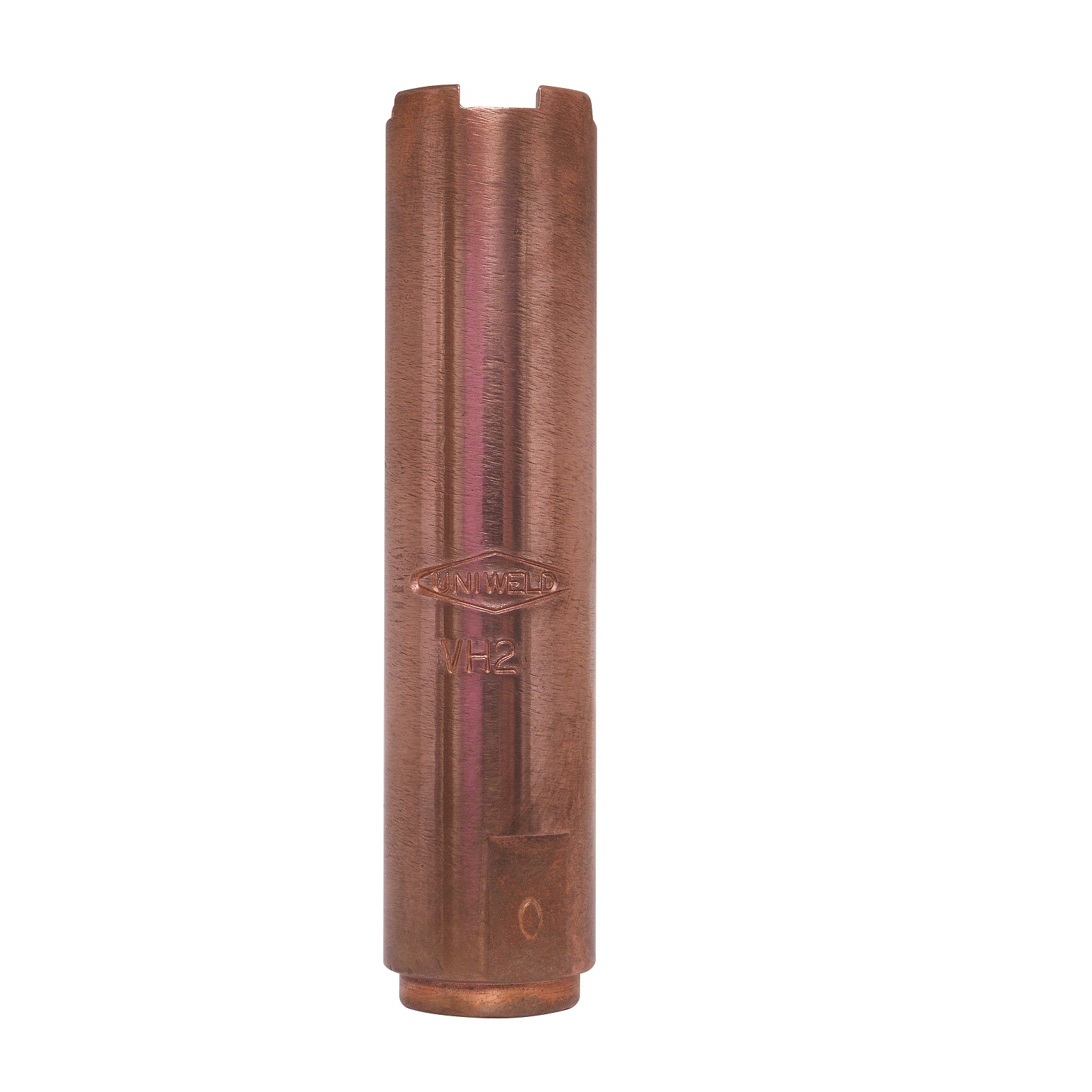

VH2 15-45 220-520 7-22 55-130 140,000-330,000

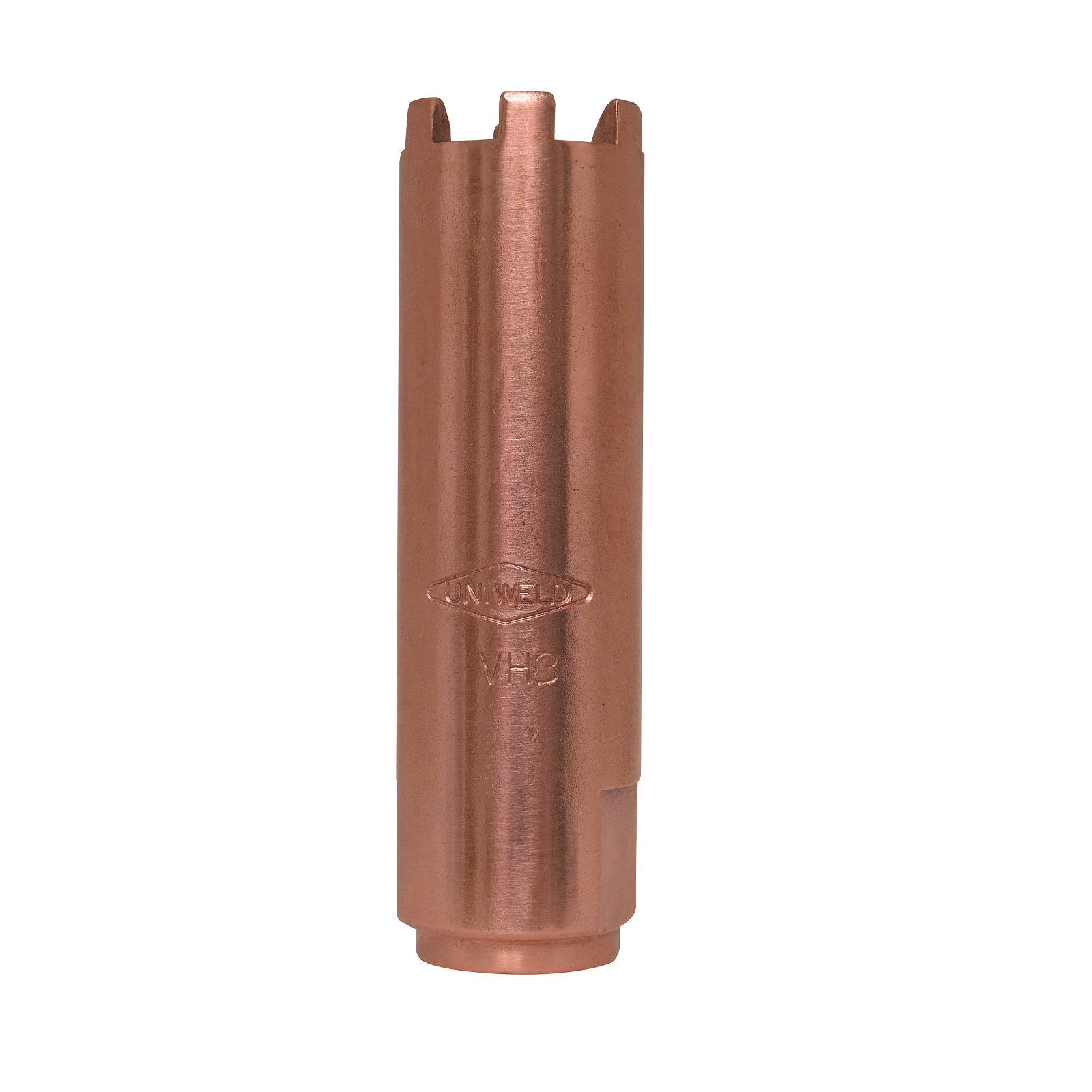

VH3 25-70 340-920 8-25 85-230 215,000-580,000

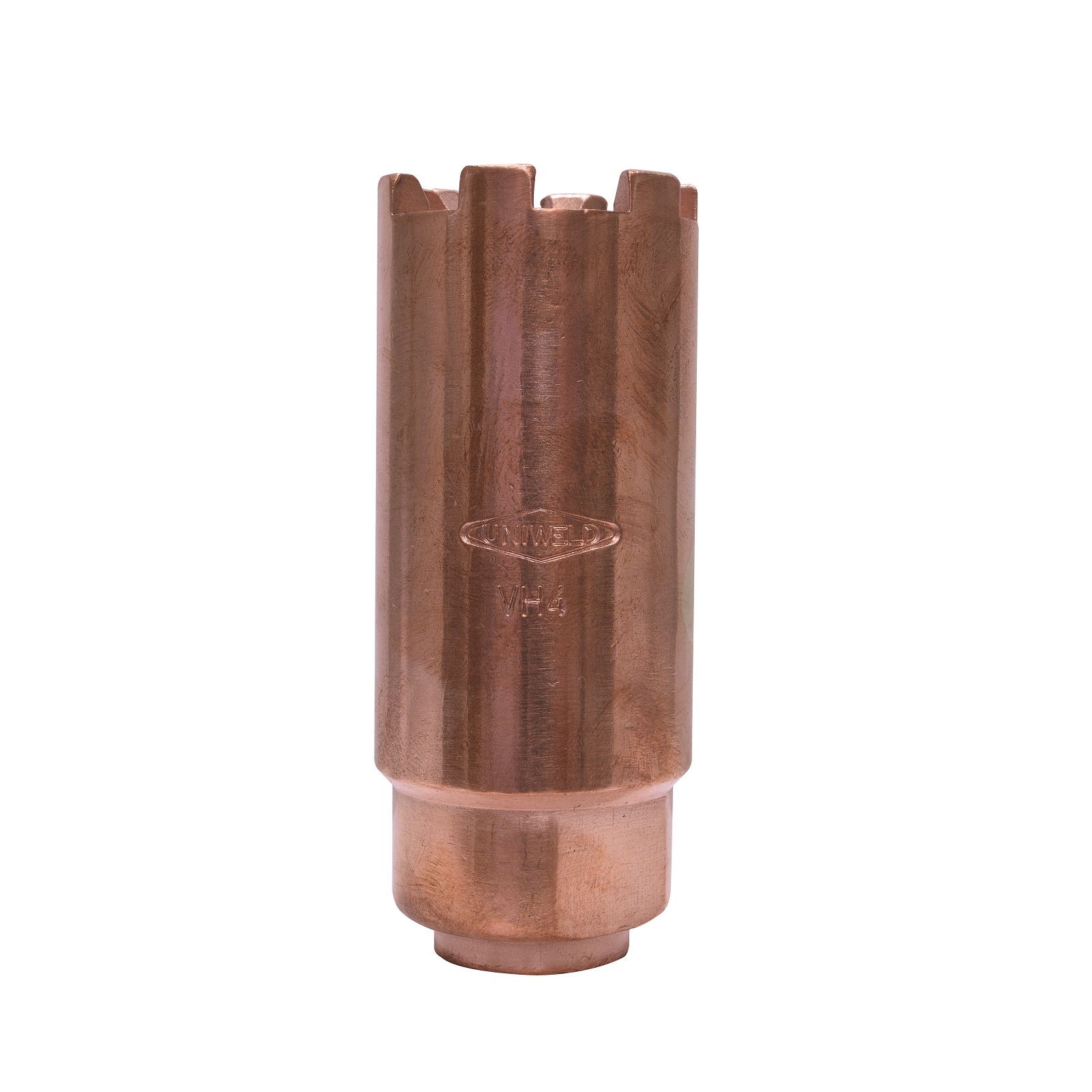

VH4* 50-110 640-1300 10-30 160-325 400,000-820,000

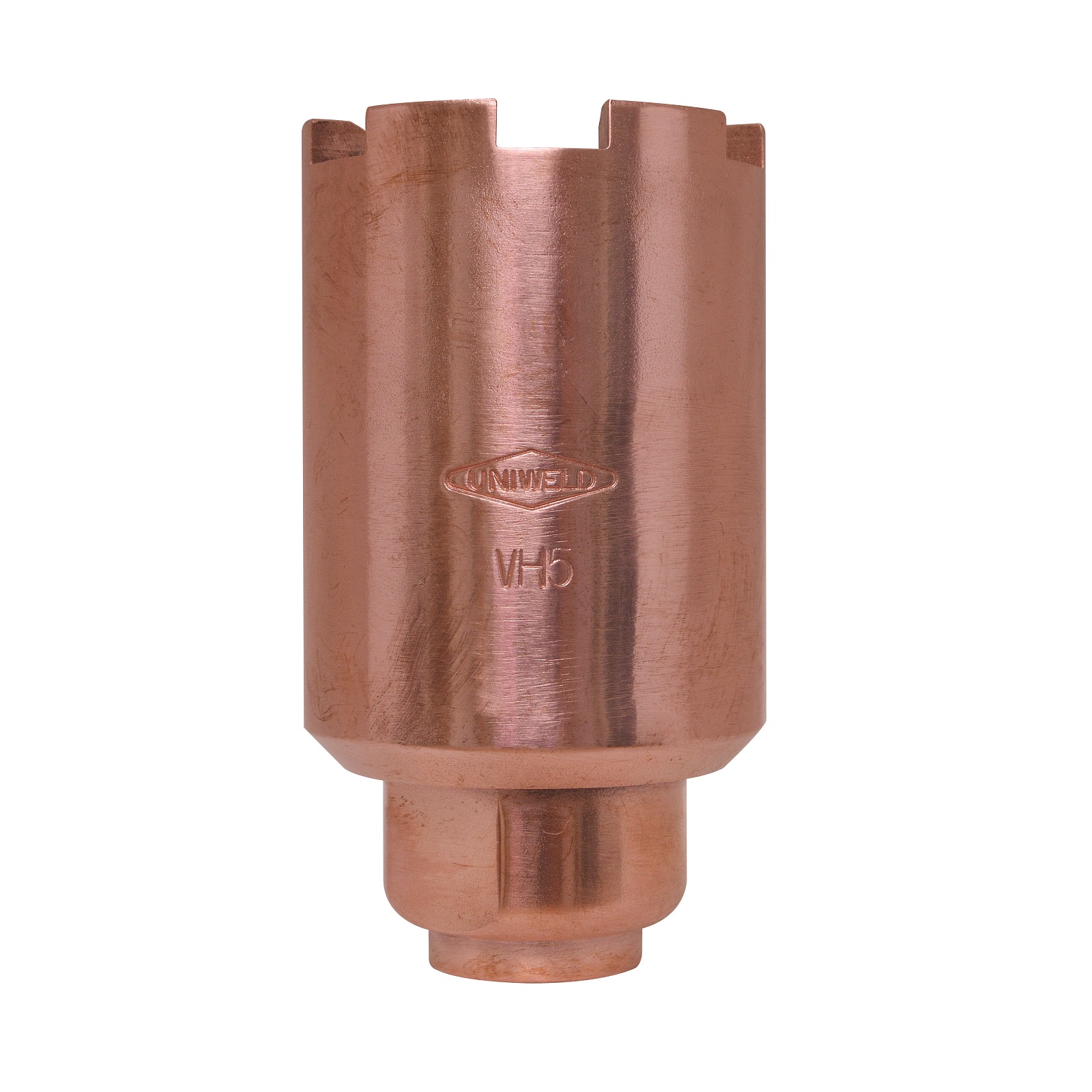

VH5* 60-135 720-1600 14-40 180-400 450,000-1,000,000

*Use 3/8″ hose on larger tips for adequate gas flow.

Additional information

Welding Handle:

• WH360
• WH360L
• 72L9
• 72L11
