Type98

Uniweld’s TYPE98 heating tips are designed for welding, heating, brazing and soldering.

Product Information

Complete Assembly Part # Elbow Only Weld Metal Thickness Oxygen PSIG Acetylene Fuel Gas PSIG Acetylene Fuel Gas SCFH

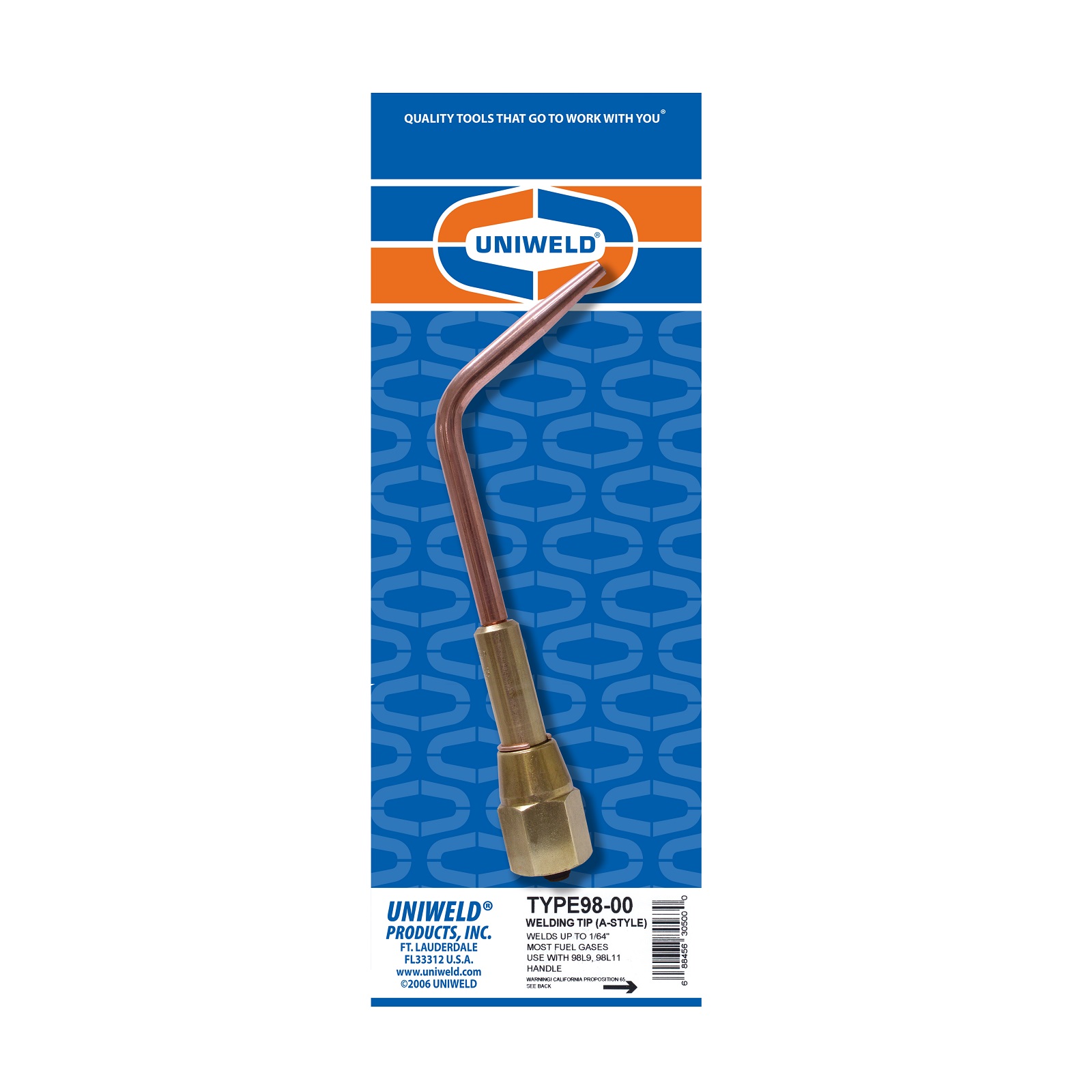

TYPE98-00 TYPE98E-00 1/64” 5 5 2

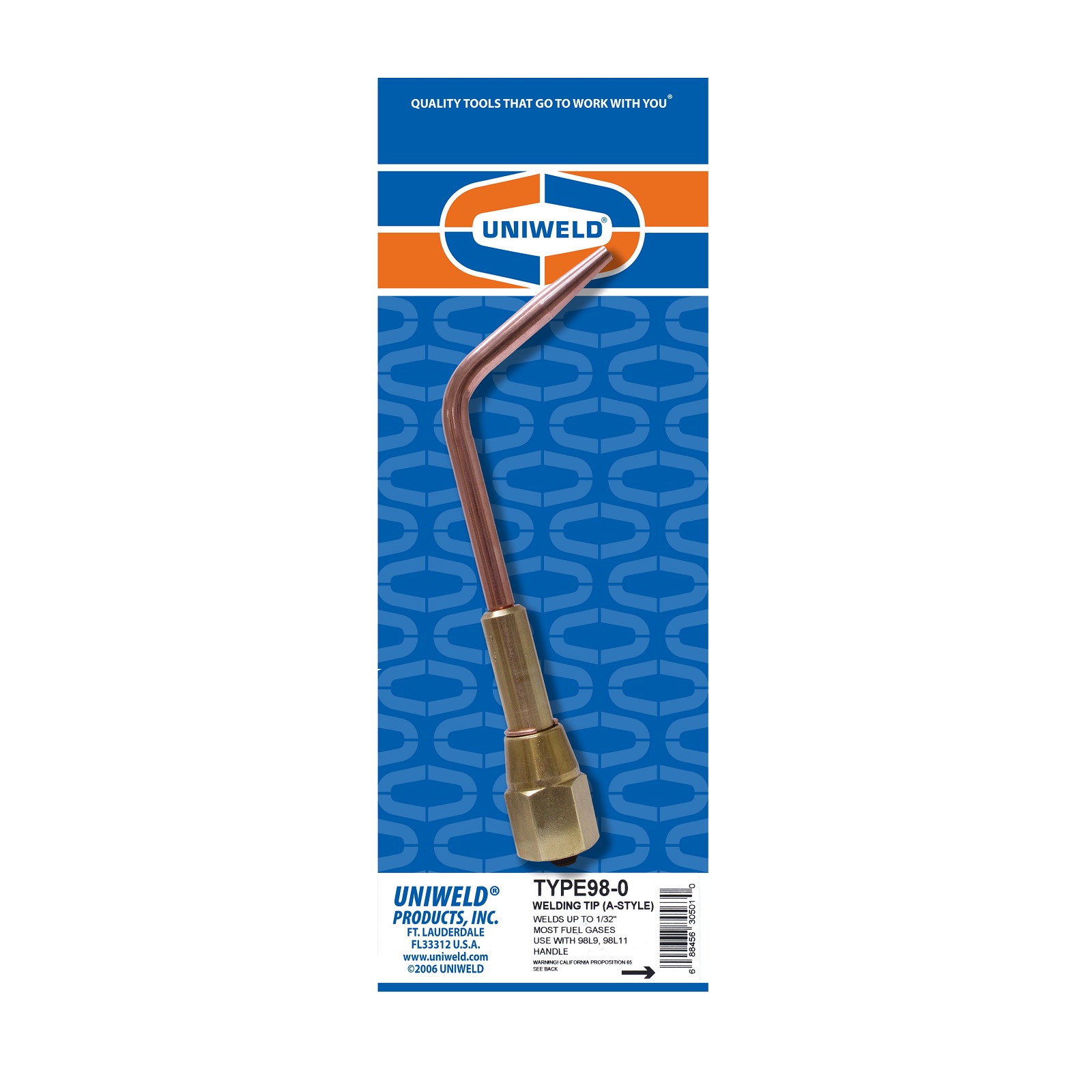

TYPE98-0 TYPE98E-0 1/32” 5 5 3

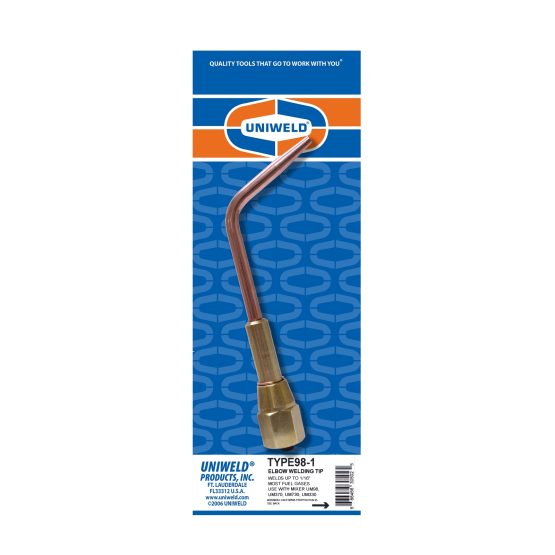

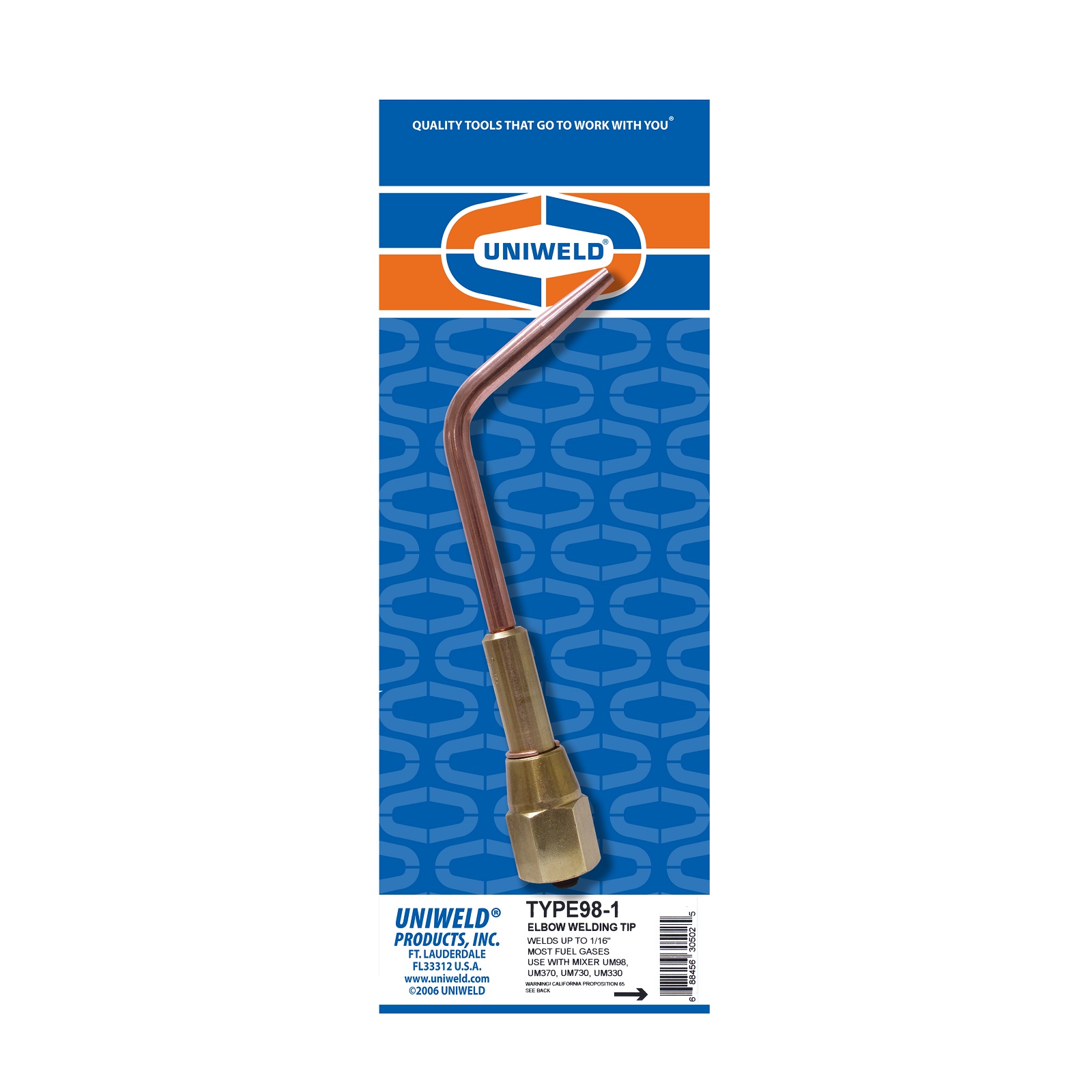

TYPE98-1 TYPE98E-1 1/16” 5 5 5
TYPE98-2 TYPE98E-2 3/32” 5 5 8

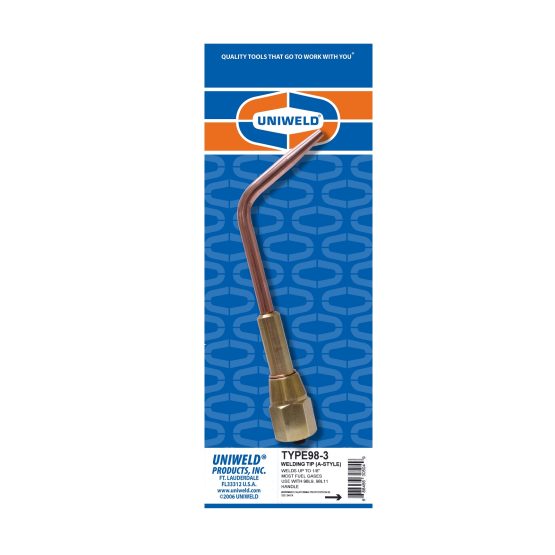

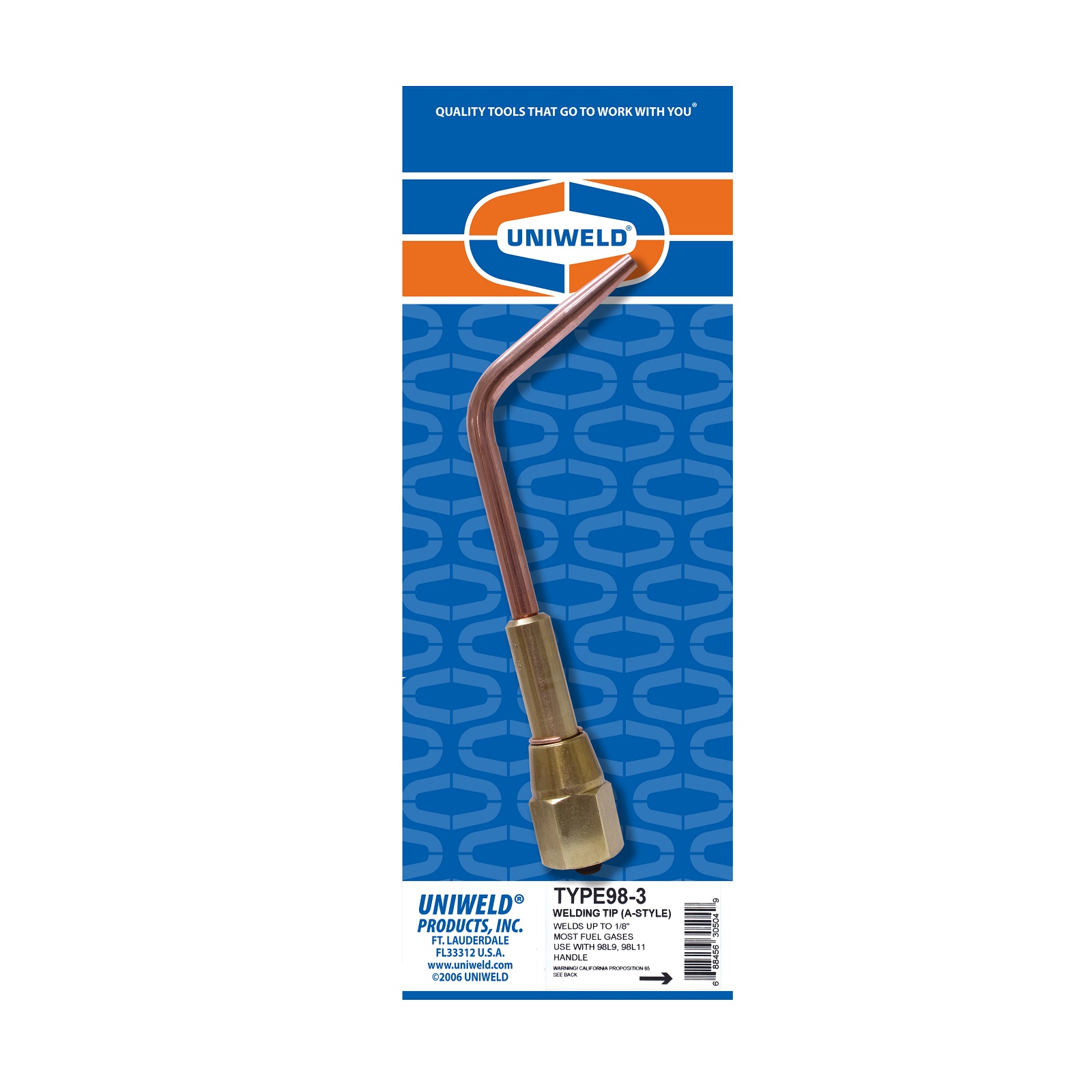

TYPE98-3 TYPE98E-3 1/8” 5 5 12

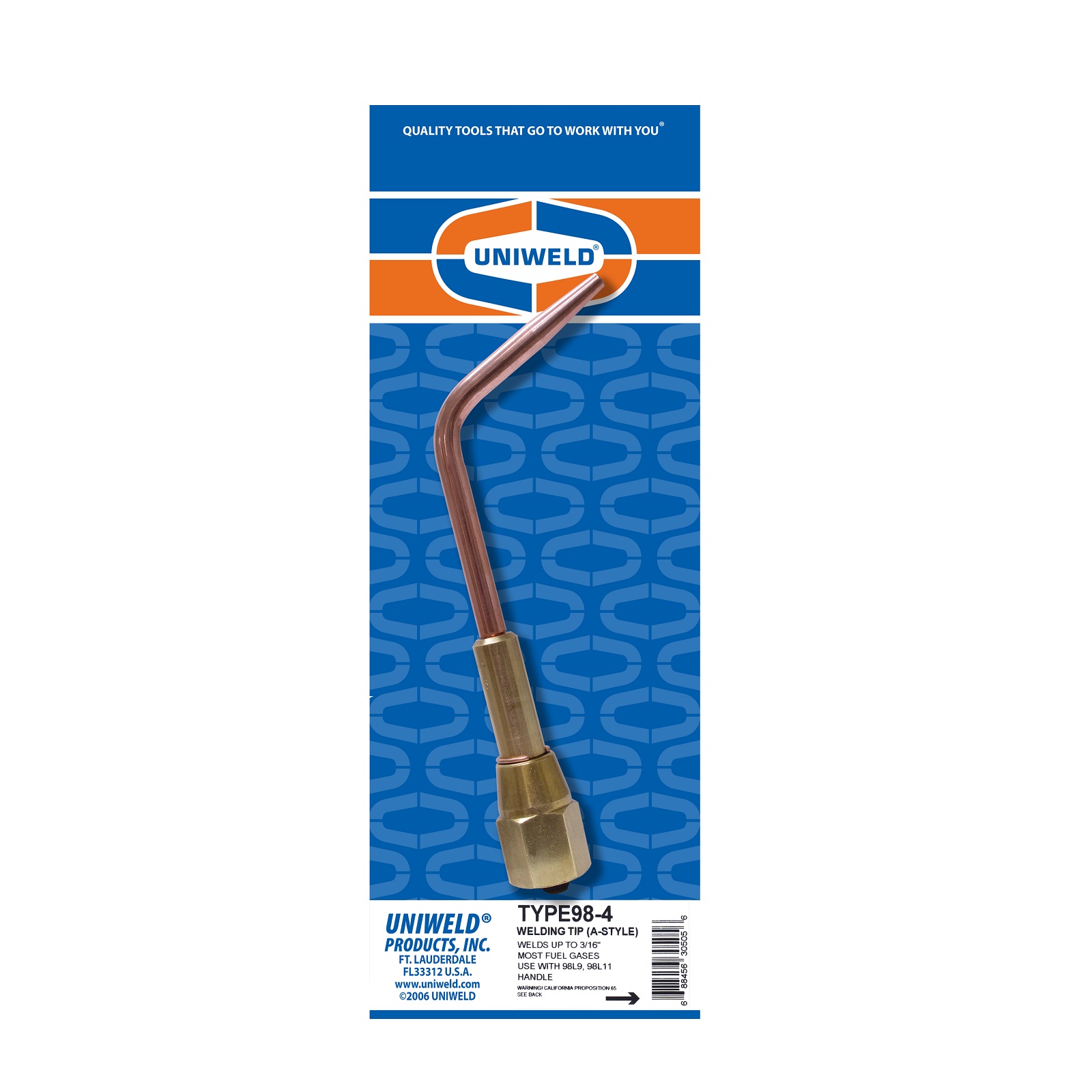

TYPE98-4 TYPE98E-4 3/16” 5 5 15

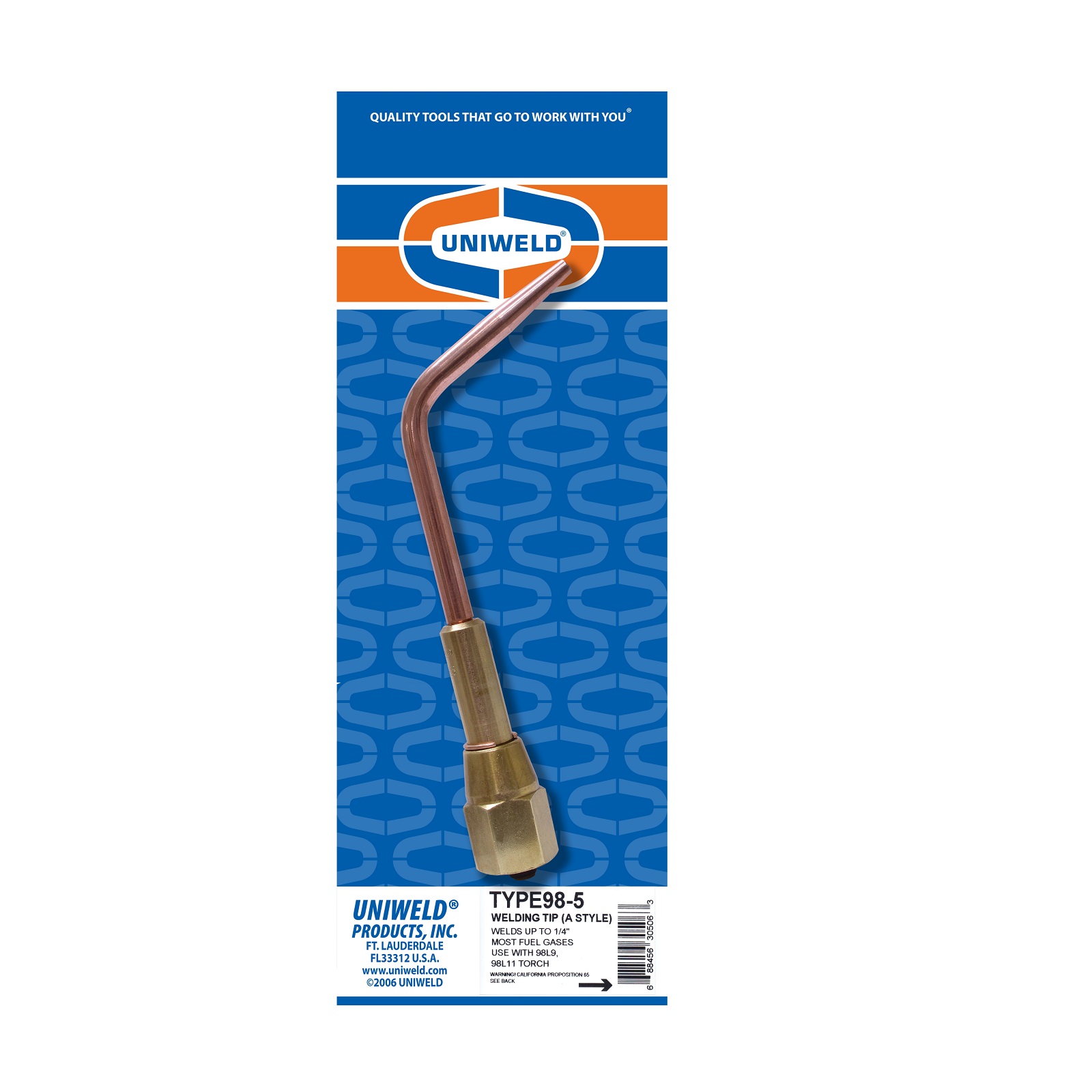

TYPE98-5 TYPE98E-5 1/4” 5 5 24
TYPE98-6 TYPE98E-6 3/8” 6 6 35
TYPE98-7 TYPE98E-7 1/2” 7 7 43
TYPE98-8 TYPE98E-8 3/4” 7 7 55
TYPE98-9 TYPE98E-9 1” 7 7 63
TYPE98-10 TYPE98E-10 1-1/2” 9 9 76

Additional information

Mixer Only:

• UM98

Elbow to Mixer Thread Spec:

• 3/8"-20 (M,F)

Use with Welding Handles:

• 98L9
• 98L11
