Soft Magic® Barrier Hoses

Uniweld's Soft Magic® Barrier Hoses are rated for R-410A, CFC, HCFC and HFC refrigerants. Contains an adjustable threaded valve depressor, two safety venting slots, a molded replacement gasket, braid for high pressure strength, nylon permeation and moisture barrier. Includes a large deep knurled hose nut, a high pressure eight sided crimp, a color coded cover and a rubber permeation barrier.

Product Information

Part# Hose Length Color

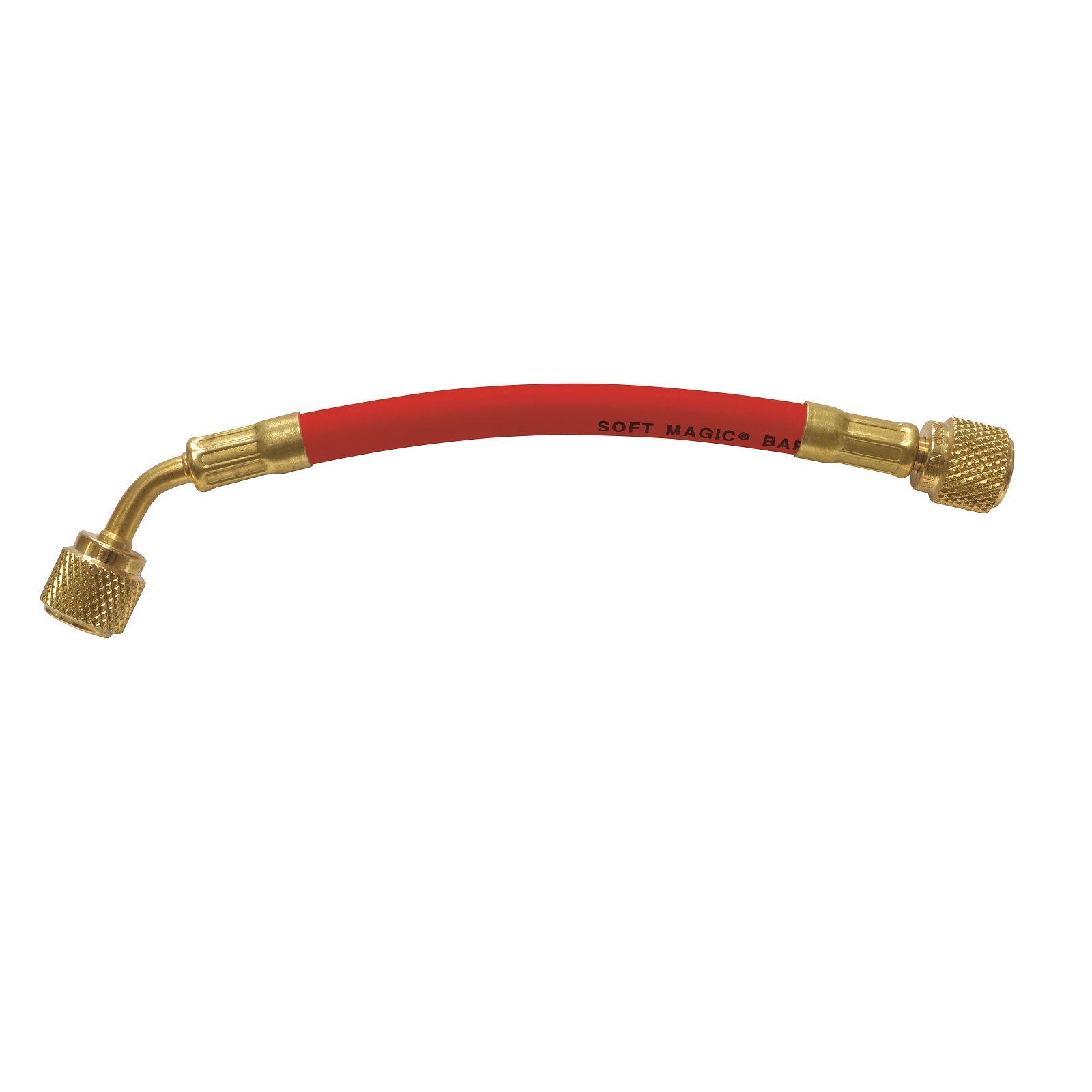

H06SMBR 6″ | 15cm Red
H1SMBR 12″ | 30cm Red
H2SMBR 24″ | 60cm Red
H3SMBR 36″ | 90cm Red
H4SMBR 48″ | 120cm Red
H5SMBR 60″ | 150cm Red
H6SMBR 72″ | 180cm Red
H8SMBR 96″ | 240cm Red
H25SMBR 25″ | 7.50m Red
H50SMBR 50″ | 15.00m Red
H100SMBR 100″| 30.00m Red

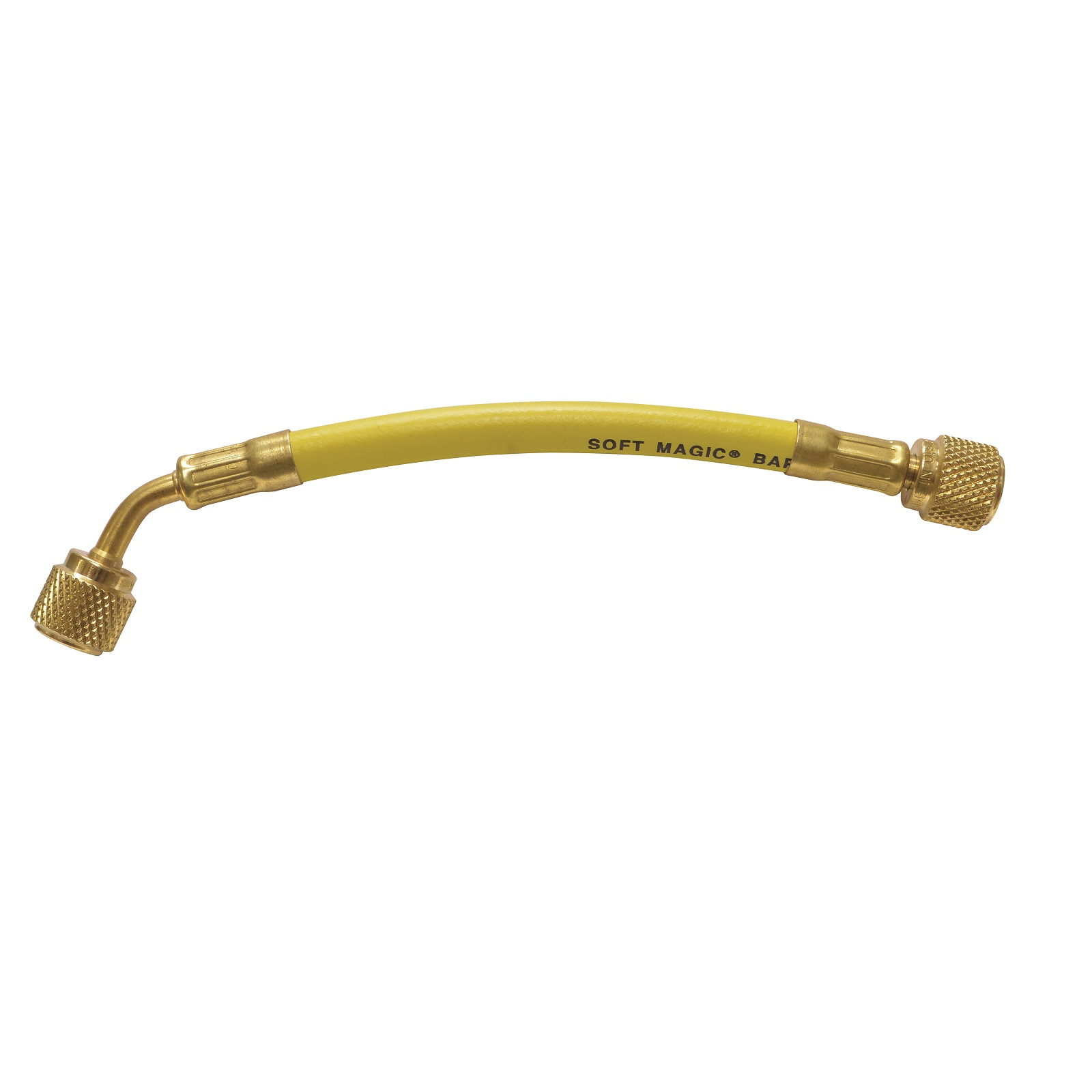

H06SMBY 6″ | 15cm Yellow
H1SMBY 12″ | 30cm Yellow
H2SMBY 24″ | 60cm Yellow
H3SMBY 36″ | 90cm Yellow
H4SMBY 48″ | 120cm Yellow
H5SMBY 60″ | 150cm Yellow
H6SMBY 72″ | 180cm Yellow
H8SMBY 96″ | 240cm Yellow
H25SMBY 25″ | 7.50m Yellow
H50SMBY 50″ | 15.00m Yellow
H100SMBY 100″ | 30.00m Yellow
H06SMBB 6″ | 15cm Blue
H1SMBB 12″ | 30cm Blue
H2SMBB 24″ | 60cm Blue
H3SMBB 36″ | 90cm Blue
H4SMBB 48″ | 120cm Blue
H5SMBB 60″ | 150cm Blue
H6SMBB 72″ | 180cm Blue
H8SMBB 96″ | 240cm Blue
H25SMBB 25″ | 7.50m Blue
H50SMBB 50″ | 15.00m Blue
H100SMBB 100″ | 30.00m Blue





Replacement Parts
Part No. Description

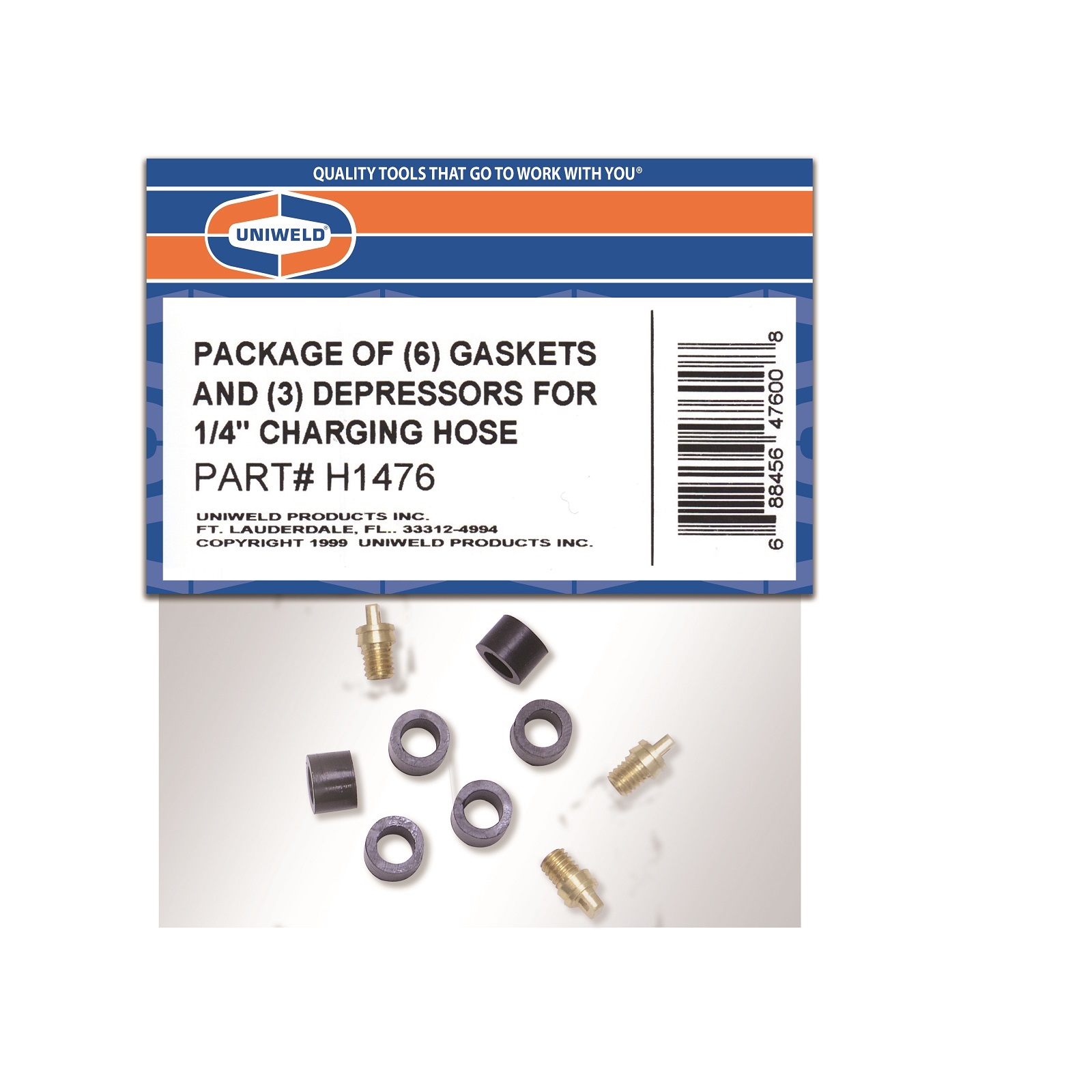

H1476 Pkg. of (6) Gaskets and (3) Depressors

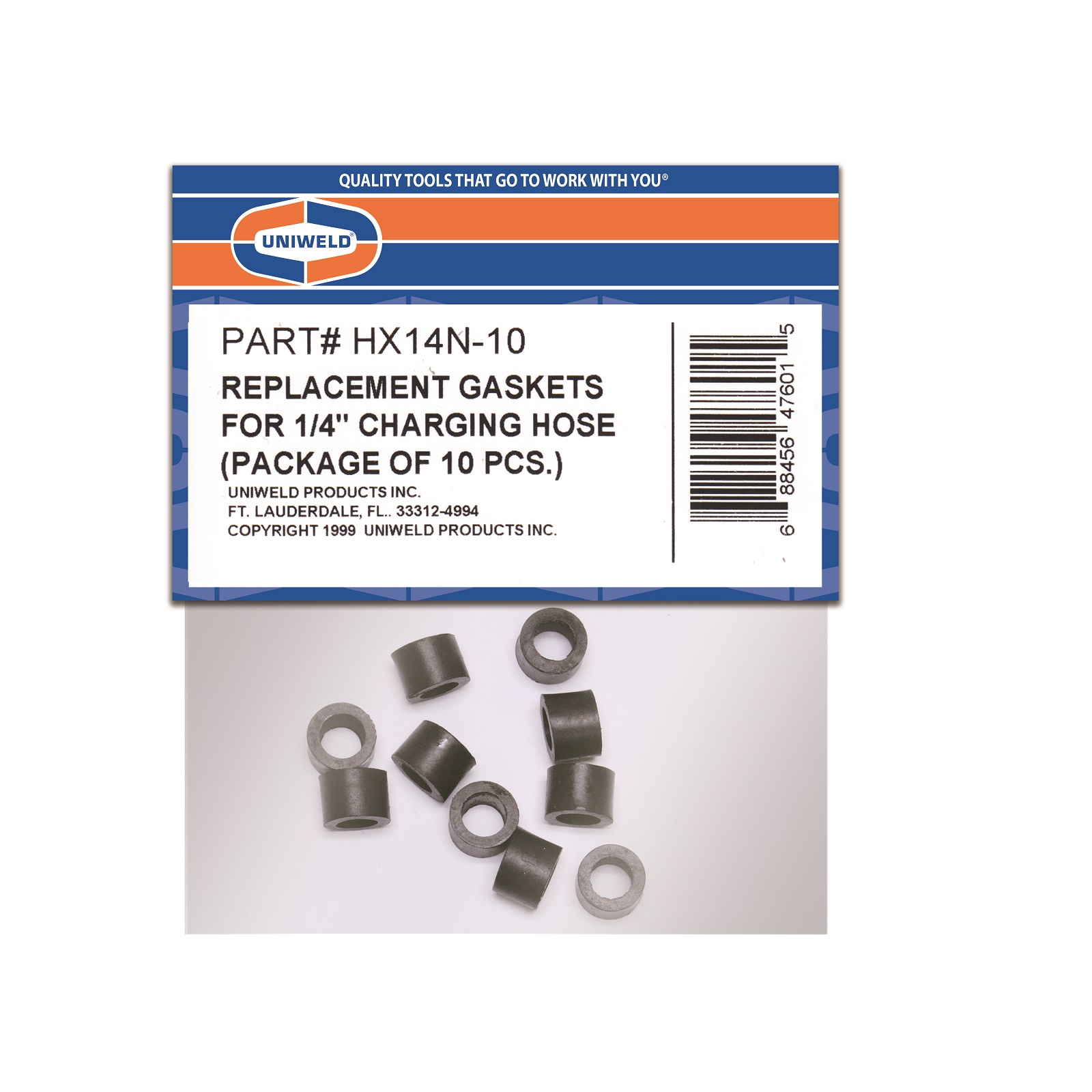

HX14N-10 Pkg. of (10) Gaskets
HX14N-100 Pkg. of (100) Gaskets
H76S-10 Pkg. of (10) Vavle Depressors
