Roughneck

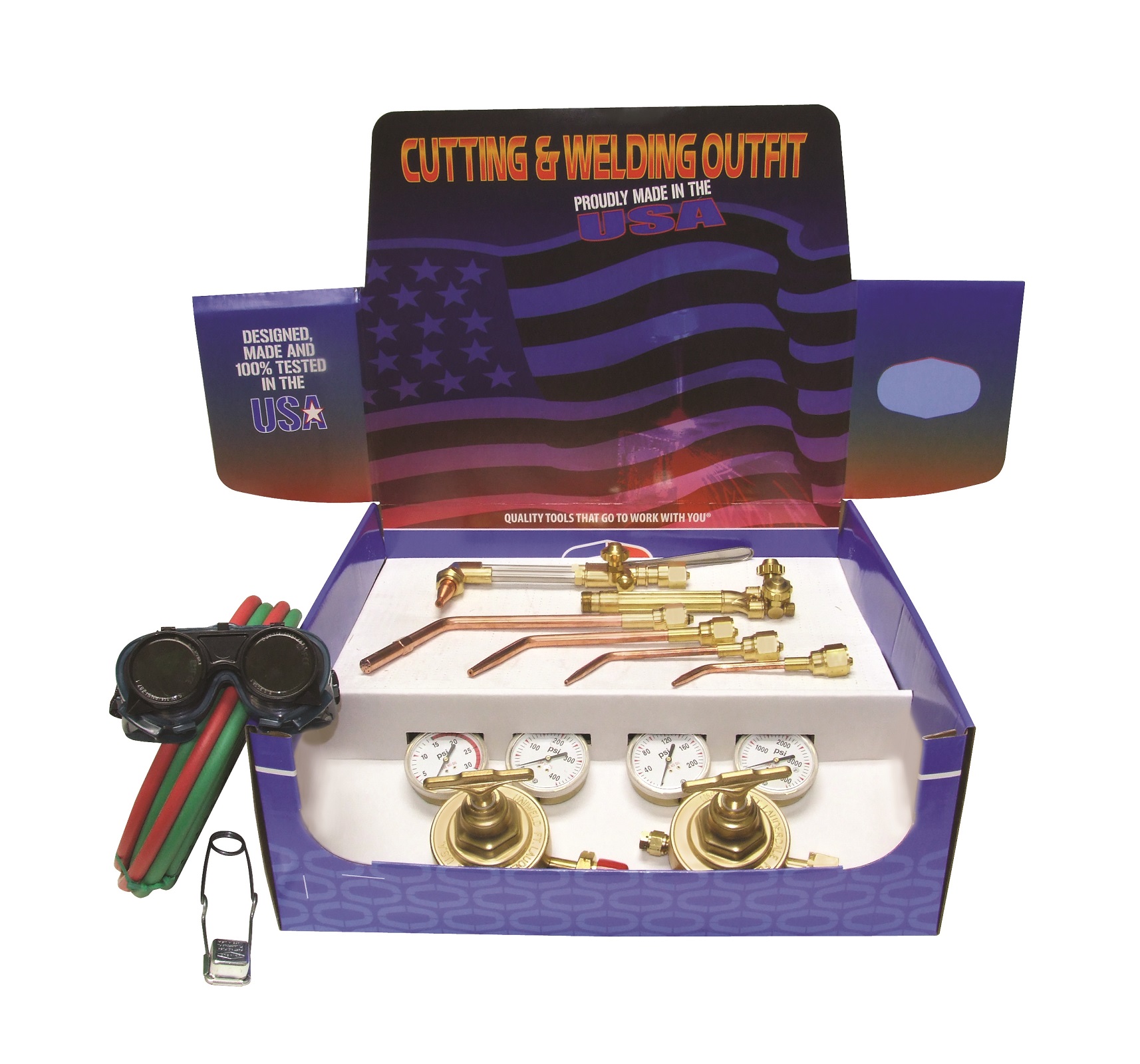

The Roughneck is a complete Heavy Duty outfit with all the necessary components for industrial and commercial applications including cutting, brazing, heating and welding.
– 780A Cutting Attachment with precision machined forged brass head and body and one-piece universal copper mixer.
– RV Series Regulators have single scale 2-1/2″ gauges, stainless steel diaphragms and accessibility to the seat from the rear.
– WH360 Welding handle can be used with most fuel gases and acetylene for heating, brazing, welding and other flame processes.
– Roughneck: Includes one Type 11-8 heating tip and one each Type 4, -1, -3, -5 welding tips.
– Roughneck II: Includes one Type 11-8 heating tip and one Type 4-2 welding tip.
– Roughneck Propane: Includes an RV8012 regulator, GPN-2 cutting tip, grade “T” hose and Type 12-8 heating tip. Specially designed to cut,braze and heat with Propane.

• Cutting Capacity: 3/4″ with supplied tip; up to 8″ with optional tips.
• Welding Capacity: 1/2″ with supplied tips; up to 3″ with optional tips.

Product Information

Part # Product Name Welding Handle Cutting Attachment Cutting Tip Welding/Brazing Tips Heating Tip Oxygen Regulator 5-125 PSIG Acetylene Regulator 2-15 PSIG Accessories
OPH1-780A Roughneck WH360 780A 1-101-1 Type 4-1, -3, -5 Type 11-8 RV8010 CGA540 RV8011 CGA510 Twin Hose 25′ 1/4” “B” Goggles Lighter
OPH1-780A-4 Roughneck WH360 780A 1-101-1 Type 4-1, -3, -5 Type 11-8 RV8010 CGA540 RV8011 CGA510 No Accessories
KVH780A Roughneck II WH360 780A 1-101-1 Type 4-2 Type 11-8 RV8010 CGA540 RV8011 CGA510 Twin Hose 25′ 1/4” “B” Goggles Lighter
KVH780A-4 Roughneck II WH360 780A 1-101-1 Type 4-2 Type 11-8 RV8010 CGA540 RV8011 CGA510 No Accessories
KVP780A Roughneck Propane WH360 780A GPN-2 Type 12-8 RV8010 CGA540 RV8012 CGA510 Grade “T” Twin Hose 25′ 1/4” “B” Goggles Lighter
KVP780A-4 Roughneck Propane WH360 780A GPN-2 Type 12-8 RV8010 CGA540 RV8012 CGA510 No Accessories

Roughneck and Roughneck II outfits available with CGA300 Acetylene Regulators- Order by adding (-1) to end of the part number.


Additional information

Upon Request

• Dual scale gauges and other regulator connections

For Flashback Arrestors

• Add (FB) to Part# to include U.L. Listed Flashback Arrestors on Welding Handle
