Product Information
| Part# | Overall Length | Acetylene SCFH | Oxygen PSIG | Acetylene PSIG | Brazing Copper Tubing Guide |
|---|---|---|---|---|---|

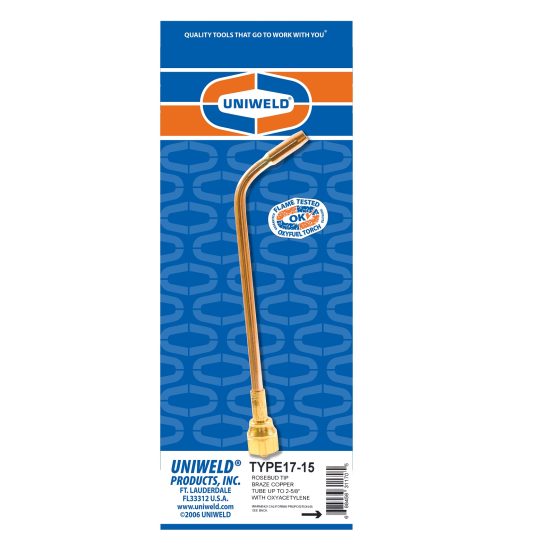

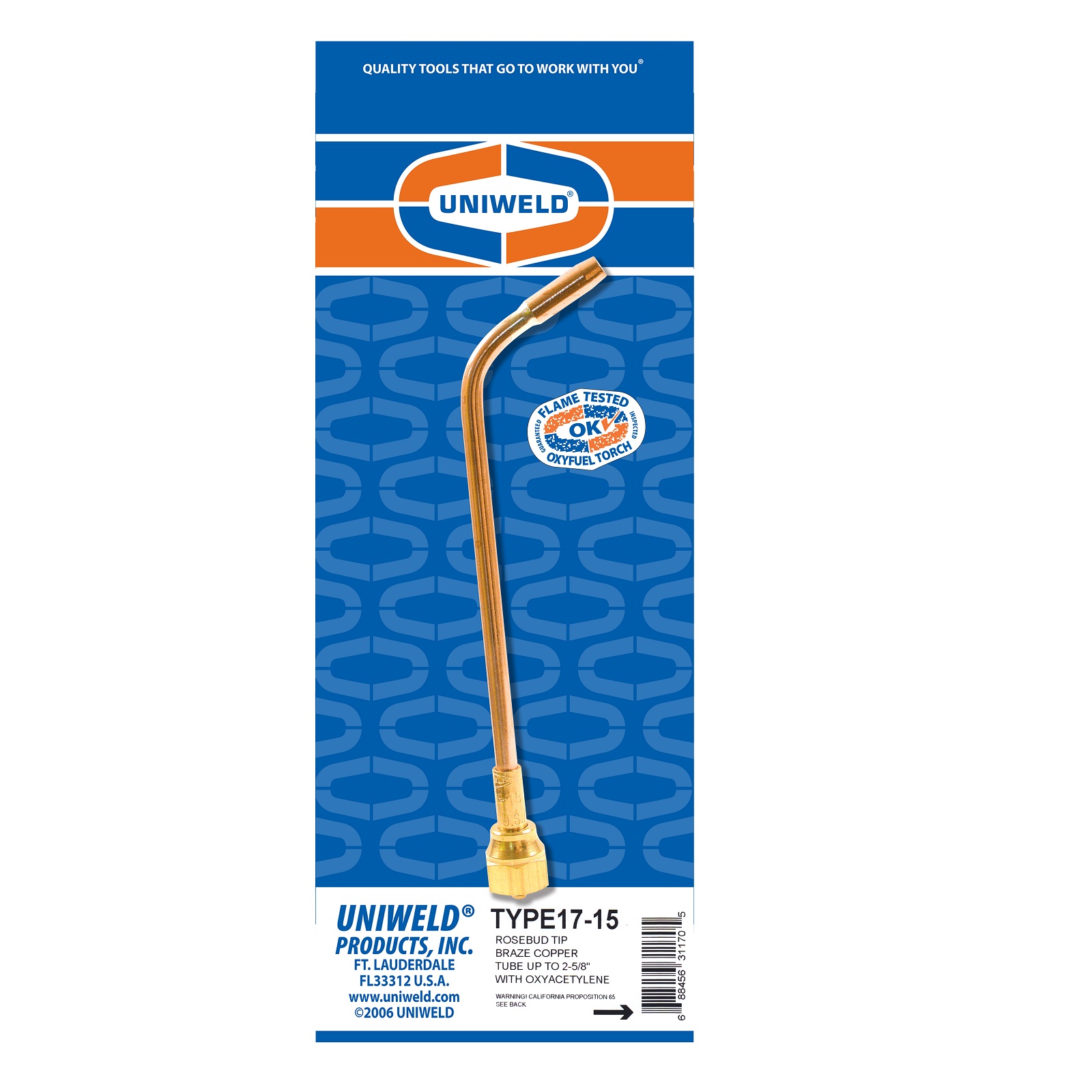

| Type17-15 | 7″ | 15 | 12 | 10 | 1/8″ to 2-5/8″ |

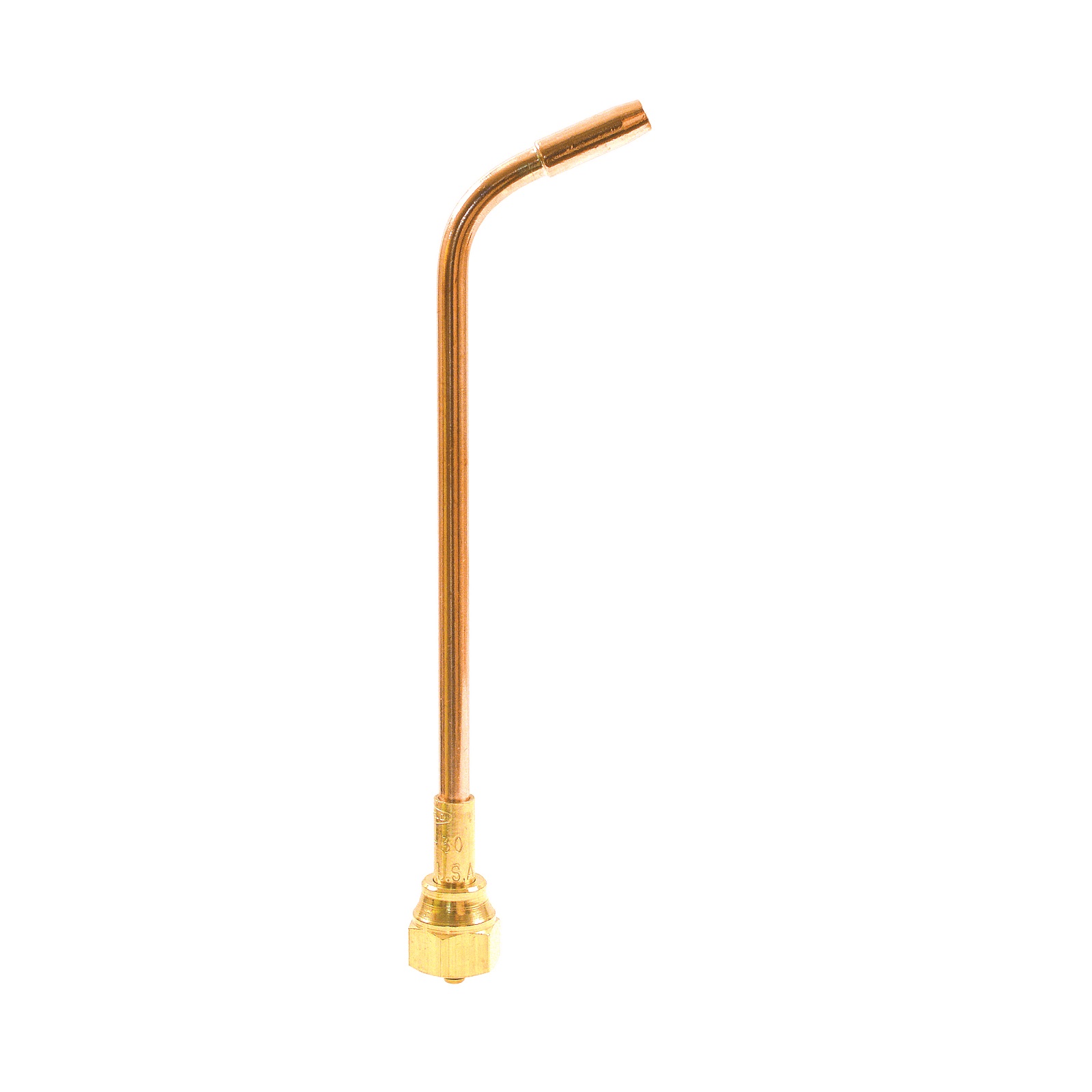

| *Type17-30 | 7″ | 30 | 15 | 12 | 1/2″ to 6″ |

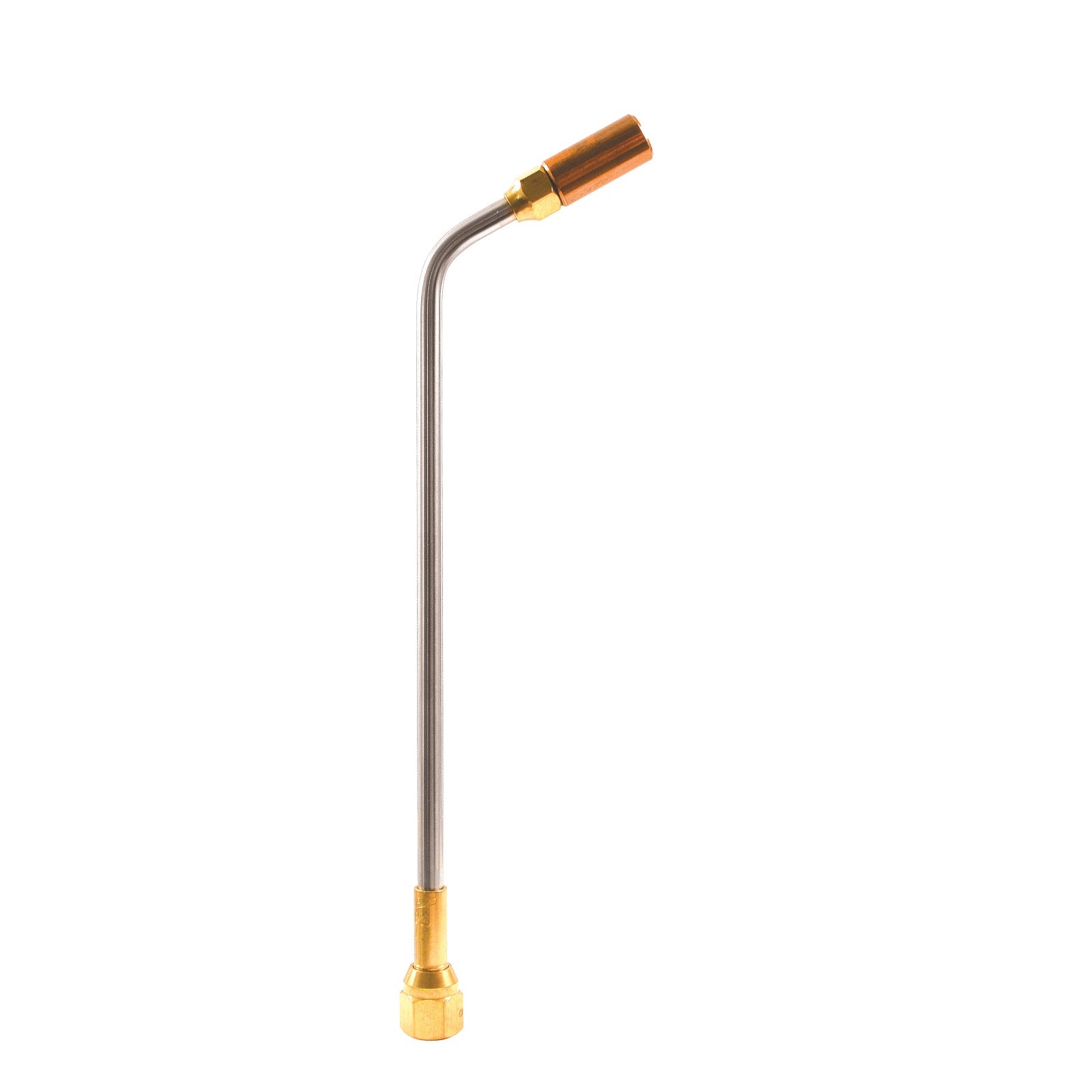

| Type28-2 | 12″ | 9 | 8 | 7 | 1/8″ to 1-5/8″ |

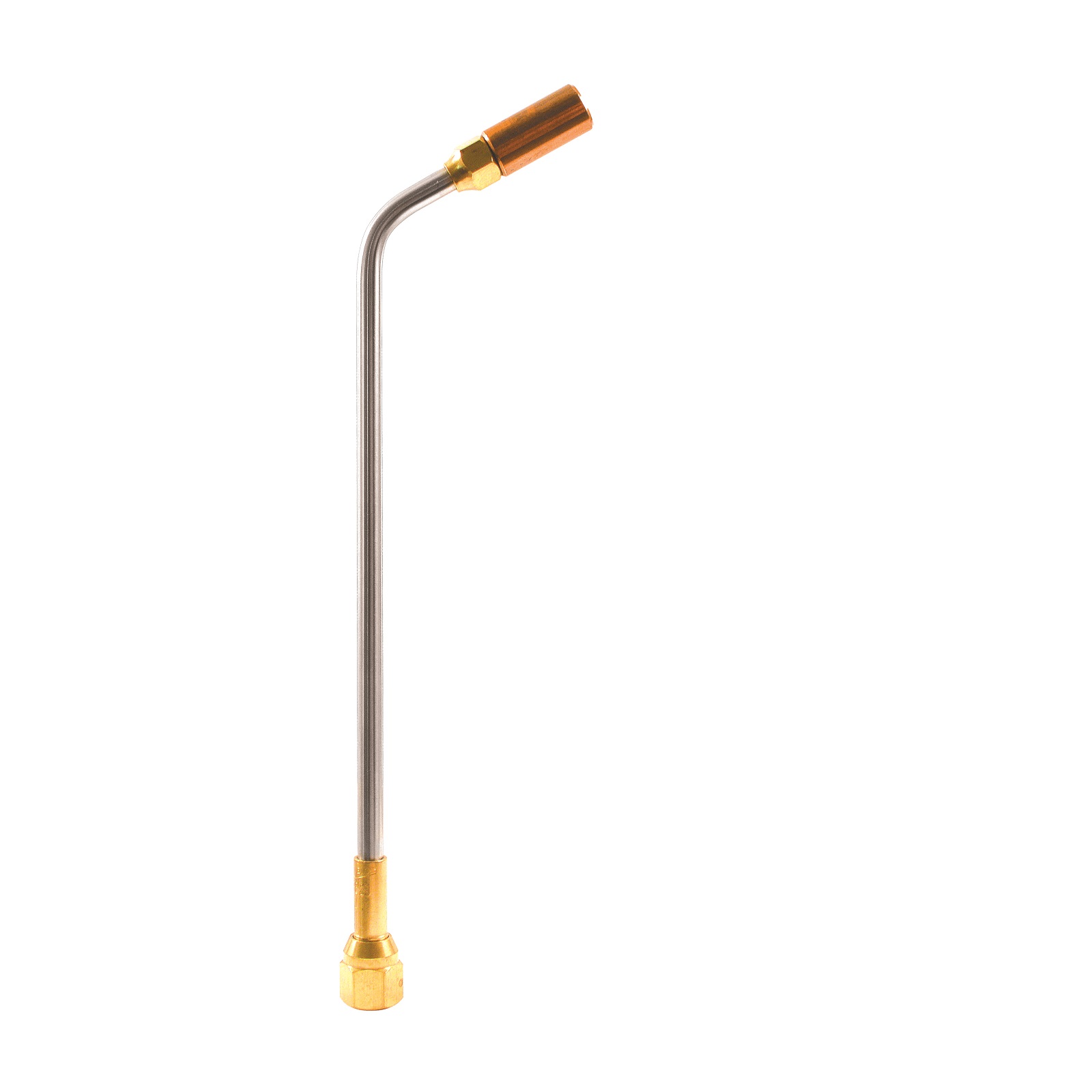

| Type28-4 | 12″ | 14 | 12 | 10 | 1/2″ to 3″ |

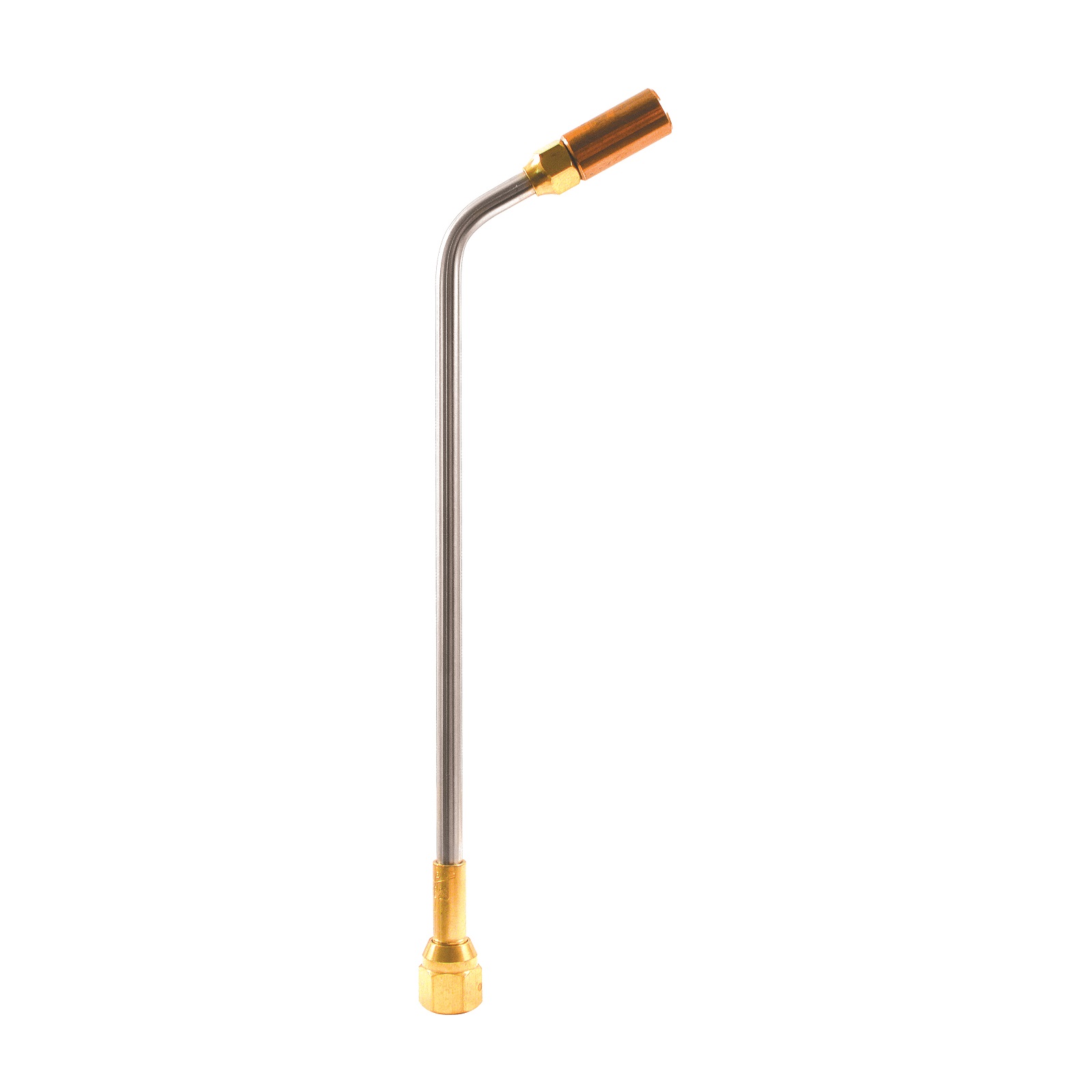

| *Type28-6 | 12″ | 30 | 15 | 12 | 1/2″ to 6″ |

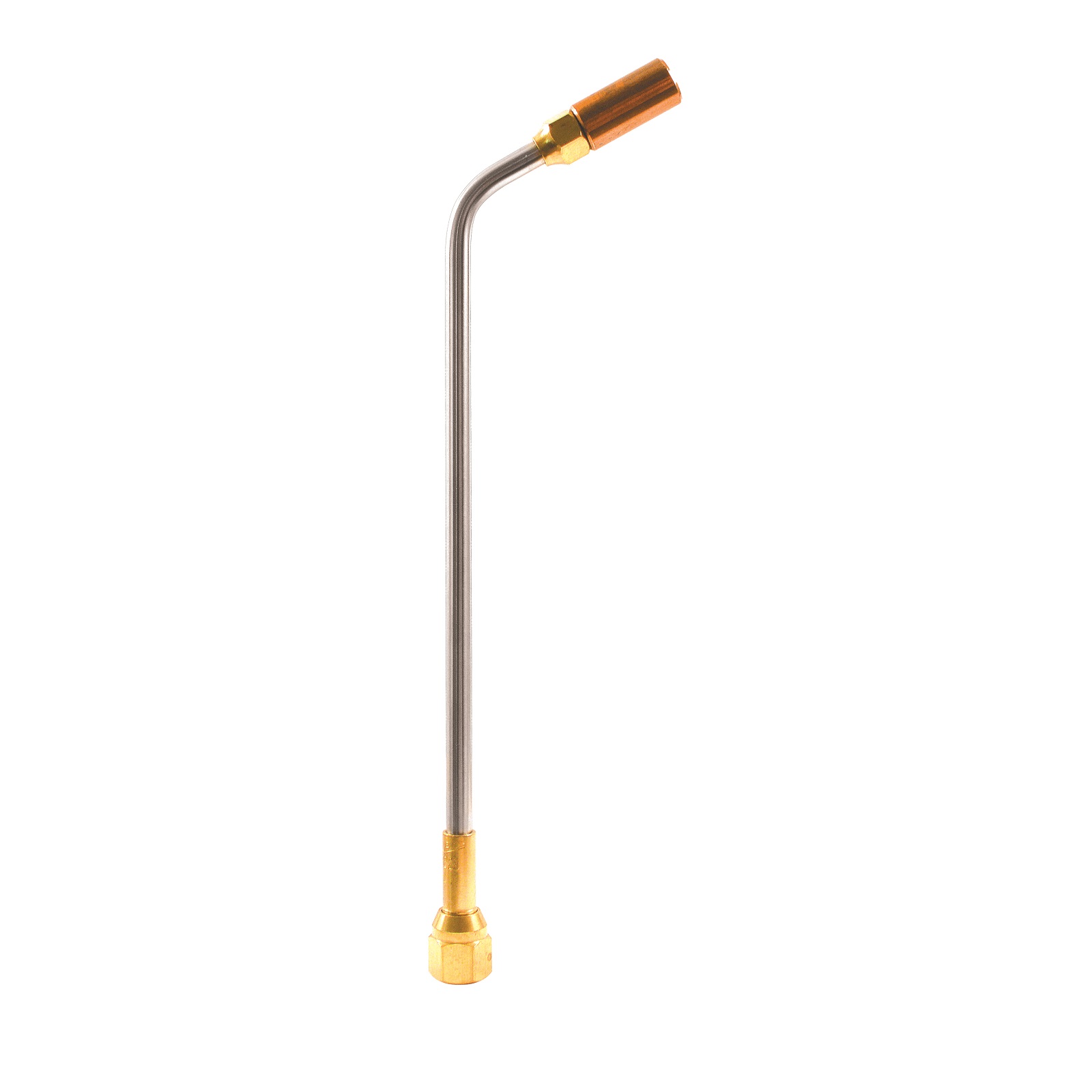

| *Type28-8 | 12″ | 60 | 25 | 15 | 6″ to 8″ |
* Tips must be used with a 40 cu. ft. or larger cylinder
