RHT80 Series

Uniweld’s Two Stage, RHT8010 Regulator Series feature:



• Machined brass body
• Polished chrome bonnet
• Easy to read 2″ single scale gauges
• 1 5/8″ tri-layered reinforced neoprene diaphragm (1st stage)
• 2″ tri-layered reinforced neoprene diaphragm (2nd stage)
• Heavy duty mechanical stem type seat and nozzle assembly
• Delrin bushing for smooth flow adjustment
• Porous metal inlet filter (except CO2 models)
• Fine mesh filter screen between inlet and seat



Uniweld two stage regulators are used where steady delivery pressure is required over a range of decreasing cylinder inlet pressures. Delivery pressures will remain constant until pressure is nearly depleted.

**Different Pressure Scales & Inlet Connections Available Upon Request**

Category: Tags: , , , , ,

Product Information

Part # CGA Inlet Outlet Connection Delivery PSIG 2″ Replacement Gauges
 RHT8010 Oxygen 540 “B” (RH) 9/16″-18 M  5-125 G4S; 200 PSI

G7S; 4000 PSI

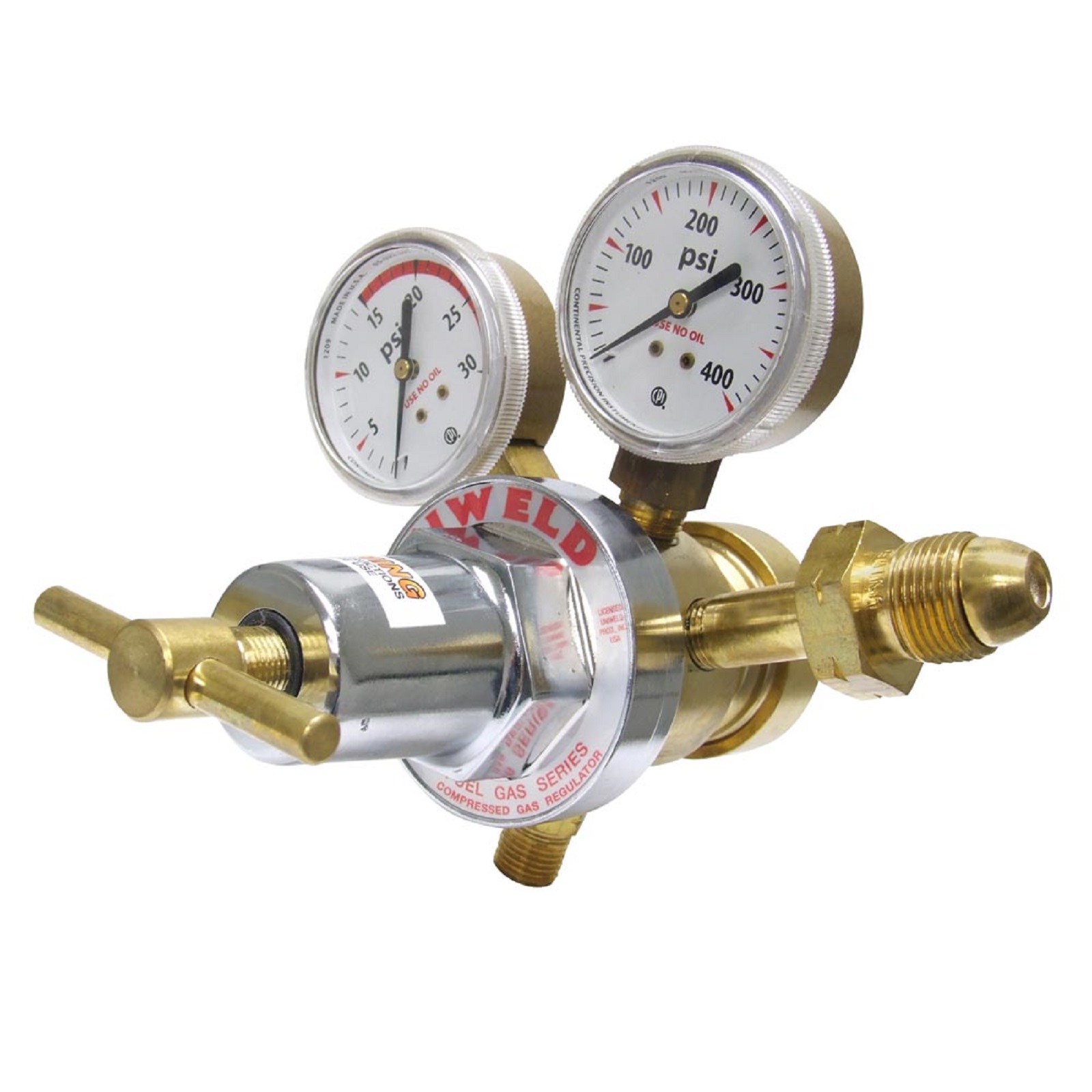

RHT8011 Acetylene 510 “B” (LH) 9/16″-18 M 2-15 G2S; 30 PSI (RL)

G1S; 400 PSI
RHT8011-1 Acetylene 300 “B” (LH) 9/16″-18 M 2-15 G2S; 30 PSI (RL)

G1S; 400 PSI
RHT8011-CND Acetylene 410 “B” (LH) 9/16″-18 M 2-15 G2S; 30 PSI (RL)

G1S; 400 PSI

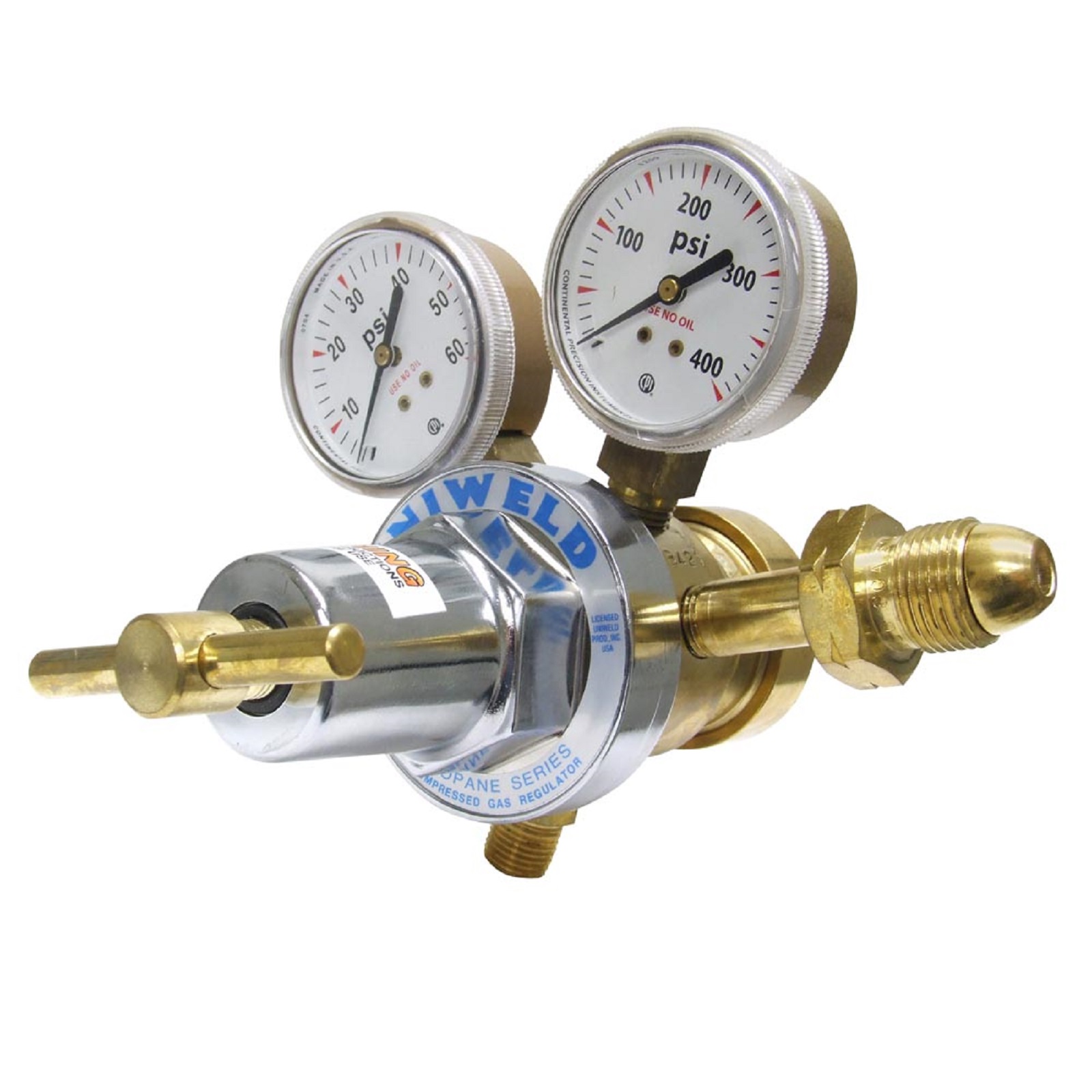

RHT8012 LPG & All Fuel Gas 510 “B” (LH) 9/16″-18 M 2-40 G5S; 60 PSI

G1S; 400 PSI

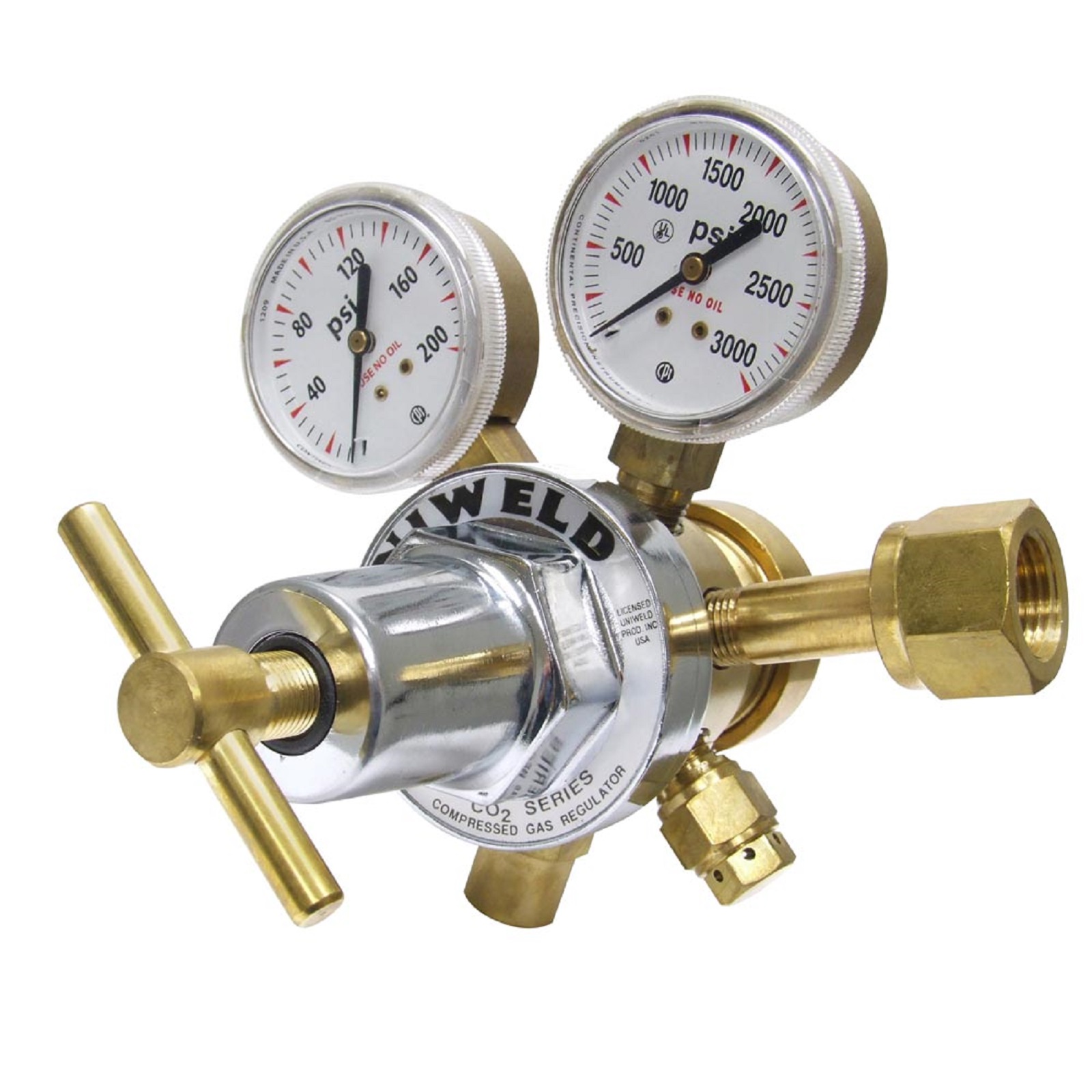

RHT8013 Carbon Dioxide 320 5/8″-18 (RH) (F) 5-125 G4S; 200 PSI

G3S; 3000 PSI

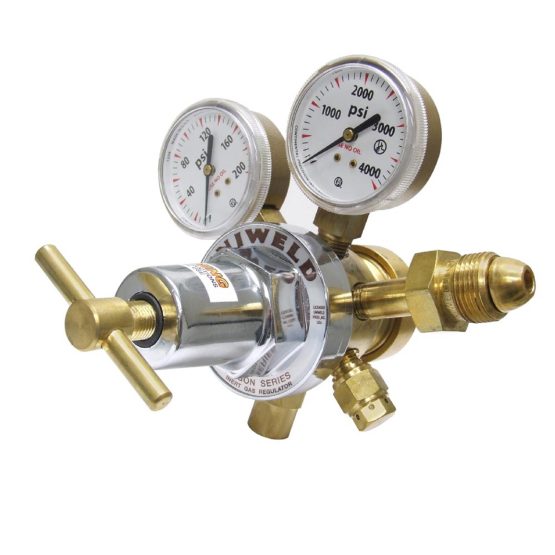

RHT8014 Argon 580 5/8″-18 (RH) (F) 5-125  G4S; 200 PSI

G7S; 4000 PSI
RHT8015 Nitrogen 580 5/8″-18 (RH) (F) 5-125 G4S; 200 PSI

G7S; 4000 PSI
RHT8015A-1 Nitrogen 580 1/4″ Flare (M) 5-125 G4S; 200 PSI

G7S; 4000 PSI
RHT8016 Helium 580 5/8″-18 (RH) (F) 5-125 G4S; 200 PSI

G7S; 4000 PSI
RHT8017 Hydrogen 350 “B” (LH) 9/16″-18 (M) 5-125 G4S; 200 PSI

G7S; 4000 PSI
RHT8018 Air 346 9/16″-18 (RH) (M) 5-125 G4S; 200 PSI

G7S; 4000 PSI
RHT8018A-1 Air 346 1/4″ Flare (M) 5-125 G4S; 200 PSI

G7S; 4000 PSI
RHT8018-2 Air 346 5/8″-18 (LH) (F) 5-125 G4S; 200 PSI

G7S; 4000 PSI
