Manifold Replacement Gauges

LPF™ Gauges

Uniweld’s 2-1/2″ LPF™ Limited Pointer Flutter™ Gauges with large, easy-to-read dial faces provide improved accuracy of pressure readings. Features include a high torque hair spring movement and a special pulsation dampener.



NPF® Gauges
The original NPF® No Pointer Flutter® Gauges that provide steady and accurate pressure readings. The encapsulated silicone dampened movement seldom needs recalibration. The gauge is guaranteed not to leak fluid and not to lose dampening characteristics. Scales are printed in refrigerant colors.



*Different Pressure Scales / Refrigerants Available Upon Request*

Product Information

Part# Gauge Type Case Size Pressure/Temperature Scale

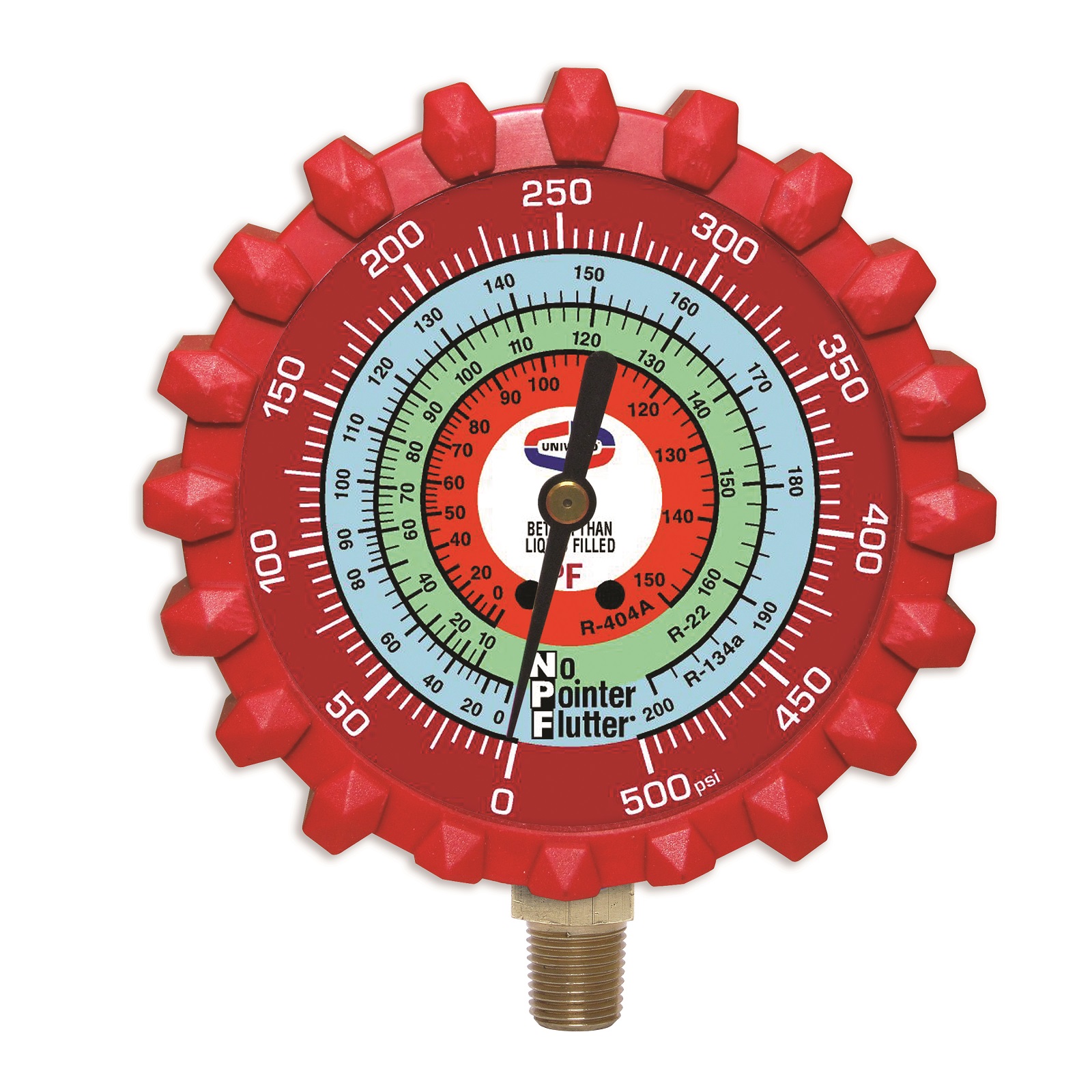

G29ND NPF® Color Coded 2-1/2″ R-134a/R-22/R-404A PSI°F
G29ND-1 NPF® Color Coded  2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G29ND-5 NPF® Color Coded 2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G529ND NPF® Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

G409NSAD NPF® Color Coded 3-1/8″ [80 mm] R-134a/R-12 [Automotive]

PSI-°F

G429ND NPF® Color Coded 3-1/8″ [80 mm] R-410A/R-22/R-404A/R-134a

PSI-°F

G429ND-5 NPF® Color Coded 3-1/8″ [80 mm] R-134a/R-404A/R-22/R-12

PSI – kg/cm2°C

G30ND NPF® Color Coded 2-1/2″ R-134a/R-22/R-404A PSI°F
G30ND NPF® Color Coded 2-1/2″ R-134a/R-22/R-404A PSI°F
G30ND-1 NPF® Color Coded 2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G30ND-5 NPF® Color Coded 2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G530ND NPF® Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

G410NSAD NPF® Color Coded 3-1/8″ [80 mm] R-134a/R-12 [Automotive]

PSI-°F

G430ND NPF® Color Coded 3-1/8″ [80 mm] R-410A/R-22/R-404A/R-134a

PSI-°F

G430ND-5 NPF® Color Coded 3-1/8″ [80 mm] R-134a/R-404A/R-22/R-12

PSI – kg/cm2°C

G29NBD NPF® Brass 2-1/2″ R-134a/R-22/R-404A PSI°F
G29NBD-1 NPF® Brass 2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G29NBD-5 NPF® Brass 2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G529NBD NPF® Brass 2-1/2″ R-410A/R-22/R-404A

PSI°F

G30NBD NPF® Brass 2-1/2″ R-134a/R-22/R-404A PSI°F
G30NBD-1 NPF® Brass 2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G30NBD-5 NPF® Brass 2-1/2″ R-134a/R-22/R-12

PSI-kg/cm2-°F

PSI-kg/cm2-°C

G530NBD NPF® Brass 2-1/2″ R-410A/R-22/R-404A

PSI°F

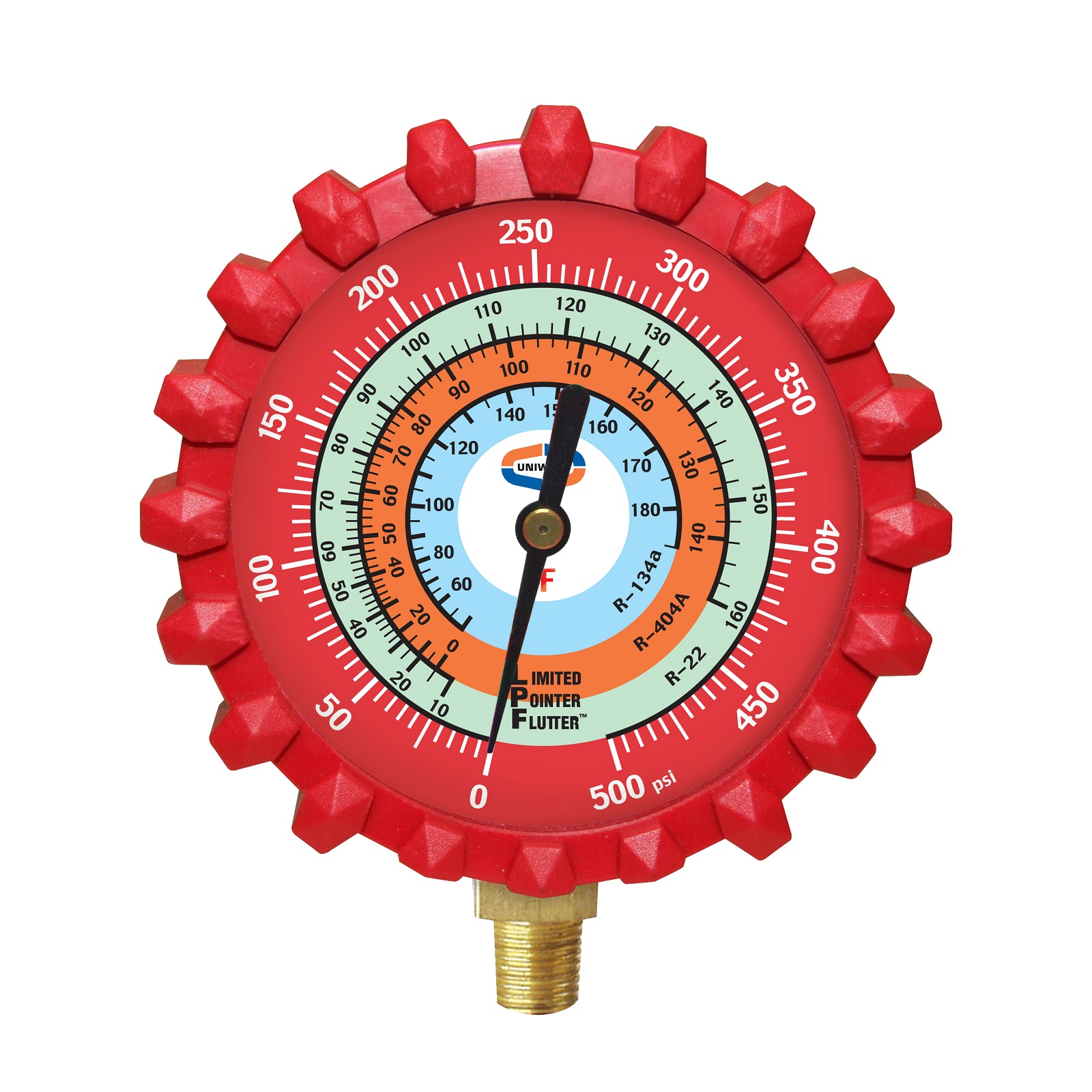

G29LD LPF™ Color Coded 2-1/2″ R-22/R-404A/R-134a

PSI°F

G29LD-1 LPF™ Color Coded 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

G29LD-5 LPF™ Color Coded 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

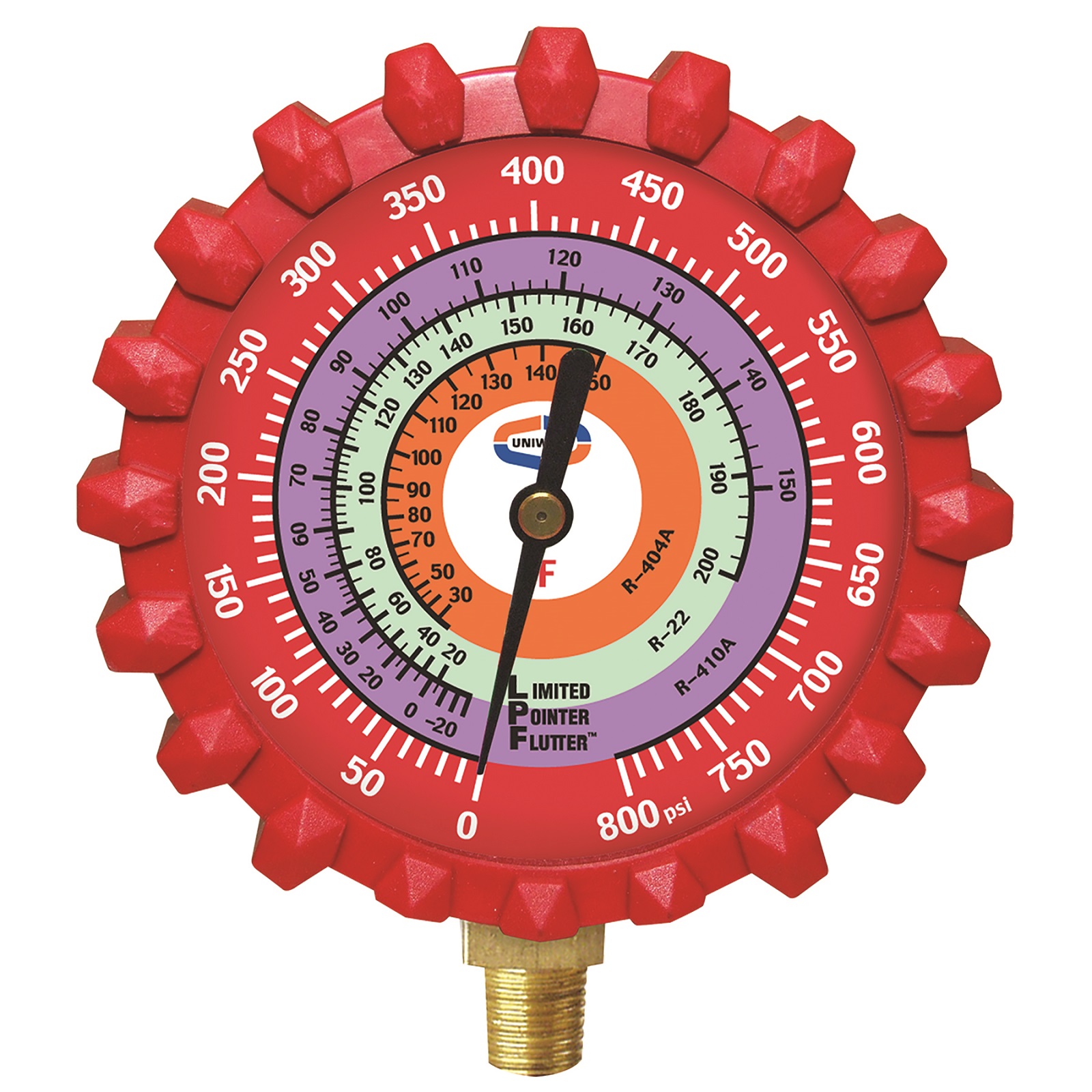

G529LD LPF™ Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

G529LD-5 LPF™ Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

G529LD-6 LPF™ Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

G9LAD LPF™ Color Coded 2-1/2″ R-134a/R-12 [Automotive]

PSI-°F

G9LD-5 LPF™ Color Coded 2-1/2″ R-134a/R404A/R-507

PSI-Kg/cm2-°C

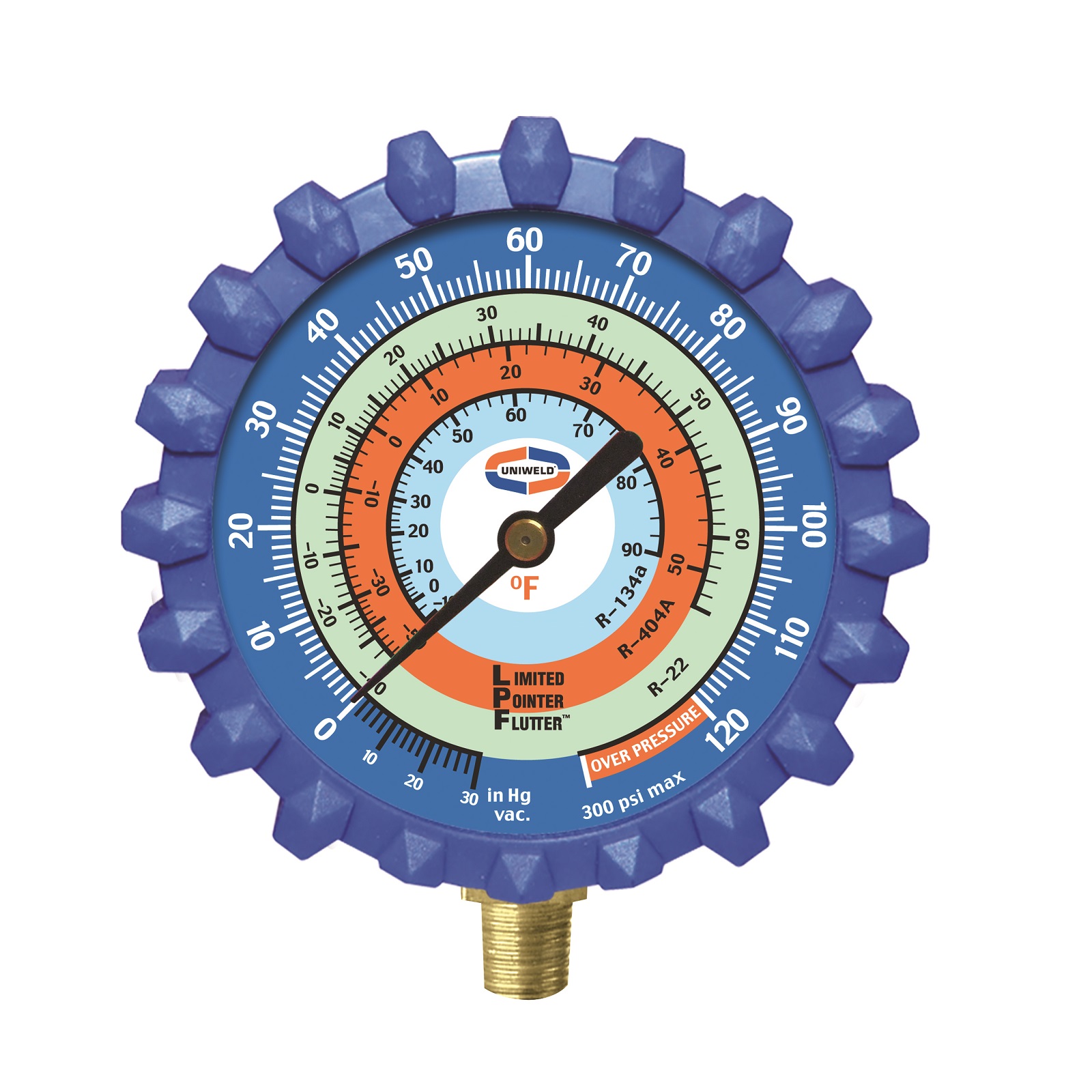

G30LD LPF™ Color Coded 2-1/2″ R-22/R-404A/R-134a

PSI°F

G30LD-1 LPF™ Color Coded 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

G30LD-5 LPF™ Color Coded 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

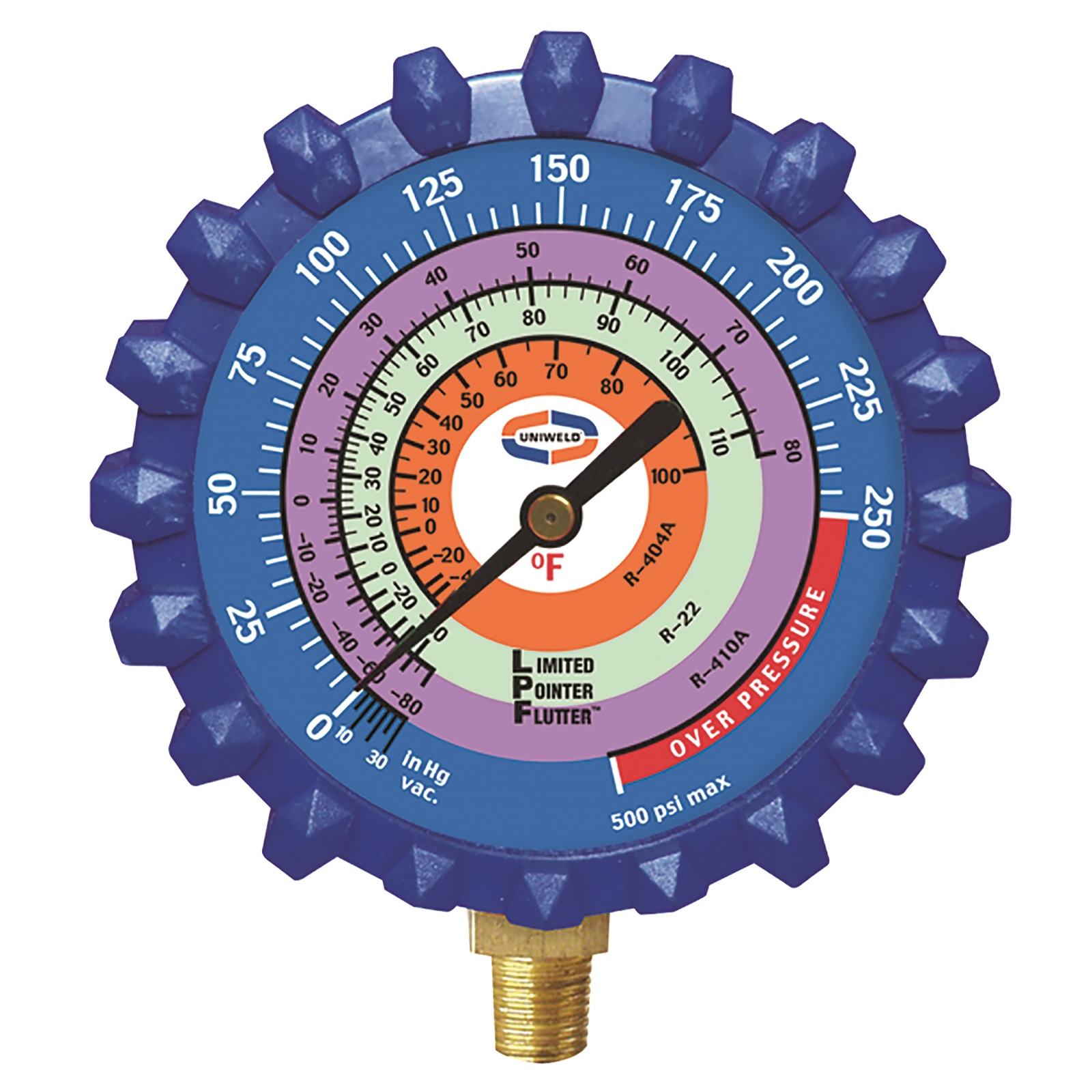

G530LD LPF™ Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

G530LD-5 LPF™ Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

G530LD-6 LPF™ Color Coded 2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

G10LAD LPF™ Color Coded  2-1/2″ R-134a/R-12 [Automotive]

PSI-°F

G10LD-5 LPF™ Color Coded  2-1/2″ R-134a/R404A/R-507

PSI-Kg/cm2-°C

G29D LPF™ Brass 2-1/2″ R-22/R-404A/R-134a

PSI°F

G29D-1 LPF™ Brass 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

G29D-5 LPF™ Brass 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

G529D LPF™ Brass  2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

G30D LPF™ Brass 2-1/2″ R-22/R-404A/R-134a

PSI°F

G30D-1 LPF™ Brass 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

G30D-5 LPF™ Brass 2-1/2″ R-134a/R-12/R-22

PSI-Kg/cm2-°F

PSI-Kg/cm2-°C

G530D LPF™ Brass 2-1/2″ R-410A/R-22/R-404A

PSI°F

PSI-Kg/cm2-°C

PSI-kPa°C

Additional information

Gauge Replacement Parts:

• CF25       2-1/2" Clear Front Lens w/Plug
• CF80       3-1/8" [80mm]
• GB25S     2-1/2" Protective Gauge Boots, Pkg. [1] Red, [1] Blue
• GB80S     3-1/8" [80 mm] Protective Gauge Boots, Pkg. [1] Red, [1] Blue
• PL25       2-1/2" Posi-Lock Replacement Lens
