H-Style Cutting Attachments

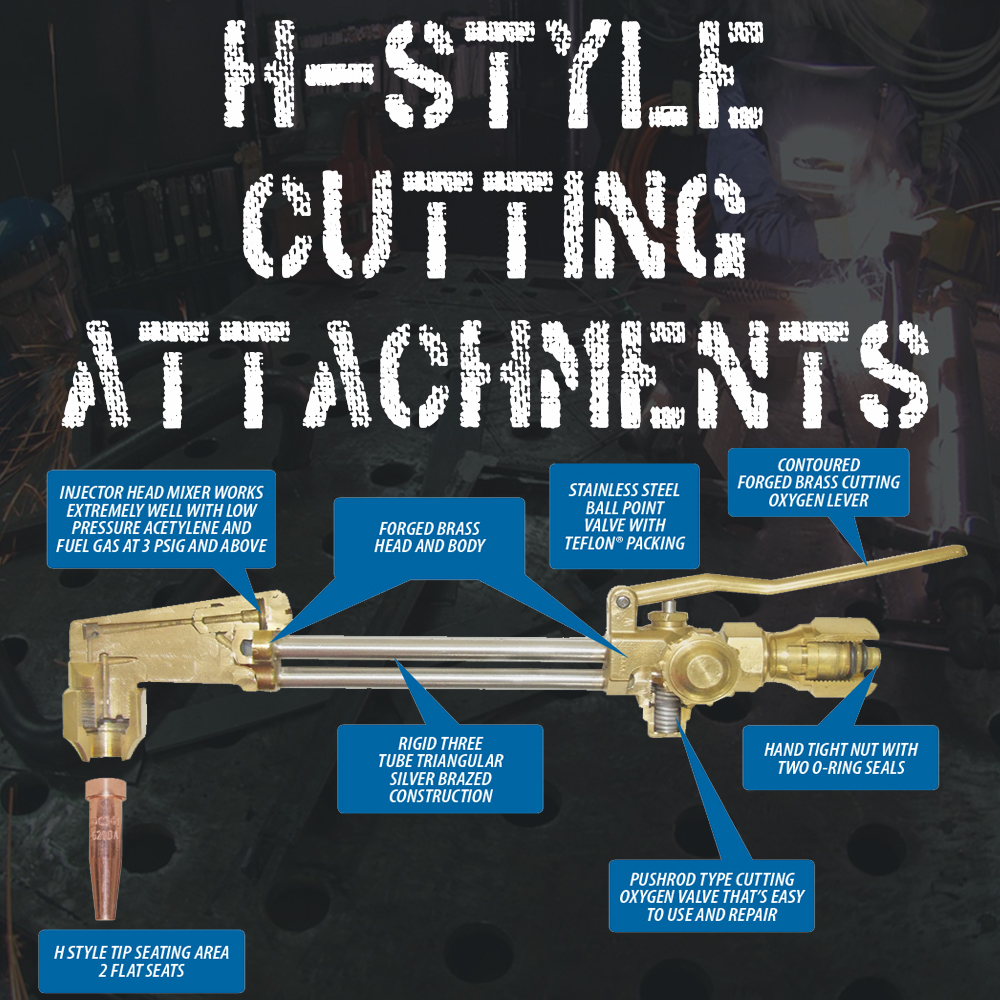

Uniweld’s H-style cutting attachments have a forged brass head and body, features a rigid three tube triangular silver brazed construction, and an injector head mixer designed to work with low pressure acetylene and fuel gas at 3 PSIG and above. Head angles vary from 70° to 90°.

Product Information

Part # Length Weight Head Angle Cutting Capacity Compatible Welding Handles
CA43A 10-1/4″ 26 oz 90° 8″ (All Gases) 43L9 (w/o mixer) 43L9E (with UM43)
CA43 10-1/4″ 26 oz 70° 8″ (All Gases) 43L9 (w/o mixer) 43L9E (with UM43)
CA79A 10-1/4″ 26 oz 90 ° 8″ (Acetylene Only) WH79-2 (w/o mixer) WH79 (with UM79)
CA79 10-1/4″ 26 oz 70 ° 7″ (Acetylene Only) WH79-2 (w/o mixer) WH79 (with UM79)
