Flexible Tips

Used for Heating, Brazing, and Soldering

Product Information

Complete
Assembly Part #
Elbow Only Mixer Only Elbow to Mixer
Thread Spec
Weld Metal
Thickness
Oxygen
PSIG
Acetylene
PSIG
Acetylene
SCFH
TYPE17-9 TYPE17E-9 UM17-5 5/16”-27(M,F) 1/32”-5/64” 5 5 4
TYPE13-8M TYPE13E-8 UM13-4 5/16”-27(M,F) N/A 10-20 8-12 15-30

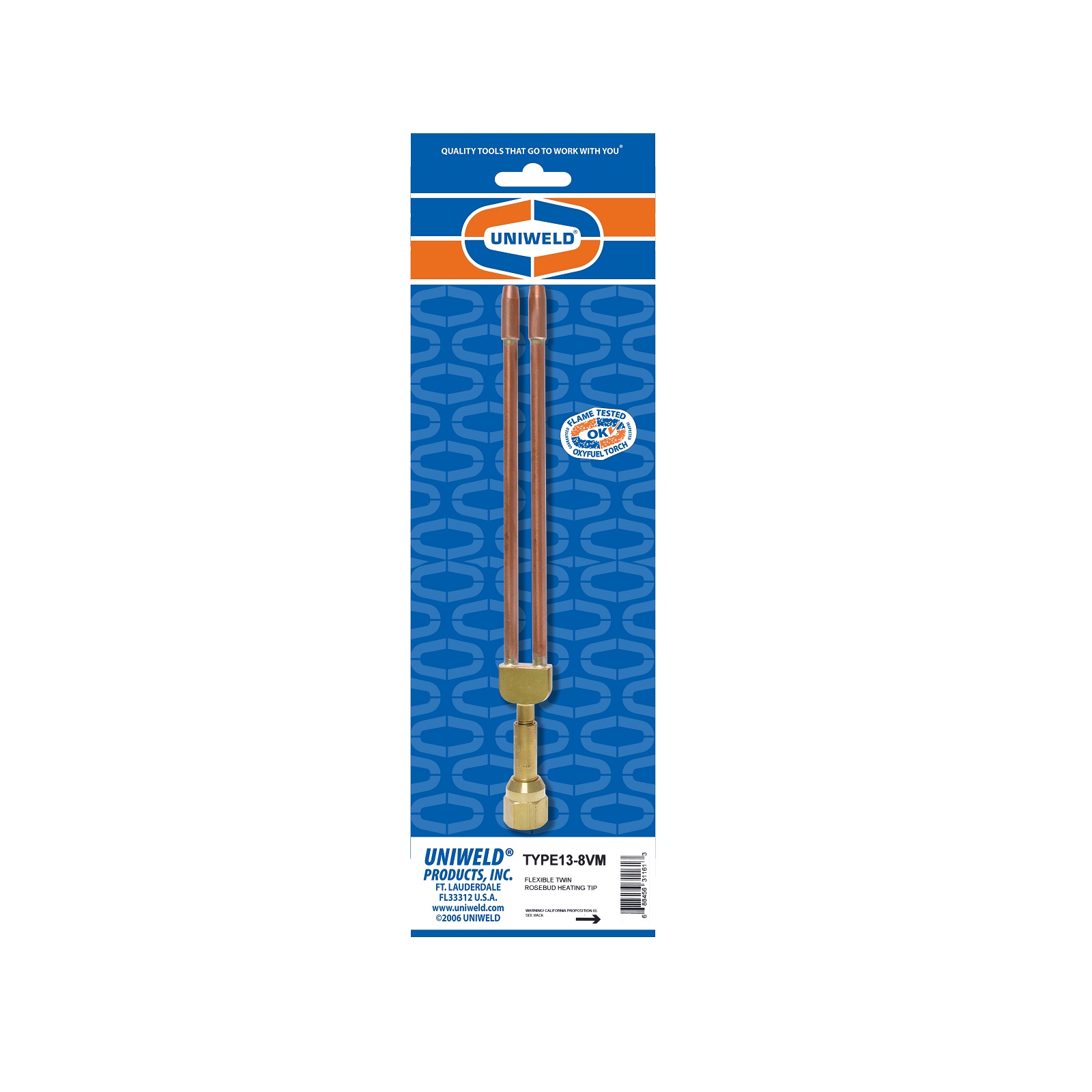

TYPE13-8VM TYPE13E-8 UM17-5 5/16”-27(M,F) N/A 10-20 8-12 15-30

Additional information

Welding Handle for TYPE17-9:

• 71
• WH250
• WH550

Welding Handle for TYPE13-8VM:

• 71
• WH250
• WH550

Welding Handle for TYPE13-8M:

• WH350

Note:

*Type17 tips can be attached to a WH350 welding handle using an F15 Adaptor.
