CO2 Regulators

CO2 Regulators

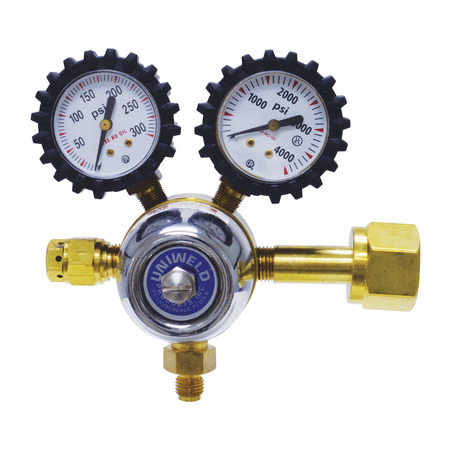

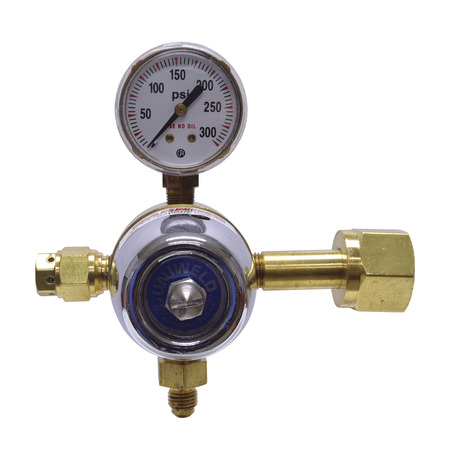

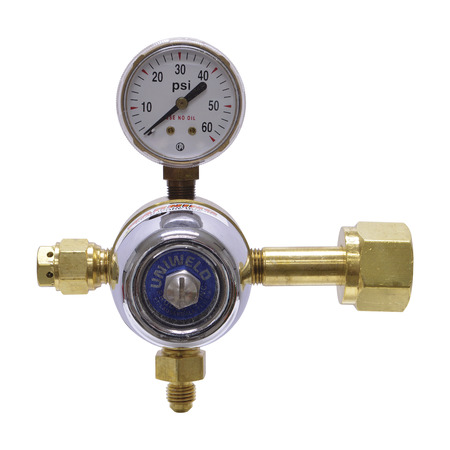

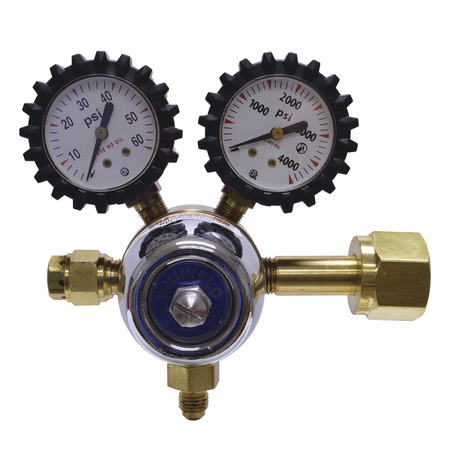

R1300 Series

A Compact proven design for soft drink dispencing systems (Not Beer) and for many types of pressurizing applications. Features include an adjustable pressure screw with locking nut and a self-reseating relief valve (not designed to protect downstream systems).



Nitrogen Regulators
Note: Nitrogen Regulators can also be used for CO2 when using the F36 Adaptor.

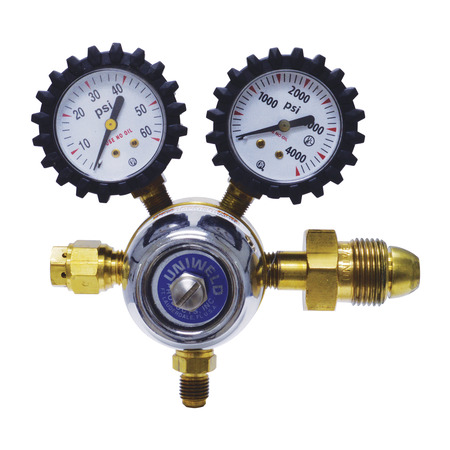

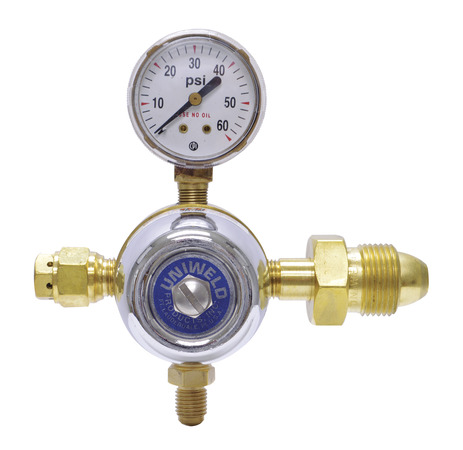

R1500 Series
A Compact proven design for soft drink dispencing systems (Not Beer) and for many types of pressurizing applications. Features include an adjustable pressure screw with locking nut and a self-reseating relief valve (not designed to protect downstream systems).

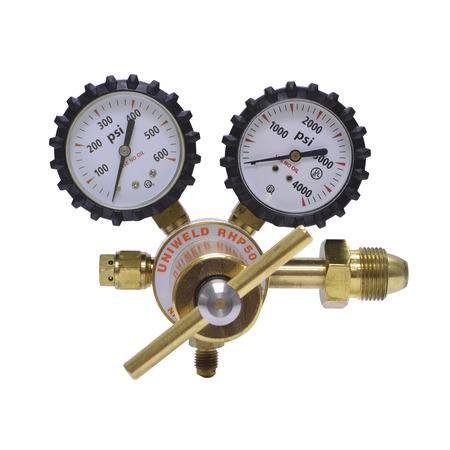

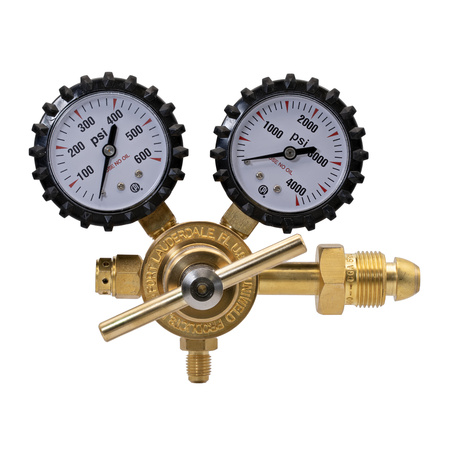

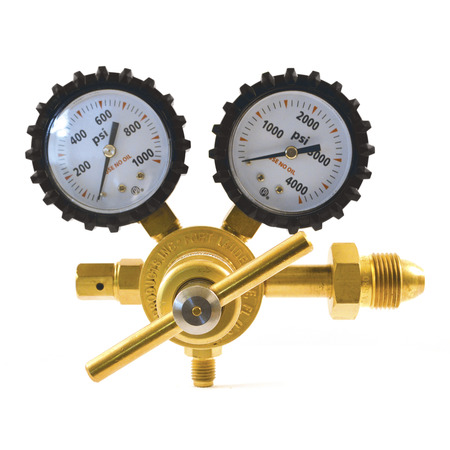

RHP Series
Regulators for use with Nitrogen or CO2 (with optional F36 adaptor) that have been specifically designed for purging and pressure testing. Large “T” handle with stainless steel pressure adjusting screw and bushing prevent galling.





**Different Pressure Scales & Inlet Connections Available Upon Request**

Product Information

Part # CGA Inlet Outlet Connection Gauge(s) Gauge(s) Delivery Delivery PSIG Gas Type
R1346 CGA320 1/4” SAE Flare (M) Single (1-1/2″) G83D: 60 2-50 CO2
R1349 CGA320 1/4” SAE Flare (M) Single (1-1/2″) G84D: 300 2-175 CO2

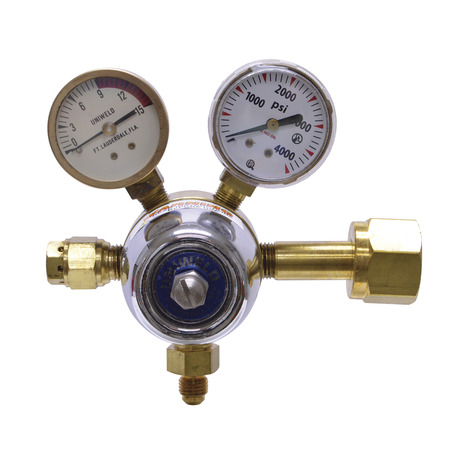

R1358 CGA320 1/4” SAE Flare (M) Dual (1-1/2″) G20D: 15 / G82D: 4000 2-12 CO2
R1360* CGA320 1/4” SAE Flare (M) Dual (1-1/2″) G83D: 60 / G82D: 4000 2-50 CO2

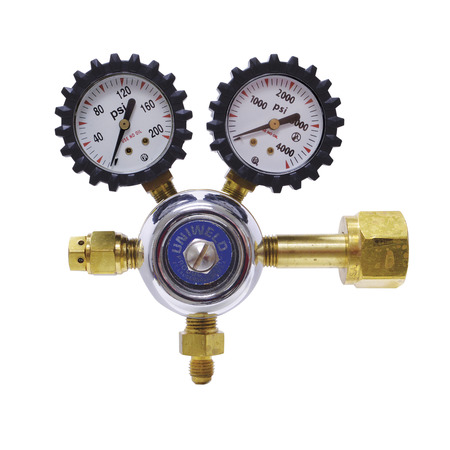

R1362* CGA320 1/4” SAE Flare (M) Dual (1-1/2″) G78D: 200 / G82D: 4000 5-120 CO2

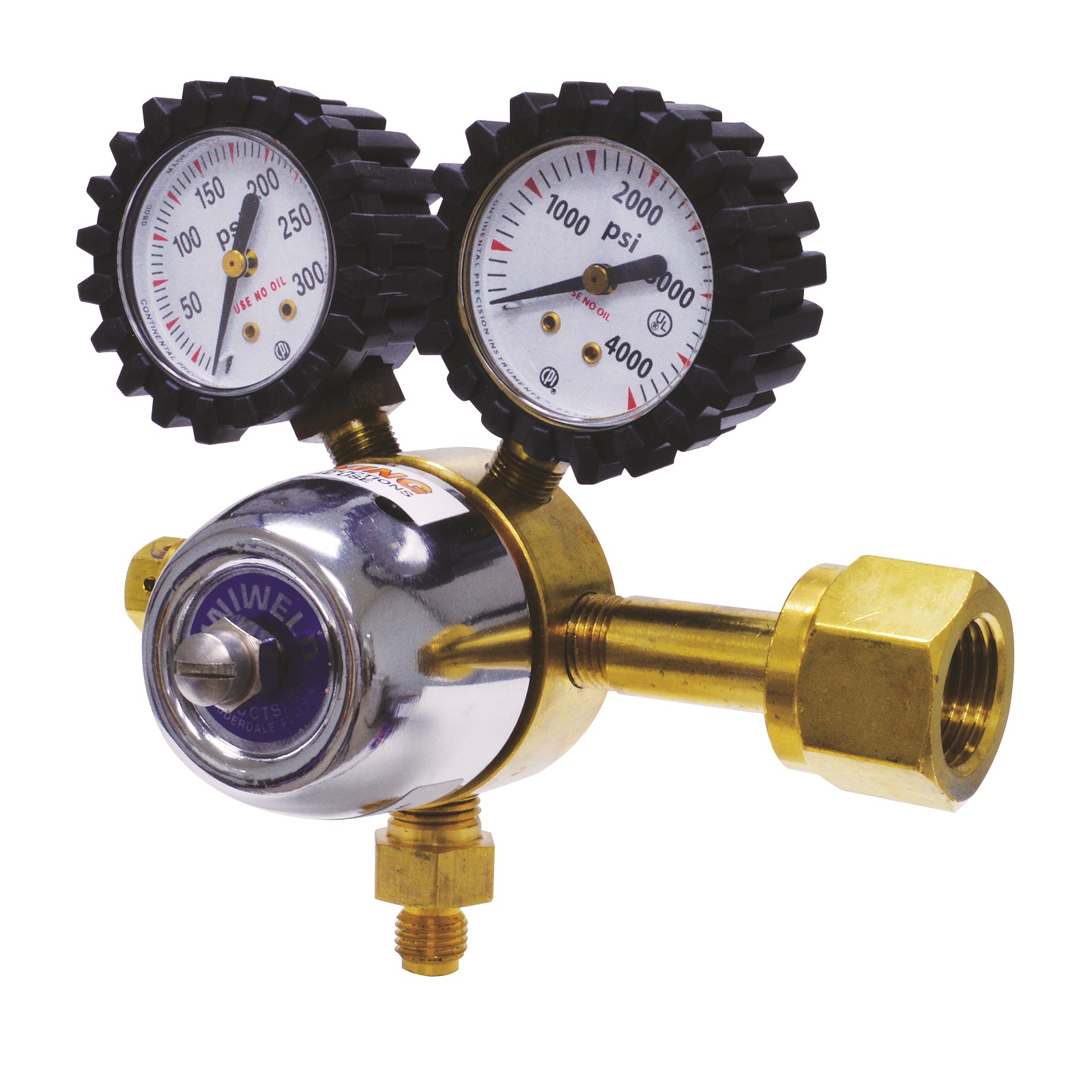

R1363* CGA320 1/4” SAE Flare (M) Dual (1-1/2″) G84D: 300 / G82D: 4000 5-175 CO2
R1546 CGA580 1/4” SAE Flare (M) Single (1-1/2″) G83D: 60 2-50 Nitrogen, (CO2; with F36 Adaptor)
R1549 CGA580 1/4” SAE Flare (M) Single (1-1/2″) G84D: 300 2-175 Nitrogen, (CO2; with F36 Adaptor)

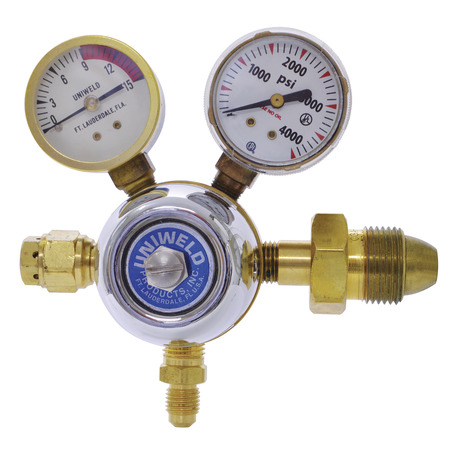

R1558 CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G20D: 15 / G82D: 4000 2-12 Nitrogen, (CO2; with F36 Adaptor)
R1560* CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G83D: 60 / G82D: 4000 2-50 Nitrogen, (CO2; with F36 Adaptor)

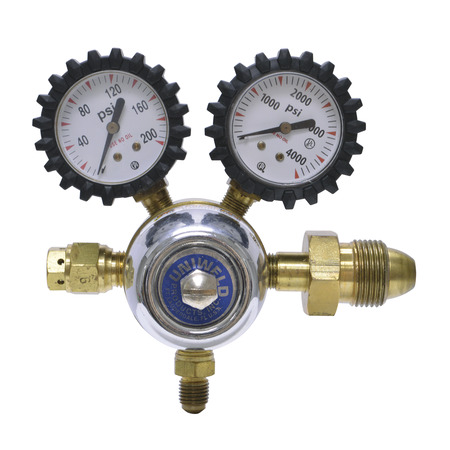

R1562* CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G78D: 200 / G82D: 4000 5-120 Nitrogen, (CO2; with F36 Adaptor)

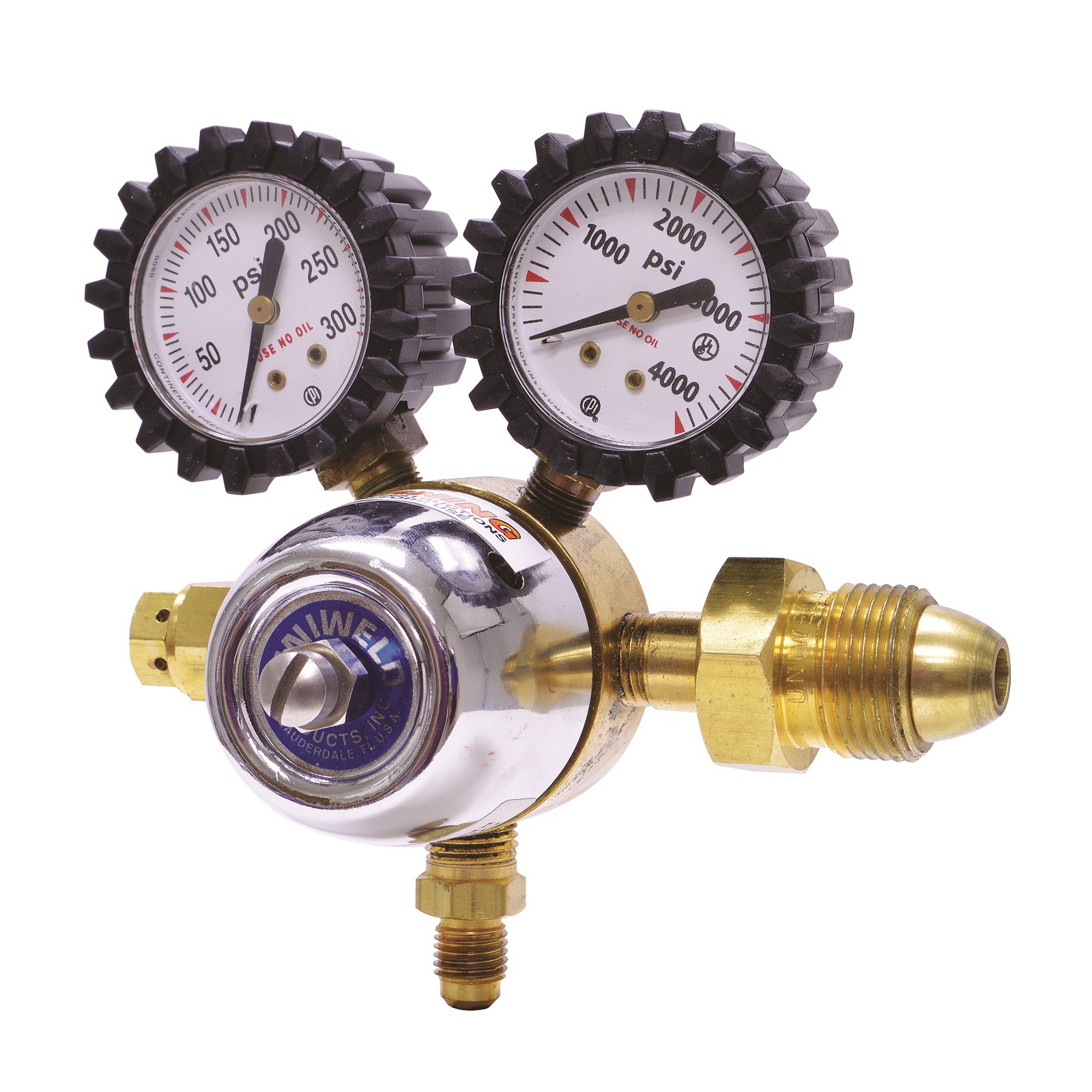

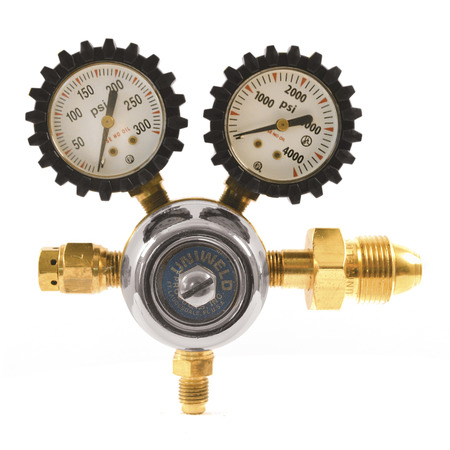

R1563* CGA580 1/4” SAE Flare (M) Dual (1-1/2″) G84D: 300 / G82D: 4000 5-175 Nitrogen, (CO2; with F36 Adaptor)
RHP400 CGA580 1/4” Flare (M) Dual (2″) G8SD: 600 PSI / G7SD: 4000 PSI 0-400 Nitrogen, (CO2; with F36 Adaptor)
RHP500 CGA580 1/4” Flare (M) Dual (2″) G8SD: 600 PSI / G7SD: 4000 PSI 0-500 Nitrogen, (CO2; with F36 Adaptor)
RHP800 CGA580 1/4” Flare (M) Dual (2″) G34SD: 1000 PSI / G7SD: 4000 PSI 0-800 Nitrogen, (CO2; with F36 Adaptor)

*Gauges shipped with protective boots.

Additional information

Nitrogen to CO2 Adaptor:

F36 Adaptor (CGA320 to CGA580)

Replacement Gauge Boots

GB15S Protective Rubber Boot for all 1.5" Gauges
GB20S Protective Rubber Boot for all 2" Gauges
