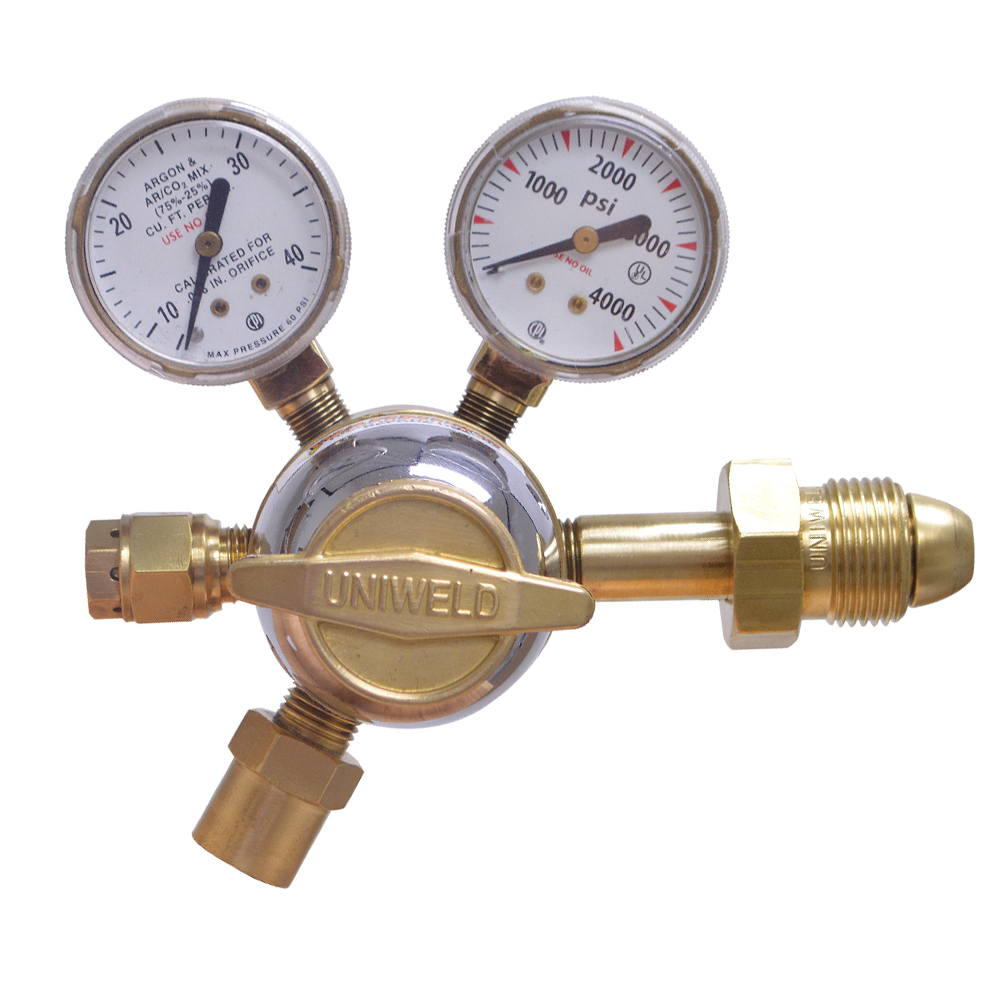

Flowgauge Regulators

CEFG, RHFG, & MRFG Series flowgauges and regulators contain the following:
• Machined brass body
• Mechanical stem type seat and porous metal inlet filter (except CO2 models)
• Fine mesh filter screen between inlet and body (except for CO2 models)
• Pressure relief device for low pressure flowgauge protection only

**Different Pressure Scales & Inlet Connections Available Upon Request**

Category: Tags: , , , , ,

Product Information

Part # Duty Class CGA Inlet Outlet Connection Flow Cap. (SCFH) Outlet Orifice Replacement Gauges
RHFG13-50 Heavy Duty CO2 320 5/8”-18 RH (F) 10-50 0.026 G86S (2” Dial Face, 10-50 SCFH) | G3S (2” Dial Face, 3000 PSI)
RHFG14-50 Heavy Duty Argon 580 & AR/CO2 MIX 580 5/8”-18 RH (F) 10-55 0.032 G76S (2” Dial Face, 10-55 SCFH) | G7S (2” Dial Face, 4000 PSI)
CEFG13 Medium Duty CO2 320 5/8”-18 RH (F) 10-40 0.026 G87 (1-1/2” Dial Face, 10-40 SCFH) | G82 (1-1/2” Dial Face, 4000 PSI)
CEFG14 Medium Duty Argon 580 & AR/CO2 MIX 580 5/8”-18 RH (F) 10-40 0.026 G51 (1-1/2” Dial Face, 10-40 SCFH) | G82 (1-1/2” Dial Face, 4000 PSI)
MRFG13 Heavy Duty CO2 320 5/8”-18 RH (F) 10-40 0.029 G86S-4 (2” Dial Face, 10-50 SCFH) | G7S-4 (2” Dial Face, 4000 PSI)
MRFG14 Heavy Duty Argon 580 & AR/CO2 MIX 580 5/8”-18 RH (F) 10-55 0.032 G76S-4 (2” Dial Face, 10-55 SCFH) | G7S-4 (2” Dial Face, 4000 PSI)

 Complete MIG Kits

Part # Flowmeter Gas Calibration Hose
KFG13 CEFG13 Carbon Dioxide 90190 10 ft. 3/16″ ID Hose with 5/8”-18 RH (M) fittings at both ends
KFG14 CEFG14 Argon & Argon/Carbon Dioxide Mix 90190 10 ft. 3/16″ ID Hose with 5/8”-18 RH (M) fittings at both ends
