Ball Valve Adaptors

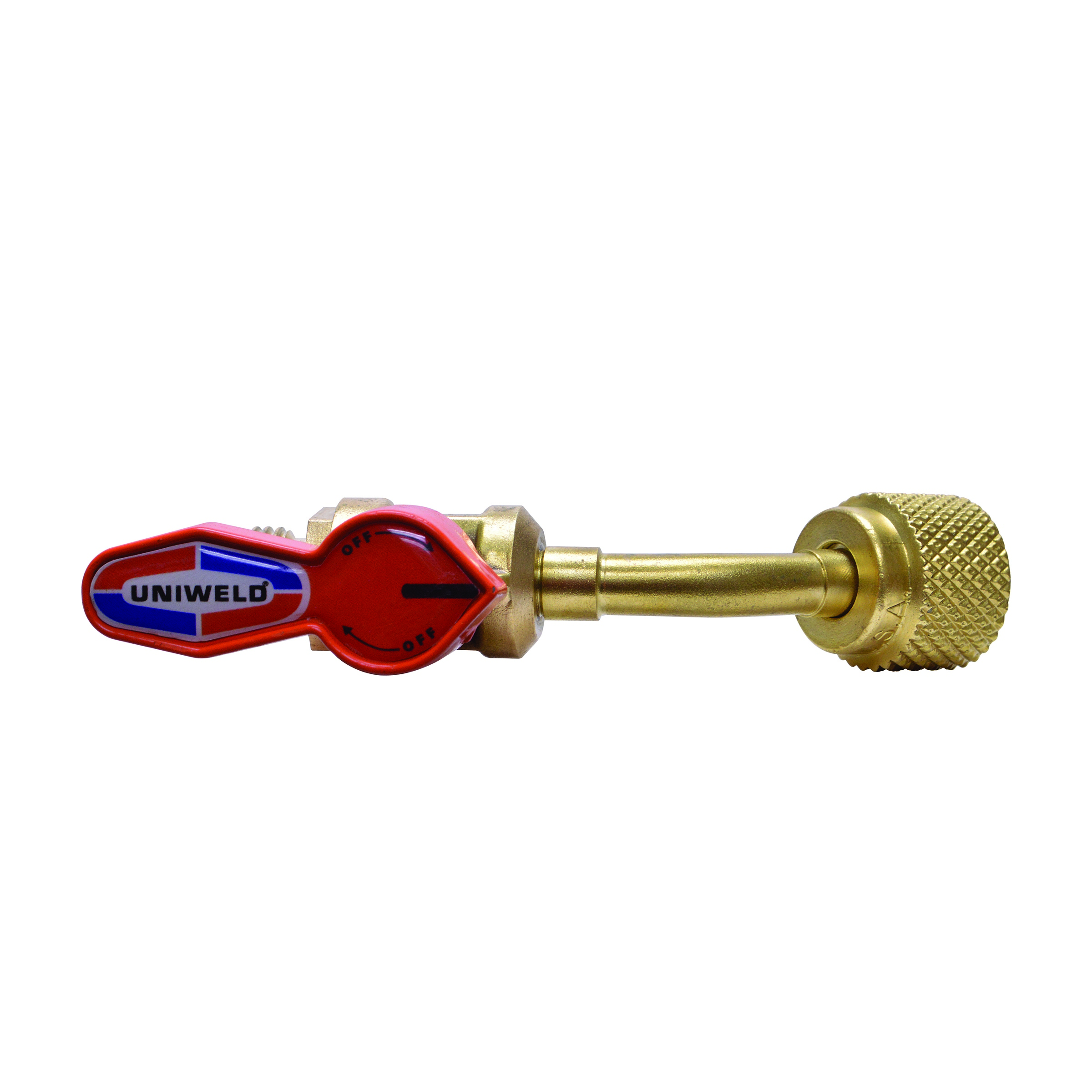

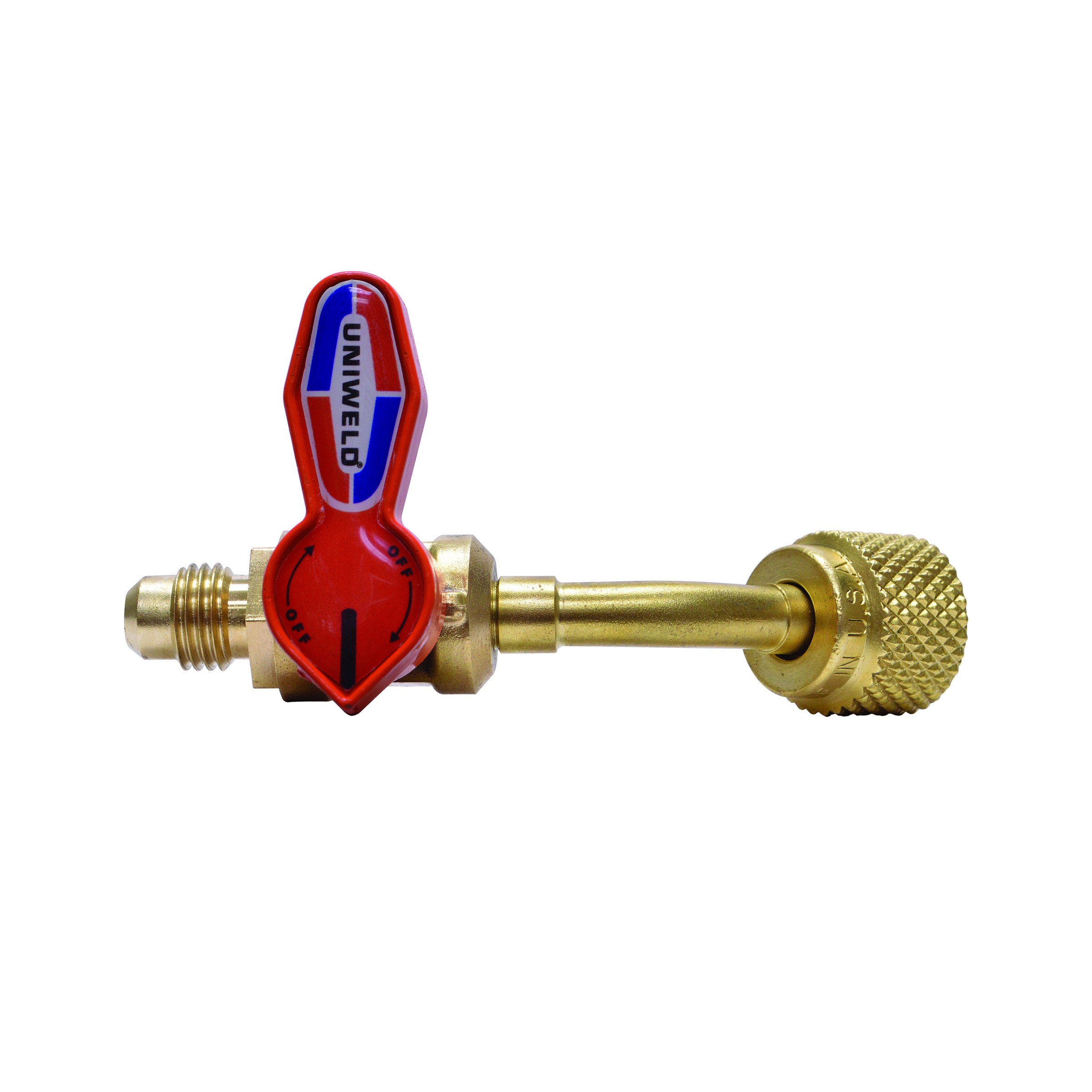

Inline or Panel Mount Ball Valve Adaptor
Minimize refrigerant loss by rotating valve to the closed position before disconnecting from the system. Recovery machine panel mount control valve.

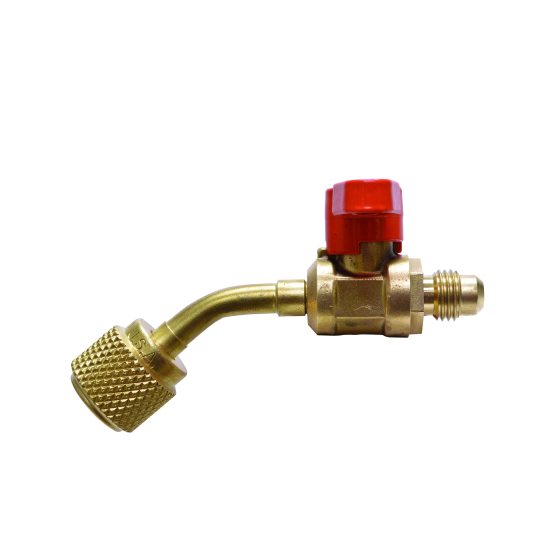

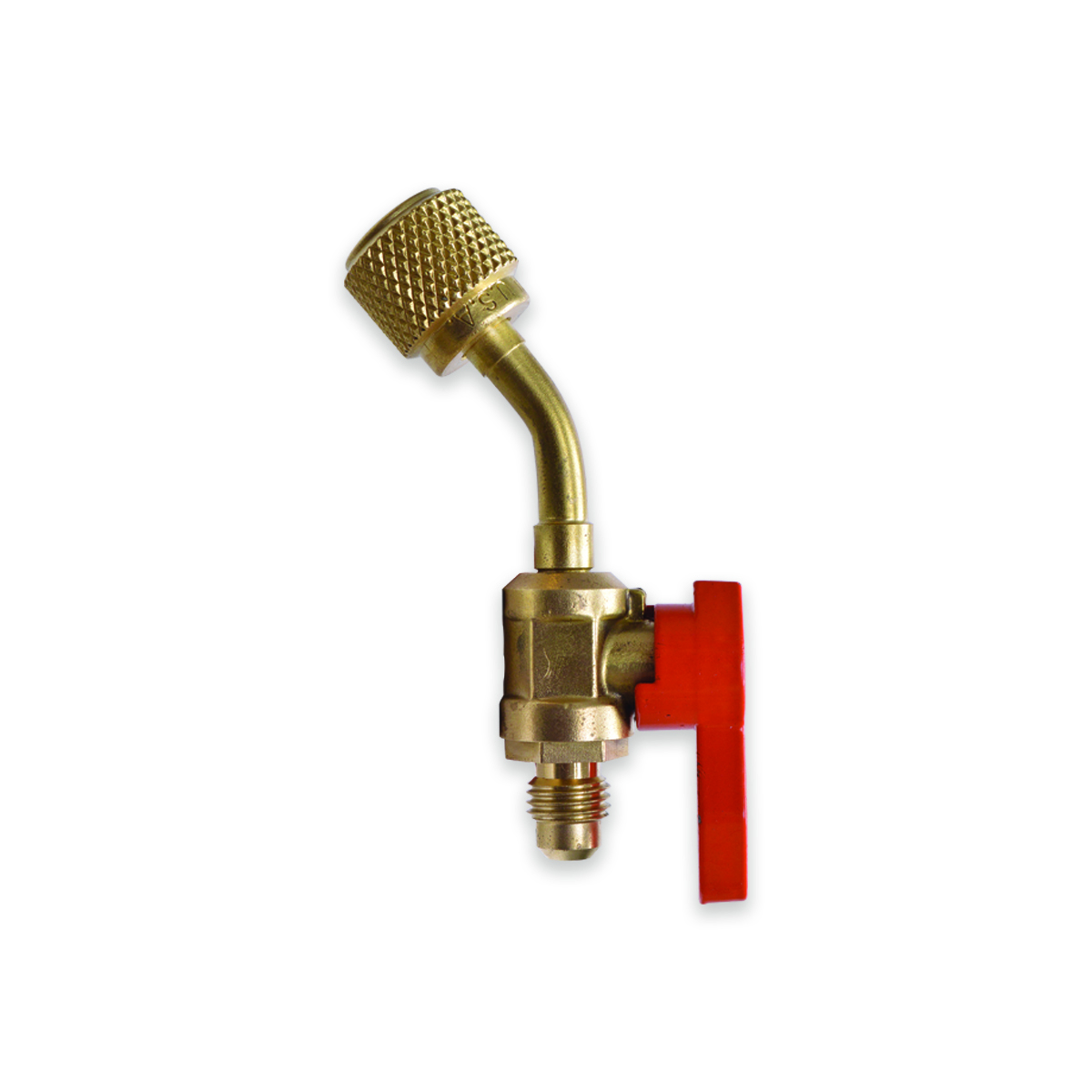

45° Bend Ball Valve Adaptor
Hose nut swivels 360° for easy access into confined work areas. Add to existing hose as control device.



Uniweld 20 Micron Rated UBV14 Ball Valve specifically for the HVAC/R industry that is rated for both vacuum and pressure with the following specifications and new features:

  • VACUUM RATED TO 20 MICRONS
  • MAXIMUM WORKING PRESSURE: 800 PSI
  • COMPACT DESIGN FOR TIGHT WORKSPACE
  • CAST METAL HANDLE
  • 1/4 TURN, FULL FLOW BALL VALVE
Category: Tags: , ,

Product Information

Part# Hose Length Color
H3BVR 36″ | 90cm Red
H5BVR 60″ | 150cm Red
H6BVR 72″ | 180cm Red
UBV146R 72″ | 180cm Red
H25BVR 25′ | 7.50m Red
H50BVR 50′ | 15.00m Red
H100BVR 100′ | 30.00m Red
H3BVY  36″ | 90cm Yellow
H5BVY  60″ | 150cm Yellow
H6BVY  72″ | 180cm Yellow
UBV146Y 72″ | 180cm Yellow
H25BVY 25′ | 7.50m Yellow
H50BVY 50′ | 15.00m Yellow
H100BVY 100′ | 30.00m Yellow
H3BVB 36″ | 90cm Blue
H5BVB 60″ | 150cm Blue
H6BVB 72″ | 180cm Blue
UBV146B 72″ | 180cm Blue
H25BVB 25′ | 7.50m Blue
H50BVB 50′ | 15.00m Blue
H100BVB 100′ | 30.00m Blue
H3BVS 36″ | 90cm Set
H4BVS 48″ | 120cm Set
H5BVS 60″ | 150cm Set
H6BVS 72″ | 180cm Set
UBV146S 72″ | 180cm Set

Replacement Parts
Part No. Description
21085 Service Connector Repair Kit Includes: [2] O-Rings and [1] Retainer Clip
