Automotive Manifolds

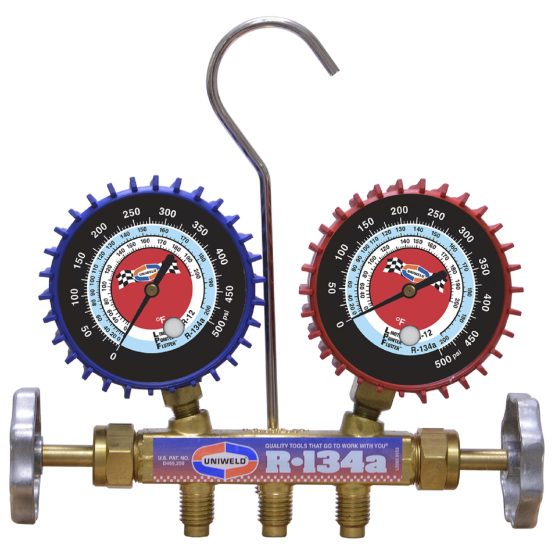

Uniweld’s Automotive 2-valve Brass Manifold has a solid forged brass body with metal hand wheels and a convenient hose holder. The larger R-134a/R-12 gauges are protected with color-coded gauge boots. Options include manual or automatic Service Couplers, Soft Magic® Hoses and either 2-1/2″ LPF™ or 3-1/8″ NPF® Gauges. The Automotive anodized aircraft Aluminum Block Manifold features a large optical sight glass for monitoring refrigerant. High and low side brass valves provide precision control. Optional manual or automatic Service Couplers available with either 2-1/2″ LPF™ or 3-1/8″ NPF® gauge Manifolds.

Product Information

Part # Gauges Hose Set Length Soft Magic® Hoses Manual Couplers Soft Magic® Hoses Auto Couplers Refrigerant Type

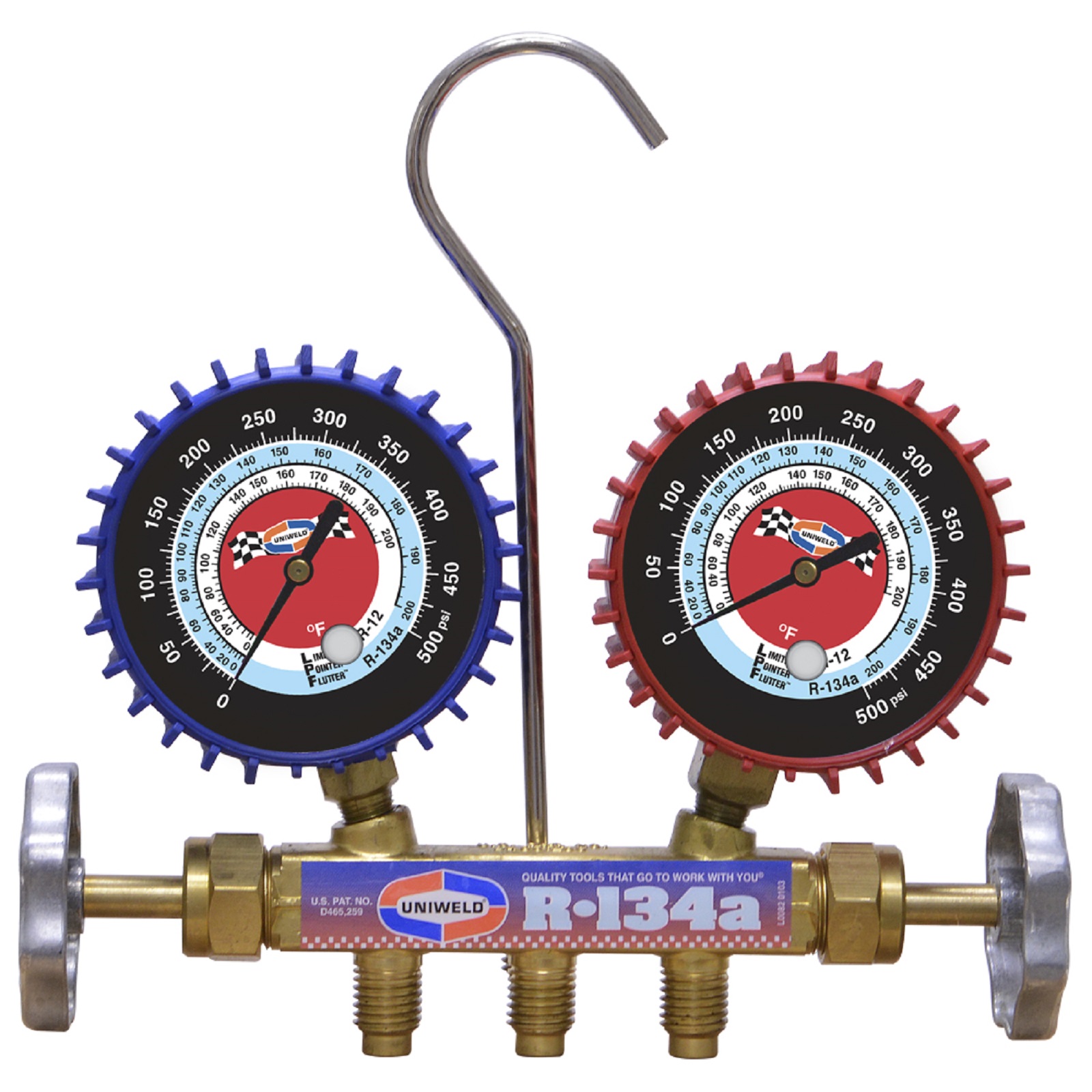

47827 2-1/2″ LPF™ 36″ [90cm] 60″ [150cm] 72″ [180cm] 96″ [240cm] 47850 47851 47852 47853 48050 48051 48052 48053 R-134a/R-12 Brass

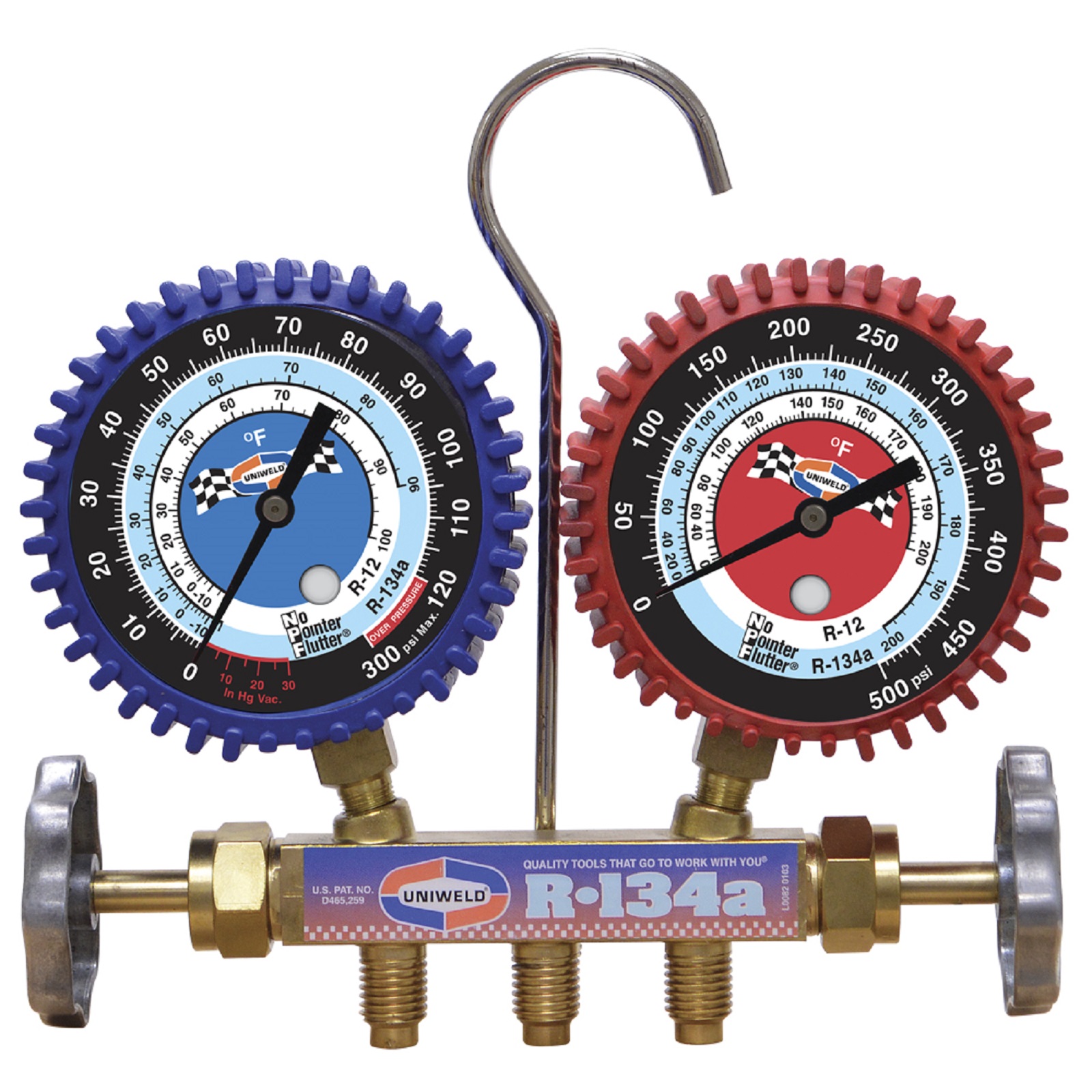

48800 3-1/8″ [80mm] NPF® 36″ [90cm] 60″ [150cm] 72″ [180cm] 96″ [240cm] 48851 48852 48853 48854 48801 48802 48803 48804 R-134a/R-12 Brass

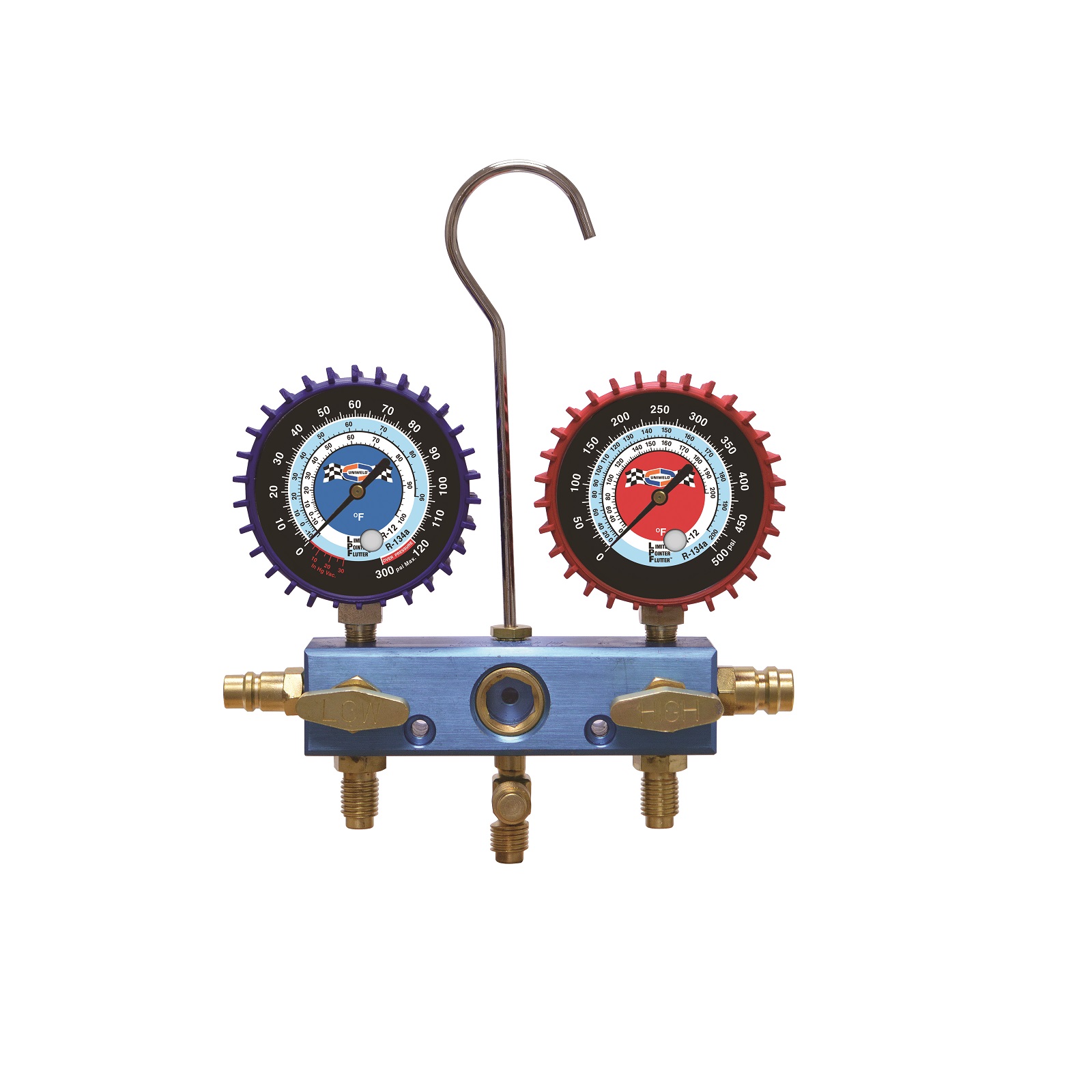

90000 2-1/2″ LPF™ 36″ [90cm] 60″ [150cm] 72″ [180cm] 96″ [240cm] 90007 90008 90009 90010 90750 90751 90752 90753 R-134a/R-12 Aluminum
91600 3-1/8″ [80mm] NPF® 36″ [90cm] 60″ [150cm] 72″ [180cm] 96″ [240cm] 91651 91652 91653 91654 91601 91602 91603 91604 R-134a/R-12 Aluminum

*48075 Manifold with [2] 3 ft., [1] 5 ft. Soft Magic® hoses and automatic couplers. *48805 Manifold with [2] 3 ft., [1] 5 ft. Soft Magic® hoses and automatic couplers. Note: R-12 service connectors are not included.

Additional information

Automotive Replacement Gauges

R-134a and R-12 PSI°F with color coded gauge boots on large easy to read dials
•G9LAD: 2-1/2" LPF™ 0-500 PSI
•G10LAD: 2-1/2" LPF™ 30" -Hg-120 PSI, 300 PSI Overpressure
•G409NSAD: 3-1/8" NPF® 0-500 PSI
•G410NSAD: 3-1/8" NPF® 30" -Hg-120 PSI, 300 PSI Overpressure
